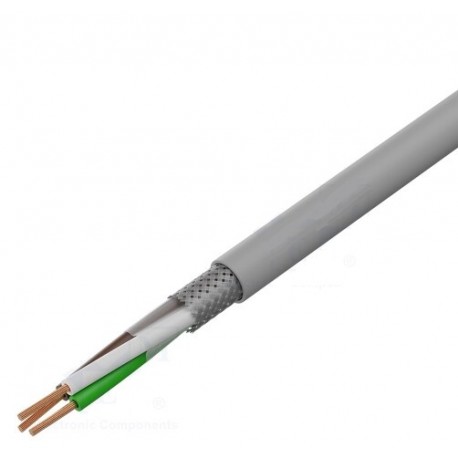

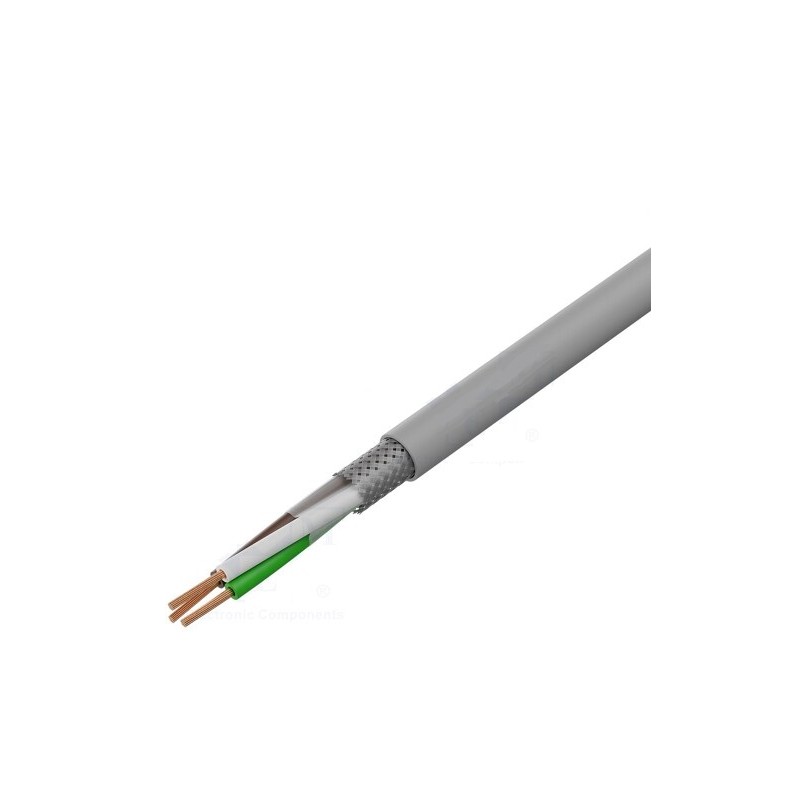

Automatikos kabelis LiYCY 3x0,5mm2 (PVC ekranuotas daugiagyslis/lankstus) (1m)

Technical data
• PVC data cable adapted to DIN VDE 0812
• Temperature range
flexing –5°C to +80°C
fixed installation –40°C to +80°C
• Operating peak voltage
300/300 V
(not for heavy current installation purposes)
• Test voltage
core/core 1200 V
core/screen 800 V
• Breakdown voltage
min. 2400 V
• Capacitance at 800 Hz
core/core ≈ 150 pF/m
core/screen ≈ 270 pF/m
• Inductance
approx. 0,65 mH/km
• Impedance
approx. 78 Ohm
• Coupling resistanc
max. 250 Ohm/km
• Minimum bending radius
flexing: 10x cable ∅
fixed installation: 5x cable ∅
