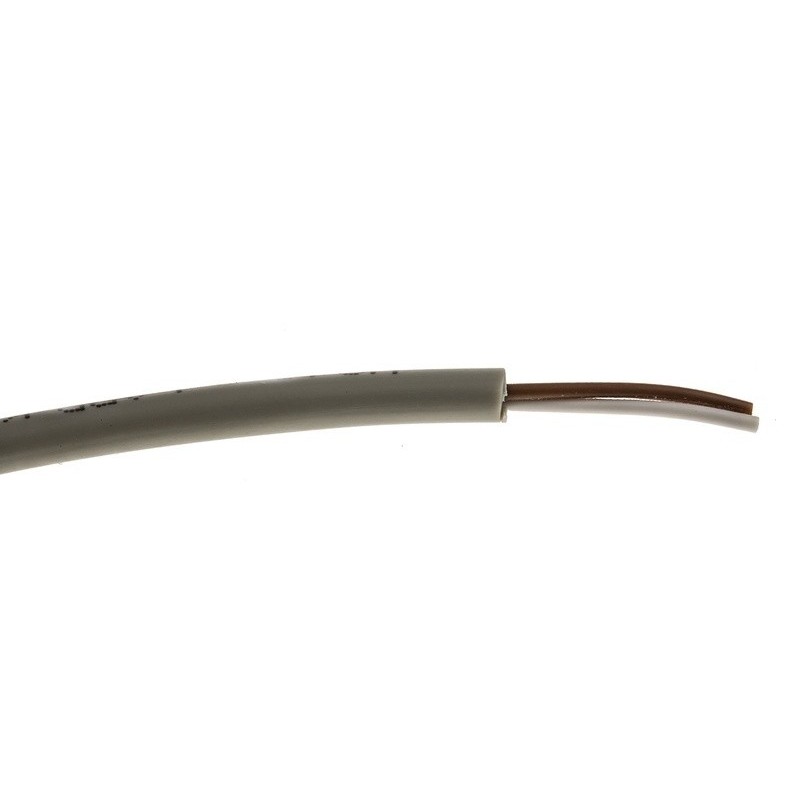

Automatikos kabelis LiYY 2x0,14mm2 (PVC daugiagyslis/lankstus) (1m)

Technical Data
Classification: ETIM 5.0 Class-ID: EC000104
ETIM 5.0 Class-Description: Control cable
Core identification code: DIN 47100 without colour repetition, refer to Appendix T9
Mutual capacitance: Approx. 120 nF/km
Peak operating voltage: (not for power applications)
at 0.14 mm²: 350 V
at ≥ 0.25 mm²: 500 V
Inductivity: approx. 0.65 mH/km
Conductor stranding: Stranded, fine-wire
0.34 mm²: 7-wire
Minimum bending radius: Occasional flexing: 10 x outer diameter
Fixed installation: 4 x outer diameter
Test voltage: At 0.14 mm²: 1200 V
Temperature range: Occasional flexing: -5°C to +70°C
Fixed installation: -40°C to +80°C
