Tik internetu
d1732
Nauja prekė
Grafinis elektroninio popieriaus ekrano modulis su ESP32 valdikliu. Elektroninio popieriaus ekranuose vaizdas išlieka net ir atjungus maitinimą. ESP32 valdiklis užtikrina ryšį su WiFi tinklu naudojant integruotą ar išorinę anteną. Taip pat yra microSD kortelės lizdas ir integruotas ličio baterijų kroviklis. DĖMESIO! Reikalingas T-U2T downloader'is d1733
Prekių kiekis mūsų sandėlyje: 10
Dėmesio: Paskutinės prekės!
Pasiekiama:
Suderinama su Arduino™ ir *duino | Taip |
Nominali darbinė įtampa | 3,3V |
Maitinimo įtampa | 2,8 - 5,3 V |
SRAM atminties kiekis | 8Mb PSRAM |
Dažnis | full:2s (galimas ir partial) refresh |
Jungties žingsnis | 2,54mm |
Jungties tipas | Male (vyr.) |

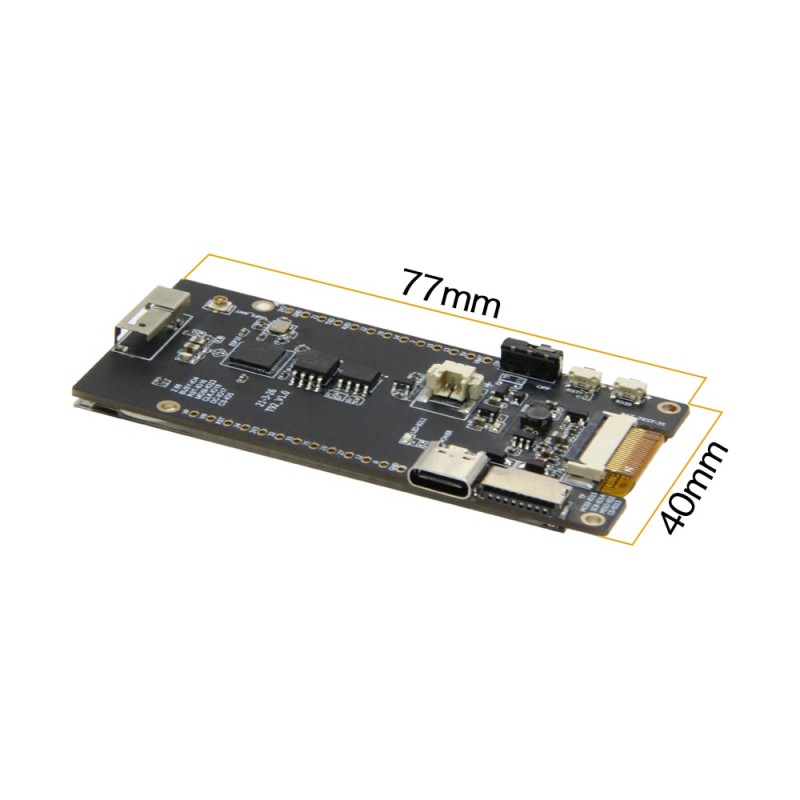

Matmenys | 79 x 38 x 9 mm |
Spalvos | Juoda |
LCD dydis | 296x152 2,66" (appr. 61 × 32 mm) |
Pagrindinės funkcijos grandynas | DEPG0266BN, ESP32, 25Q32BSSIG |
Budėjimo režimu naudojama srovė | 0 mA (mažiau nei 0,012 uA) |
Galia | 26,4 mW |
Apšvietimo kampas | 170 lpsn. stebėjimo kampas |

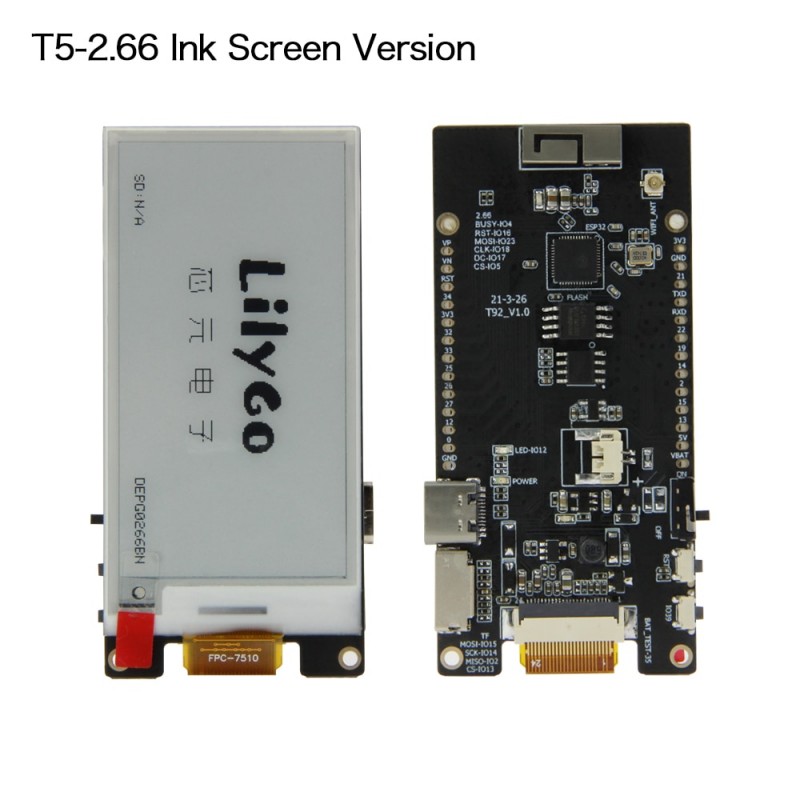

Continuing the design of T5-2.13 inch version, adding PSRAM, with TF card slot, power switch, custom buttons, 3D antenna, hiding the GPIO extension pins on both sides, For example, when soldering pin headers, you need to remove the screen first.
This product is also compatible with the T-U2T automatic downloader (CH340K, Currently only compatible with Windows, Mac systems of 10.15 and below).
Overview
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Features
· No backlight, keeps displaying last content for a long time even when power down
· Ultra low power consumption, basically power is only required for refreshing
· Comes with development resources and manual (examples for Arduino-esp32)

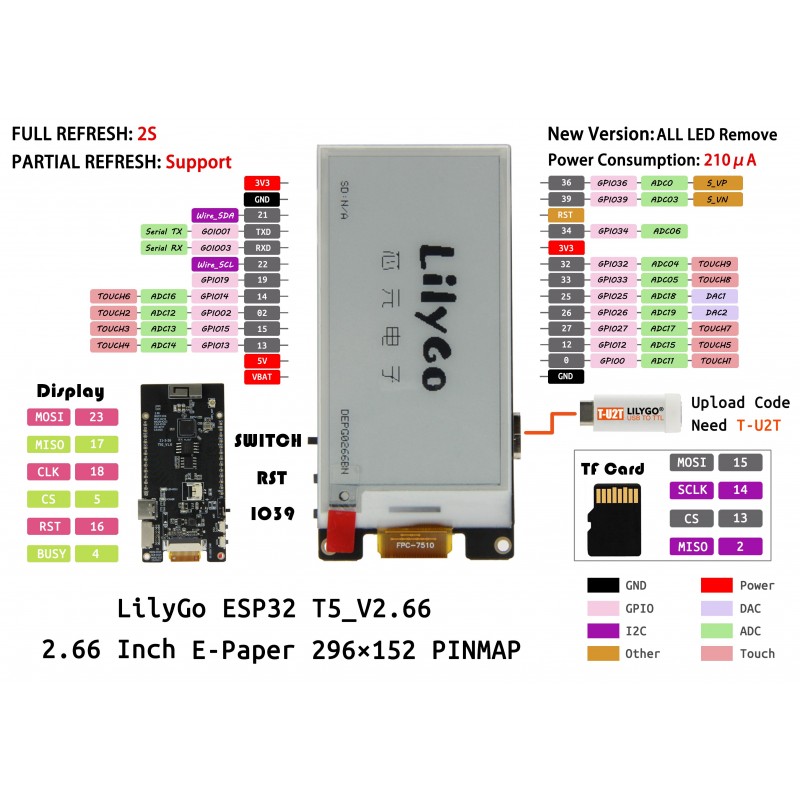

Specifications
-2.66 inch e-paper resolution: 296X152
-ESP32-D0WDQ6-V3
-8MB PSRAM
-TP4054 battery charge and discharge chip
-IO39 custom buttons
-RST button
-TF card socket
-Type-C USB for T-U2T
-IPX antenna base (3D antenna is used by default)
-Power toggle switch
-3D antenna
