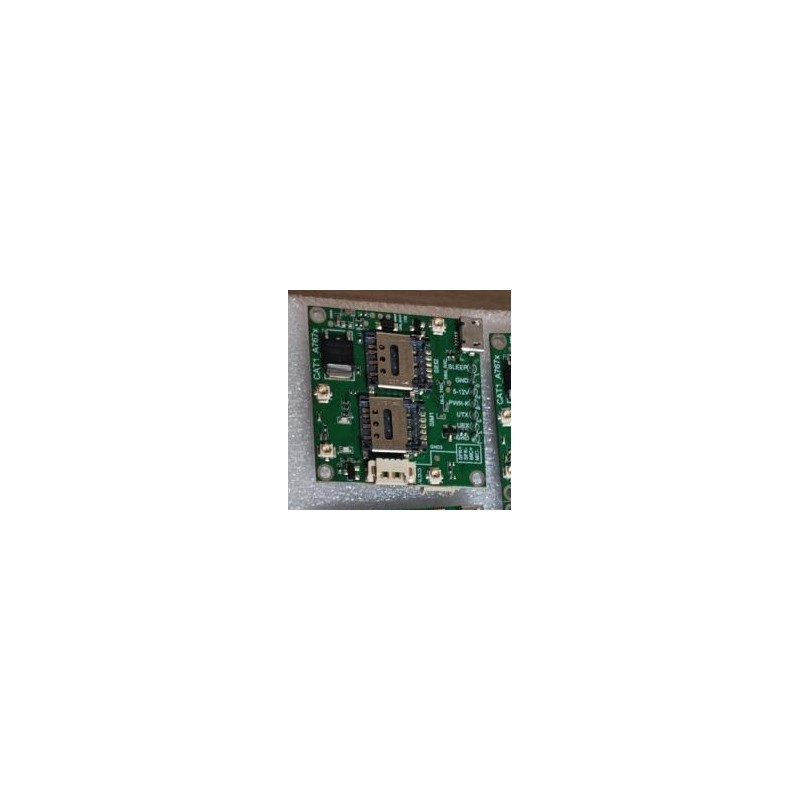

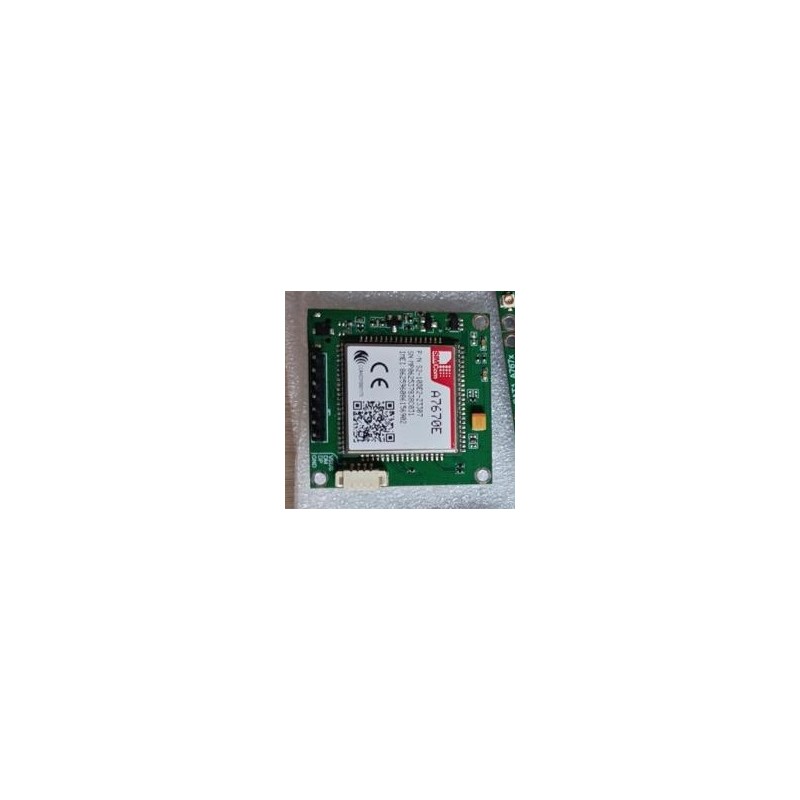

LTE Cat1 ir 1G/2G modulis A7670E-LASE su PCB antena

Prekės kodas: d6623

Būklė: Nauja prekė

Šis modulis palaiko dažnių juostas naudojamas Europoje, todėl yra tinkamas naudoti ir Lietuvoje. Turi ne tik LTE cat1 jungiamumą, tačiau ir 2G Komplekte yra priklijuojama PCB antena. LASE versija optimizuota duomenų perdavimui, tačiau turi ir balso perdavimo galimybes.

Smulkiau

Šiuo metu prekės neturime

Spausdinti

Charakteristikos

Suderinama su Arduino™ ir *duino	Taip
Maitinimo įtampa	5V - 16V
Dažnis	B1, B3, B5, B7, B8, B20, 900/1800 MHz
Jungties žingsnis	2,54mm
Jungties tipas	Male (vyr.)
Matmenys	37 x 37 x 13 mm (be antenos)
Komunikacijų sąsajos	UART ir microUSB
Naudojami mikrovaldiklio prievadai	2vnt. UART (TX, RX) + iki 2 skaitmeninių I/O
Naudojama srovė	skirtingai 2G ir LTE atvejams

Apie prekę

The A7670 series is the LTE Cat 1 module which supports wireless communication modes of LTE-TDD/LTE-FDD/GSM/GPRS/EDGE. It supports maximum 10Mbps downlink rate and 5Mbps uplink rate.

The A7670 series adopts LGA form factor and is compatible with SIM7000/SIM7070 series(NB/Cat Modules), and SIM800A/SIM800F(2G modules), which enables smooth migration from 2G/NB/Cat M products to LTE Cat 1 products, and greatly facilitates more compatible product design for the customer needs.

The A7670 series supports multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7500/SIM7600 series modules. Meanwhile the A7670 series integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces suchas UART, USB, I2C, GPIO, which is suitable for main IOT applications such as telematics, surveillance devices, POS, industrial routers, and remote diagnostics etc.

Advantages

- Small size LTE Cat 1 module.

- LGA form factor with abundant interfaces.

- Suitable for LTE and GSM networks.

- Abundant software functions: FOTA, LBS, SSL.

- The form factor of A7670 series are compatible with the SIM7000/SIM7070 series.
