Kaitinimo plokštė RepRap Prusa 214x214 mm 12/24V

Prekės kodas: d0669

Būklė: Nauja prekė

3D spausdintuvuose naudojama ruošinio šildymo plokštė. Gali būti maitinama 12 arba 24V įtampa. Spalva (juoda/raudona siunčiama atsitiktinai (galima nurodyti pageidavimus komentaruose).

Smulkiau

Prekių kiekis mūsų sandėlyje: 20

Spausdinti

Charakteristikos

Suderinama su Arduino™ ir *duino	Taip
Nominali darbinė įtampa	12V arba 24V
Matmenys	214 x 214 mm
Galia	120W
Varža	apytiksliai: 1/1,2 om

Apie prekę

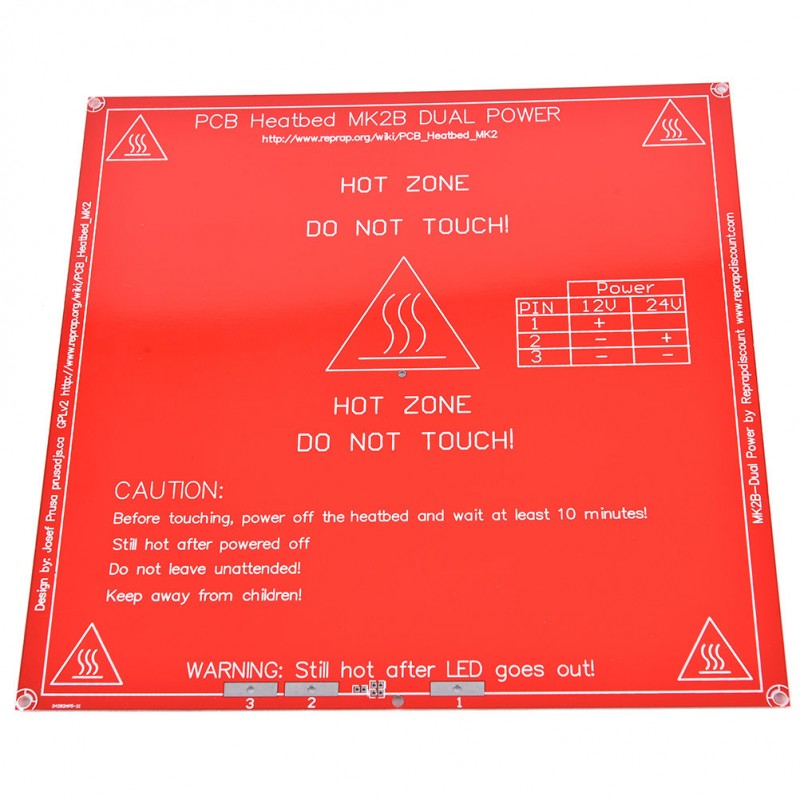

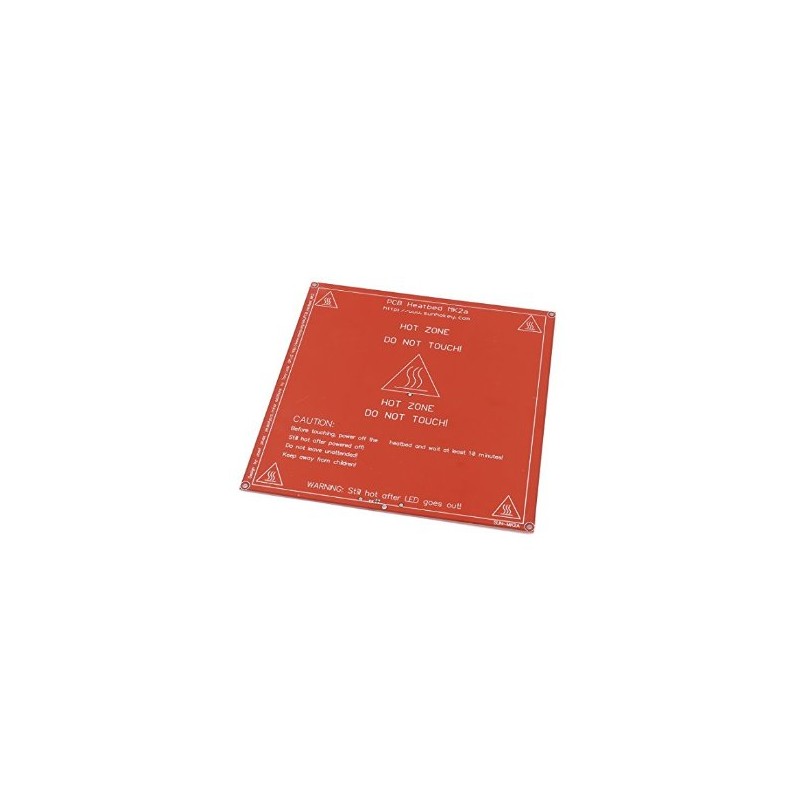

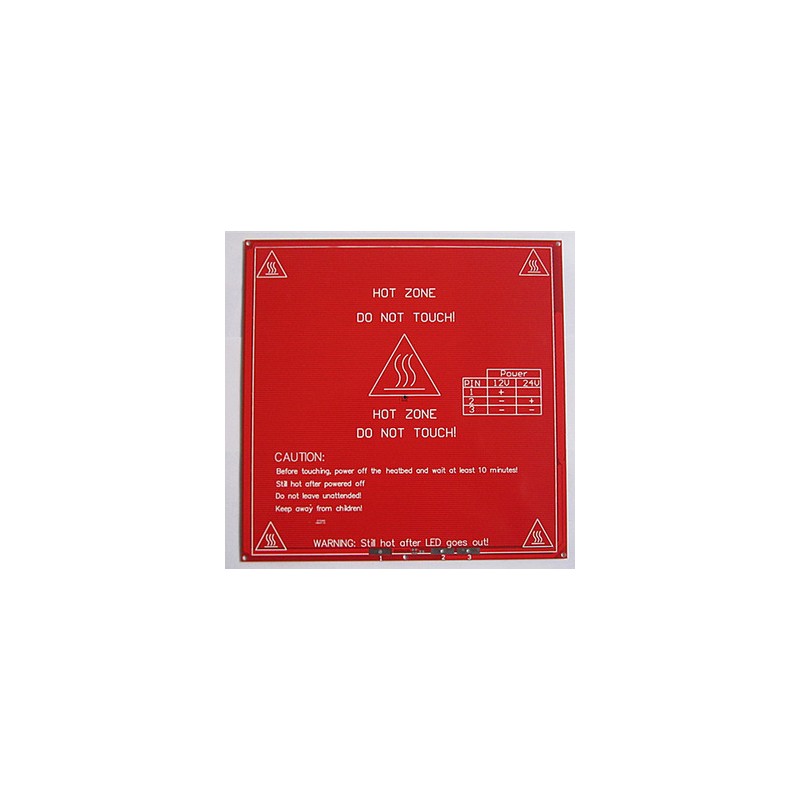

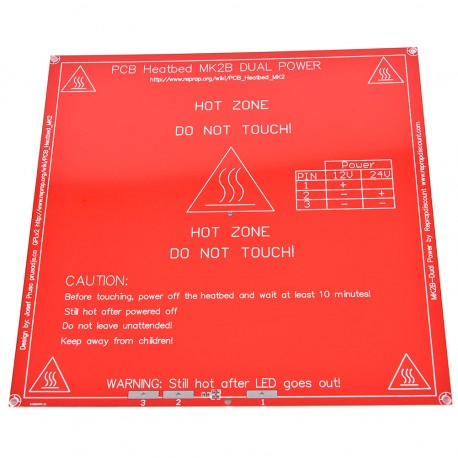

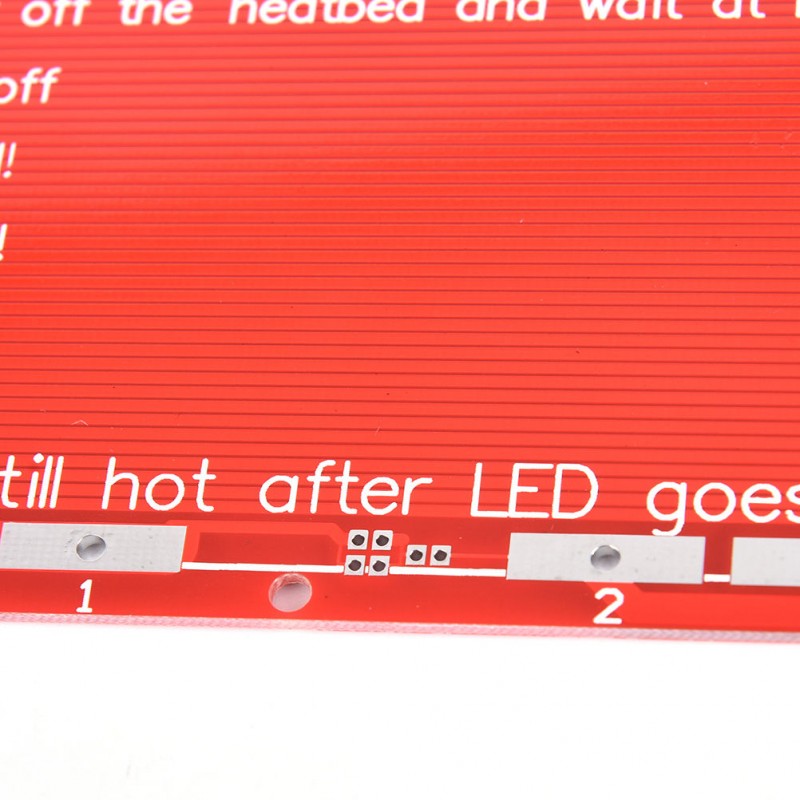

Dimensions (Outer): 214mm x 214mm

Dimensions (Heat Bed): 200mm x 200mm

Laminate FR4 1.6±0.15mm

2 Layer, 35μm Copper

Power Input: 12V/24V DC

Copper Plated Holes

This heatbed is designed to be compatible with any 3D printer that can accept the RAMPS MK2B version of heatbed. This heatbed has a dual power capability allowing it to be used with 12V or 24V power supply sources. It features a central mounting hole on the front side to allow for three point mounting. This is much easier for bed levelling in comparison to 4 point mounting. First level the side with two holes and fix in place, then level the side with one hole. A glass plate is highly recommended to provide a truly flat surface and rigidity.
