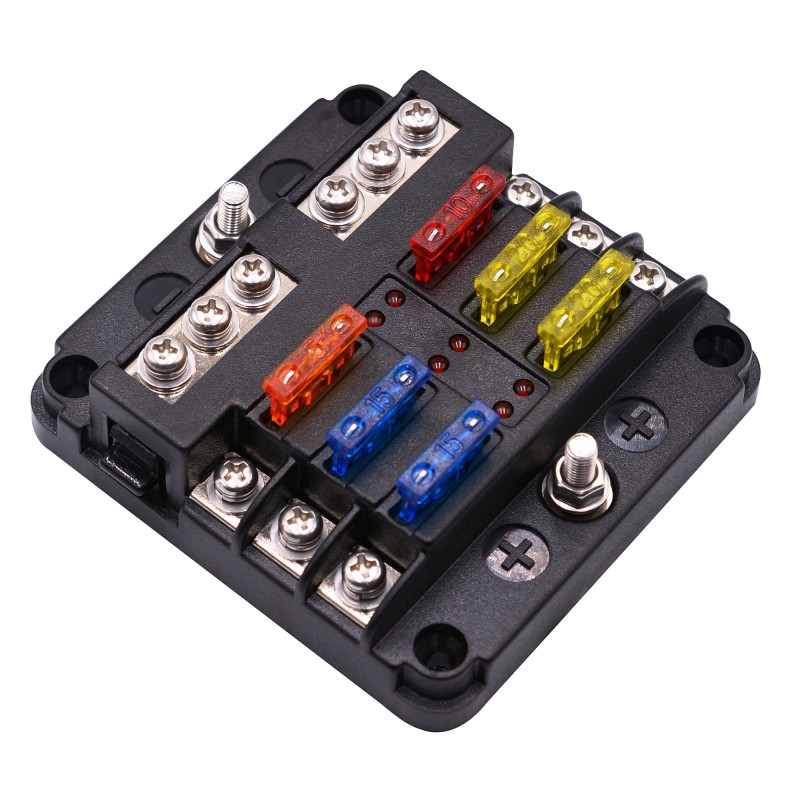

Saugiklinė 6 saugikliams (komplekte 12 saugiklių)

1. The product is made of PBT, flame-retardant, high-low temperature and environmentally friendly materials, which fully meet [the fuse holder must have good mechanical strength, insulation, heat resistance and flame resistance, and should not be broken, deformed, burned and short circuit, etc.] conditions

2. All bus bars and fuse clips are nickel plated copper for corrosion resistance and optimum conductivity

3. All fasteners are made of stainless steel, the input and output ends of the fuse box are fixed with tightening screws, which can be installed more quickly, and the fuse box is fixed with self-tapping screws, which is easier and safer to install.

4. The product has a red LED indicator design, which corresponds to the electrical appliances connected to each fuse strip. When the fuse is disconnected, the red light will be on. You can immediately know which fuse is broken, and it is convenient to deal with it in time.

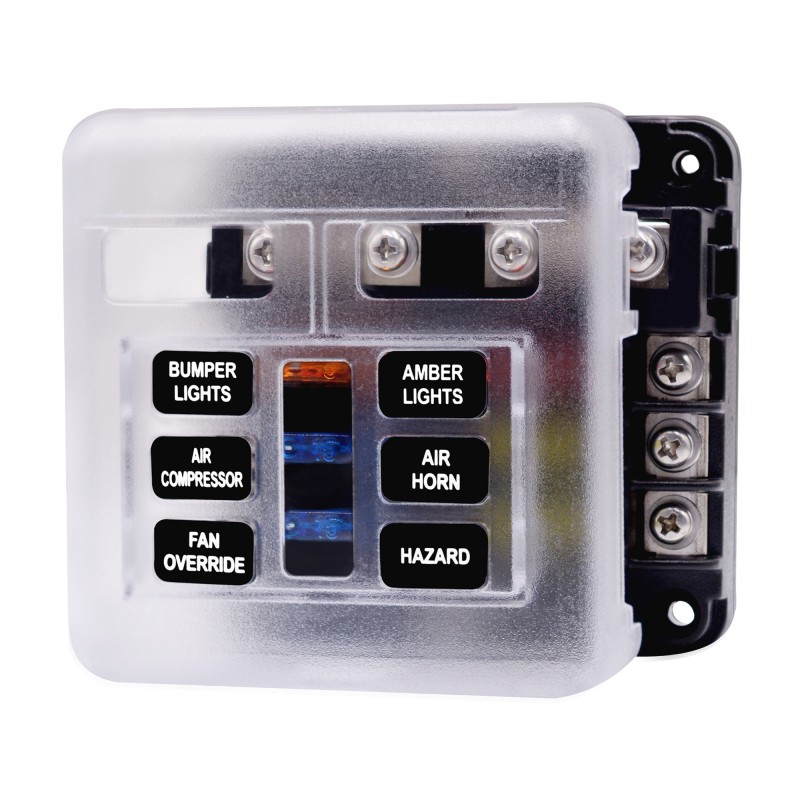

5. The product comes with a sticker, which can be attached to the electrical appliance we connect according to the name on the sticker. When the fuse is broken and the red light is on, we can immediately identify which electrical appliance has a problem. save time and energy

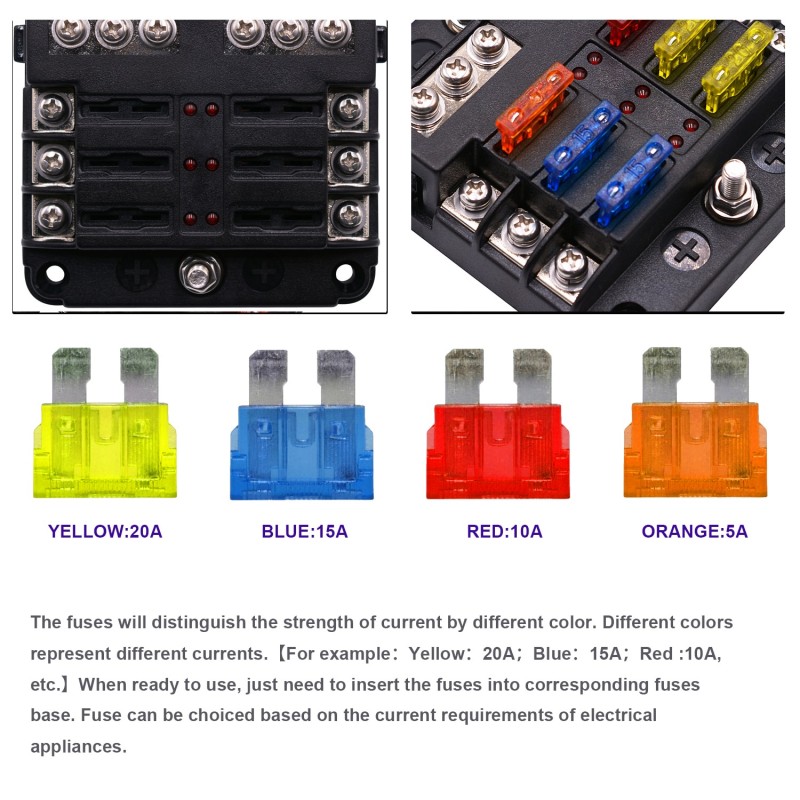

6. The product is delivered with double fuses. When applied, the fuse is burned out and can be replaced from the spare fuse immediately, and the fuse has sent multiple amps. The fuse for amps can be selected according to the current electrical appliance.

Product material: PBT body, PC waterproof and dustproof cover, nickel-plated copper connection terminal, PPX40 sticker

Input rated voltage: 32V

Input rated current: 100A

Maximum output current: 30A per circuit

Indicator color: red

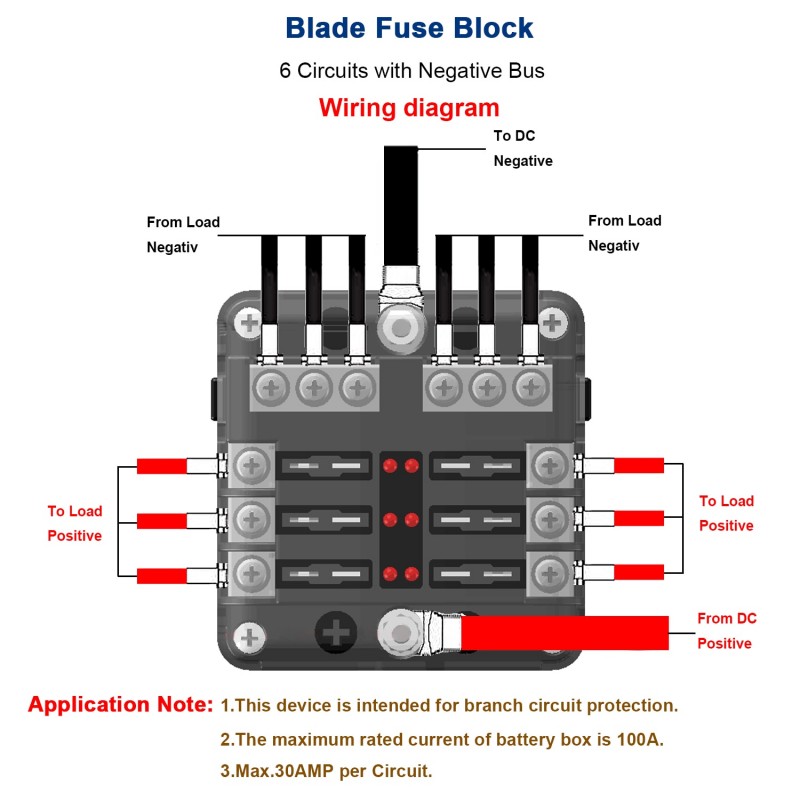

Main line terminal: M5 threaded stud

Main Wire Wire: #4-6

Single wire terminal: M4 threaded stud

Single wire conductor: #12-16

Indicator function: When the red LED light is on, it means that the fuse has been disconnected, and the fuse needs to be replaced in time to continue running.

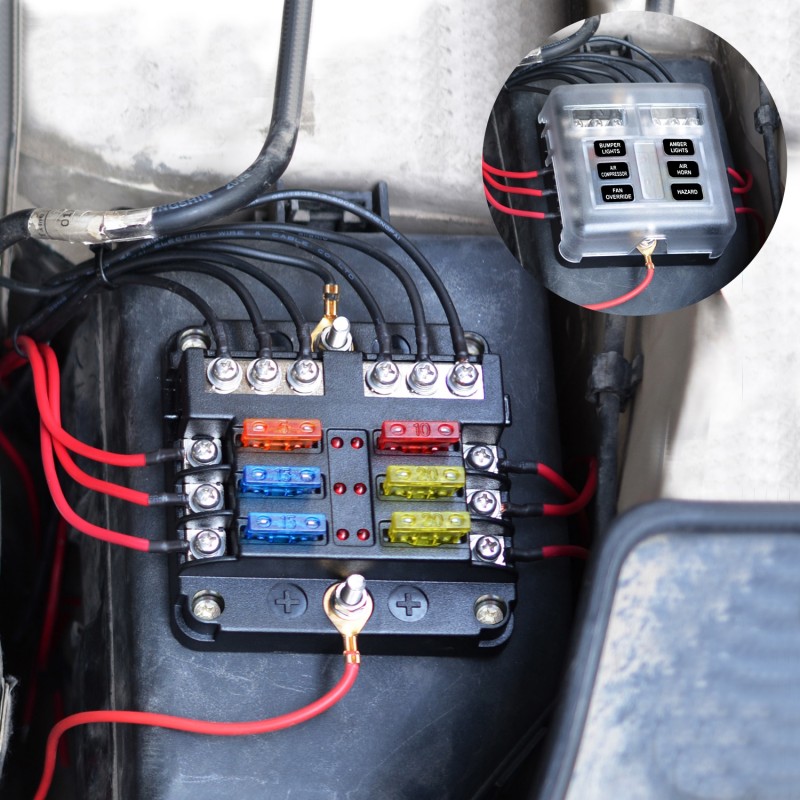

Product installation range: It can be installed on cars, off-road vehicles, RVs, buses, yachts, boats, etc.

Scope of product use: It can be directly connected to the line of any electrical appliance on the car/ship [such as: dome light, car headlight, width light, fog light, warning light, car refrigerator, car charger, car fan, car TV, etc.]

Fuse function: When the circuit fails or is abnormal, the current is continuously increased, and the increased current may damage some important or valuable components in the circuit, and may also burn the circuit or even cause a fire.

Fuses protect electronic equipment from overcurrent and also prevent serious damage to electronic equipment caused by internal failures.

Each fuse has a rating and will blow when the current exceeds the rating.

If the fuse is correctly placed in the circuit, the fuse will cut off the current when the current abnormally rises to a certain height and temperature, thus protecting the safe operation of the circuit.

【6 Ways Fuse Box:】

Product Net Weight: 176g

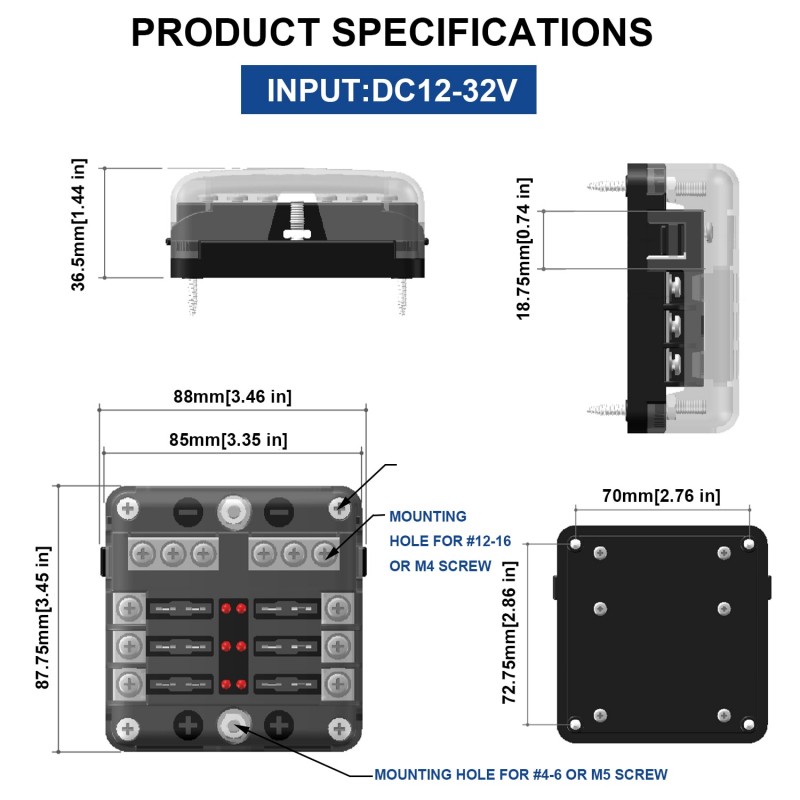

Product size: 87.75*85*36.5mm

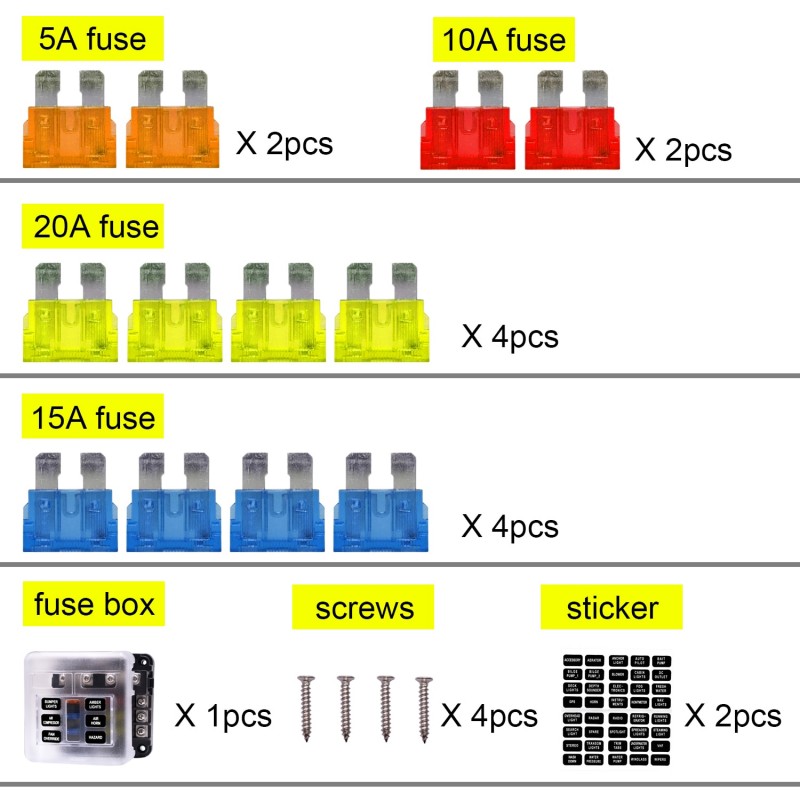

Product accessories: sticker X2; self-tapping screw X4; 20A fuse X4; 15A fuse X4; 10A fuse X2; 5A fuse X2
