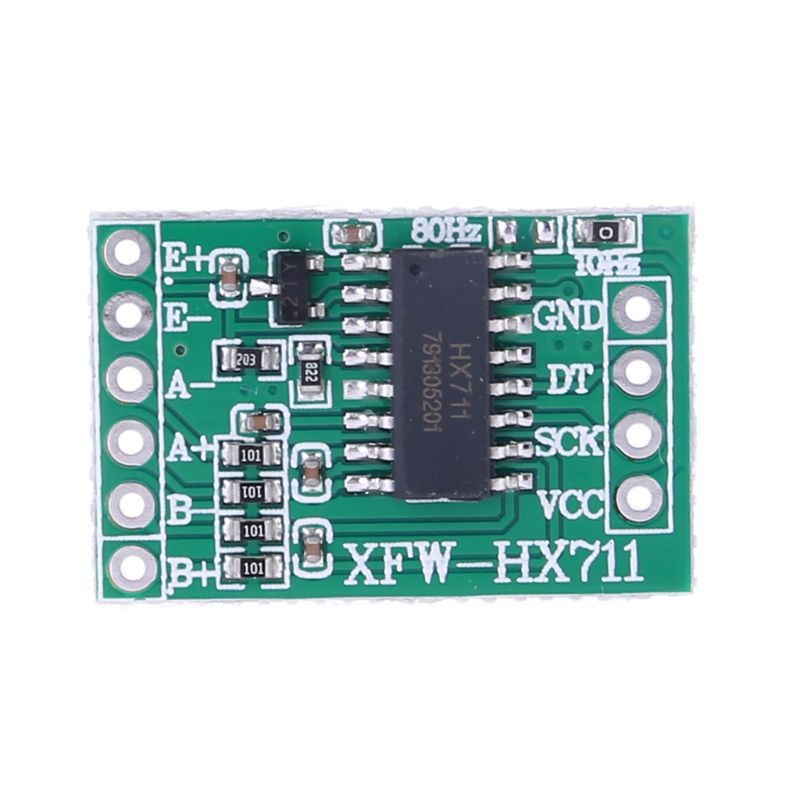

ADC modulis svarstyklėms HX711

*Two selectable differential input channels
*On-chip active low noise PGA with selectable gain of 32, 64 and 128
*On-chip power supply regulator for load-cell and ADC analog power supply
*On-chip oscillator requiring no external component with optional external crystal
*On-chip power-on-reset
*Simple digital control and serial interface: pin-driven controls, no programming needed
*Selectable 10SPS or 80SPS output data rate
*Simultaneous 50 and 60Hz supply rejection
*Current consumption including on-chip analog power supply regulator: normal operation < 1.5mA, power down < 1uA
*Operation supply voltage range: 2.6 ~ 5.5V
*Operation temperature range: -40 ~ +85℃
*Size 35mmx20mm
