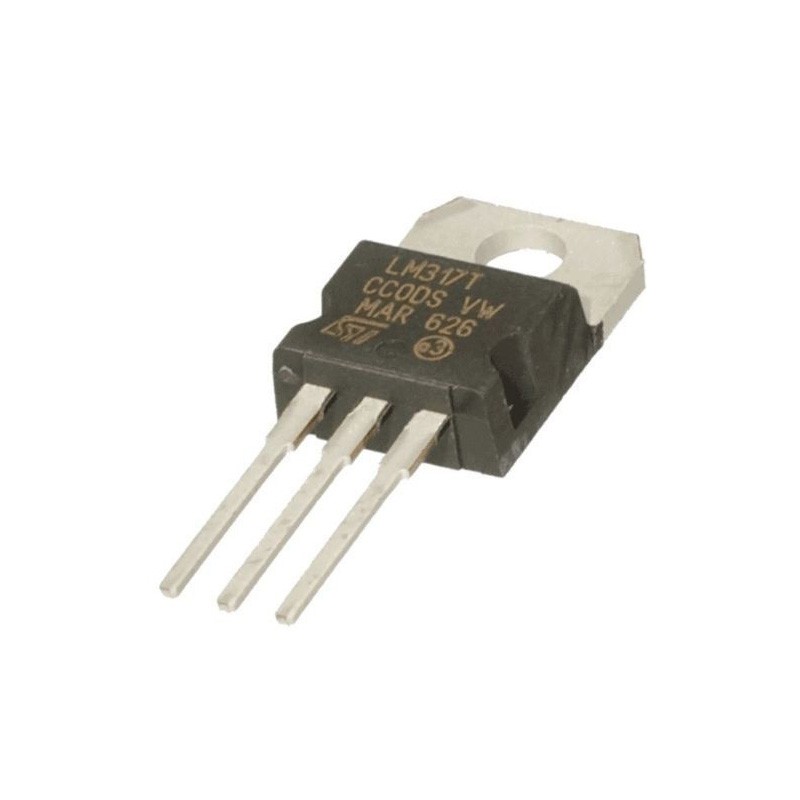

LM317T įtampos reguliatorius

Features:
Current: 1.5A
Regulator Topology: Adjustable
Regulator Type: Linear
Output Voltage: 1.25-37V
Feature: Output Voltage Adjustable

No. of Outputs: 1
No. of Pins: 3
Operating Temperature Range: 0°C to +125°C
SVHC 2: No SVHC
Voltage Regulator IC Case Style: TO-220
Min Temperature Operating: 0°C
Max Operating Temperature: 125°C
Case Style: TO-220
Base Number: 317
Device Marking: LM317T
IC Generic Number: 317
Max Adjustable Output voltage: 37V
Max Input Voltage: 40V
Max Output Current: 1.5A
Max Output Voltage: 37V
Max Supply Voltage: 40V
Min Adjustable Output Voltage: 1.2V
Min Input Voltage: 4.2V
Min Output Voltage: 1.2V
Operating Voltage Tolerance +: 4%
Termination Type: Through Hole
Voltage Regulator Type: Positive Adjustable
Output Voltage: up to 37V
