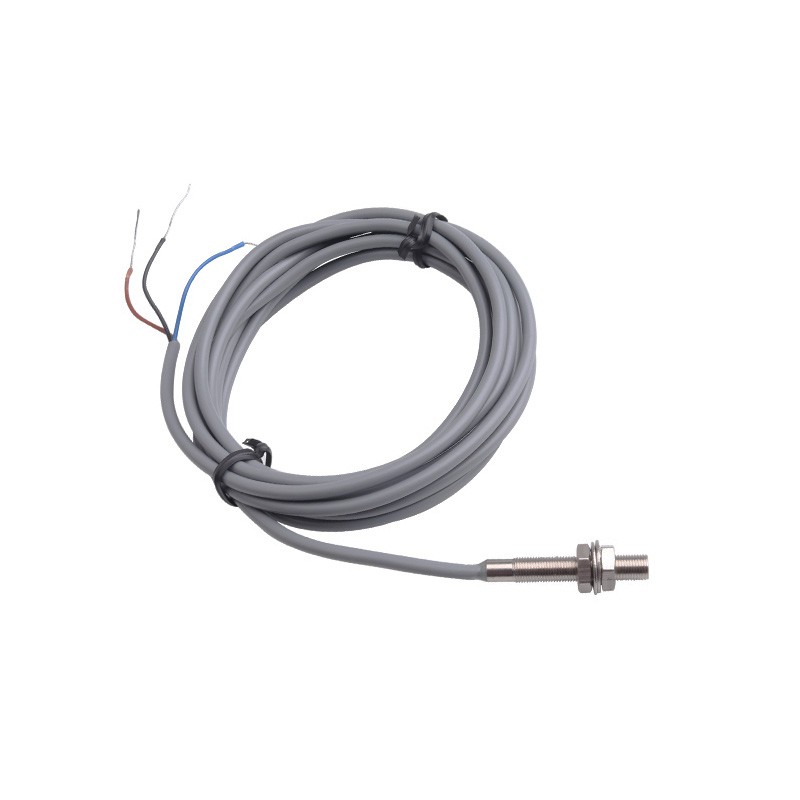

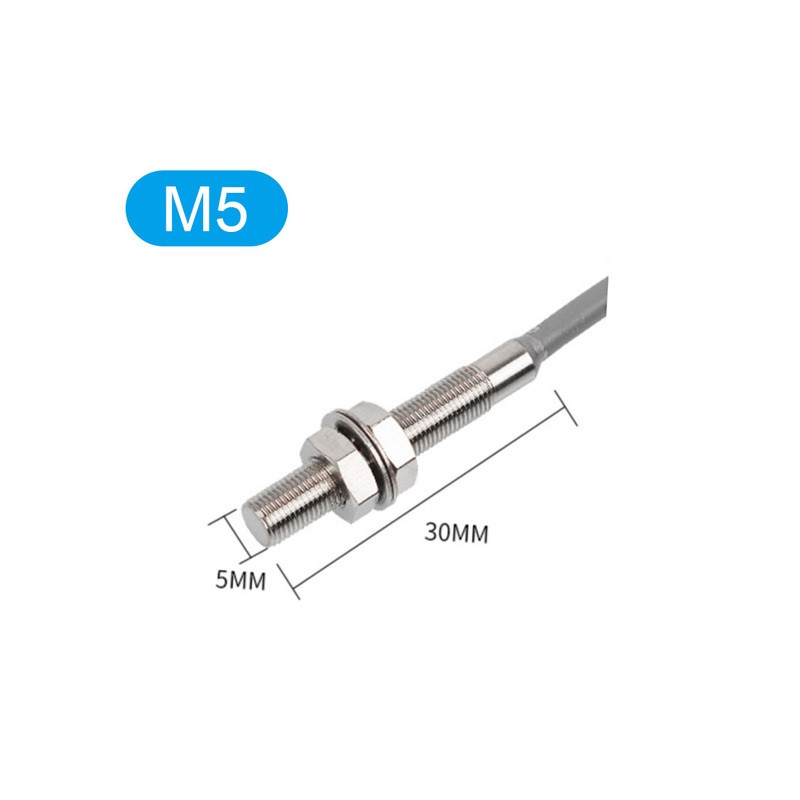

Indukcinis priartėjimo jutiklis BR0.8-PS5GM-E1 (NPN NC) (M5)

Sensing distance: 1mm

Load current: 100mA

Working voltage: 10-30VDC

Response time: ＜ 0.5ms

Protection grade: IP65

Operating frequency: 1kHz

Operating temperature: - 25 ℃ ~ 70 ℃

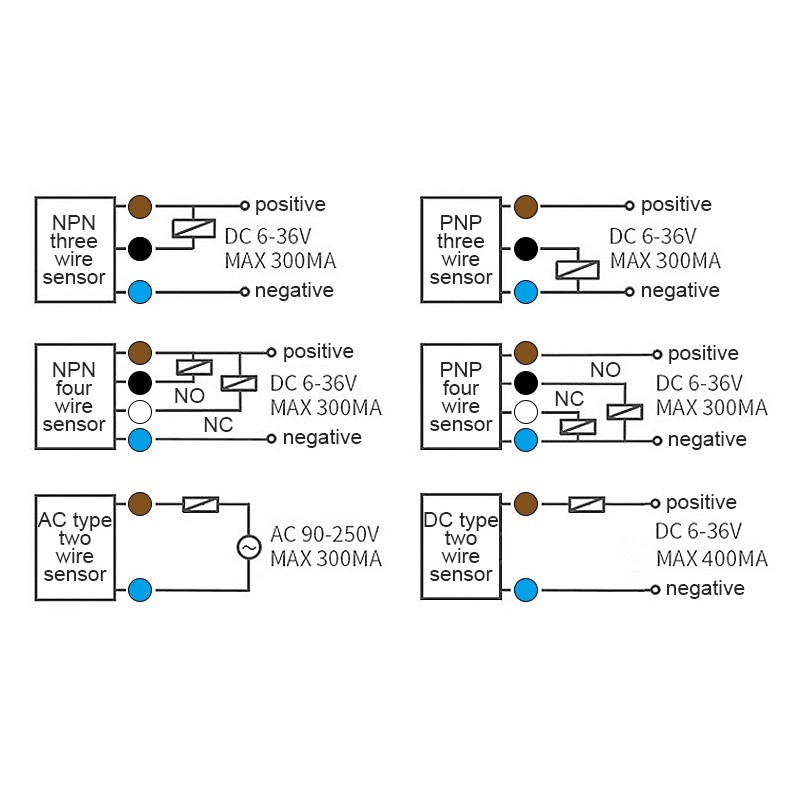

NPN:

indicates common positive voltage and output negative voltage

PNP:

indicates common negative voltage and outputs positive voltage

NPN NO:

Normally, it is normally open. When materials are detected, the black line outputs a negative voltage signal

NPN NC:

Normally, it is normally closed, and the black line outputs negative pressure signal. When the material is detected, the signal is disconnected

PNP NO:

Normally, it is normally open. When the material is detected, the black line outputs a positive voltage signal

PNP NC:

Normally, it is normally closed, and the black line outputs a positive pressure signal. When the material is detected, the signal is disconnected
