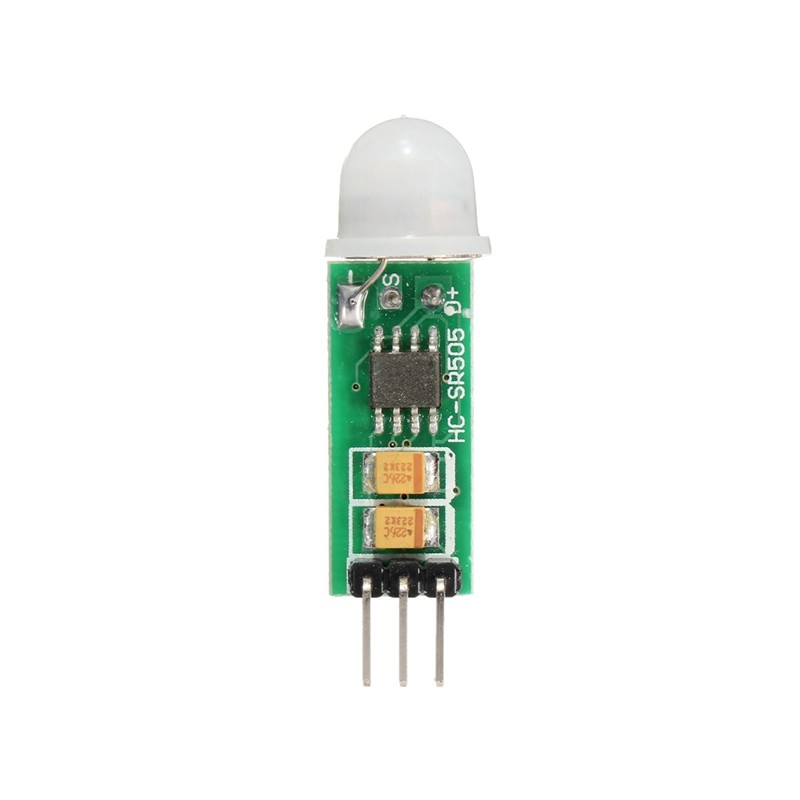

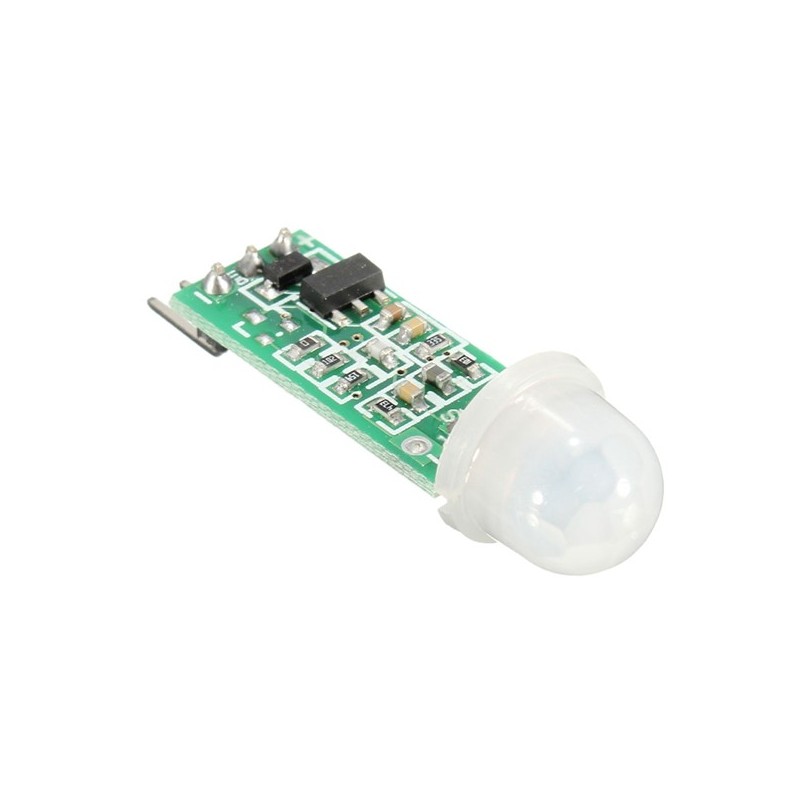

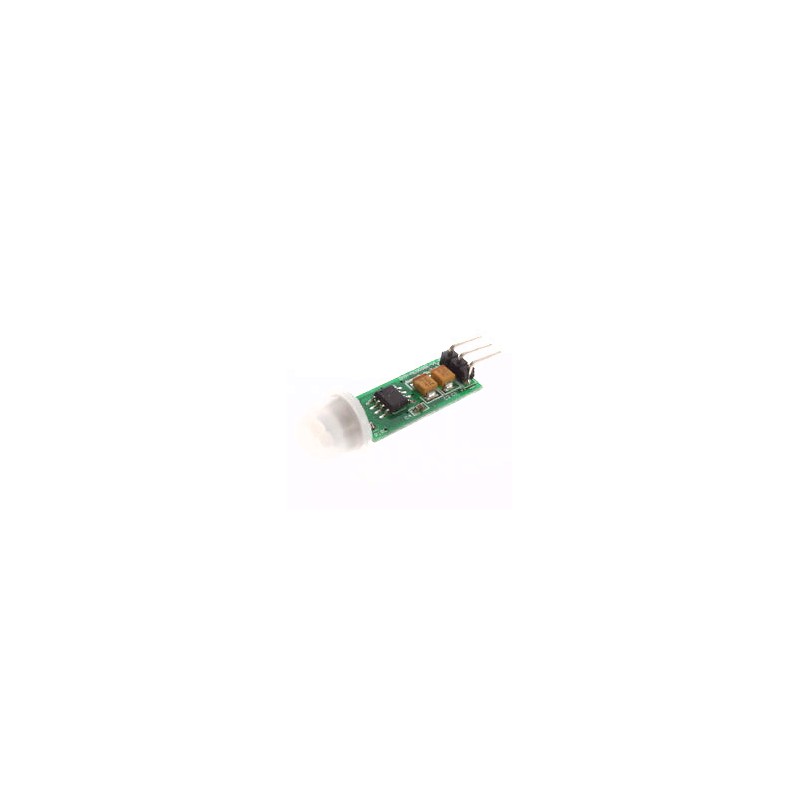

PIR judesio detektoriaus mini modulis HC-SR505

Prekės kodas: d0484

Būklė: Nauja prekė

Judesio detektoriaus modulis. Naudojamas Arduino sistemose žmonių patekimui į 100 laipsnių ir iki 3m ilgio kūgio formos zoną aptikti.

Smulkiau

Prekių kiekis mūsų sandėlyje: 48

Spausdinti

Charakteristikos

Suderinama su Arduino™ ir *duino	Taip
Maitinimo įtampa	4,5 - 20 V DC
Jungties žingsnis	2,54mm
Jungties tipas	Male (vyr.)
Kontaktų kiekis	3
Matmenys	40 x 11 x 11 mm
Naudojami mikrovaldiklio prievadai	1 skaitmeninis I/O
Išėjimo įtampa	0 ('0') - 3,3V ('1')
Impulso trukmė	8s +-30%
Darbinis atstumas	iki 100 laipsnių kampu iki 3m

Apie prekę

Technical parameters:

1. Operating Voltage Range: DC4.5-20V

2. Static current: <60uA

3. Output level: High 3.3V / Low 0V

4. Trigger: repeatable trigger (default)

5. Delay time: Default 8S + -30%

6. PCB Dimensions: 10 x 23mm

7. Induction angle: <100 degree cone angle

8. Induction distance: 3 meters

9. Working temperature: -20 - +80 degrees

10. Sensor Lens Dimensions: Diameter: 10mm (default)

Features:

1. Automatic induction: to enter the sensing range of the output is high, people leave the sensor range automatically delay off high, output low. Ultra-small size.

2. Repeatable trigger: the sensor output high, the delay period, if there is human activity in its sensing range, the output will remain high until people leave after the high variable delay lOW (automatically extended sensor module detects the human body after every activity a delay period, and the last time an event is the starting point of the delay time).

3. Wide operating voltage range: the default operating voltage DC4.5V-20V.

4. Micropower: quiescent current <50 microamps, especially for battery-powered automatic control products.

5. Output high signal: easy docking and all kinds of circuits.
