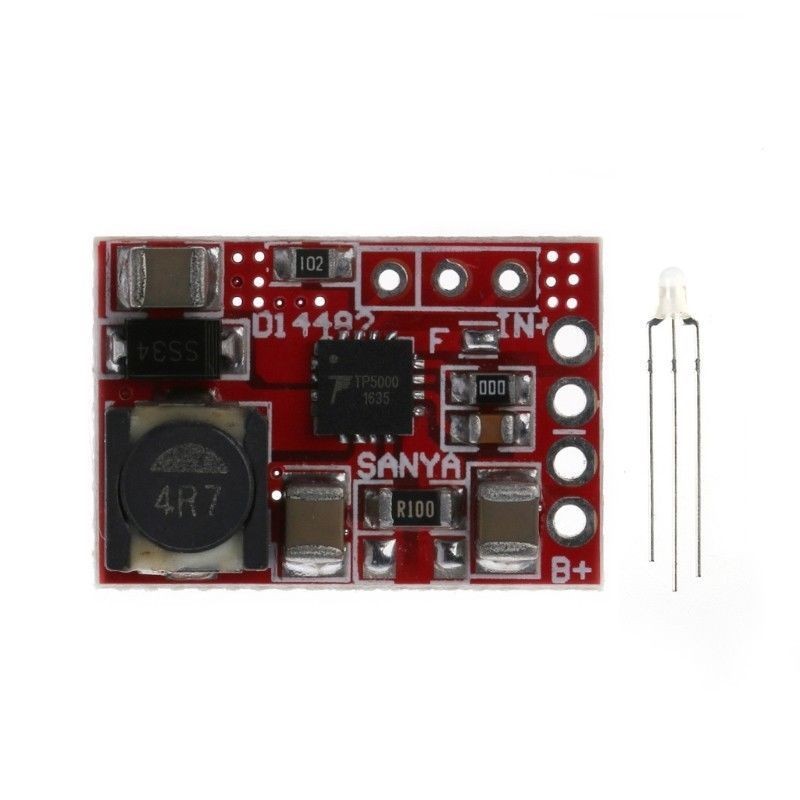

Ličio baterijų krovimo modulis TP5000 1s 1A su būsenos indikacija

For charging Lithium battery(4.2V) and Lithium iron phosphate battery(3.6V)

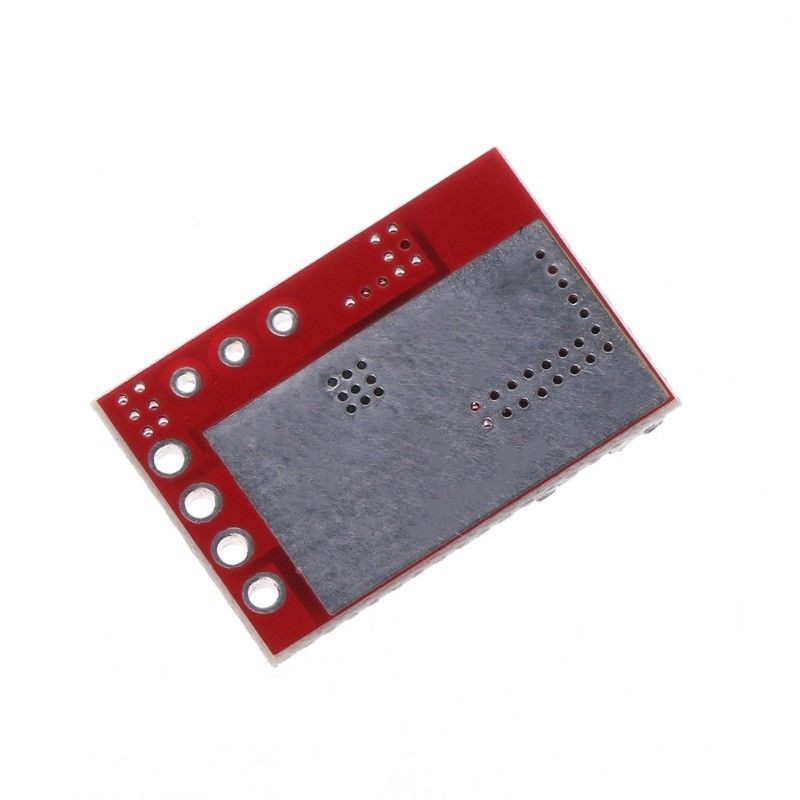

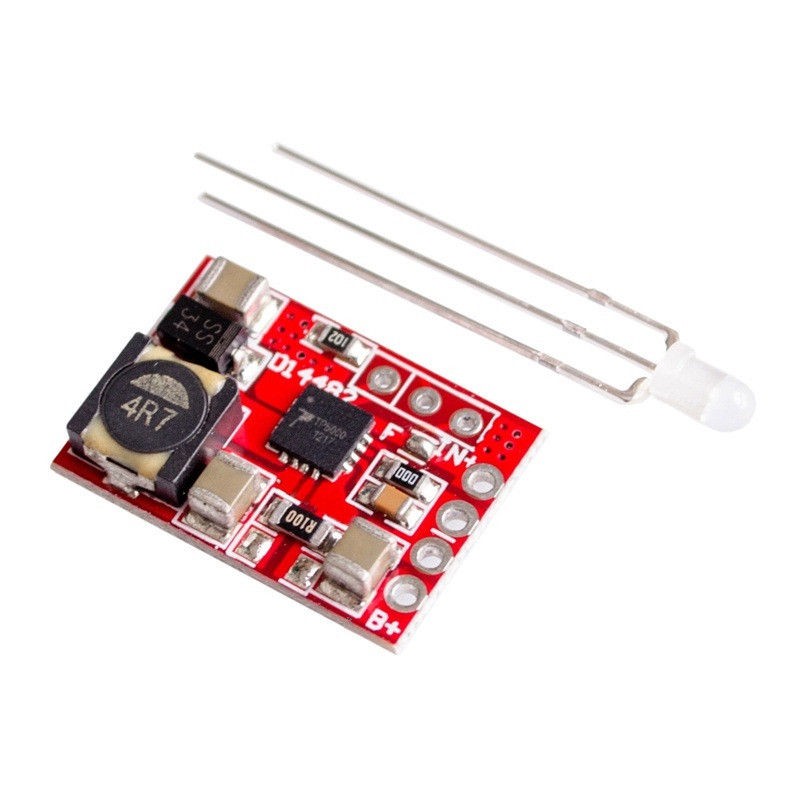

Single-sided machine mounted, the overall 4 mm ultra-thin, small area of good heat dissipation, the back of copper easy to install and paste the heat sink
Based on DC-DC buck, the efficiency is much higher than the linear charging circuit, heat is also much smaller. Charge current 1A, but the input current is only about 0.7A is enough
Jumper is used to select between lithium iron phosphate battery or ordinary lithium-ion / lithium polymer battery.
With overheating protection, overheating will automatically reduce the current to prevent burnout
X7R The most stable temperature characteristics
Full of self-stop, two-color charging status indicator

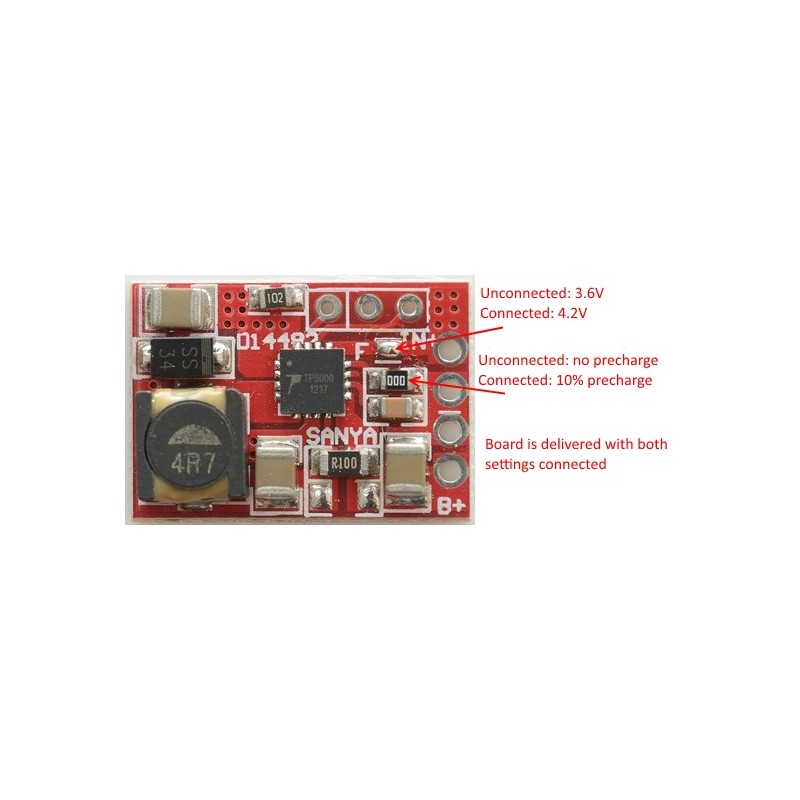

7. Switch mode:
1>F Welding point ON for Lithium battery and output 4.2V
2>F Welding point OFF for Lithium iron phosphate battery and output 3.6V

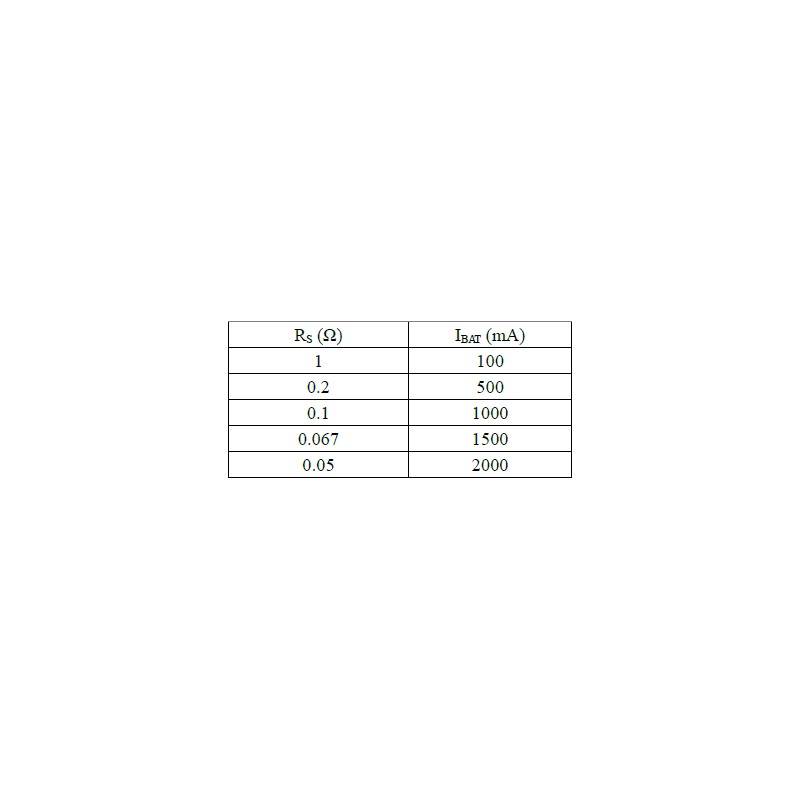

8. Adjust output current(need to modify two resistance value on mark "SANYA"):
1>Default weld 1pcs R100(0.1ohm) resistor and output 1A(max)
2>Welding 1pcs 0.2ohm resistor next to R100 and output 1.5A(max)
3>Welding 1pcs 0.1ohm resistor next to R100 and output 2A(max)
4>Removed R100 and welding 1pcs 0.2ohm resistor on its place and output 0.5A
5>It requires additional heat sink if output current more than 1A.

Specifications:
Input voltage: DC 4.5-9V(Recommended not to exceed 7V)
Output voltage: DC 4.2V/3.6V(default 4.2V)
Output current: 1A(Default max)
LED Indicator: Charging-Red/Green Flashing,Charged-Green
PCB size: 2.1x1.5cm/0.83x0.59inch
