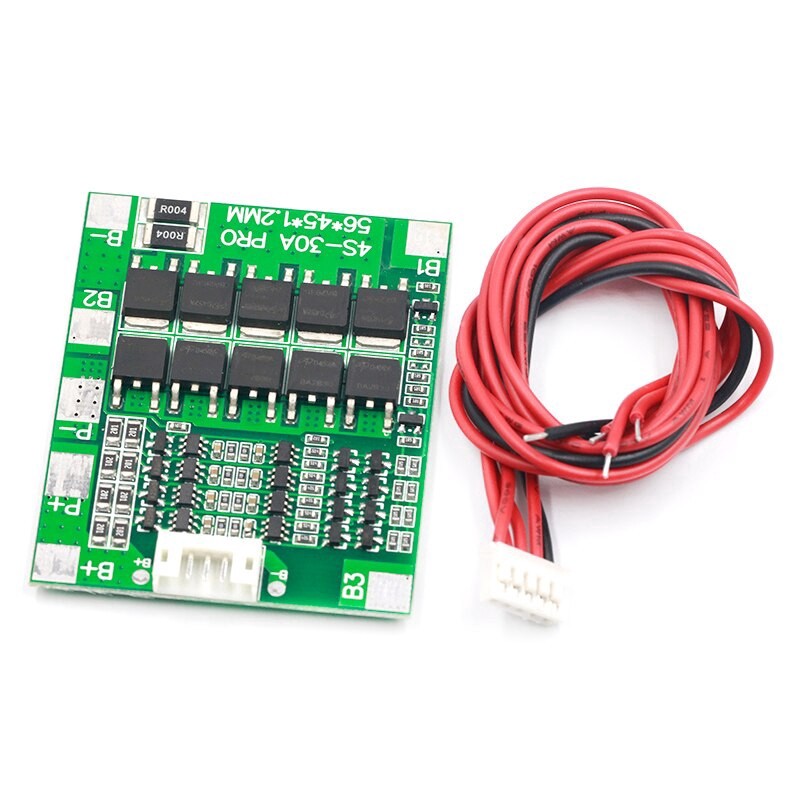

Balansuojantis ličio baterijų krovimo/iškrovimo apsaugos modulis 4s 30A

Discharge:

Continuous Discharging Current: 30A(MAX)

Instantaneous Discharge Current: 70 A

Charge:

Charging Voltage: 16.8 V

Charging Current: 30 A(MAX)

Overcharge Protect:

Over-charge Detect: 4.28±0.05 V

Protect Delay: 0.1 s

Over-charge release: 4.08±0.1 V

Balance:

Detect Voltage: 4.20±0.05 V

Release Voltage: 4.20±0.05 V

Balance Current: 60±5 mA

Over-discharge Protect:

Over-discharge Detect: 2.55±0.08 V

Over-discharge Detect delay: 0.1 s

Release Voltage: 3.0±0.1 V

Over-current Protect:

Detect Voltage: 150 mV

Detect Delay: 9 mS

Current Detect: 75±5 A

Release Condition: Cut Load

Short-circuit Protect:

Protect Condition: Cut Load

Detect Delay: 250 uS

Release Condition: Cut Load

Resistance:

Inner: ≤15 mΩ

Self-Consumption:

Working Current: ≤20 uA

Sleep Current (when Over-discharge): ≤10 uA

Working Temperature:

Range: -30/+80 ℃

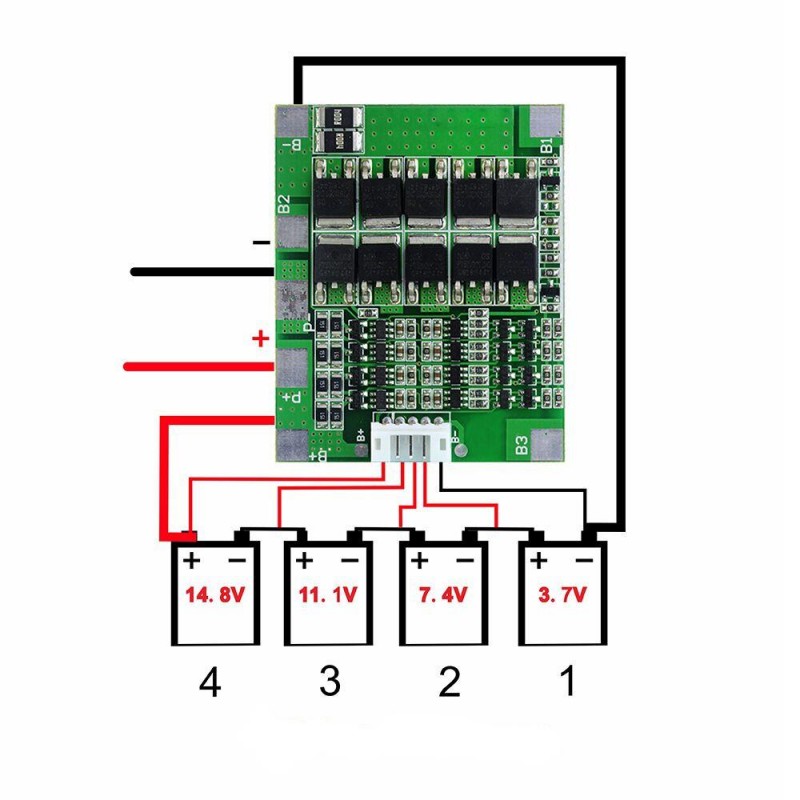

Connection description:
P+ P- is the abbreviation of PACK+ PACK-, that is, the output of positive and negative poles;
B+ B- is the abbreviation of BATTERY. which is the positive and negative pole of the battery.
