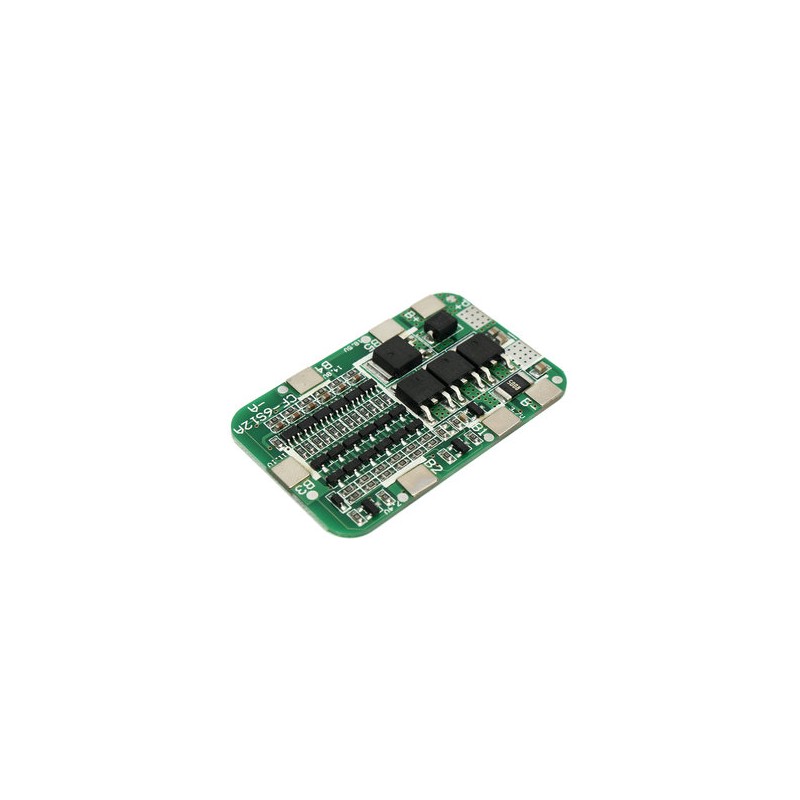

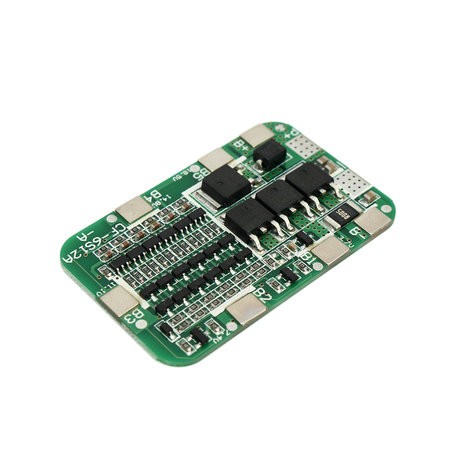

Ličio baterijų krovimo/iškrovimo apsaugos modulis 6s 15A

• Short circuit protection
• Overcharge protection
• Over-discharge protection
• Overcurrent protection

Specification:
Size: approx.50*30*2mm
Maximum discharge current: 15A
Instantaneous discharge current: 25A
Charging voltage: 25.5V
Charging current: 15A (MAX)
Overcharge detection voltage: 4.28 ± 0.05V
Overcharge protection delay: 0.1S
Overcharge release voltage: 4.08 ± 0.05V
Over discharge detection voltage: 2.55 ± 0.08V
Overdischarge detection delay: 0.1S
The overdischarge release voltage: 2.9 ± 0.1V
Overcurrent detection voltage: 150mV
Overcurrent detection delay: 9MS
Overcurrent protection current: 30 ± 3A
Overcurrent protection release condition: Disconnect the load
Short circuit detection delay: 250uS
Short circuit protection Release condition: disconnect negative open
Main circuit conduction resistance: ≤20mΩ
Working current: ≤30uA
Sleep current (battery over discharge) ≤10uA
Temperature range: -30 / + 80 ℃

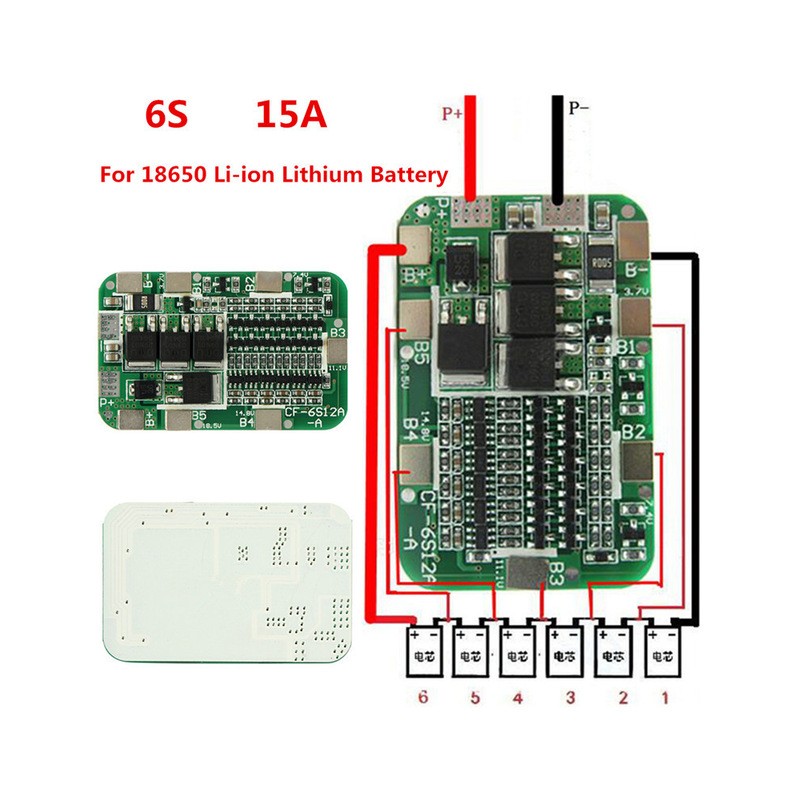

Welding Point:
· B+ connected battery positive pole
· B-  connected battery negative;
· B1-B5 - connected to the intermediate points between batteries
· P+ connection charge / discharge positive pole (charging terminal / discharge end share);
· P-   take charge / discharge end of the negative electrode (the charging terminal / discharge end of the share).
