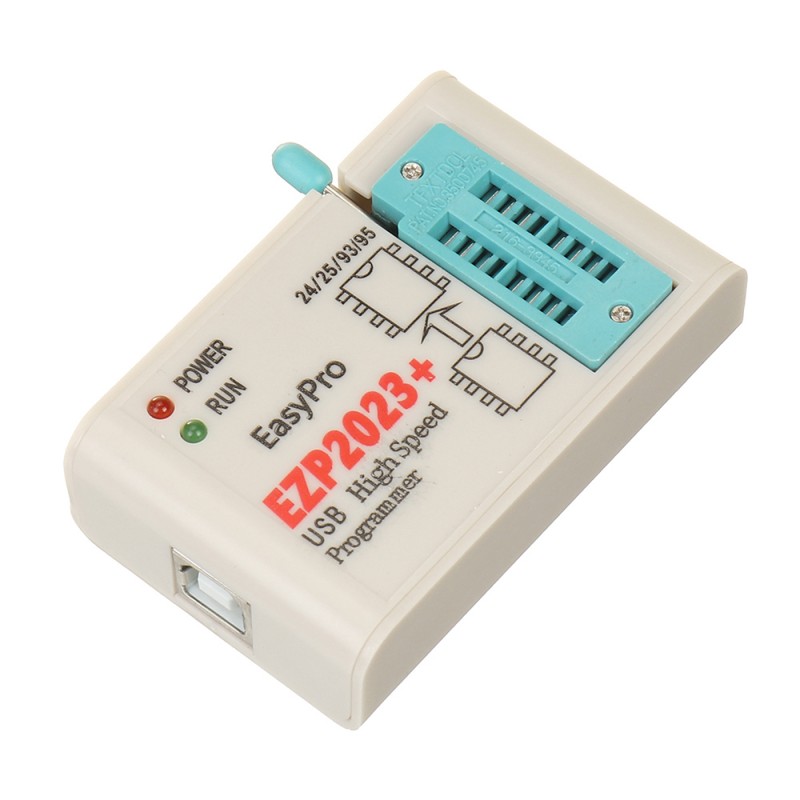

Programatorius EZP2023+ su 4 adapteriais

Features:
1. USB 2.0 interface, the speed is 12Mbps.
2. The speed of reading and writing is fast.
3. Auto detect chip modules.
4. Auto select power voltage.
5. Support 25 FLASH, 24 EEPROM, 25 EEPROM, 93 EEPROM, 95 EEPROM, etc.
6. Small shape.
7. Windows XP, Windows Vista, Win7,WIN8,WIN10.

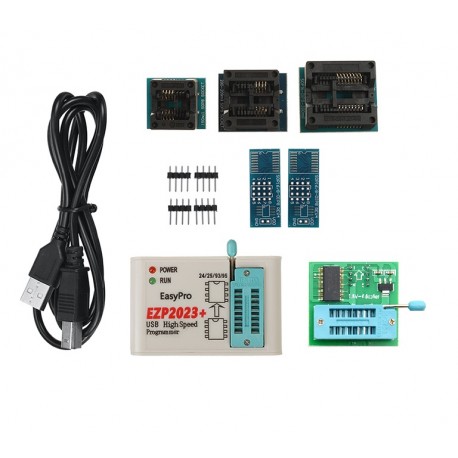

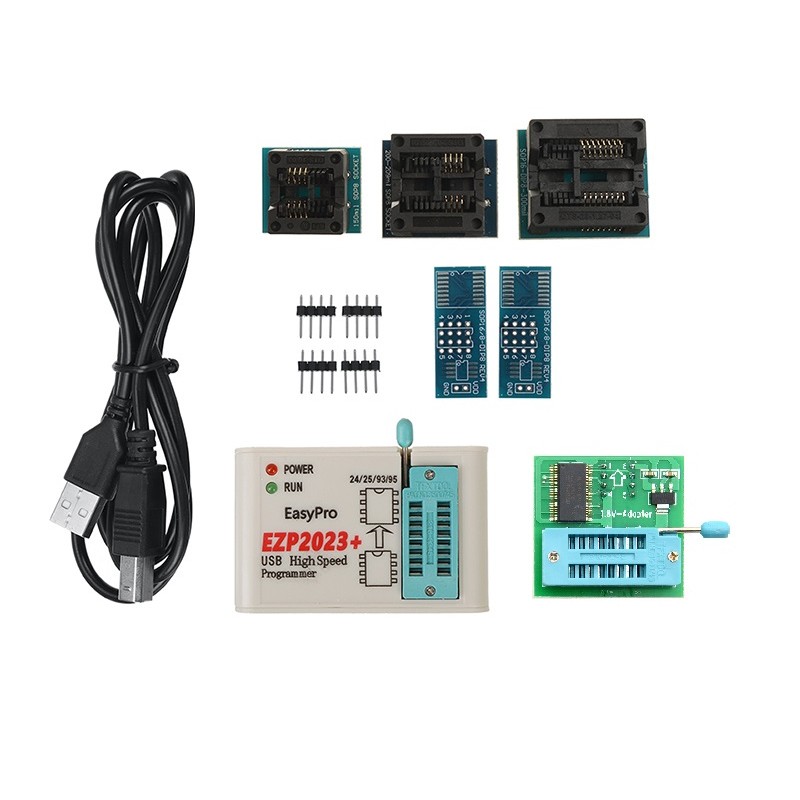

List:
1. USB cable
2. Programmer
3. Manual and software (downloadable)
4. Simple adapter for SMD chips (2pcs)
5. 150mil SOP8 to DIP8 Socket
6. 200-208mil SOP8 to DIP8 Socket
7. SOP16-DIP8 (300mil)
8. 1.8V Conversion adapter

EZP2023 VS EZP2019:
1. The read and write speed is faster.  It is currently the fastest BIOS chip programmer on the market.

2. Automatically identify chip model (for some series chips).

3. Automatically detect whether the chip is placed;

4. The chip supply voltage is automatically selected.

5. It fully supports 25 SPI FLASH, 24 EEPROM, 25 EEPROM, 93 EEPROM, 95EEPROM and other series of memory chips.

EZP2019 (and later):

1. Additional functions: self-adding chips (only 24 series eeprom, 25 series SPI FLASH, 93 series eeprom, 25 series eeprom)

2. Increase 25 EEPROM chips;

3. Adding 25 series 1.8V chips (additional 1.8V adapter).

Supported chips (Support almost all manufacturers in the current market 24, 25, 93 series chips!)

********************25 SPI FLASH*********************************************************

AMIC:
A25L05PU, A25L05PT,A25L10PT,A25L05PU,A25L20PT,A25L512, A25L010,
A25L10P, A25L020, A25L20P, A25L040, A25L40P, A25L080, A25L80P, A25L016, A25L16P, A25L032,A25LQ32A

ATMEL:
AT25F512, AT25F512A, AT25F512B, AT25F1024, AT25F1024A, AT25FS010,
AT25DF021, AT25F2048, AT25DF041A, AT25F4096, AT25FS040, AT26F004, AT26DF081A,
AT25DF161, AT26DF161, AT26DF161A, AT25DF321, AT25DF321A, AT26DF321

EON:
EN25F05, EN25LF05, EN25P05, EN25D10, EN25F10, EN25LF10, EN25P10, EN25D20, EN25B05,EN25B05T,
EN25F20, EN25LF20, EN25D40, EN25F40, EN25LF40, EN25D80, EN25F80, EN25Q80, EN25T80,EN25T80,
EN25B16, EN25B16T, EN25D16, EN25F16, EN25Q16, EN25T16, EN25B32, EN25B32T, EN25F32,EN25QH16,
EN25P32, EN25Q32, EN25B64, EN25B64T, EN25F64, EN25P64, EN25Q64, EN25F128, EN25Q128,EN25QH32,
EN25QH64,EN25QH128,

ES:
ES25P80, ES25P16,

ESMT:
F25L004A, F25L04UA, F25L008A, F25L08PA, F25L016A, F25L16PA, F25L32PA, F25L32QA,F25L32QA

MXIC:
MX25L512, MX25V512, MX25L1005, MX25L2005, MX25L4005A, MX25V4005, MX25L8005,
MX25V8005, MX25L1605D, MX25L1635D, MX25L3205D, MX25L3225D, MX25L3235D, MX25L3237D, MX25L6405D, MX25L12805D
KH25L4006E,KH25L8006E, KH25L80036, KH25L1606E, MX25V1005, MX25U4035, MX25V4035,MX25V8035,MX25U8935,
MX25L8006E,MX25L1606E,MX25L1635D, MX25L1633E,MX25L1635D, MX25L1608D, MX25L1608E, MX25U1635E,MX25L3225D
MX25L3237D,MX25L3236D,MX25L3206E, MX25L3235D,MX25U3235F, MX25U3235E, MX25L3208D,MX25L3208E,MX25L6455E,
MX25L6465E,MX25L6408D,MX25L6408E,MX25L6406E,MX25L6445E,MX25L6436E,MX25L12835E,MX25L12835F,MX25U12835F,
MX25L12845E,MX25L12836E,MX25L12865E,MX25L12855E,MX25L25635E,MX25L25635F,MX25L25639F,MX25L25735E,
MX25U25635F,MX25L25735F,MX66U51235F,MX66L51235F,MX25U5121E(1.8V),MX25U1001E(1.8V),MX25U2032E(1.8V)

NEXFLASH:
NX25P10, NX25P20, NX25P40, NX25P80, NX25P16, NX25P32

PMC:
PM25LV512A, PM25LV010A, PM25LV020, PM25LV040, PM25LV080B

SAIFUN:
SA25F005,SA25F010, SA25F020, SA25F040, SA25F080, SA25F160, SA25F320

SPANSION:
S25FL001,S25FL002,S25FL004A, S25FL008A, S25FL016A, S25FL032A, S25FL064A,S25FL0128

SST:
SST25VF512, SST25VF512A, SST25VF010, SST25VF010A,
SST25VF020, SST25VF020A, SST25VF040, SST25VF040A, SST25VF040B, SST25VF080B,
SST25VF016B, SST25VF032B, SST25VF064C

GIGADEVICE:
GD25Q512,GD25Q10,GD25Q20B,GD25Q21B,GD25Q40B,GD25Q41B,GD25LQ40,GD25F40,GD25F80,
GD25Q80,GD25Q16,GD25Q32B,GD25Q64,GD25Q128,GD25Q256,GD25Q256MC,GD25LQ05B(1.8v),
GD25LQ10B(1.8v),GD25LQ20B(1.8v),GD25LQ80B(1.8V),GD25LQ16(1.8v),GD25LQ32(1.8v),
GD25LQ64(1.8v)

ST:
M25P05A, M25P10A, M25PE10, M25P20, M25PE20, M25P40, M25PE40, M25P80,
M25PE80, M25PX80, M25P16, M25PE16, M25PX16, M25P32, M25PX32, M25P64, M25PX64, M25P128

WINBOND:
W25X10, W25X10A, W25X10AL, W25X10L, W25P20, W25X20,
W25X20A, W25X20AL, W25X20L, W25P40, W25X40, W25X40A, W25X40AL, W25X40L,
W25P80, W25X80, W25X80A, W25X80AL, W25X80L, W25P16, W25X16, W25P32, W25X32, W25X64
W25Q40,W25Q80,W25Q16,W25Q32,W25Q64,W25Q128,W25Q64FV,W25Q64FW,W25Q256，
W25P80,W25P16,W25P32,W25P64,W25P80,W25P16,W25P32,W25P64,W25Q05CL,W25Q10CL,
W25Q10EW(1.8V),W25Q20CL,W25Q20BW(1.8V),W25Q40BW(1.8V),W25Q80EW(1.8V),
W25Q16DW(1.8V),W25Q32DW(1.8V),W25Q64FW(1.8V),W25Q128FW(1.8V),W25Q256FW(1.8V)

BERGMicro:
BG25Q512A,BG25Q10A,BG25Q20A,BG25Q40A,BG25Q80A,BG25Q16A,BG25Q32A,BG25Q64A,BG25Q128A

BoyaMicro:
BY25D05AS,BY25D10AS,BY25D20AS,BY25D40AS,BY25D80AS,BY25D16AS,BY25D32AS,BY25D64AS,BY25D128AS,
BY25Q40AL(1.8V),BY25Q80AL(1.8V),BY25Q16AL(1.8V),BY25Q32AL(1.8V),BY25Q64AL(1.8V),BY25Q128AL(1.8V)

EXCELSEMI:
ES25M40A,ES25M80A,ES25M16A

FIDELIX:
FM25Q04A,FM25Q08A,FM25Q16A,FM25Q32A,FM25Q64A,FM25M04A(1.8V),FM25M08A(1.8V),FM25M16A(1.8V),
FM25M32A(1.8V),FM25M64A(1.8V),FM25M4AA(1.8V)

PCT:
PCT25VF512A,PCT25VF010A,PCT25VF020A,PCT25VF040A,PCT25VF080A

CHINGIS:
PM25LQ512,PM25LQ010,PM25LQ020,PM25LQ040,PM25LQ080,PM25LQ016,PM25LQ032

SANYO:
LE25FW406M,LE25FW406M

XTXtect:
PN25F04A,PN25F04C,PN25F08,PN25F08B

FIDELIX:
FM25Q04A,FM25Q08A,FM25Q16A,FM25Q32A,FM25Q64A

ZBITSemi:
ZB25D40,ZB25D80,ZB25D16,ZB25LQ40(1.8V),ZB25VQ20,ZB25VQ40,ZB25VQ80,ZB25VQ16,ZB25VQ32,ZB25VQ64,
ZB25VQ128

XMC:
XM25QH40B,XM25QH80B,XM25QH16B,XM25QH32B,XM25QH32C,XM25QH64A,XM25QH64B,XM25QH128A,XM25QH128B,
********************24 EEPROM*****************************************************

ATMEL:
AT24C01, AT24C01A, AT24C01B, AT24C02, AT24C02A, AT24C02B, AT24C04, AT24C04A,
AT24C04B, AT24C08, AT24C08A, AT24C08B, AT24C16, AT24C16A, AT24C16B, AT24C32, AT24C32A,
AT24C32B, AT24C64, AT24C64A, AT24C64B, AT24C128, AT24C128A, AT24C128B, AT24C256, AT24C256A,
AT24C256B, AT24C512, AT24C512A, AT24C512B, AT24C1024, AT24C1024A, AT24C1024B

COMMON:
24C01,24C02,24C08,24C16,24C32,24C64,24C128,24C256,24C512,24C1024

MICROCHIP:
24C01,24C02,24C08,24C16,24C32,24C64,24C128,24C256,24C512,24C1024

ST:
M24C01,M24C01R,M24C01W,M24C02,M24C02W,M24C02R,M24C08,M24C08R,M24C08W,M24C16,M24C16R,M24C16W,
M24C32,M24C32W,M24C64,M24C64W,M24C128,M24C128B,M24C256,M24C256A,M24C256B,M24C256W,ST24C01,
ST24C02,ST24C04,ST24C08,ST24C16

ANACHIP:
AM24LC01,AM24LC02,AM24LC04,AM24LC08,AM24LC16

ROHM:
BR24C01,BR24LC01,BR24C02,BR24LC02,BR24C04,BR24LC04,BR24C08,BR24LC08,BR24C16,BR24LC16,BR24C32,BR24LC32,
BR24C64,BR24LC64

EOREX:
EM24LC01,EM24LC02,EM24LC04

RAMTRON:
FM24CL04,FM24CL04A,FM24C08A,FM24CL16,FM24CL64,FM24C64A,FM24C256

NSC:
NM24C02,NM24C04,NM24C08,NM24C64

ISSI:
IS24C01,IS24C02,IS24C04,IS24C08,IS24C16,IS24C32,IS24C64,IS24C128,IS24C256,IS24C512,IS24C1024

HOLTEK:
HT24C01,HT24C02,HT24C04,HT24C08,HT24C16,HT24C32,HT24C64,HT24C128,HT24C256,HT24C512,HT24C1024,
HT24LC01,HT24LC02,HT24LC04,HT24LC08,HT24LC16,HT24LC32,HT24LC64,HT24LC128,HT24LC256,HT24LC512,HT24LC1024,

FAIRCHILD:
FM24C01L,FM24C02L,FM24C03L,FM24C04L,FM24C05L,FM24C08L,FM24C9L,FM24C16L,FM24C17L,FM24C32L,
FM24C64L,FM24C128L,FM24C256L,FM24C512L,FM24C1024L

CATALYST:
CAT24C00,CAT24C01,CAT24C02,CAT24C21,CAT24C04,CAT24C08,CAT24C16,CAT24C32,CAT24C64,CAT24C128,
CAT24C2566,CAT24FC01,CAT24FC02,CAT24FC04,CAT24FC08,CAT24FC16,CAT24FC32,CAT24FC64,CAT24FC128,CAT24FC256,
CAT24LC02,CAT24LC04,CAT24LC08,CAT24LC16,CAT24LC32,CAT24LC64

HUAHONG:
K24C02,K24C04,K24C08,K24C16,K24C32,K24C64

HUAJIE:
K24C02,K24C04,K24C08,K24C16,K24C32,K24C64

********************93 EEPROM*********************************************************

ATMEL:
AT93C46(16bit), AT93C46(8bit),
AT93C46A, AT93C56(16bit), AT93C56(8bit),AT93C57(16bit),
AT93C57(8bit), AT93C66(16bit),AT93C66(8bit),AT93C86(16bit),
AT93C86(8bit), AT93C76@16bit

MICROCHIP：
93C46A,93C46B,93LC46A,93LC46B ,93C56A, 93C56B,93C56C(8b),93LC56A,93LC56B,
93LC56B,,93C66A,93C66A,93C66B,93C66C(8b),93LC66A,93LC66B,93C76A,93C76C(8b),93LC76A,
93LC76B,93C86A,93C86B,93LC86A,93LC86B,93LC86C(16b),93LC86C(8b)

ROHM：
BR93LC46, BR93LC46,BR93LC56,BR93LC56,BR93LC66,BR93LC66

ST：
ST93C06(16b),ST93C06(8b),M93S46,M93S46,ST93C46(16b), ST93C46(8b), ST93C47(16b)
ST93C47(8b), M93S56, M93S56,ST93C56(16b), ST93C56(8b), ST93C57(16b) ,ST93C57(8b)
ST93S66,ST93C66(16b),ST93C66(8b),ST93C67(16b), ST93C67(8b), ST93C86W(16b),
ST93C86W(8b)

ACE:
ACE93C46@8bit,ACE93C46@16bit,ACE93C56@8bit,ACE93C56@16bit,ACE93C66@8bit,ACE93C66@16bit

ANACHIP:
93C46,93C56,93C66

CATALYST:
CAT93C46@8bit,CAT93C56@8bit,CAT93C57@8bit,CAT93C66@8bit,CAT93C86@8bit,
CAT93C46@16bit,CAT93C56@16bit,CAT93C57@16bit,CAT93C66@16bit,CAT93C86@16bit

ATC:
ATC93C46@8bit,ATC93C46@16bit,ATC93C56@8bit,ATC93C56@16bit,ATC93C66@8bit,ATC93C66@16bit,
ATC93LC46@8bit,ATC93LC46@16bit

EOREX:
EM93LC46@8bit,EM93LC46@16bit,EM93LC56@8bit,EM93LC56@16bit,EM93LC66@8bit,EM93LC66@16bit,
EM93LC57@8bit,EM93LC57@16bit,EM93LC76@8bit,EM93LC76@16bit,EM93LC86@8bit,EM93LC86@16bit

ISSI:
IS93C46@16bit,IS93C56@8bit,IS93C56@16bit,IS93C66@8bit,IS93C66@16bit,IS93C76@8bit,IS93C76@16bit,
IS93C86@8bit,IS93C86@16bit

ICT:
ICT93C46@8bit,ICT93C46@16bit,ICT93C56@8bit,ICT93C56@16bit,ICT93C66@8bit,ICT93C66@16bit

HOLTEK:
HT93C46@16bit,HT93C56@16bit,HT93C66@16bit,HT93LC46@8bit,HT93LC46@16bit,HT93LC56@8bit,HT93LC56@16bit,
HT93LC66@8bit,HT93LC66@16bit,HT93LC76@8bit,HT93LC76@16bit,HT93LC86@8bit,HT93LC86@16bit

FAIRCHILD:
FM93C46,FM93C46A@8bit,FM93C46A@16bit,FM93C56,FM93C56A@8bit,FM93C56A@16bit,FM93C66,FM93C66A@8bit,
FM93C66A@16bit,FM93C76,FM93C76A@8bit,FM93C76A@16bit,FM93C86,FM93C86A@8bit,FM93C86A@16bit,
FM93S46,FM93S56,FM93S66

EXEL:
XL93C46,XL93CS46,XL93LC46,XL93C56,XL93CS56,XL93LC56,XL93C66,XL93CS66,XL93LC66,
XLS93C46,XLS93C56,XLS93C66

COMMON:
93C46@8bit,93C46@16bit,93C56@8bit,93C56@16bit,93C66@8bit,93C66@16bit,93C76@8bit,93C76@16bit,
93C86@8bit,93C86@16bit

AKM:
AK93C45@8bit,AK93C45@16bit,AK93C55@8bit,AK93C55@16bit,AK93C65@8bit,AK93C65@16bit,
AK93C75@8bit,AK93C75@16bit,AK93C85@8bit,AK93C85@16bit

YMC:
Y93LC46@8bit,Y93LC46@16bit,Y93LC56@8bit,Y93LC56@16bit,Y93LC66@8bit,Y93LC66@16bit,
Y93LC76@8bit,Y93LC76@16bit,Y93LC86@8bit,Y93LC86@16bit

RATO:
RT93C46,RT93LC46@8bit,RT93LC46@16bit

NSC:
NM93C46@8bit,NM93C46@16bit,NM93C56@8bit,NM93C56@16bit,NM93C66@8bit,NM93C66@16bit,
NM93C76@8bit,NM93C76@16bit,NM93C86@8bit,NM93C86@16bit

SEIKO：
S-93C76,S-93C66,S-93C56,S-93C46
********************************25 EEPROM******************************************

ATMEL:
AT25010, AT25020, AT25040, AT25080, AT25160, AT25320, AT25640, AT25128, AT25256, AT25512

CATALYST:
CAT25C01, CAT25C01P, CAT25C01S, CAT25C01U, CAT25C02P, CAT25C02S, CAT25C02U, CAT25C11，
CAT25C03P, CAT25C03S, CAT25C03U, CAT25C04P, CAT25C04S, CAT25C04U, CAT25C05P, CAT25C05S,
CAT25C05U, CAT25C08P, CAT25C08S, CAT25C08U, CAT25C09P, CAT25C09S, CAT25C09U, CAT25C16P,
CAT25C16S, CAT25C16U, CAT25C17P, CAT25C17S, CAT25C17U, CAT25C32P, CAT25C32S, CAT25C33P,
CAT25C33S, CAT25C64P, CAT25C64S, CAT25C65P, CAT25C65S, CAT25C128P, CAT25C128S, CAT25C256P, CAT25C256S

COMMON:
25010, 25020, 25040, 25080, 25160, 25320, 25640, 25128, 25256, 25512

MICROCHIP:
25LC010A，25LC020A，25AA010A，25AA020A，25AA040, 25C040, 25LC040, 25AA080A, 25LC080B,25AA080B，
25LC080A, 25AA160, 25C160, 25LC160, 25AA320, 25C320, 25LC320, 25AA640, 25C640, 25LC640,
25LC128,25AA128，25LC256，25AA256，25LC512,25AA512，25LC1024,25AA1024

RAMTRON:
FM25040,FM25CL04,FM25L16,FM25C160, FM25640, FM25CL64,FM25L128，FM25L256,FM25L04B

ST:
ST25C01, ST25W01, ST25C02, ST25W02, ST25C04, ST25W04, ST25C08, ST25W08, ST25C16, ST25W16

TI:
TI2508，TI2516，TI2532, TI2532A, TI2564

XICOR:
X25010, X25020, X25021，X25040, X25041,X25043,X25045,X25080, X25160,X25170, X25320, X25640, X25256,X25512
X25F008,X25F016,X25F032,X25F064
