Willem PCB5.0T (0.98d12) parallel EEPROM ir FLASH atminties mikroschemų programatorius

Willem Eprom programmer PCB5.0E can be use for :

. Upgrading, Programming BIOS chip, Repairing PC motherboard BIOS chip.
. VCD, DVD, Color TV, Copier, Fax machine, Printer main board maintaining or reparing.
. Car memory device code reading, writing
. MCU development: programming for MCS-51 series, AVR series and PIC series MCU.
. Programming support for over 1500 IC devices, includes EPROM , EEPROM , FLASH , PIC , AVR , MCS-51 , MCS-48, 27Cxx , 28Cxx 28Fxx , 29Fxx , AT29Cxxx , 24Cxx , 93Cxx , PIC16xxx , DS12xx , AT89Cxx , AT89Cx051 , AT25xxx , AT90Sxxx , EPROM16bit , 29Fx00 , 28Fx00

Hardware Features :
. Support DIP32 to PLCC32 and PLCC Firmware HUB/LPC on board.
. Special PCB4C and PCB4.5C only able to support the chip 29/39/49LVxxx (Low Voltage 3.3V)
. Use power supply from a USB port or DC Adapter (9-12 VDC) by setting jumper.
. Faster than Willem EPROM Programmer PCB3B , PCB3B+ (Standard/Universal) and Enhanced Willem about 50%. It also programs faster than Willem EPROM Programmer (PCB3.5C) , (PCB4C) about 20%. For full capacity, it should be used with with software willem Version 0.98D12 ( bundle in CD-Rom ).
. It can set changes to be PCB3B or PCB4.5C by using jumper setting (when wish use Software of the ordinary)
. The PCB5.0E can unprotect the AM29F040B flash memory chip.

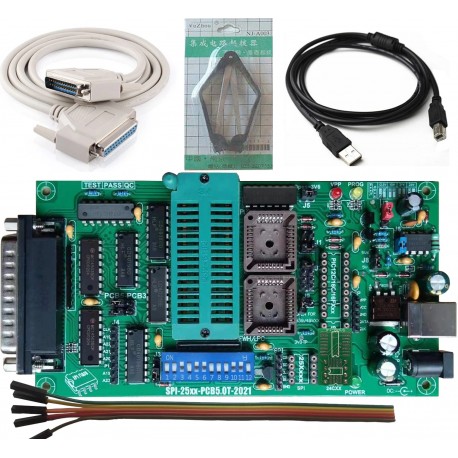

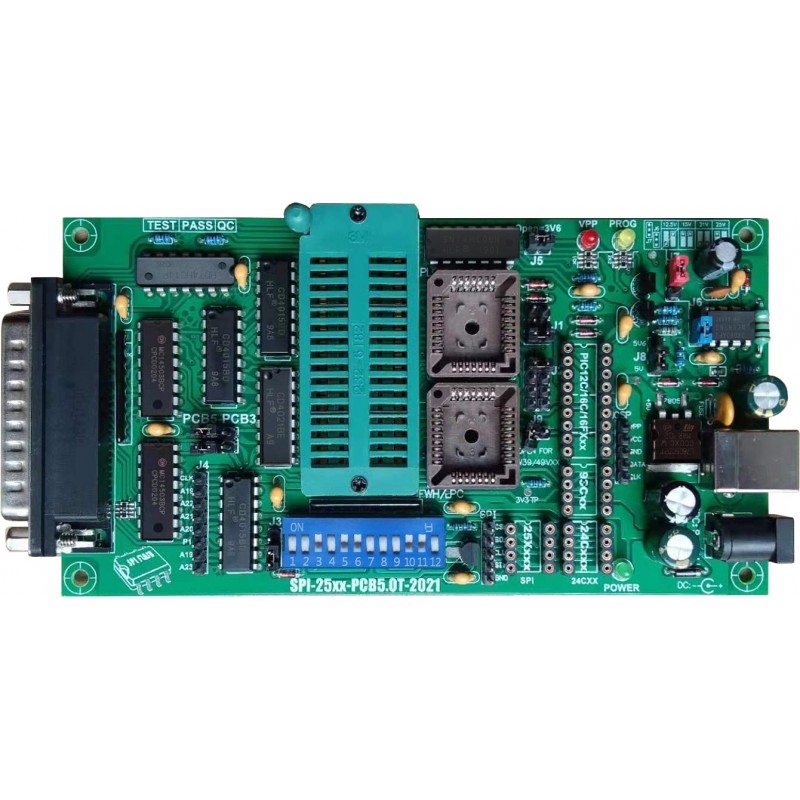

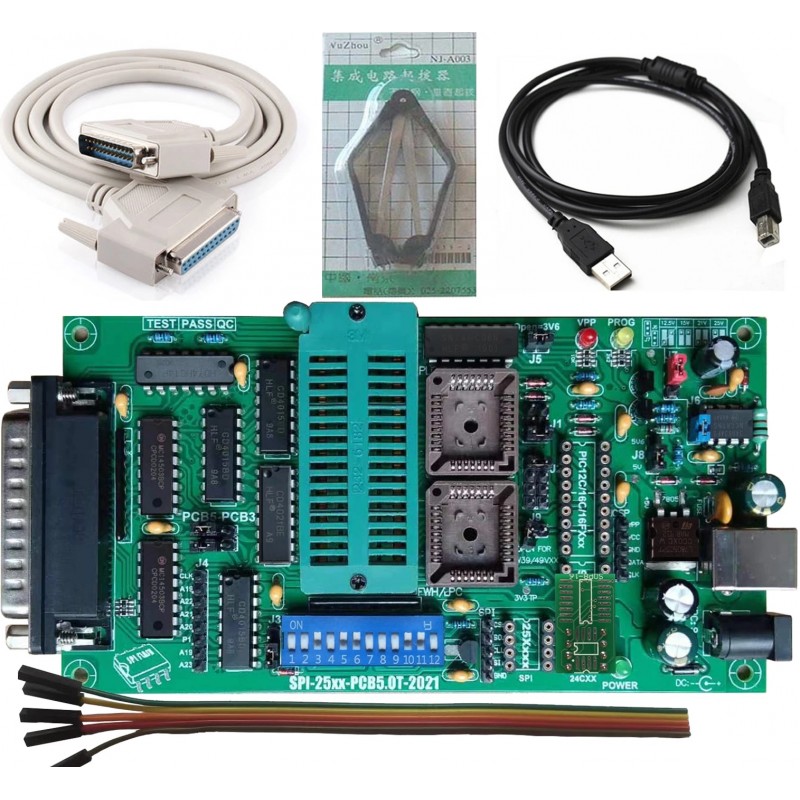

. The back of the circuit board is covered by a plastic board that is neat and protects board from short circuiting. [ see pictures ]

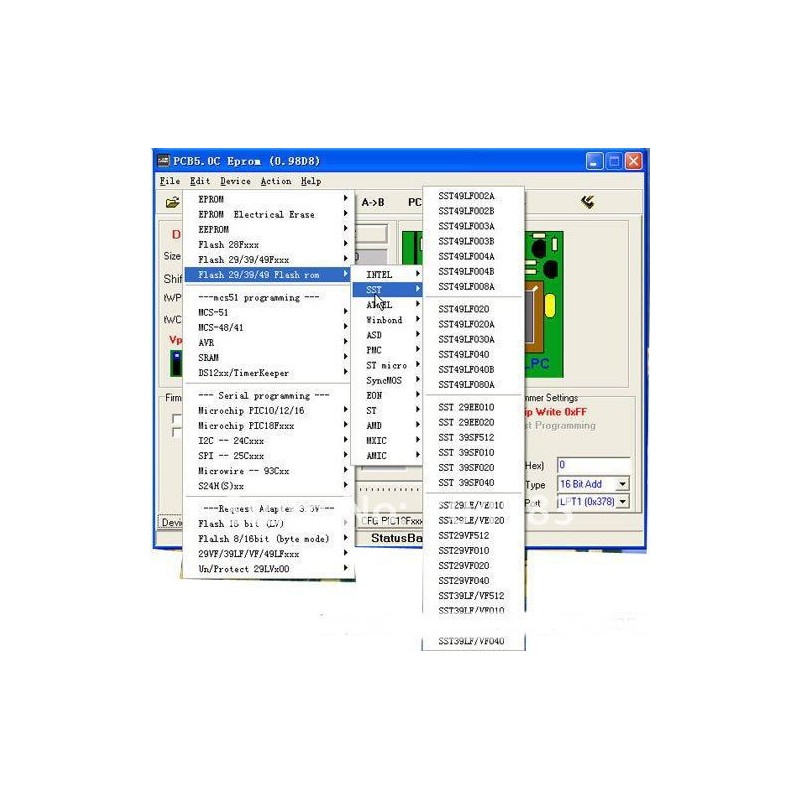

Software Features :
. Windows based programming software support 98 / ME / NT / 2000 / XP
. Latest !! Software willem PCB5.0E version 0.98D12 (Update : 13 September 2010) can run on The hardware PCB3.5/PCB4C/ PCB4.5C only.

. Software willem for PCB5.0E version0.98D12 support for over PICs microchip more than Software 0.97ja.
. Add PIC microchip 12bit (FLASH memory)
PIC12F508/509 , PIC10F200/202/204/206 , PIC16F505 , PIC16F54/57
. Add PIC18Fxxx
PIC18F242 , 18F248 , 18F252 , 18F258 , 18F442 , 18F448 , 16F452 , 16F458
PIC18F1220 , 18F2220 , 18F4220 , 18F1320 , 18F2320 , 18F4320
PIC18F6520 , 18F6620 , 18F6720 , 18F8520 , 18F8620 , 18F8720
PIC18F2331 , 18F2431 , 18F4331 , 18F4431
PIC18F6525 , 18F6621 , 18F8525 , 18F8621
PIC18F6585 , 18F6680 , 18F8585 , 18F8680
PIC18F2439 , 18F2539 , 18F4439 , 18F4539
PIC18F6410 , 18F8410 , 18F6490 , 18F8490
. Add PIC18Fxxx
PIC18F2410 , PIC18F2420 , PIC18F2455
PIC18F2510 , PIC18F2515 , PIC18F2520 , PIC18F2525 , PIC18F2550 , PIC18F2585
PIC18F2610 , PIC18F2620 , PIC18F2680
PIC18F4410, PIC18F4420 , PIC18F4455
PIC18F4510 , PIC18F4515 , PIC18F4520 , PIC18F4525 , PIC18F4550 , PIC18F4585
PIC18F4610 , PIC18F4620 , PIC18F4680
. Add Find and edit value OSCCAL (PIC12F629/675 , PIC16F630/676)
. Add Edit config at address 0x2008,0x2009 (PIC12F635/683 , PIC16F636/684/688 , PIC16F785)
. Fixed Programming PIC all
. Test on chip
PIC12F675 , PIC16F676 , PIC16F684 ,PIC16F767, PIC16F74
PIC16F872 , PIC16F876 , PIC16F877, PIC16F876A, PIC16F873A, PIC16F819
PIC16F84 , PIC16F84A , PIC16F628, PIC16F628A,
eprom PIC12C509JW , PIC16C505JW , PIC16C711JW , PIC16CE625JW
PIC18F458 , PIC18F4320 , PIC18LF258 , PIC18F4539 , PIC18F4431
. Fixed Write/read/verify EEPROM 18F4550
. Fixed Bug program 18Fxxx run on Windows XP/2000 (test PIC18F4539 , PIC18F2680 , PIC18F2431 , PIC18F258 , PIC18F4220 , PIC18F4550)
. Add find OSCCAL 10Fx00, 12F50x, 12F6xx
(test PIC10F202, 12F509, 12F675)
. Fixed Programm AT89C8253 (Want modify Adapter MCS-51) (test on AT89S8253)
