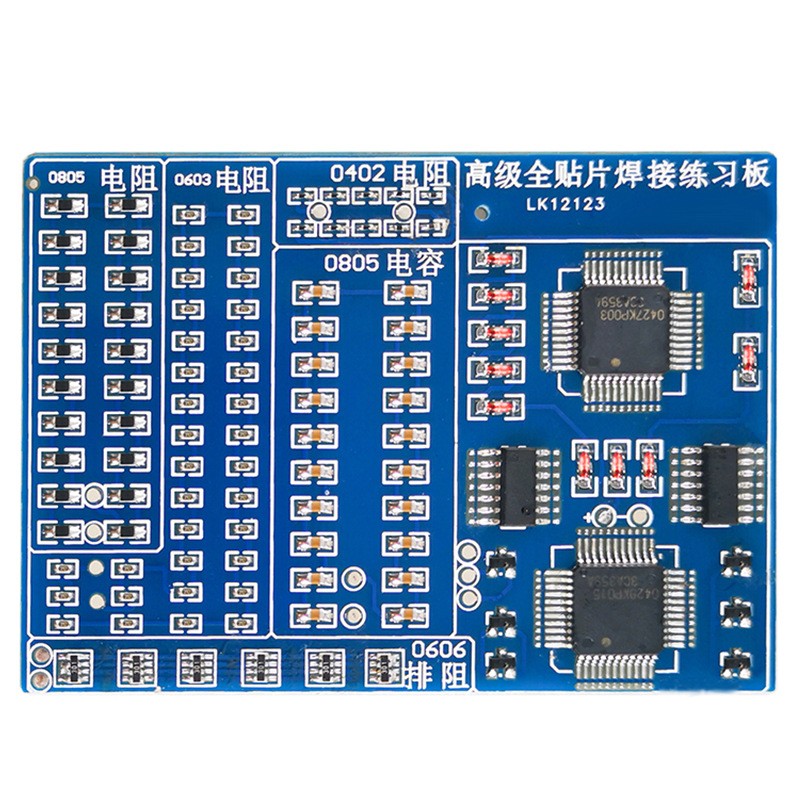

Elektronikos rinkinys: SMD litavimo treniruoklis

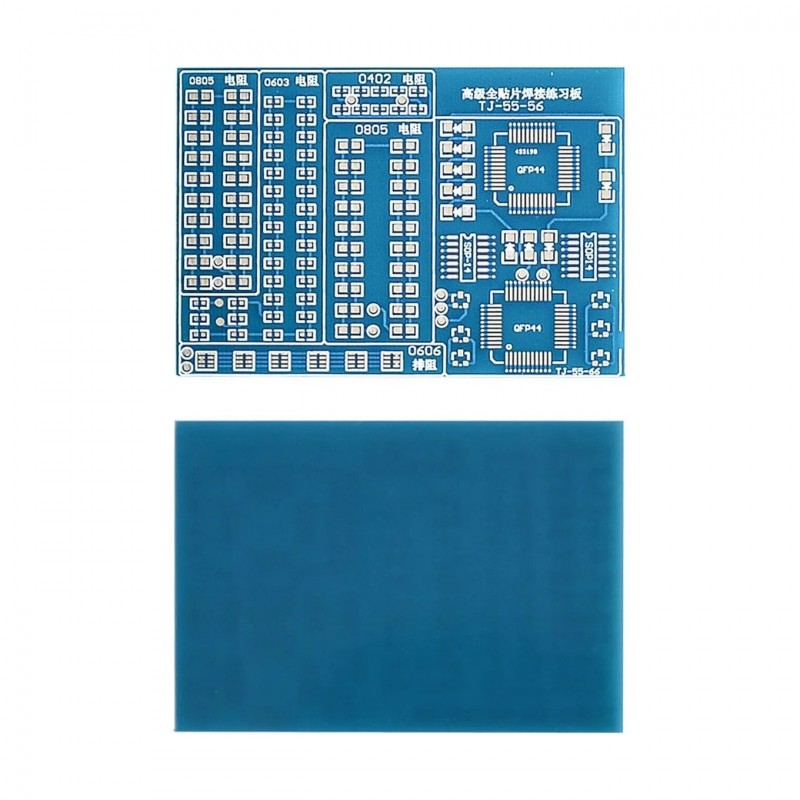

PCB Size:80*60*1.6mm

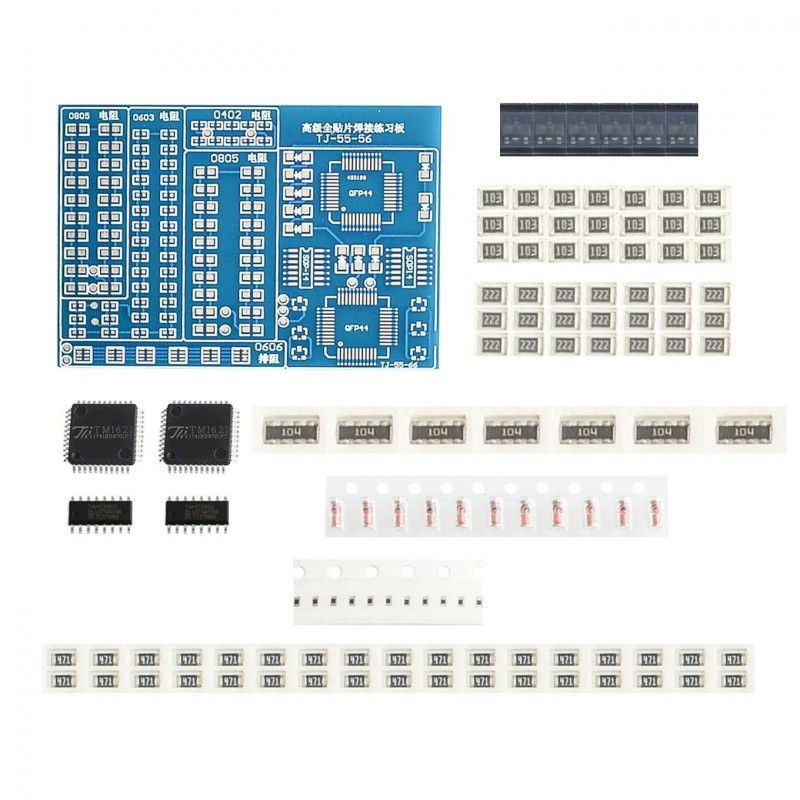

There are 9 categories of matching welding patch components, a total of 110 pieces:
1. Resistor class -- package is 0805 (20 pieces, all in series, the total resistance is R1)
2. Resistor class -- the package is 0603 (34 pieces, all in series, the total resistance is R2)
3. Resistance class -- package is 0402 (10 pieces, all in series, total resistance is R3)
4. Resistance exclusion class -- the package is 0603 (6 pieces, all in series, with test points)
5. Capacitor class -- the package is 0805 (20 pieces, all in series, the total capacity is C1)
6. Diode class -- 3216 (10 PCS, all in series, test point for DA)
7. Triode -- SOT-23 (6 PCS, with test point)
8. Integrated chip class -- packaged in SO-14 (2 PCS, with test point)
9. Integrated chip class -- LQFP44 (2 PCS, with test point)

DĖMESIO. Parduodamas ne surinktas modulis, o komponentų (įskaitant PCB) komplektas.
