Vairuojamos važiuoklės komplektas su varikliais

d1222

Nauja prekė

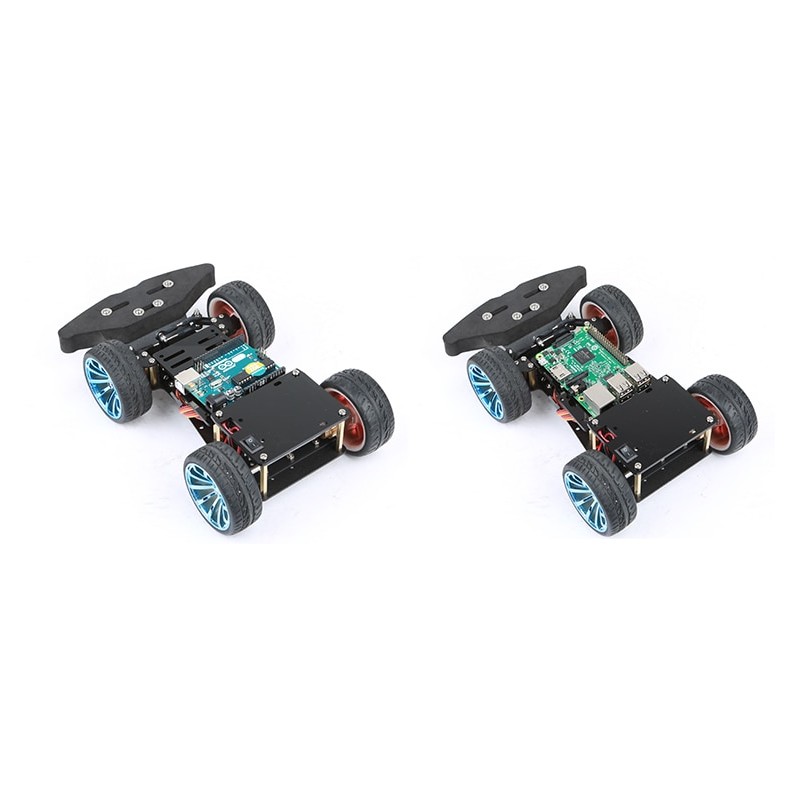

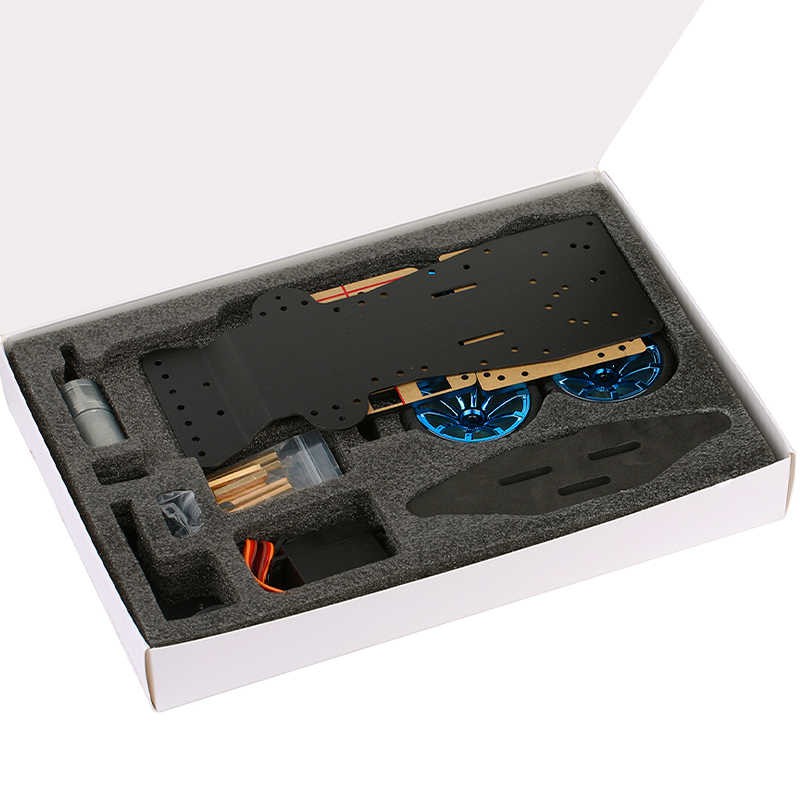

RC car platforma jūsų važinėjančiam Arduino projektui. Komplekte yra visos mechaninės dalys, varžtai, varikliai, tačiau elektroninę valdymo sistemą turite suprojektuoti patys. Platforma parduodama kaip komplektas (nesurinkta).

Smulkiau

Prekių kiekis mūsų sandėlyje: 3

Dėmesio: Paskutinės prekės!

90,75€ su PVM


75,00€ be PVM

Charakteristikos

Suderinama su Arduino™ ir *duinoTaip
Nominali darbinė įtampa12V (DC)
Matmenys235 x 147 x 64 mm

Apie prekę

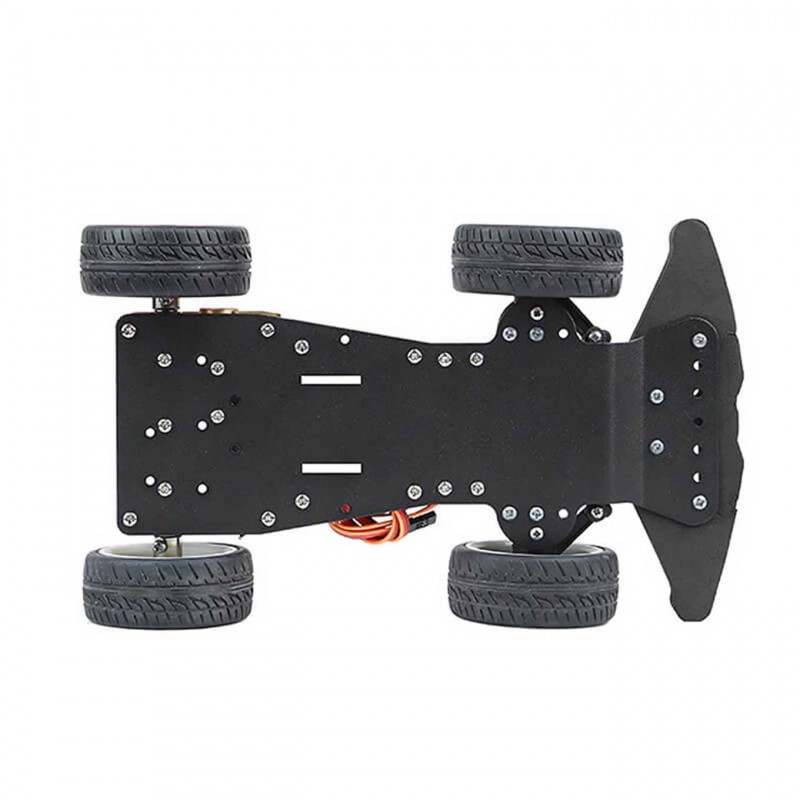

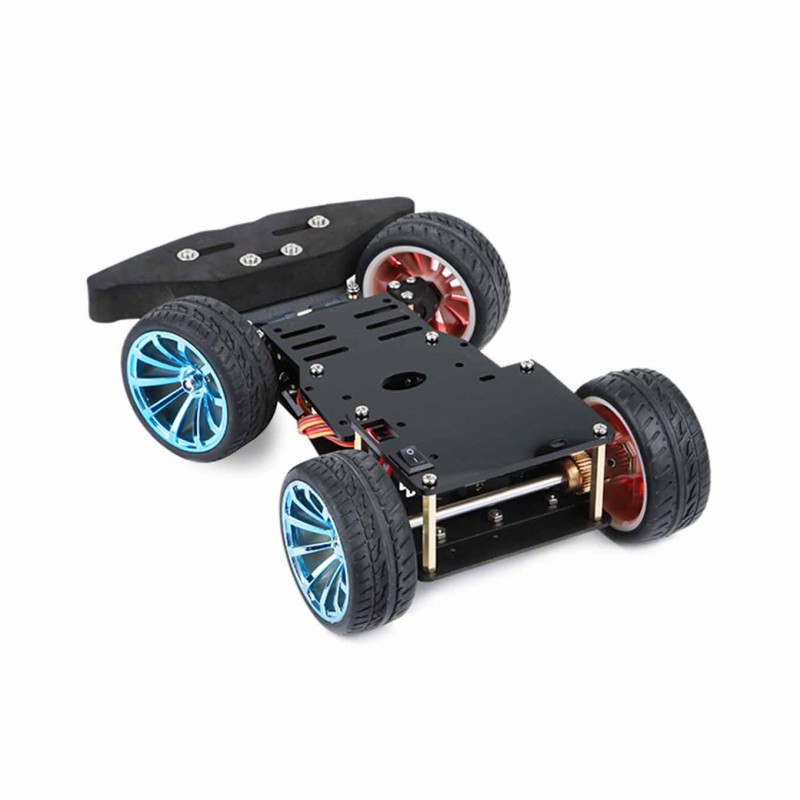

This is a newly designed 4-wheel car chassis, it is different from ordinary 4-wheel drive, this car with rear-wheel drive plus front steering mechanism to achieve the car forward, backward and turn left and right.

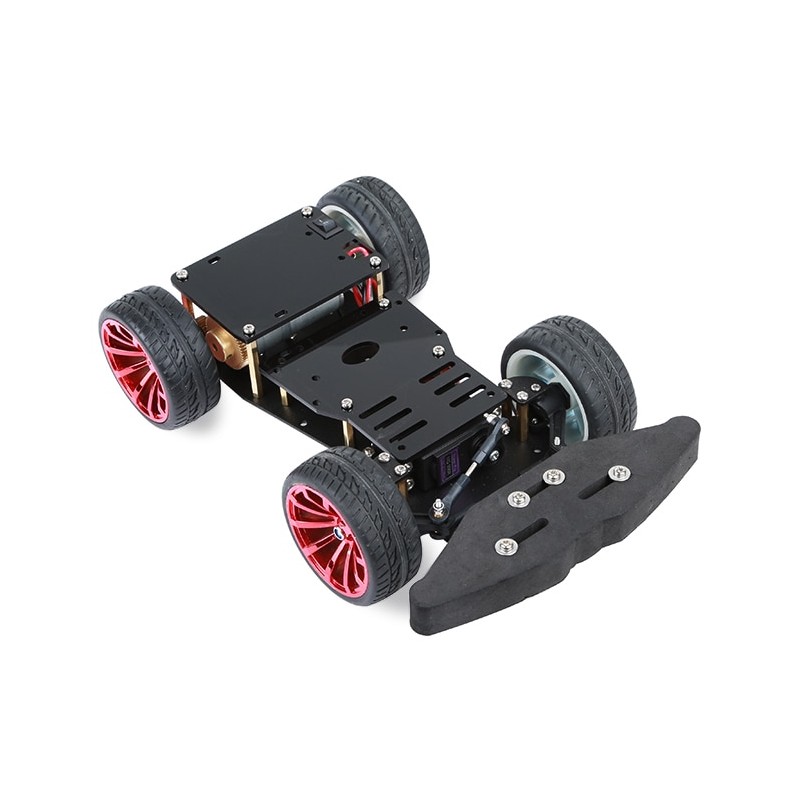

Same as professional remote control racing principle, this use of two rod through the steering servo to control the direction of the car. In addition, the steering mechanism of the rear wheel has also been changed. The aluminum fixing piece is integrally formed with the motor and the motor is tightly engaged with the drive shaft. The motor adopts the all-metal gear motor. If you pursue high speed, As long as the 25mm shaft diameter motor can be. The rear wheel incorporates two flange cup bearings to ensure a more flexible motor rotation.

Motor parameters:

GA25-370 DC geared motor

Rated voltage: 6-12 V;

No load speed: 250-320 rpm;

Rated speed: 175 rpm;

Current: 1.2 A;

Gearbox ratio: 1:32.3;

Features:

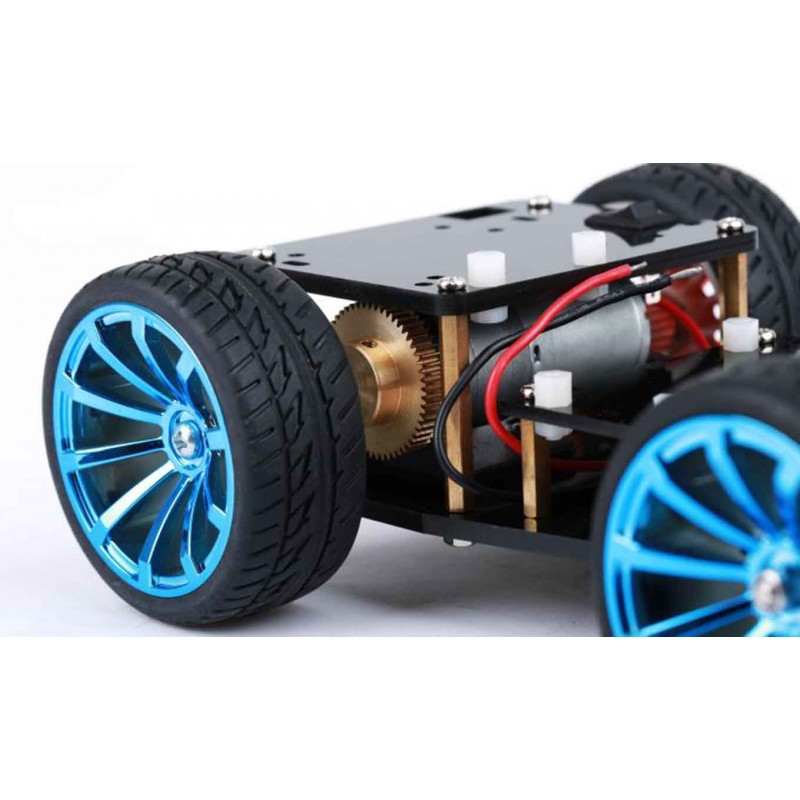

All-metal motor rear-wheel drive;
Using steering gear control car steering;
Steering structure with bearings, transmission loss;

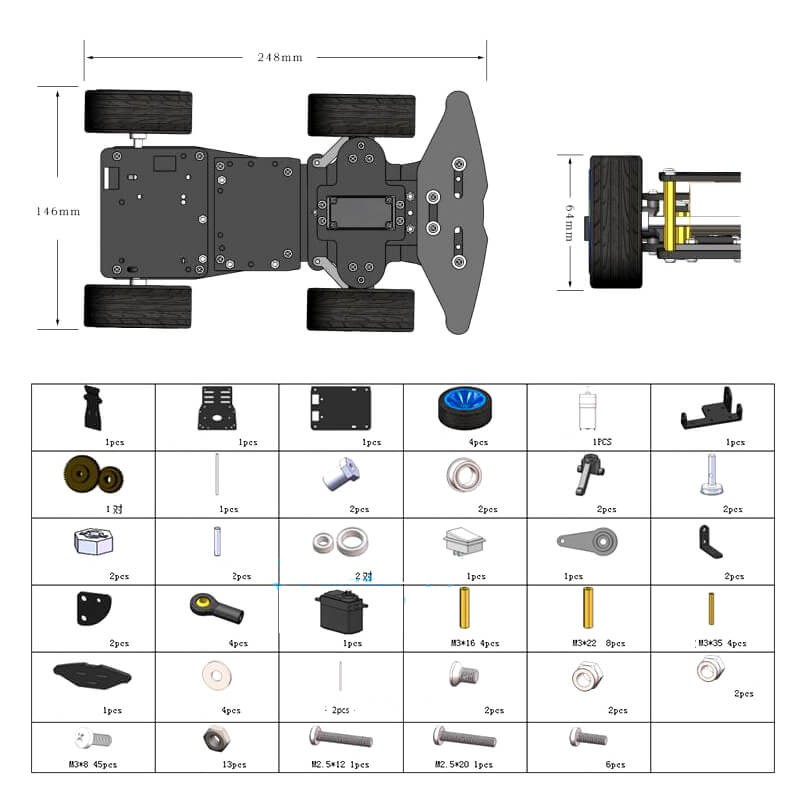

Car size: 248mm(l) x 146mm(w) x 70mm(h)
Weight: 680 g;

Minimum ground distance: 16 mm;
Minimum turning radius: 45 cm;

Approximate car speed: 1m/s

Approximate max load: 1500g
