STEAM roboto rinkinys Makeblock mBot2 (P1010132)

The next generation of Makeblock 's popular educational robot - mBot. The mBot2 robot is designed with extended capabilities, applicable to both primary and secondary schools. The mBot2 is equipped with a CyberPi main module, based on the ESP32-WROVER-BCyberPi main module, enriched with WiFi and Bluetooth communication, built-in sensors and much more. The STEM educational robot mBot2 is designed to provide interactive hands-on activities for students to learn the basics of robotics, programming, IoT and artificial intelligence. The user-friendly programming environment allows students and teachers to seamlessly transition from a simple, graphical Scratch-type programming method to a more advanced text editor for Python programming.

Main features:

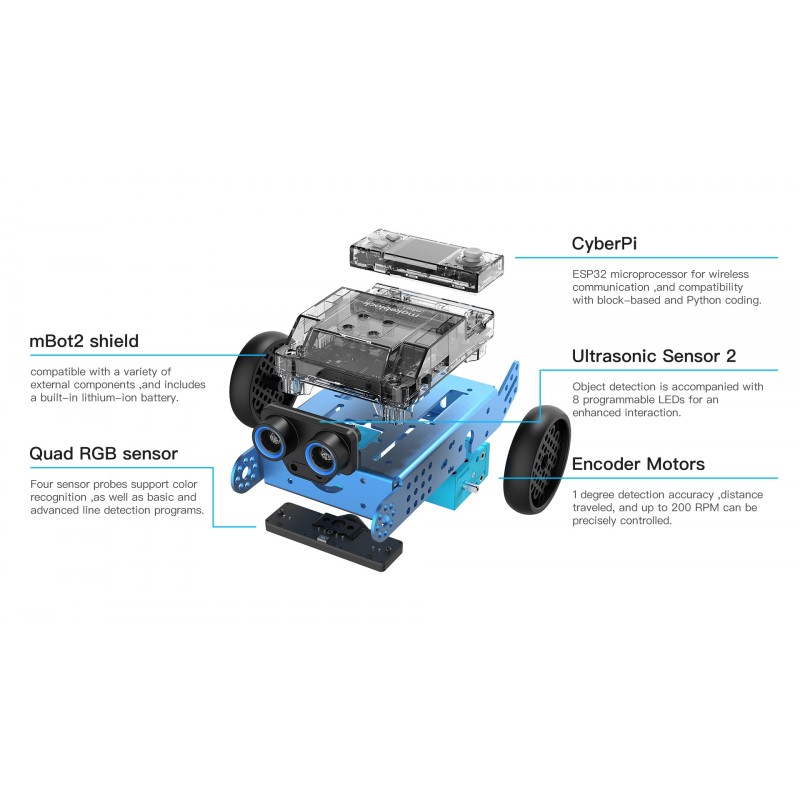

• Based on the CyberPi module. CyberPi controller is equipped with various sensors, color display and WiFi communication capability. These features enable a wide range of applications in curriculum topics in computer science, robotics, data science, and artificial intelligence, combined with other curriculum areas such as math, physics, etc. (STEM).
• Precision control. The mBot2 robot motors are equipped with encoders that allow precise control of rotation, speed, and position, enabling the integration of math, physics, and engineering principles.
• Enhanced robot design. mBot2 features a new ultrasonic sensor with LEDs and a Quad RGB sensor, consisting of four-color sensors for color detection or line tracking. The robot can be expanded with more Makeblock Education sensors and structural parts and smart electronic modules.

Specification:

• Graphical programming:
  • Graphical environment mBlock is compatible with Scratch 3.0 on PC
  • Graphical application for Android and iOS mobile devices
• Text-based programming:
  • Micro Python
  • Python3
• Processor: Dual-Core 32-bit 240 MHz
• Memory:
  • 520 kB RAM
  • 8 MB SPI Flash
• Multithreading support: Yes
• Number of programs in memory: Up to 8
• Integrated sensors:
  • Gyroscope / accelerometer x 1
  • Light sensor x 1
  • Programmable button x 2
  • Joystick x 1
  • Sound sensor / microphone with sound recording x 1
  • Speaker x 1
  • IPS color display with 128x128px resolution
  • RGB LED x 5
• Wireless communication: Bluetooth / WiFi
• External modules:
  • 400 cm distance sensor with RGB LED x 1
  • Quadruple line and color sensor x 1
  • Motor with 1° resolution encoders x 2
• I/O Ports:
  • Universal sensor connector with support for 10 sensors simultaneously
  • Motor ports with encoder x 2
  • DC motor ports x 2
  • Servo ports x4
  • Arduino LED ribbon and sensor ports x 2 (shared with servo)
  • USB type C x 1

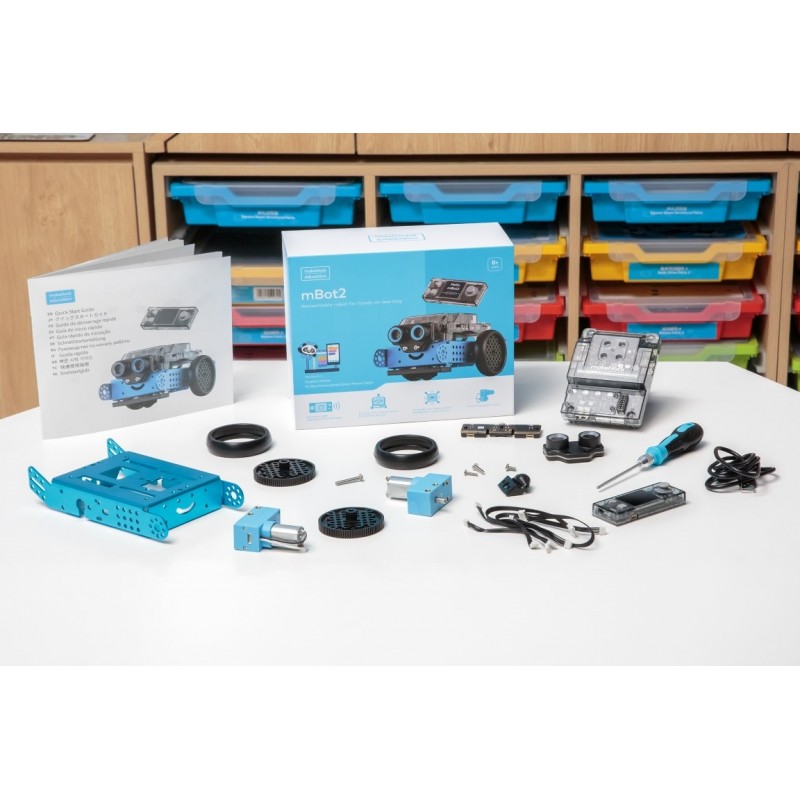

• Other equipment:
  • USB type C cable x 1
  • Screwdriver x 1
• Chassis: Metal, components bolted together using tools provided in the kit
• Power supply: Built-in 2500 mAh Li-Ion battery charged via USB C
• Number of pieces included: 40
