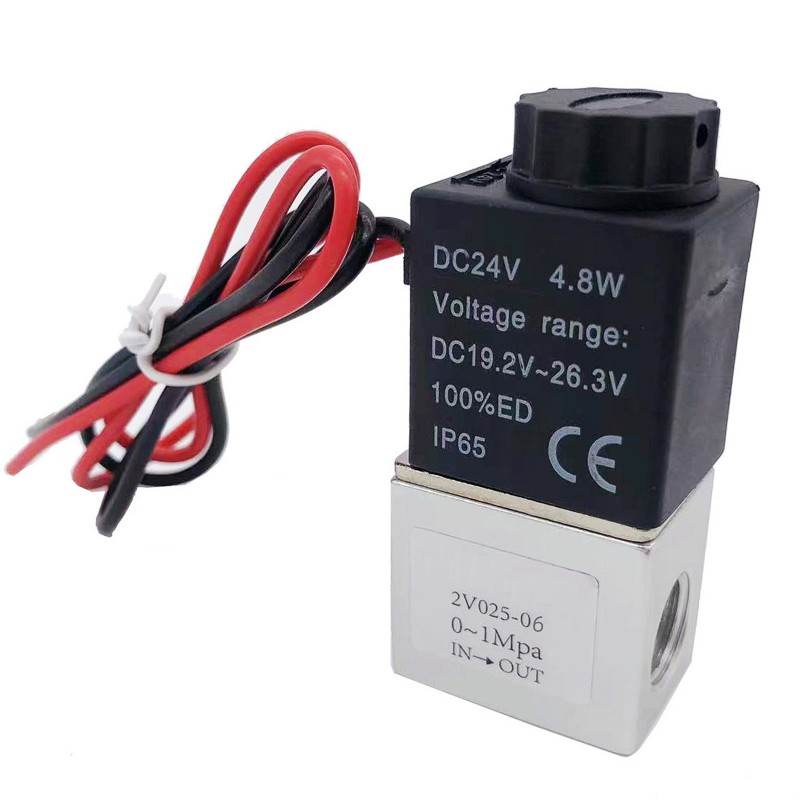

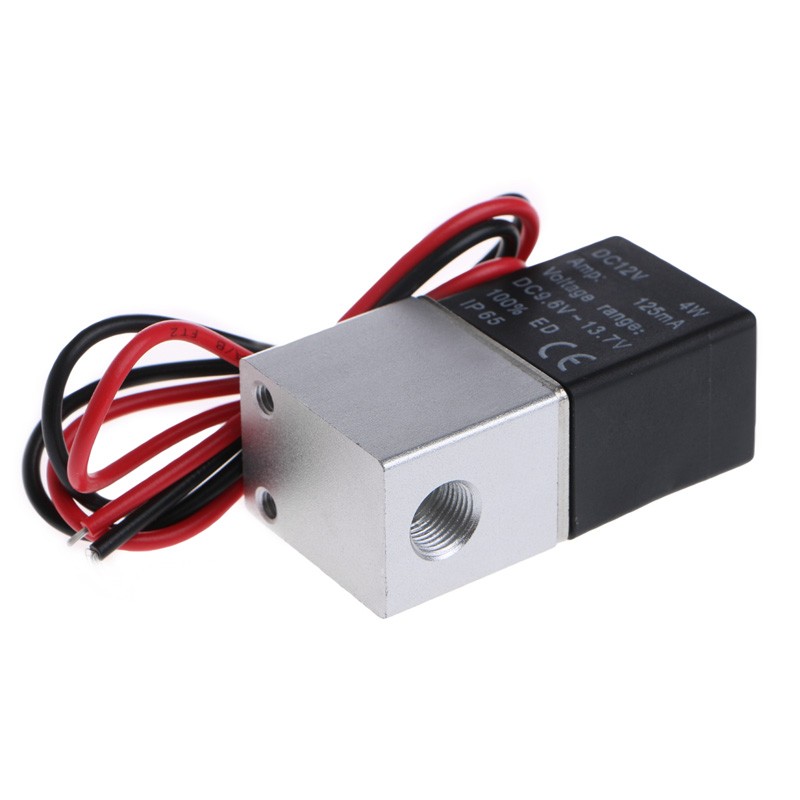

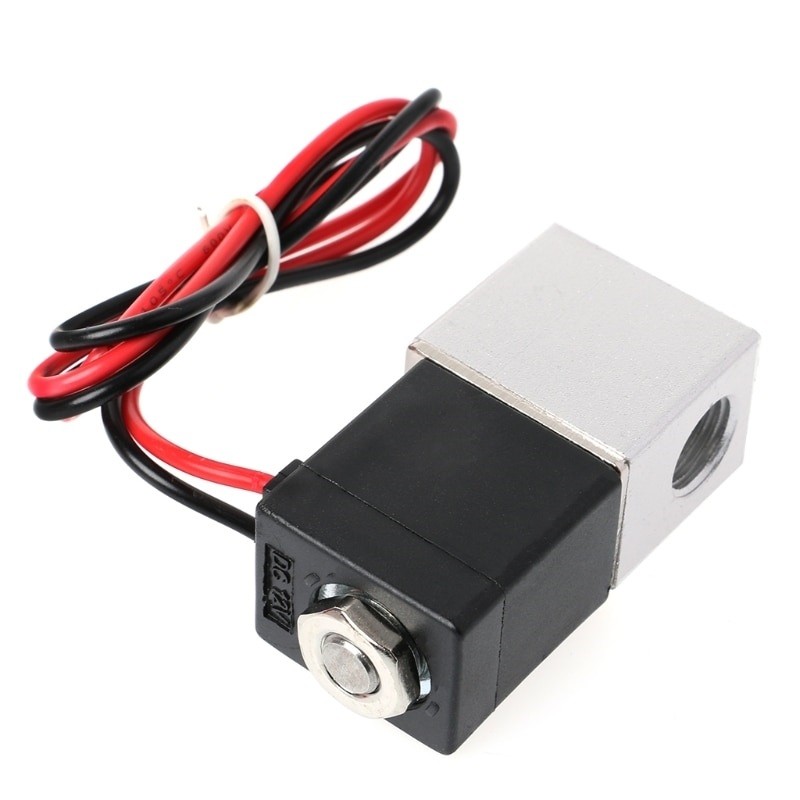

Elektromagnetinė sklendė 2V025-1/4-24VDC

Prekės kodas: d7786

Būklė: Nauja prekė

Elektromagnetinis vožtuvas 2V025-08 24VDC. Normaliai uždaras (atsidaro suaktyvinus elektromagneto apviją). Sriegis: vidinis 1/4". Korpusas: IP65.

Smulkiau

Prekių kiekis mūsų sandėlyje: 25

Spausdinti

Charakteristikos

Suderinama su Arduino™ ir *duino	Taip
Nominali darbinė įtampa	24V
Maitinimo įtampa	19,2-26,3 VDC
Laidų kiekis	2
Matmenys	60 x 30 x 22 mm
Galia	4,8W
Naudojama srovė	200 mA

Apie prekę

Specifications:
Model Number: 2V025-1/4-24VDC
Valve Type: 2 Way Normally Closed (Valve opens when energized)
Port Size: 1/4" NPT Female Port
Coil Voltage: DC24V
Media: Air, Gas, Liquid, Water
Operation Model: Direct Acting
Flow Model: Uni-Directional
Flow Rate: 0.23Cv (Fluid Flow), 22 SCFM at 100 PSI (Air Flow)
Shortest Excitation Time: 0.05/s
Response Time: Less than 50 ms
Operating Pressure: 1.2Mpa(can be operated at 0 PSI (Vacuum))
Operating Temperature: -10 to 65 °C

Coil Power: 4.8W
Coil Class: F Class IP 65 (CE Certification)
Coil Certification: CE Certification
Coil Duty: 100% ED (Continuous Duty)

Materials:
Body Material: Aluminum
Seal Material: NBR (Buna N)
Armature Tube Material: Brass
Plunger & Spring Material: Stainless Steel

Total Size: 3.1x2.2x6cm/1.22x0.87x2.36"
Wire Length: 40cm/15.74"
