Relė SSR-3-D4840A (DC valdo 3 fazių AC)

Didesnėms srovėms valdyti gali būti reikalingas papildomas aušintuvas (žr. Sinotimer SSR-3-D4840A specifikacijas)

Apkrovos grandinė įjungiama/išjungiama "zero-crossing" metodu (žr. Sinotimer SSR-3-D4840A specifikacijas)

This SSR control resistive loads, inductive loads and LED lights only.
The output current of the relay should be at least 2 times the size of resistive loads and 6 times inductive loads.
For loads whose current are 5A or larger, we suggest to use with heatsinks.

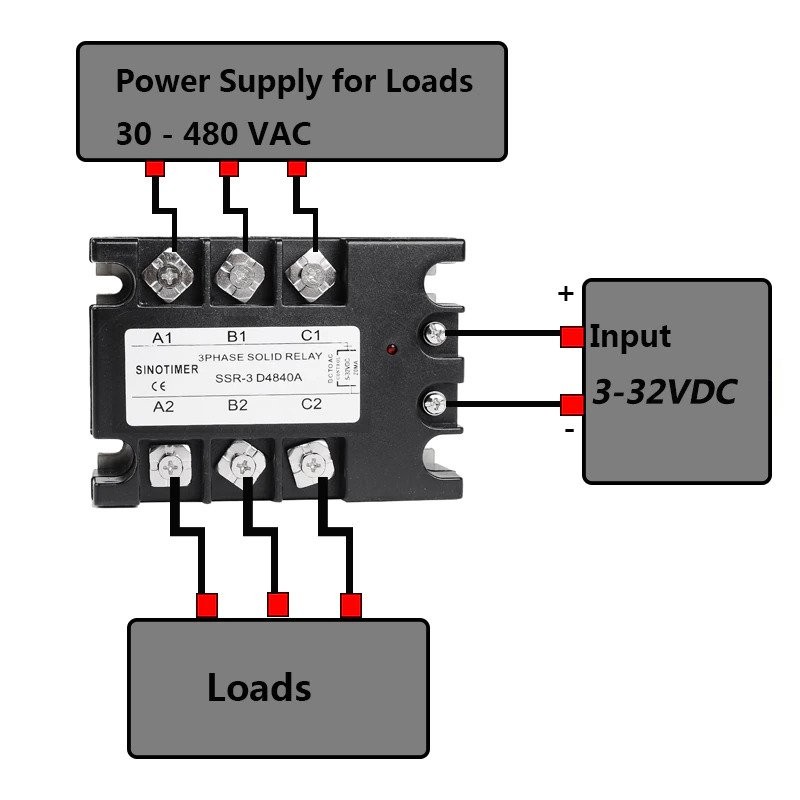

Input 3-32V DC
Control Load Voltage 30-480VAC
Control type DC to AC ( Zero-crossing )
Response time ON<10ms/OFF
Voltage withstand Over 2.5Kvac/1Min
Insulating strengh Over 50m/500DC

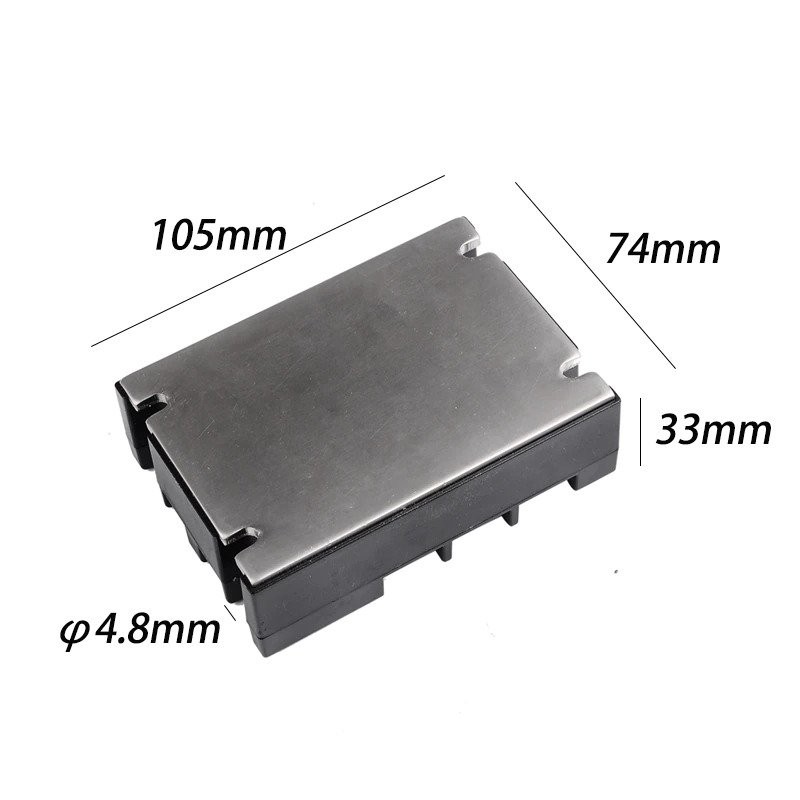

Dimmension Same as the link show
Output Current 10A
Ambient Environment -20~85 Degrees Celsius
Work Indicator LED
Service Times >1 Million
Net Weight 300g
Basic type 40A
