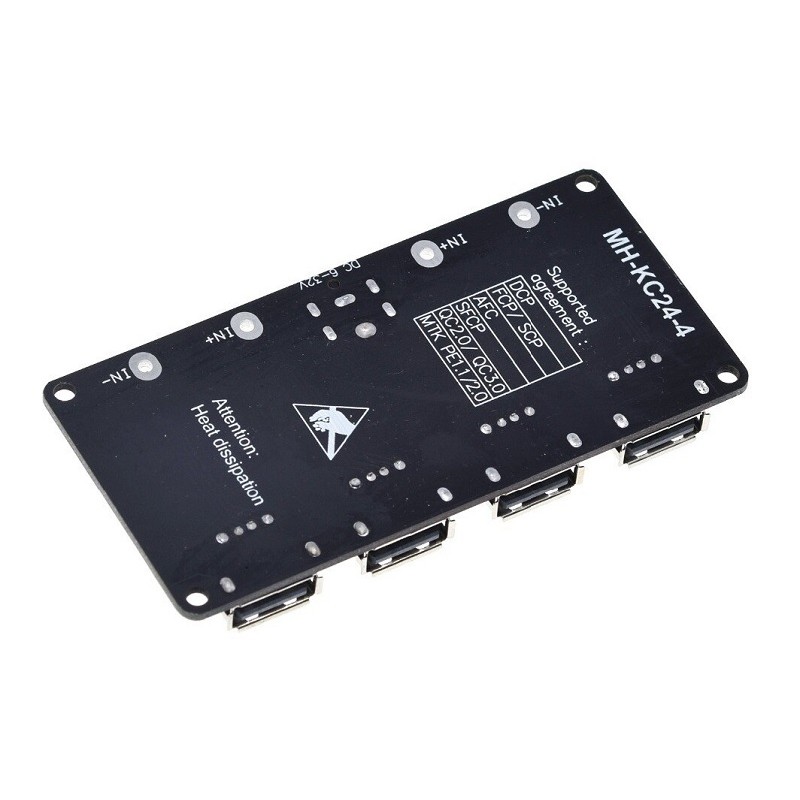

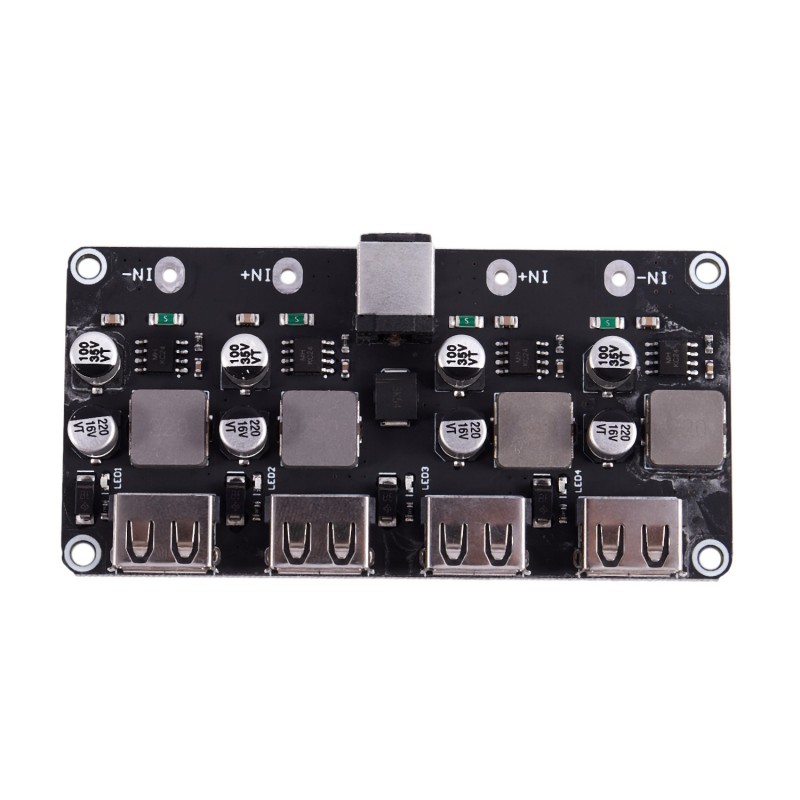

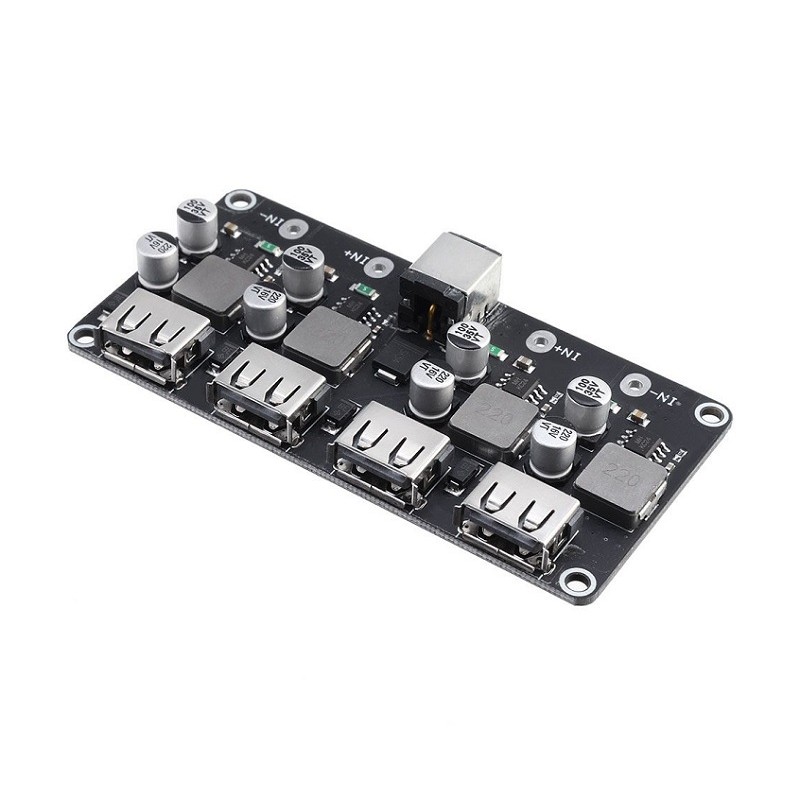

USB greito įkrovimo (QuickCharge) modulis 24W (4 kanalų)

Input voltage range: 6V to 32V
Output voltage: The default is 5V. After the fast charge is triggered, it is automatically adjusted between 3 and 12V.
Output Power. 24W (5V, 3.4A, 9V, 2.5A, 12V, 2A, etc.)
Output voltage wired compensation
Conversion efficiency: 90% to 97%
Supports multiple fast charging protocols
Input overvoltage, undervoltage protection
Input over-current protection
Output overcurrent and short circuit protection
Over temperature protection
Support fast charging protocol
for BC1.2, iPhone, Samsung agreement
for Qualcomm QC2.0 and QC3.0

MTK PE1.1/PE2.0
Fast Charge Protocol FCP
Star Fast Charge Protocol AFC
Spreadtrum Fast Charge Agreement SFCP
