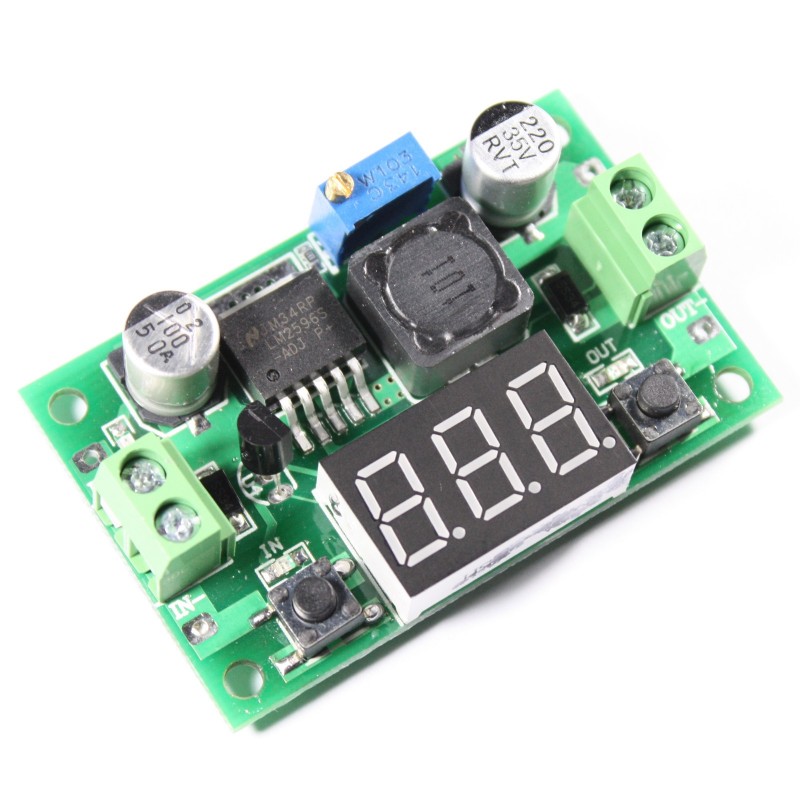

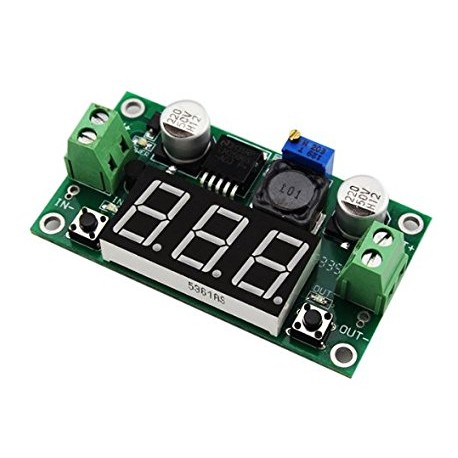

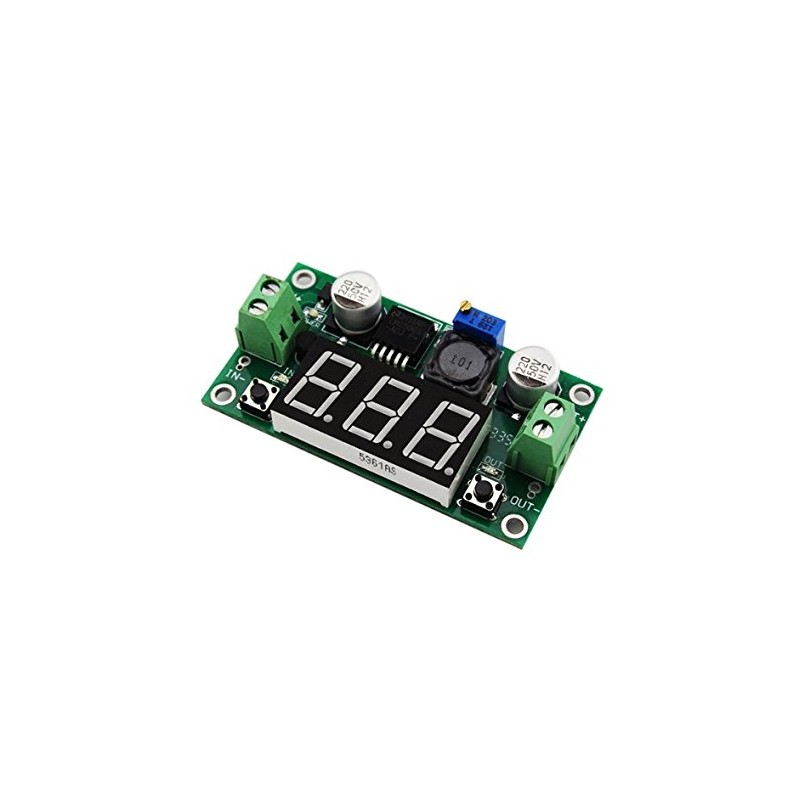

LM2596 Step-down maitinimo šaltinis iki 3A iki 37V

Input voltage range: 4-40 V
Output voltage range: 2V -37V
Output current: 2A continuous output
Output power: max. 15W
Ripple frequency: 150 kHz
Grain wave crest: 100 mv
Voltage Display Accuracy: ± 0.05V, Range: 0-40V (Note: Best view when input voltage higher than 4V)
Switching button for measuring input / output voltage.
Dimensions: 7cm * 4cm
Continuously adjustable output voltage range of 1.25V-37V, input voltage range of 4-40V (The Input voltage is at least higher than the output voltage of 1.5 V).
High efficiency, 150 kHz fixed frequency internal oscillator.
Guaranteed 3A output load current
Thermal shutdown and current limit
IN +: positive input / IN -: negative input
OUT +: positive output / OUT -: negative output
