Nextion Foca Max USB to TTL komunikacijos ir 5V2A maitinimo modulis

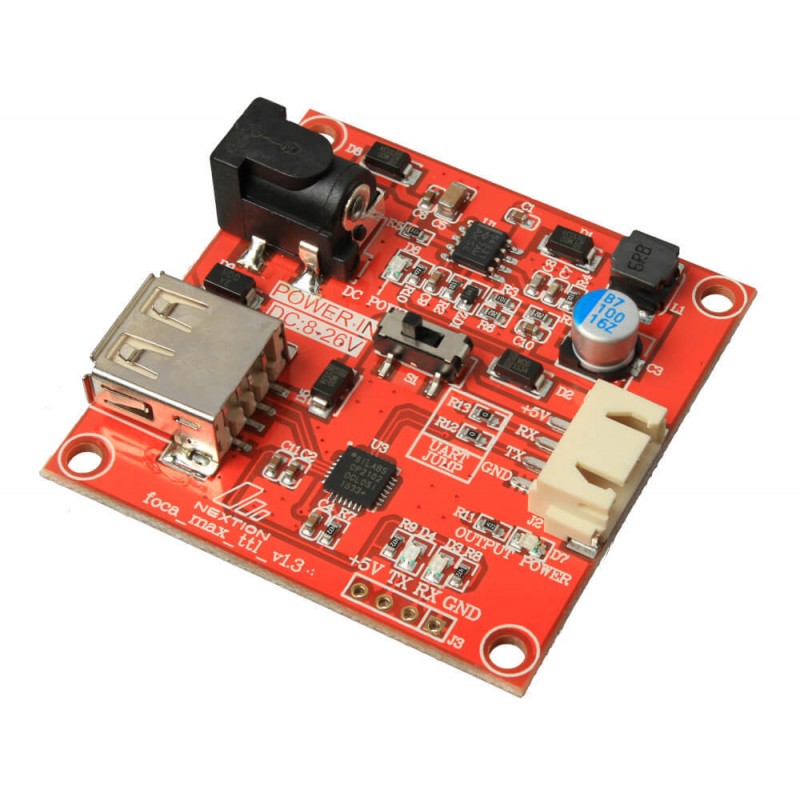

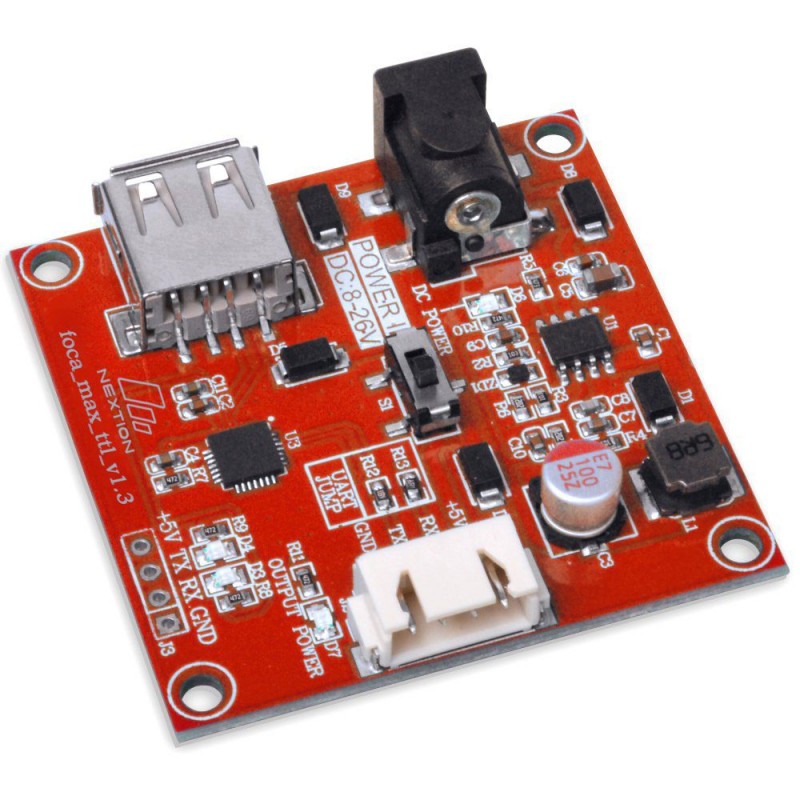

Foca Max is a USB to TTL serial converter board with 5.5V2A output. it integrates a high power and energy-efficient DC-DC chip of TPS54331 for a wide voltage input with small voltage ripple. For USB to TTL conversion, the Foca Max can be power supplied by USB only or USB together with external DC 8-26V, The USB and external DC power supplies are isolated by using a diode (SS34) to avoid the current backflowed between them.

Note: as for the Nextion HMI display size less than 4.3”, you can use the USB power supply, but for larger than 4.3” displays, a external DC 8-26V for power supply is recommended.

Features:

SILABS CP2102 chip, maximum baud rate of 2Mbps
High-power and energy-efficient DC-DC converter chip TPS54331 with 8-26V wide voltage input and 5V2A output

Solid capacitors, high Q inductors components

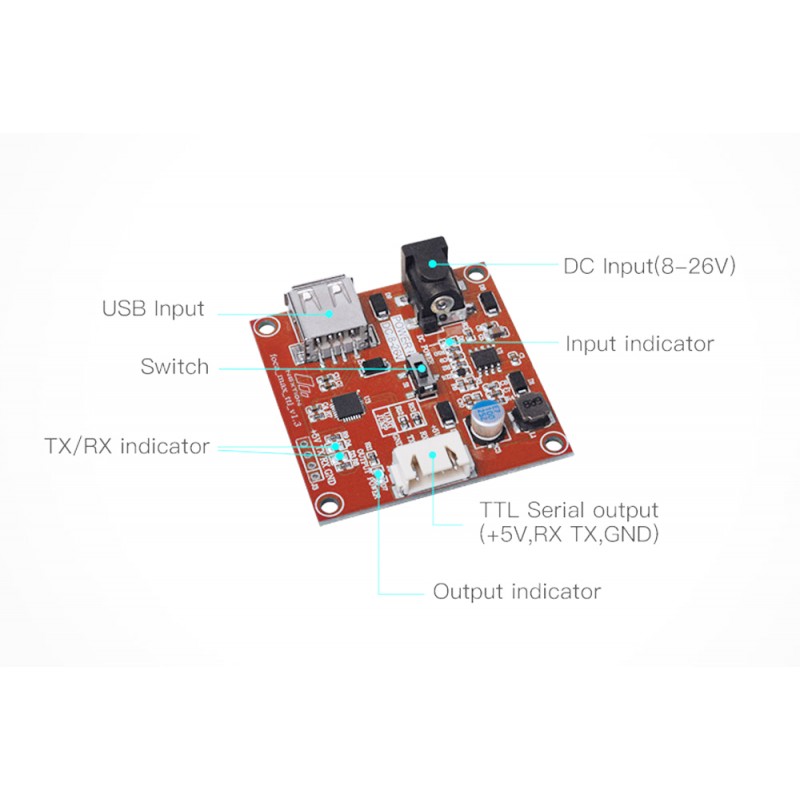

LED indicators for input/output power and TX/RX communication

Small voltage ripple within 100mA

Plug and Use, no firmware programming required

Specification:

Model name: Foca Max

USB Voltage input: 5-5.5V

USB type: USB 2.0

DC Input: DC 8-26V

DC Power Socket: DC-005 (5.5*2.1mm)

Voltage output: 5-5.5V

Current output: 2A（maximum）

Voltage ripple: <100mV

Working temperature: -20°C ~ 70°C

PCB size: 50mm*50mm*1.6mm

Max baud rate: 2Mbps

TTL level: 3.3V

In the box：

Foca Max*1
USB wire*1
XH2.54 4P wire*1
