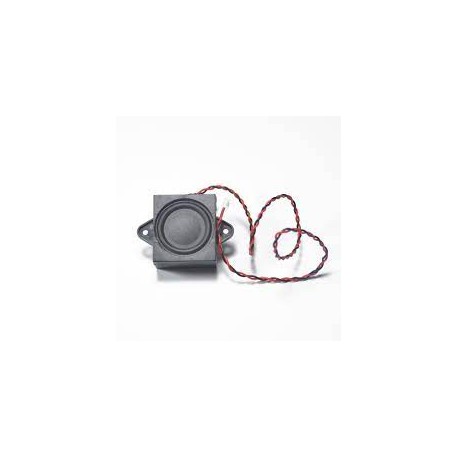

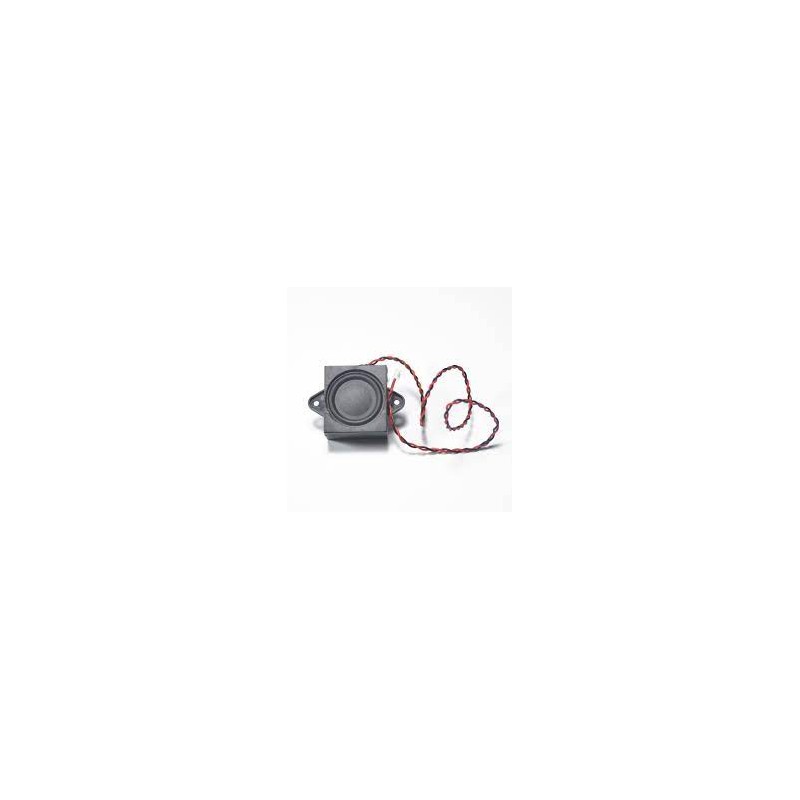

Nextion 1,5W garsiakalbis (box speaker)

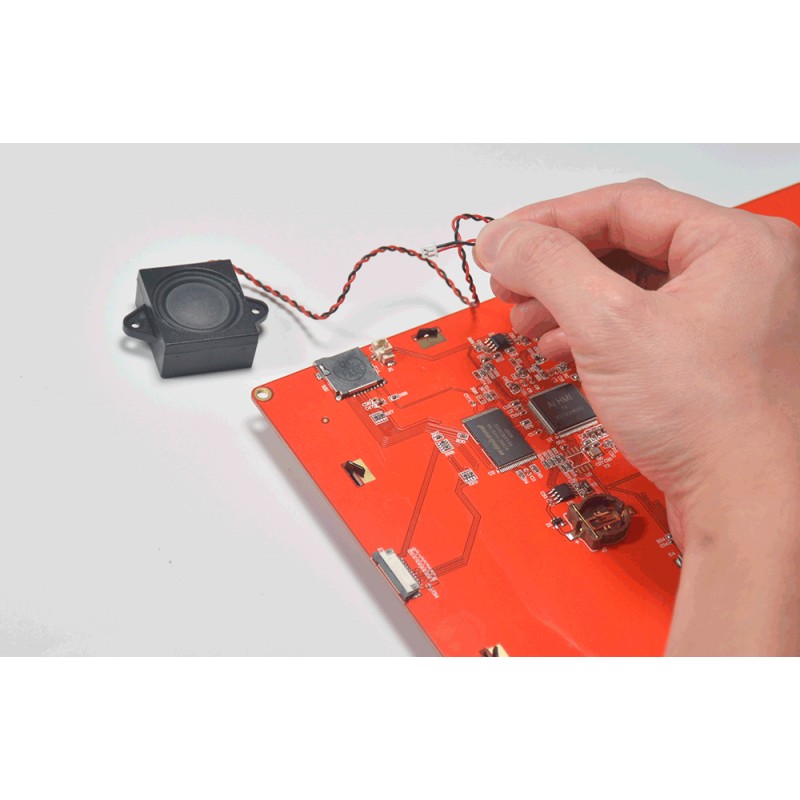

The BOX speaker is for the use of 4.3″, 5.0″, 7.0″, 10.1″ intelligent series HMI display without enclosure.

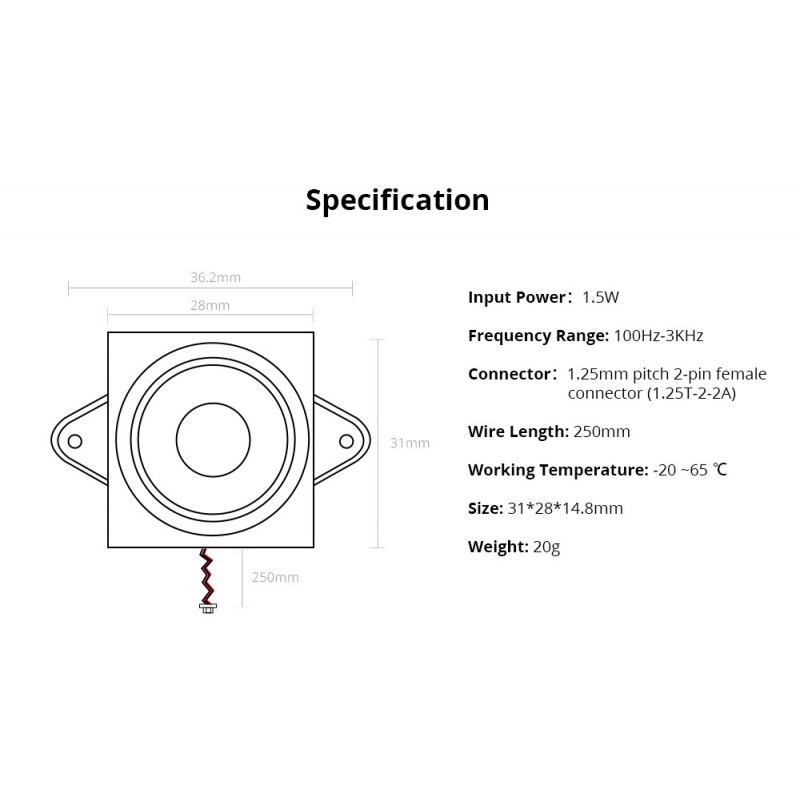

Input Power：1.5W
Frequency Range: 100Hz-3KHz
Connector：1.25mm pitch 2-pin female connector (1.25T-2-2A)
Wire Length: 250mm
Size: 31*28*14.8mm

*Note: To Be sure that the Nextion HMI display working properly, please increase 0.5A for the working current of the display power supply. For example, The official power supply recommendation of NX4827P043-011R is DC 5V/1.0A, if you would like to use the Nextion BOX speaker,  the input current should be increased from 1.0A to 1.5A to ensure working stability.

To create a simple audio test HMI project in minutes
Convert the audio file to wav format in VideoBox
Add audio wav file in the resource panel
Add two buttons for PLAY and PAUSE and configure the background of these two components
Add audio component, initial the audio en parameter as "0" and set audio ID as "0"
Coding "wav0.en=1" for PLAY button Touch Release Event
Coding "wav0.en=0" for STOP button Touch Release Event
Compile and upload the project
