Jutiklinis 1,8 colio TFT LCD modulis

Description:

TFT LCD module has always been one of the hot products in DIY industry and LCD is basically the necessary products during all projects, at the same time, serial port modules are also the popular ones, because it takes few IO and the usage is simple. This section of the 1.8-inch TFT LCD serial SPI integrated features of compact, SPI interface, fully compatible with popular LCD5110 interface cable sequence, and will replace the increasingly reducing LCD5110.

Feature:

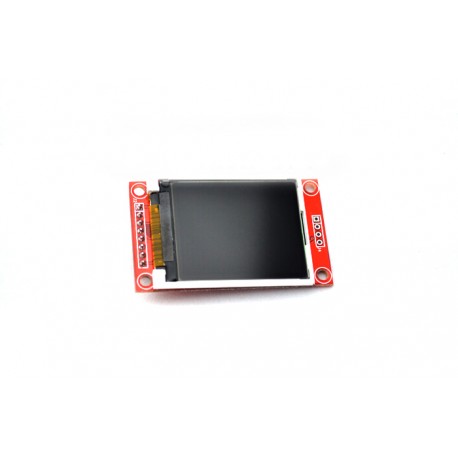

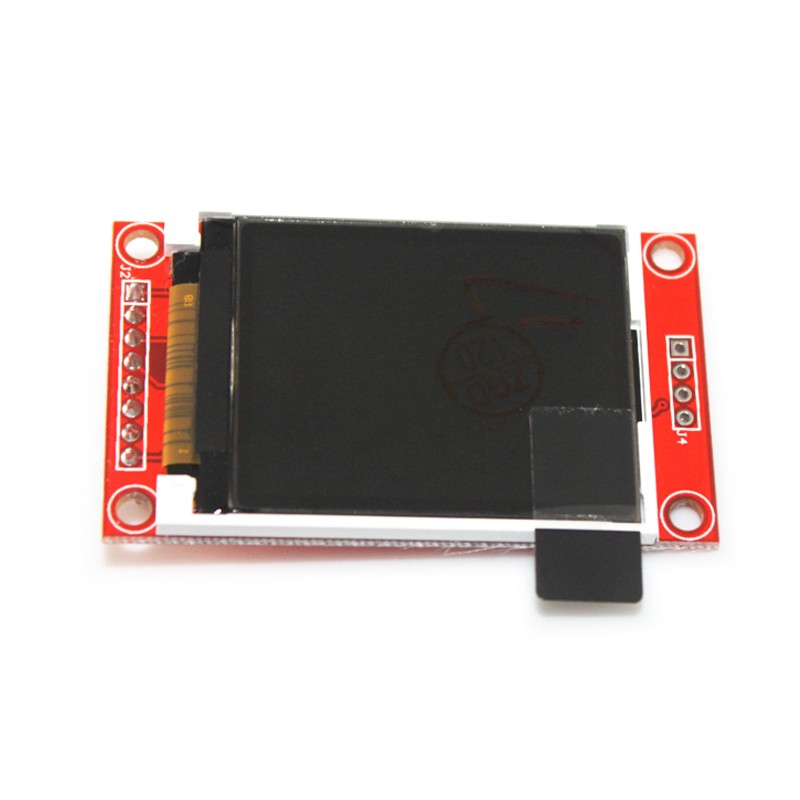

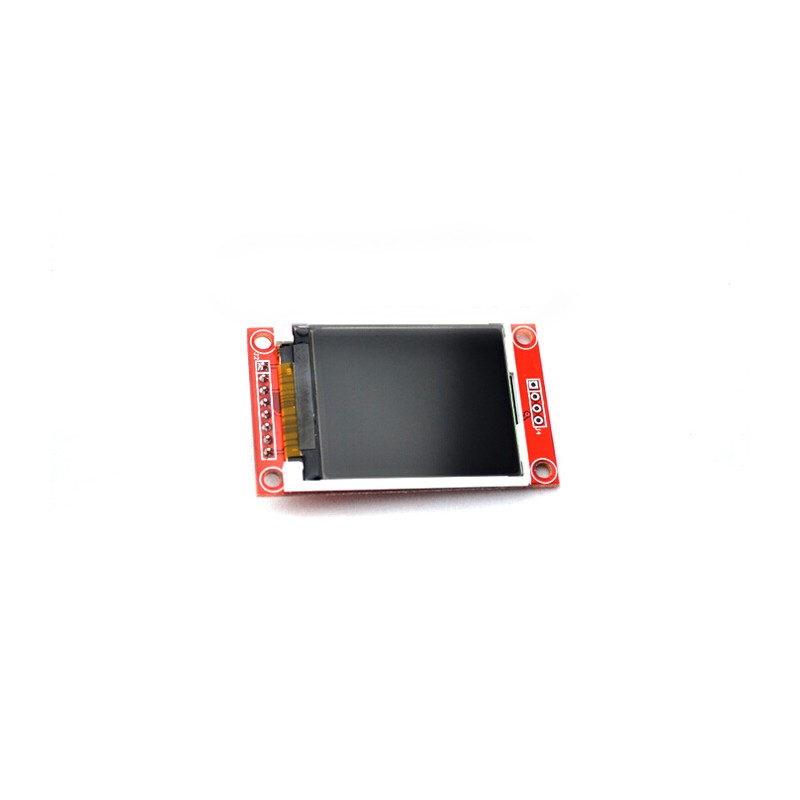

TFT01_1.8 SP is a 1.8 "SPI TFT LCD Screen Module, 9pins interface, compatible LCD5110 interface. Not just a LCD break but include SD card (2GB),
The LCD in the TFT01 is ST7735S. It's a 128 X 160 (resolution), 1.8 inch TFT LCD screen.The LCD has a wide viewing angle, the contrast is also very suitable.
The display interface is serial, it just needs 5 wires (CS, RS, SCL, SDA, RST) for controlling.
Replace LCD5110, Support direct plug in ElecFreaks Joystick shield, EFCom, Key Pad Shield etc
SDcard use hardware SPI interface (CS / MOSI / MISO / SCK), Not solder pins.

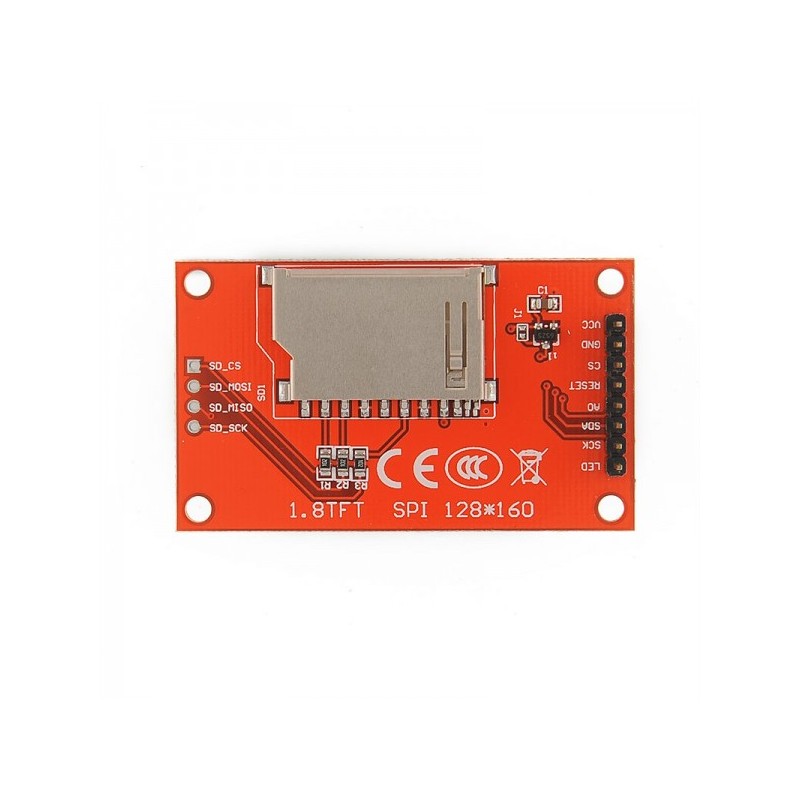

Pinout (8pin version):

LED: 3.3V IO and Power Supply pin
LED: UTFT Support
SCL: Serial clock input
SDA/SDI: Serial data input
DC: Data/Command selection
RST: Reset Low level active
CS: Chip Selection，Low level active
GND: Ground
VDD33: 3.3V Power Supply pin

Pinout (11pin version):

VCC: Power supply (5V/3.3V)

GND: Power supply (GND)
GND: Power supply (GND)
NC: No connect
NC: No connect
(LED): Pick IO control back light off or PWM brightness control
CLK: SPI clock signal
SDI: Serial data input pin sda
RS: Command (RS=0)/ Parameter (RS=1)
RST: Reset pin
CS: Chip selection pin
