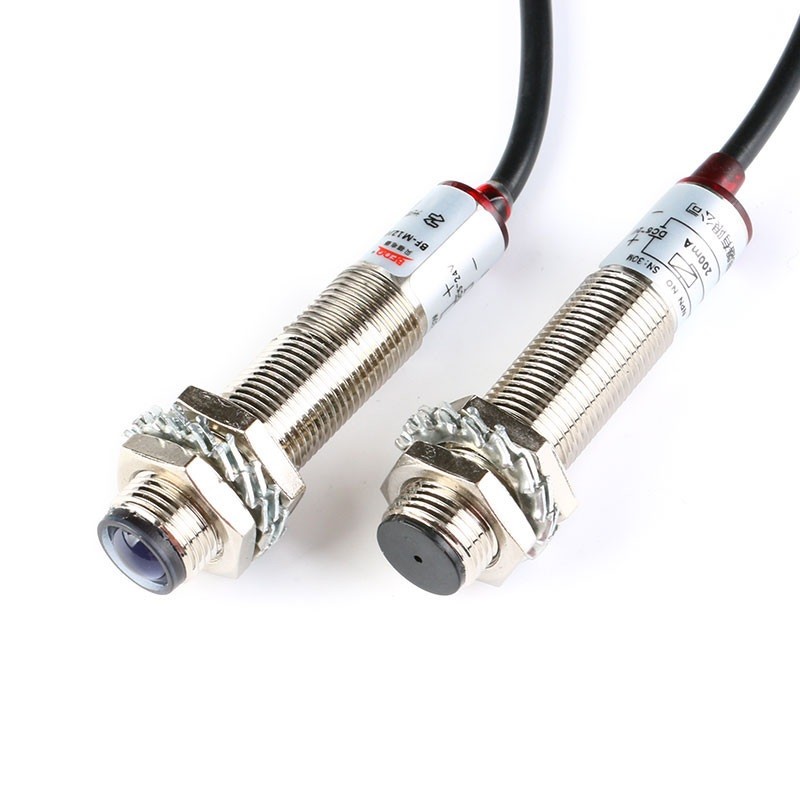

Lazerinis barjeras M12JG-30N1 NPN NC iki 20m

Product Description

GMA series of laser-type photoelectric sensor has a small laser beam emission angle, so the beam concentration and the energy characteristics of the unit beam allows (up to some degree) to penetrate the hazy rain, snow, snowstorm or dusty environment, thus greatly improving the accuracy and reducing the error rate. Can be widely adapted in automation as a limit, positioning, testing, counting, speed measurement, staff entering or  other industrial applications.


Product Features

1. Laser photoelectric switch performance and stability, fast response, impact resistance, vibration resistance, small interference, long life
2. Laser detection of shooting distance, high accuracy
3. Visible laser beam = debugging convenience
4. Straight beam can detect tiny objects
5. Can detect different objects, such as glass iron plastic wood liquid


Product Parameters
1. Model: M12JG-30N1(B-NPN-O)
2. Dimensions: transmitter M12 * 55mm, receiver M12 * 55mm
3. Detection methods: red visible laser (640 ~ 650nm)
4 working voltage: DC10 ~ 30V / 200mA
5. Output Type: NPN normally closed

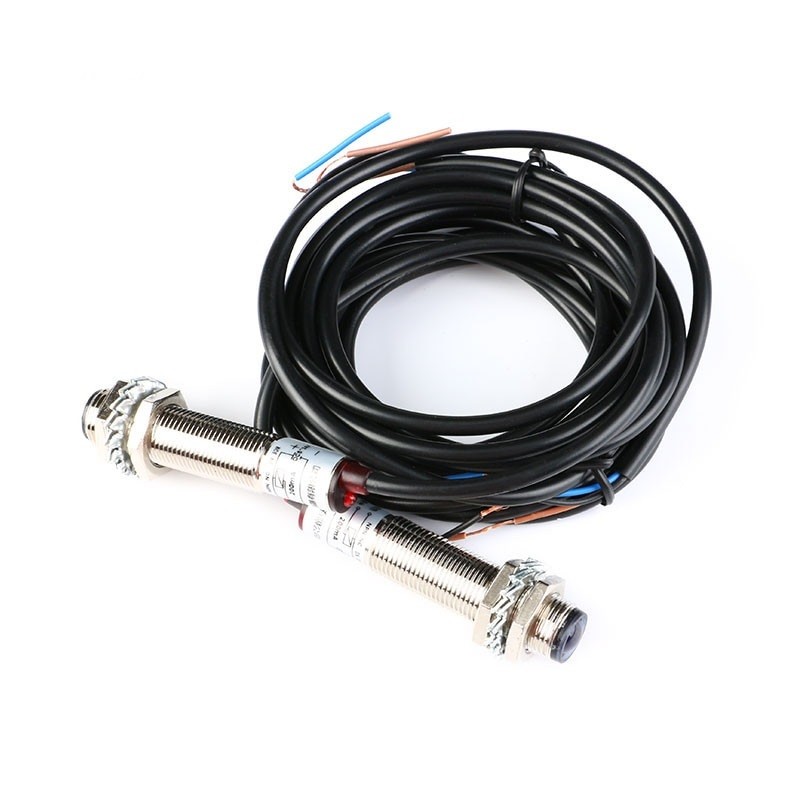

Packet Include:
1 set (Emitter and receiver)

Precautions
1. Startup time is up to 100ms;
2. If used near a source of surge, please add a surge absorbing device;
3. If used in the vicinity of high-frequency electromagnetic fields, use shielded wiring;
4. Laser sensor can not use autotransformer power supply, should use isolation transformer;
5. The laser sensor cable should be as short as possible to reduce noise interference.
