Mygtuko modulis 4

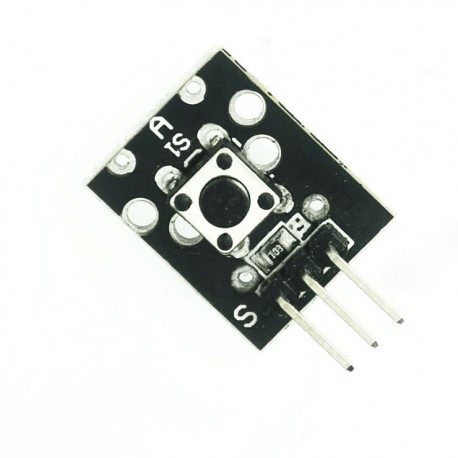

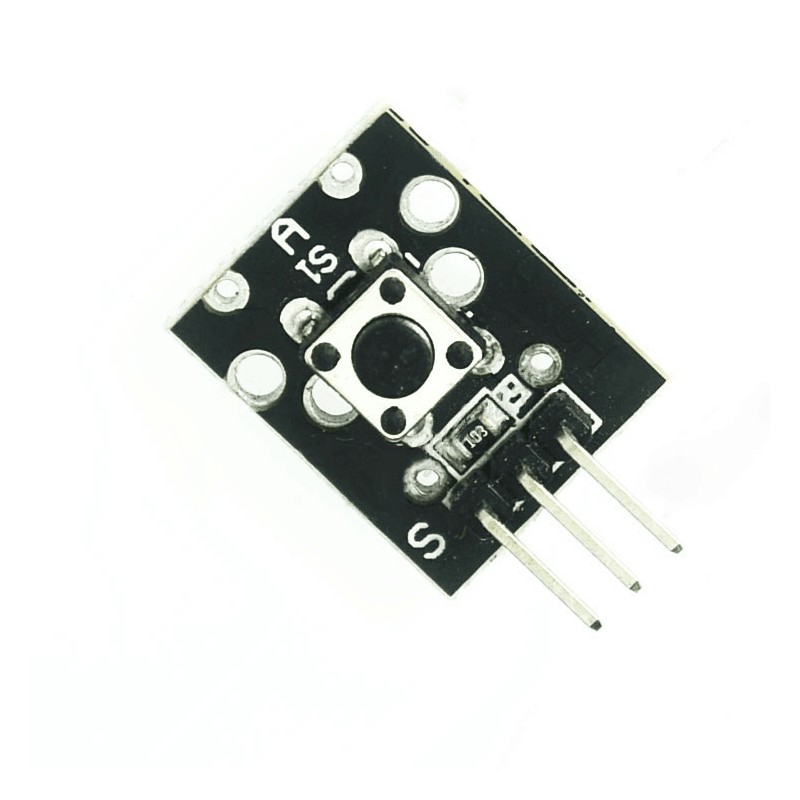

The module consists of a FZ1713 tactile push button switch and a resistor. Compatible with popular electronics platforms like Arduino, Raspberry Pi and Esp8266.

Rating: 50mA 12VC
Environment temperature: -25°C to 105°C [ -13°F to 221°F]
Life: 100,000 cycles
Operating Force: 180/230(±20gf)
Dimensions: 18.5mm x 15mm

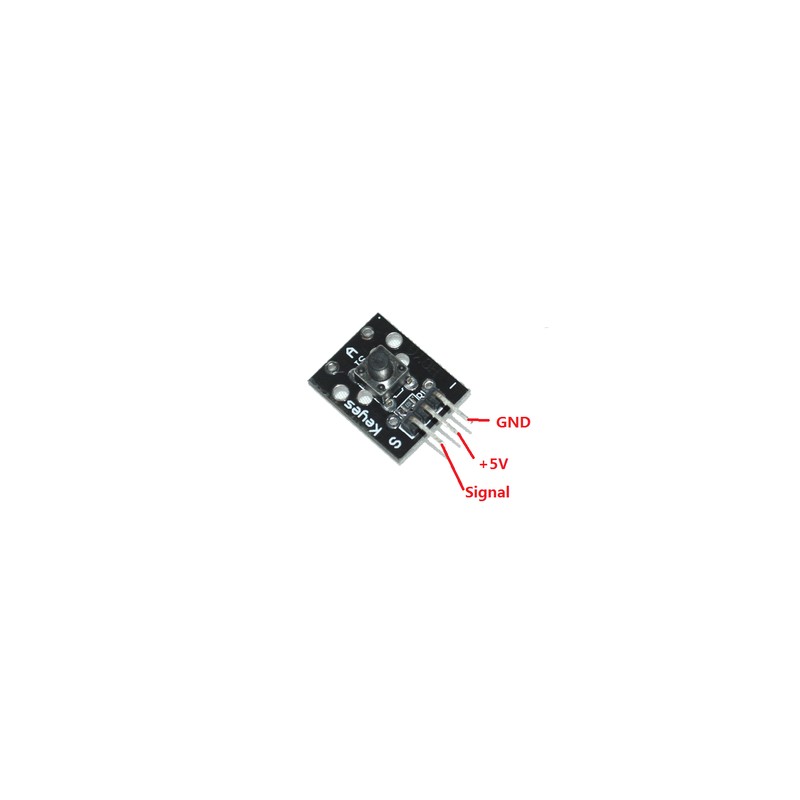

DĖMESIO! Skirtingos šio modulio versijos gali turėti skirtingą išvadų prijungimo tvarką. Pvz. aprašymo rengimo metu turimi moduliai pažymėti Y85 lipduku:

Režimui paspausta = '1'; atleista = '0':

"-": OUT;

'+': GND;

"s": +5V;

Režimui paspausta = '0'; atleista = '1':

"-": OUT;

'+': +5V;

"s": GND;

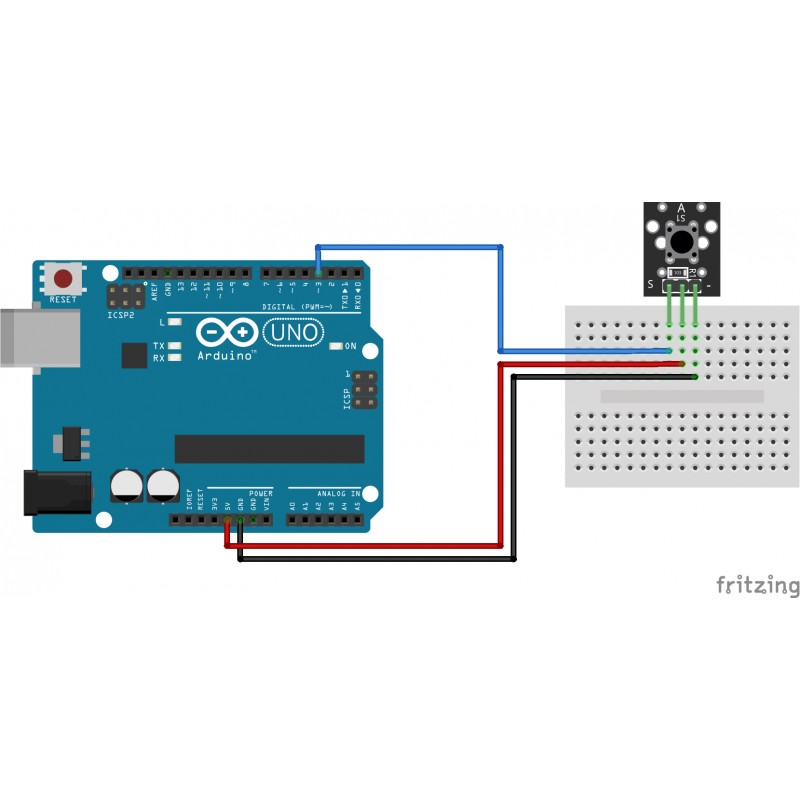

int Led = 13 ;// define LED Interface
int buttonpin = 10; // define the key switch sensor interface
int val ;// define numeric variables val
void setup ()
{
  pinMode (Led, OUTPUT); // define LED as output interface
  pinMode (buttonpin, INPUT); // define the key switch sensor output interface
}
void loop ()
{
  val = digitalRead (buttonpin); // digital interface will be assigned a value of 3 to read val
    if (val == HIGH)  // When the key switch when the sensor detects a signal, LED flashes
  {
    digitalWrite (Led, HIGH);
  }
  else
  {
    digitalWrite (Led, LOW);
  }
}
