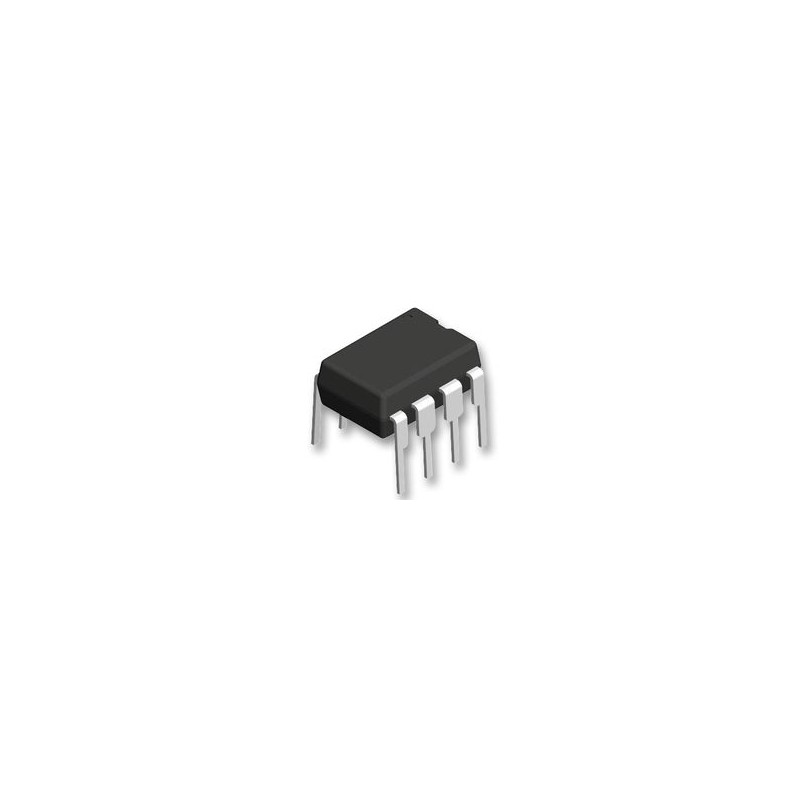

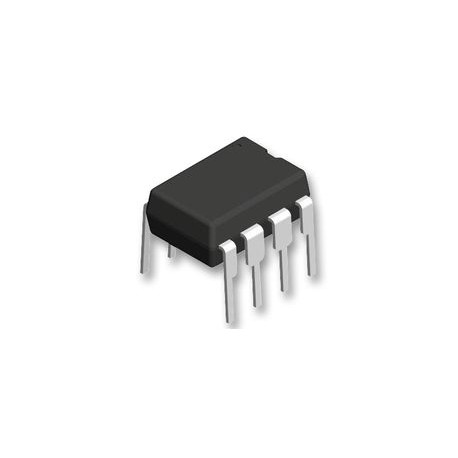

LM358P mikroschema (2x op. amp.)

Prekės kodas: d0825

Būklė: Nauja prekė

LM358 mikroschema, tai du nepriklausomi aukšto stprinimo koeficiento (frequency-compensated) operaciniai stiprintuvai. Gali veikti naudojant vienpolį arba dvipolį maitinimą plačiame įtampų intervale.

Smulkiau

Prekių kiekis mūsų sandėlyje: 296

Spausdinti

Charakteristikos

Suderinama su Arduino™ ir *duino	Taip
Nominali darbinė įtampa	3-32V / +-1,5-16V
Kontaktų kiekis	8
Matmenys	DIP8
Pagrindinės funkcijos grandynas	LM358P

Apie prekę

Features
• Wide Supply Ranges
– Single Supply: 3 V to 32 V
– Dual Supplies: ±1.5 V to ±16 V
• Low Supply-Current Drain, Independent of Supply Voltage: 0.7 mA Typical
• Wide Unity Gain Bandwidth: 0.7 MHz
• Common-Mode Input Voltage Range Includes Ground, Allowing Direct Sensing Near Ground
• Low Input Bias and Offset Parameters
– Input Offset Voltage: 3 mV Typical
– Input Offset Current: 2 nA Typical
– Input Bias Current: 20 nA Typical
• Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: 32 V
• Open-Loop Differential Voltage Gain: 100 dB Typical
• Internal Frequency Compensation
• On Products Compliant to MIL-PRF-38535,

Applications
• Blu-ray Players and Home Theaters
• Chemical and Gas Sensors
• DVD Recorder and Players
• Digital Multimeter: Bench and Systems
• Digital Multimeter: Handhelds
• Field Transmitter: Temperature Sensors
• Motor Control: AC Induction, Brushed DC, Brushless DC, High-Voltage, Low-Voltage, Permanent Magnet, and Stepper Motor
• Oscilloscopes
• TV: LCD and Digital
• Temperature Sensors or Controllers Using Modbus
• Weigh Scales
