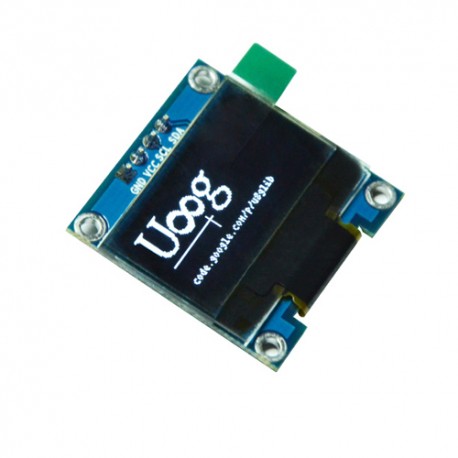

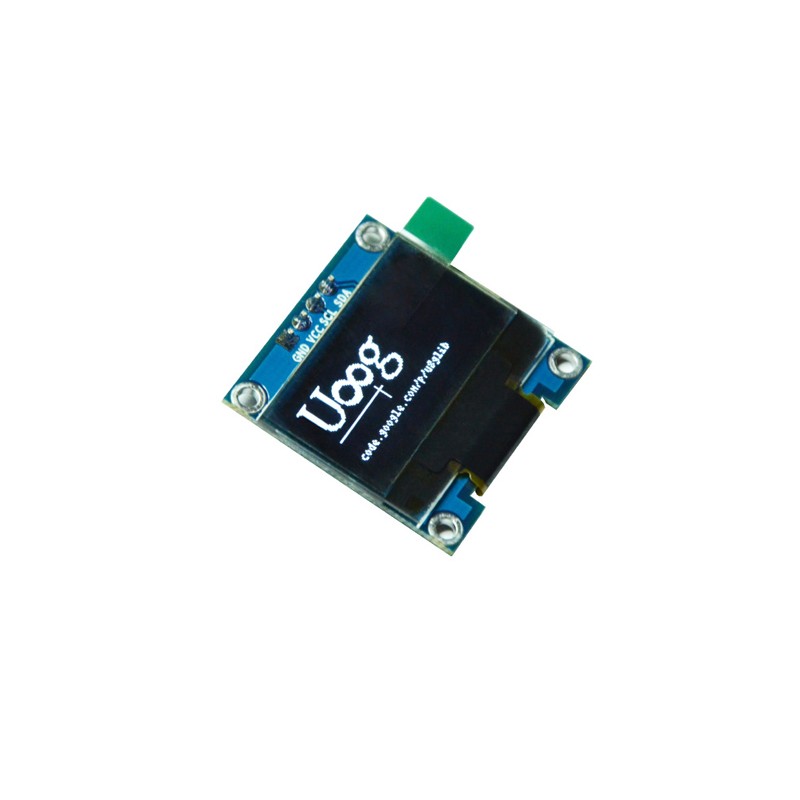

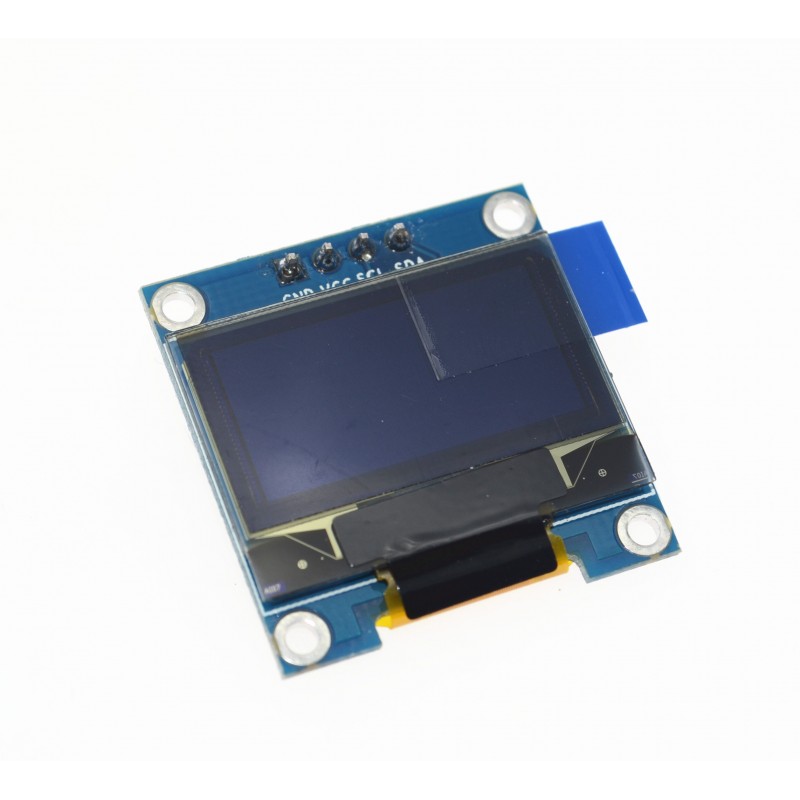

Grafinis 128x64 0,96" baltas OLED ekranas

d0686

Nauja prekė

Grafinis mažo skersmens, bet geros rezoliucijos ekrano modulis. OLED technologija yra pranašesnė už LCD dėl to, kad kiekvienas pikselis yra atskiras šviesos šaltinis. Puikiai tiks nedidelių gabaritų Arduino sistemoms.

Smulkiau

Prekių kiekis mūsų sandėlyje: 35

7,99€ su PVM


6,60€ be PVM

Charakteristikos

Suderinama su Arduino™ ir *duinoTaip
Nominali darbinė įtampa3,3V
Maitinimo įtampa3-5V (DC)
Jungties žingsnis2,54mm
Jungties tipasMale (vyr.)
Kontaktų kiekis4
Matmenys27 x 27 x 11
Komunikacijų sąsajosI2C
SpalvosBalta
Naudojami mikrovaldiklio prievadai2vnt. I2C (SDA+SCL)
LCD dydis128x64 0,96"
Pagrindinės funkcijos grandynasSSD1306

Apie prekę

What is OLED?

OLED (Organic Light-Emitting Diode) is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode. In contrast to LCD technology, OLED does not require a backlight. OLED possesses high application potential for virtually all types of displays and is regarded as the ultimate technology for the next generation of flat-panel displays.

How Does OLED Emit Light?

OLEDs basic structure consists of organic materials positioned between the cathode and the anode, which is composed of electric conductive transparent Indium Tin Oxide (ITO). The organic materials compose a multi-layered thin film, which includes the Hole Transporting Layer (HTL), Emission Layer (EML) and the Electron Transporting Layer (ETL). By applying the appropriate electric voltage, holes and electrons are injected into the EML from the anode and the cathode, respectively. The holes and electrons combine inside the EML to form excitons, after which electroluminescence occurs. The transfer material, emission layer material and choice of electrode are the key factors that determine the quality of OLED components.

Features:

  • No backlight, the display unit is self-luminous
  • LED colour: white
  • High resolution: 128 * 64
  • Viewing angle:> 160 °
  • Supports many control chip: Fully compatible with Arduino, 51 series, MSP430 series, STM32 / 2, CSR chip, etc.
  • Ultra-low power consumption: full screen lit 0.08W, 0.06W normal full-screen display of Chinese characters
  • Wide voltage support: without any modification, directly supports 3V ~ 5V DC
  • Working temperature: -30 ℃ ~ 70 ℃

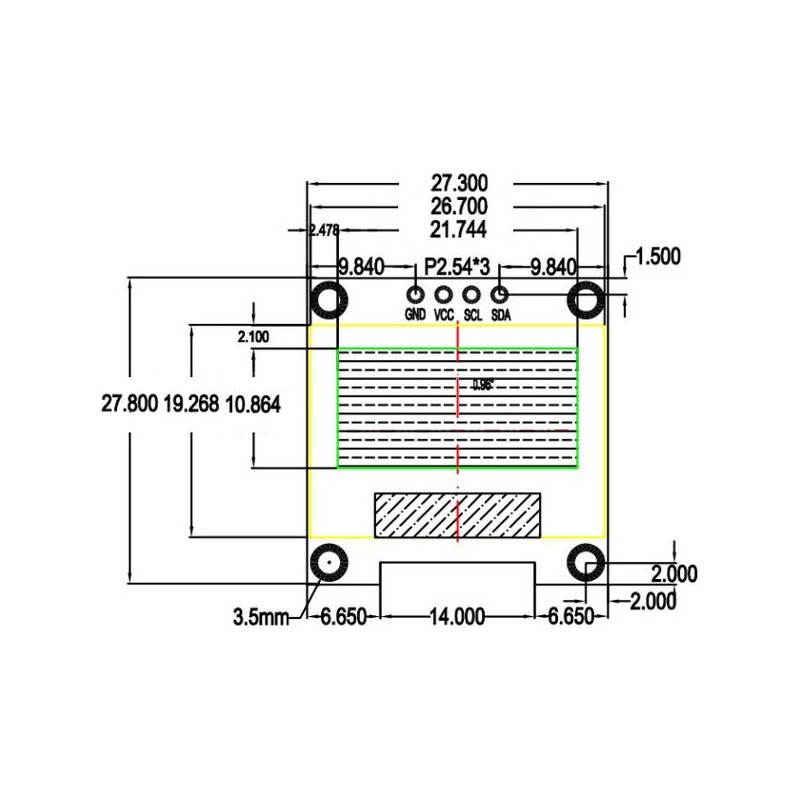

  • Module volume (generous): 27.0MM * 27.0MM * 4.1MM
  • Minimum occupancy on Earth IO port display: The IIC/I2C communication, as long as the two IO ports will be able to drive!
  • Driver IC: SSD1306
  • No font: take the word with modulo software
