d0580
Nauja prekė
Diskretizacijos dažnis: 1Ms/s (max)
Dažnis: 0 - 200 kHz
Jautrumas: 10mV - 5V /padalai
Taškų skaičius: 1024
ADC: 12bit
Verta kartu įsigyti testavimo laidus (d1097) ir korpusą (d1098)
Prekių kiekis mūsų sandėlyje: 6
Dėmesio: Paskutinės prekės!
Pasiekiama:
Suderinama su Arduino™ ir *duino | Taip |
Kanalų skaičius | 1 |
Maitinimo įtampa | 9 V DC |
Dažnis | iki 200 kHz. 1Msps |
Matmenys | 118 x 78 mm |
LCD dydis | 2,4" |
Jautrumas | 10mV/div paklaida iki 5% |
Naudojama srovė | apie 120 mA |
Matavimo ribos | 50 V peak |

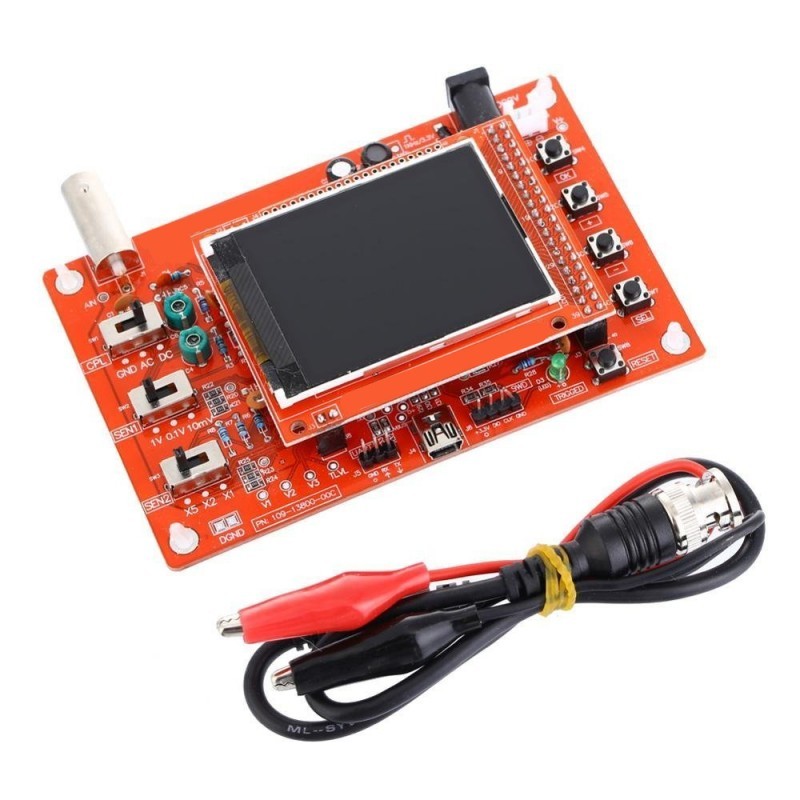

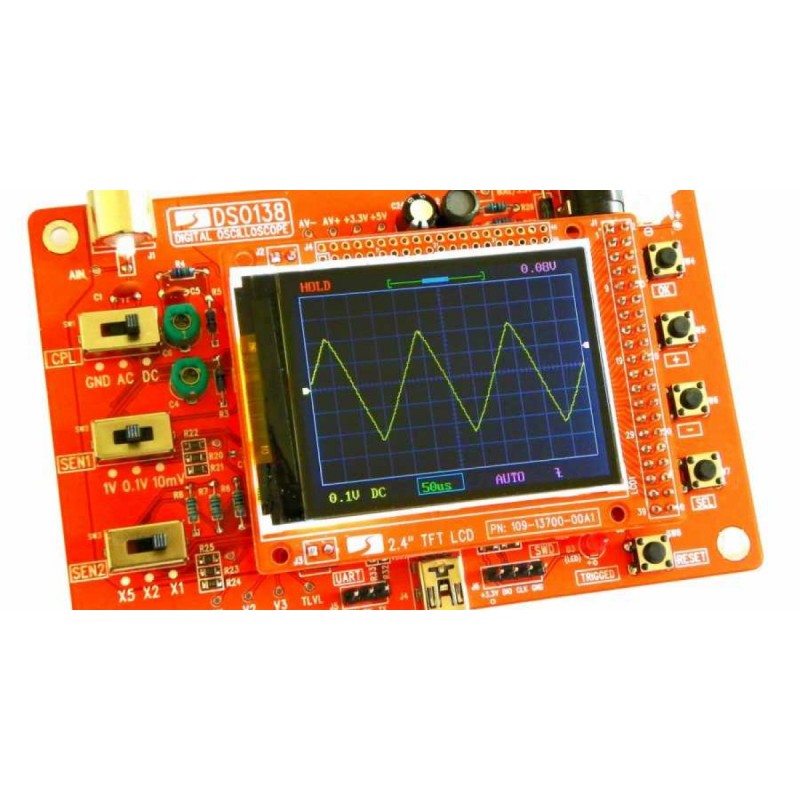

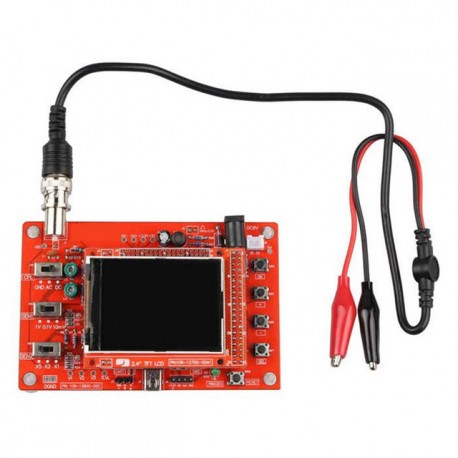

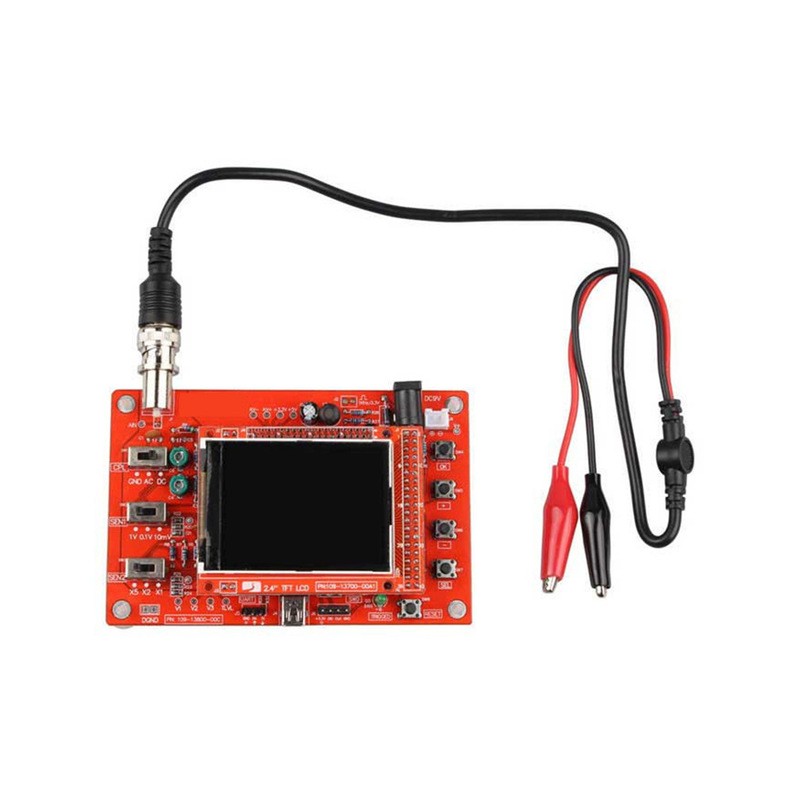

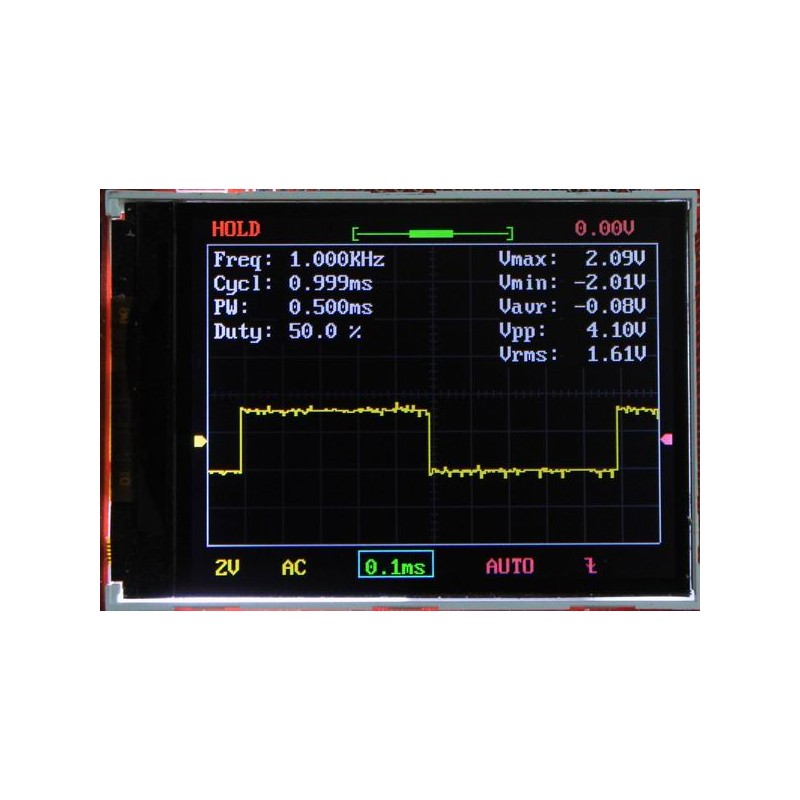

DSO138 was designed as a training oscilloscope kit. It contains only the basical oscilloscope functions with no fancy features. Simplicity in structure and easiness in assembly/operation are among the main targets of the design. For these purpose DSO138 uses mostly through-hole parts. The heart of DSO138 is a Cortex-M3 ARM processor (STM32F103C8) from ST. It uses 2.4-inch TFT LCD (320 X 240 dotmatrix, 262K colors) as its display element and displays nice and clear waveforms. Detailed assembly instructions are provided in combination with troubleshooting guide and schematc. Source codes are also available to allow user to add their own features.
DSO138 is partially open-sourced. This opens the possibility for users to add different features or develop new applications on the hardware.
Major features of DSO138:
Analog bandwidth: 0 - 200KHz
Sampling rate: 1Msps max
Sensitivity: 10mV/Div - 5V/Div
Sensitivity error: < 5%
Vertical resolution: 12-bit
Timebase: 10us/Div - 500s/Div
Record length: 1024 points
Built-in 1KHz/3.3V test signal
Waveform frozen (HOLD) function available
NOTE: 9V DC power supply required. Not included.
