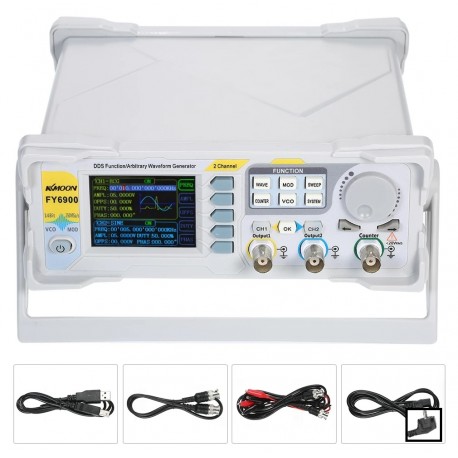

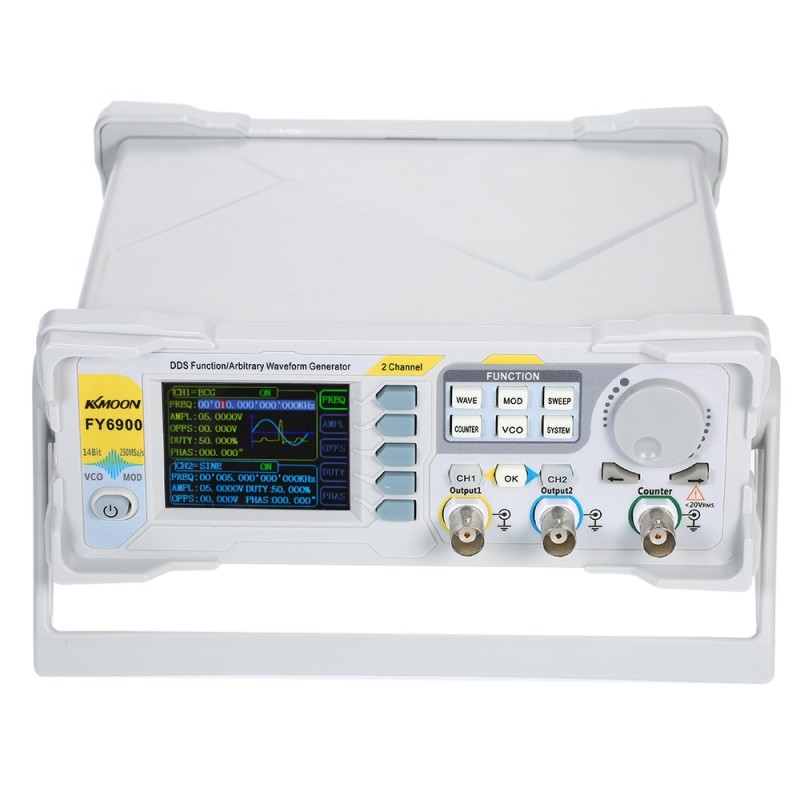

DDS funkcinis generatorius FY6900-20M (2ch, 250Ms/s, 20MHz)

Prekės kodas: d1485

Būklė: Nauja prekė

Norint išbandyti įvairias elektronikos grandines, ar Arduino programuojamas sistemas, dažnai prireikia trikampio, sinusoidės, stačiakampio ar kitų formų formų signalų, kurių parametrus būtų galima keisti.

Smulkiau

Prekių kiekis mūsų sandėlyje: 6

Spausdinti

Charakteristikos

Dažnis	iki 20Mhz
LCD dydis	240 x 320 px

Apie prekę

Frequency
Model		FY6900-20M
Sine		0~20MHz
Square		0~15MHz
Ramp, Triangle		0~10MHz
Pulse		0~10MHz
TTL/CMOS		0~10MHz
Arbitrary Waveform		0~10MHz
Minimum Pulse Width		20ns(All models of pulse wave minimum width can reach 20ns)
Min. Resolution on all frequency range		1μHz (Min. resolution can reach 1μHz on all frequency range to ensure adjusting accuracy under high frequency. For example, it can output 10.000000000001MHz signal).
Accuracy		±20ppm
Stability		±1ppm/ 3hours

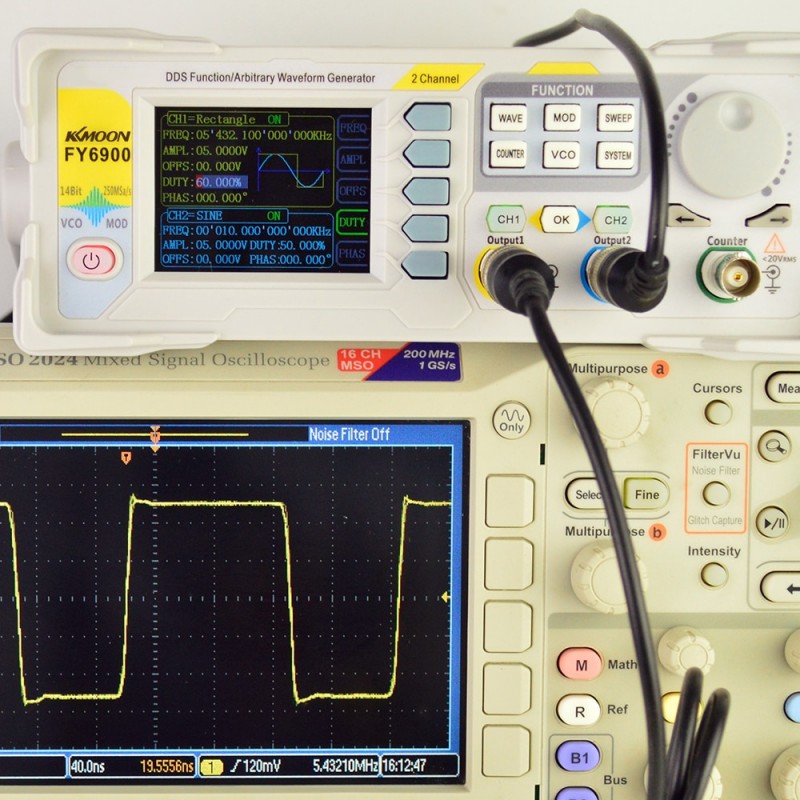

Waveform Characteristics
Waveforms		Sine, Square, Rectangle (Duty Cycle adjustable), Pulse (Pulse width and cycle time can be set accurately), Triangle/Ramp, Sawtooth Wave, CMOS, Four channels TTL, DC, Half wave, Full wave, Positive Step, Inverse Step, Positive Exponent, Inverse Exponent, Lorenz Pulse, Multitone, Noise, ECG, Trapezoidal Pulse, Sinc Pulse, Narrow Pulse, Gauss White Noise, AM, FM, and other 64 sets customer-defined waveform.
Non-Volatile Storage		Can store 64 user-defined arbitrary waveforms, (8K 14bits) * 64
Waveform Length		8192 points * 14bits
Sampling Rate		250MSa/s
Vertical Resolution		14 bits
Sine		Harmonic Suppression				≥50dBc(<1MHz); ≥45dBc(1MHz~20MHz);
		Total Harmonic Distortion				<0.5% (20Hz~20kHz,0dBm)
Rectangle		Rise/Fall Time				≤7ns (VPP<5V)
		Overshoot				≤5%
		Duty Cycle				0.01%~99.99% (Resolution 0.01%)
Sawtooth Wave		Linearity				>99% (0.01Hz~10kHz)
Output characteristics
Amplitude(VPP)		Frequency≤5MHz: 1mVpp~24Vpp; 5MHz<Frequency≤10MHz: 1mVpp~20Vpp; 10MHz<Frequency≤20MHz: 1mVpp~10Vpp; Frequency>20MHz: 1mVpp~5Vpp;
Resolution		1mV
Amplitude Stability		±0.5%/ 5 Hours
Amplitude flatness		±2.5%(<10MHz);±5%(>10MHz)
Waveform Output
Impedance		50Ω±10%(Typical)
Protection		All channels can work more than 60 seconds when the load is short-circuited.
DC Offset
Offset Range		Frequency≤20MHz: ±12V; Frequency>20MHz: ±2.5V;
Offset Resolution		1mV
Phase Feature
Phase range		0~359.99°
Phase resolution		0.01°
TTL Output
TTL Level Amplitude		>3Vpp
Fan-out		>8 TTL LOAD
Rise/Fall Time		≤10ns
CMOS Output
Low Electric Level		<0.3V
High Electric Level		1V~12V
Rise/Fall Time		≤18ns
External Measurement
Function		Frequency, Period, Positive/Negative Pulse Width, Duty Cycle
Input Voltage Range		1Vpp~20Vpp
Frequency Meter		Resolution				0.01Hz (Gate Time = 100S)
		Range				0.01Hz~100MHz
		Sensitivity				Gate Time 3 grades (1S, 10S, 100S) adjustable
Counter		Range				0-4294967295
		Coupling				DC, AC
		Working Mode				Manual
Period		Measurement Range						5ns ~ 20s	DC coupling measurement
Pulse Width		Measurement Range						0ns ~ 20s
		Resolution						5ns
Duty Cycle		Range (Display)						0% ~ 100%
Sweep
Carrier Waveform		Sine, Square, Ramp, Arbitrary (except DC)
Sweep Type		Linear or Logarithm
Sweep Direction		Up, Down and roundtrip sweep directions
Sweep Objects		Frequency, Amplitude, Offset, Duty Cycle
Sweep Time		0.01S~999.99S/Step
Setting range		Starting position and Finishing position can be set arbitrarily.
Sweep Range		Decided by Parameters setting.
VCO (Voltage Control Output)
Modulation signal range to input		0~5V
VCO signal frequency range		0-2000Hz
VCO control object		voltage controlling frequency (VCF), voltage controlling amplitude , voltage controlling offset, voltage controlling duty cycle.
VCO special function		Can Amplitude Modulate (AM) or Frequency Modulate (FM) by external analog signal.
Modulation
Modulation Type			AM, FM, PM, ASK, FSK, PSK
Carrier Waveform			Sine, Square, Triangle, Ramp, Arbitrary waveform (Except DC)
AM
Source			Internal (CH2) / External (VCO IN Port)
Modulating Waveform			Sine, Square, Triangle, Ramp, Arbitrary waveform
Depth			0% to 120%
Modulating Frequency			Internal : 1μHz~1MHz; External: 1μHz~2KHz;
FM
Source			Internal (CH2) / External (VCO IN Port)
Modulating Waveform			Sine, Square, Triangle, Ramp, Arbitrary waveform
Modulating Frequency			Internal : 1μHz~1MHz; External: 1μHz~2KHz;
PM
Source			Internal (CH2) / External (VCO IN Port)
Modulating Waveform			Sine, Square, Triangle, Ramp, Arbitrary waveform
Phase Deviation			0° to 360°
Modulating Frequency			Internal : 1μHz~1MHz; External: 1μHz~2KHz;
ASK
Source			Internal (CH2), External (ASK IN Port), Manual
Modulating Waveform			Square with 50% duty cycle.
Key Frequency			1μHz~10MHz
FSK
Source			Internal (CH2), External (FSK IN Port), Manual
Modulating Waveform			Square with 50% duty cycle.
Key Frequency			1μHz~10MHz
PSK
Source			Internal (CH2), External (PSK IN Port), Manual
Modulating Waveform			Square with 50% duty cycle.
Key Frequency			1μHz~10MHz
Burst Function
Carrier Waveform			Sine, Square, Ramp, Arbitrary (except DC)
Burst Count			1~1048575
Trigger Source			Manual, Internal, External (AC/DC)
General Specifications

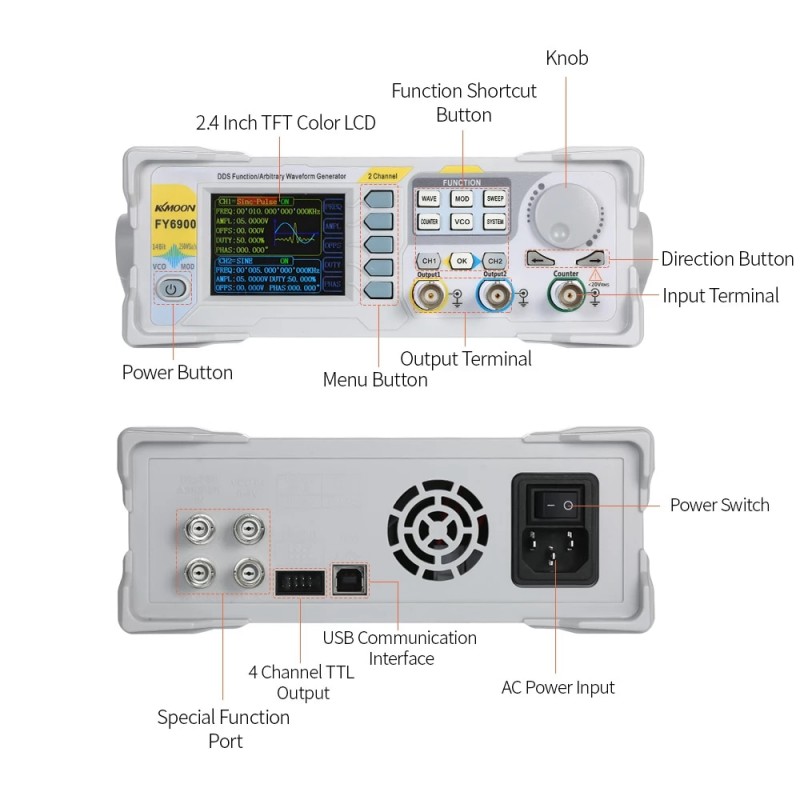

Display	Type			2.4 inch, TFT Color Display.
Save & Load	Amount			20
	Position			01 to 20 (01 for start default value)

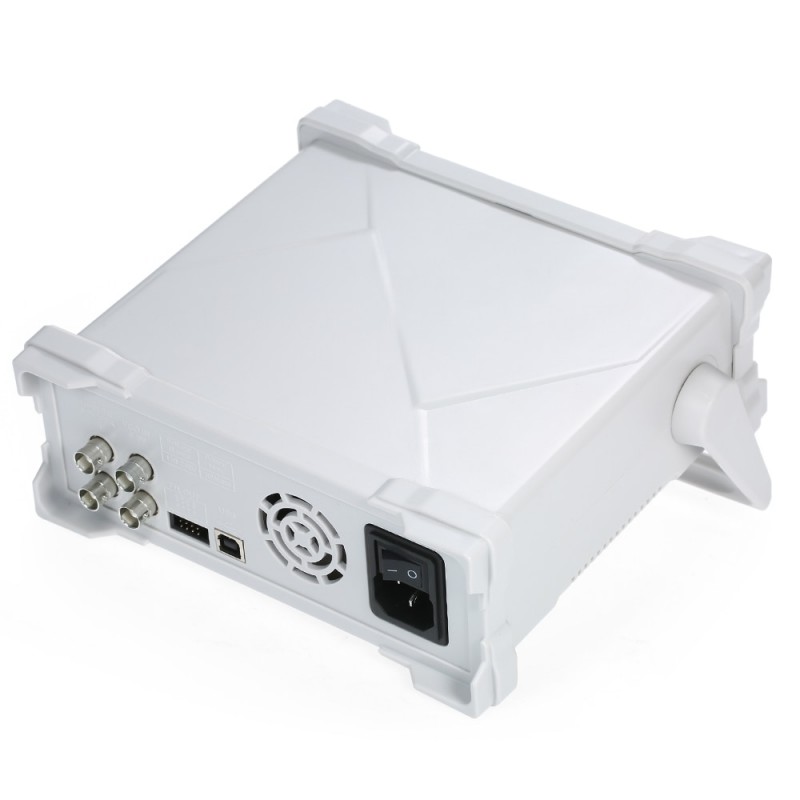

Interface	Type			USB to Serial interface
	Protocol			Command line mode, providing communication protocols.
	Communicating Speed						9600bps (Industrial standard)
Power	Voltage Range				AC100V~240V
Technic	SMD, LSI, Reliable and durable
Buzzer	Can be turned on/off by setting.
Operation	Buttons and knob continuously.
Environment	Temp.: 0~40°, Humidity: ﹤80%
Item Size	Approx. 210mm * 195mm * 75mm / 8.27 * 7.68 * 2.96 (L * W * H)
Item Weight	Approx. 611g / 21.56oz
Package Size	Approx. 27cm * 21cm * 9.5cm / 10.63 * 8.27 * 3.75 (L * W * H)
Package Weight	Approx. 1065g / 37.51oz(Main engine, accessories and packing materials)
