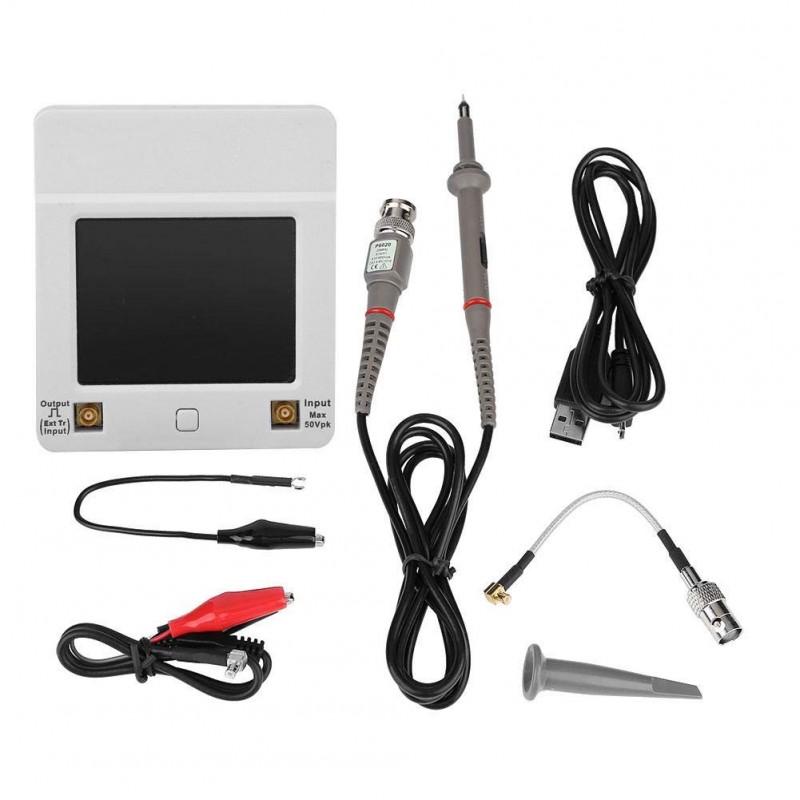

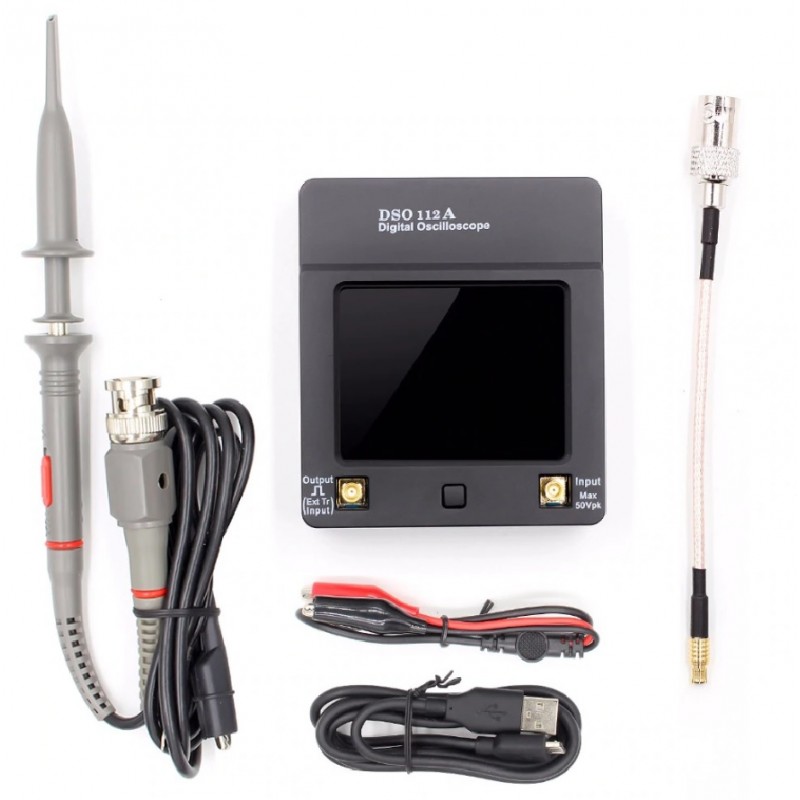

DSO112A skaitmeninis osciloskopas su priedais

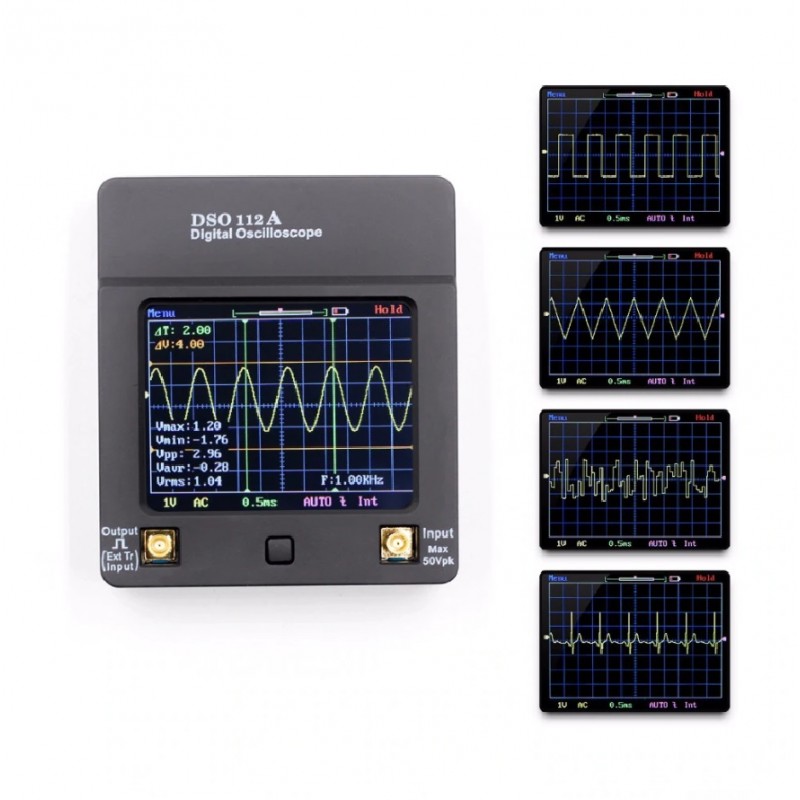

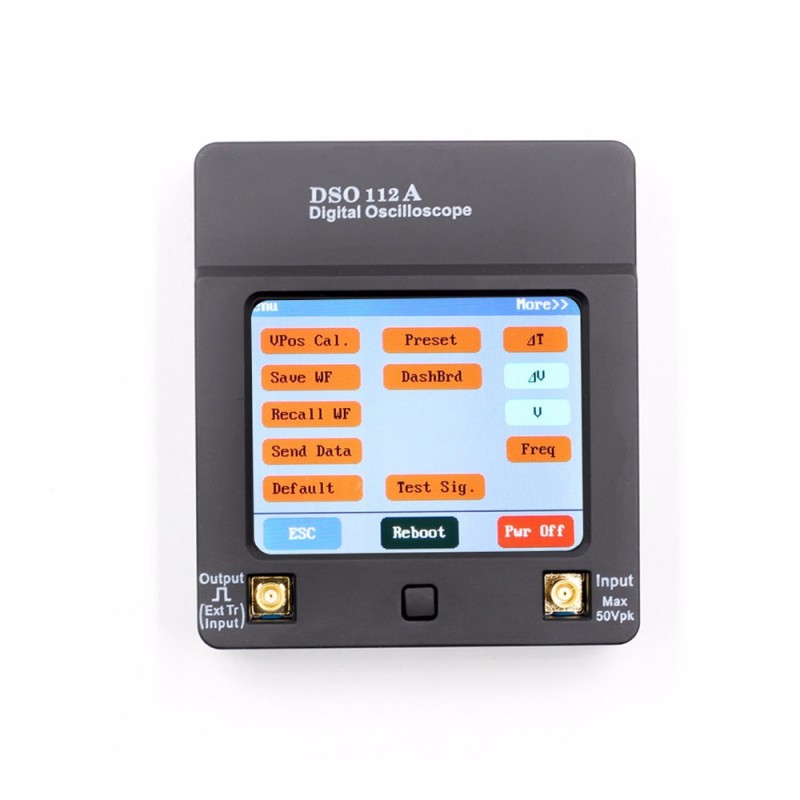

DSO112A is a pocket oscilloscope with color display and touch panel. What makes DSO112A distinguished among peers is its easy operations, which are all straightforward touching and scrolling. Almost everything is self-teaching. You would not get lost as you might do with other handheld scopes. Designed specifically for students and hobbyists, DSO112A is a great entrance level oscilloscope. With a size that fits right in your hand and pocket, DSO112A can do much more than you might think from its dimension. High sensitivity (2mV/Div), high accuracy, and low noises are highlights of DSO112A and make it a useful tool for small signals probing. TFT color LCD, 1200mAh Li-ion battery (included)... all these add great convenience in use.

Features:
A pocket oscilloscope with color display and touch panel.
2MHz analog bandwidth and 5Msps Max. real-time sampling rate.
Unique rolling slow signal display, the display can be fully continuous signal, unlike SCAN mode will cause the signal display discontinuous.
Vertical sensitivity: 2mV/Div, with high accuracy and low noises.

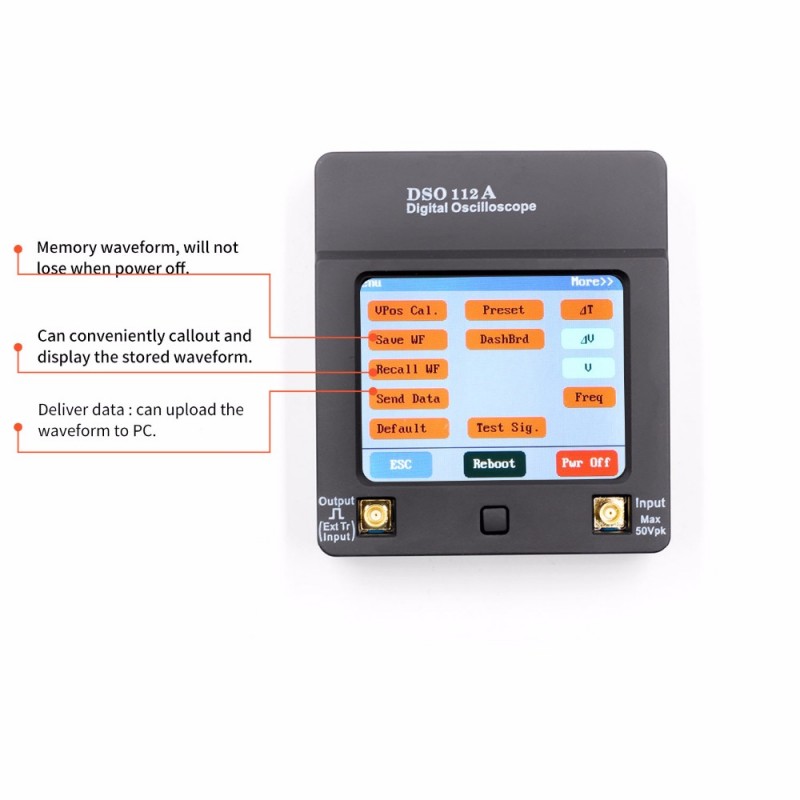

Can save 24 groups of preset parameters, save and recall waveform conveniently.
Measuring frequency and Max./Min./Vpp/Avg. values of voltage.
Adds external triggering function, stronger signal capture ability.
PC upload waveform data.
Freeze at any time waveform display (HOLD function).
Square wave test signal comes 1000Hz/3.3V.
Firmware upgradable via Micro USB.
Battery/USB powered, built-in smart charger.

Specifications:
Analog Frequency Bandwidth: 0-2MHz
Max. Real-time Sampling Rate: 5Msps
Vertical Sensitivity: 2mV/Div-20V/Div Total 12 grades(by way of Progressive 1-2-5)
Horizontal Time Base Range: 1μs/Div-50s/Div 21 grades(by way of Progressive 1-2-5)
Max. Input Voltage: 50Vpk (100Vpp)
Max. Record Length: 512/1024 Optional
Input Resistance: 1M ohm
ADC Precision: 8 Bit
Coupling Method: DC / AC
Trigger Type: Auto, Normal, Single
Trigger Edge: Rising / Falling Edge
Trigger Source: Internal / External
External Trigger Voltage: 0-15V
Time cursors, can automatically calculate and display the time difference
Voltage cursors can automatically calculate and display the voltage difference
Display: TFT Color Display
Power Supply: 3.7V 1200mAh Li-ion Battery(included) / USB Interface

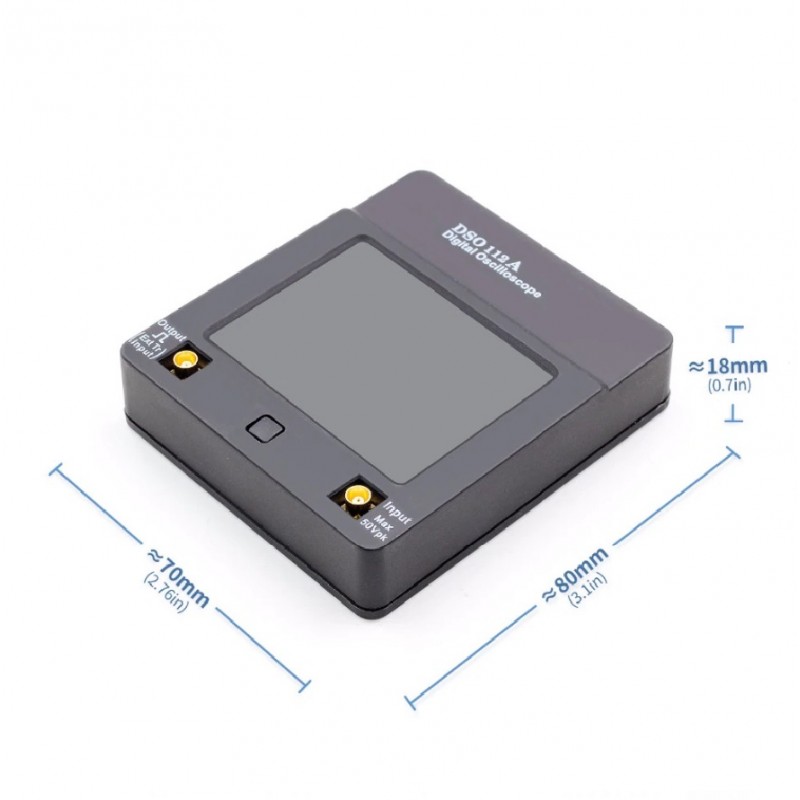

Dimension: 68 * 78 * 18mm / 2.7 * 3.1 * 0.7in
Weight: 85g / 3.02oz
Package Size: 17.5 * 10 * 3cm / 6.9 * 3.94 * 1.18in
Package Weight: 201g / 7.09oz
