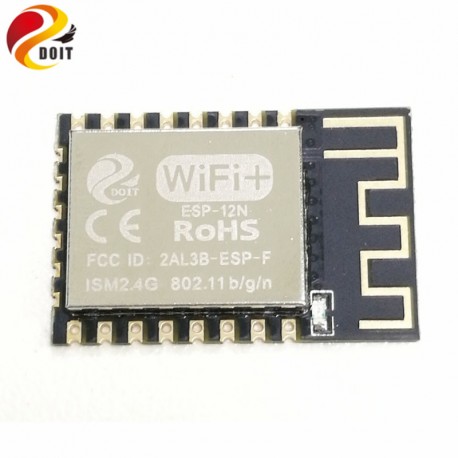

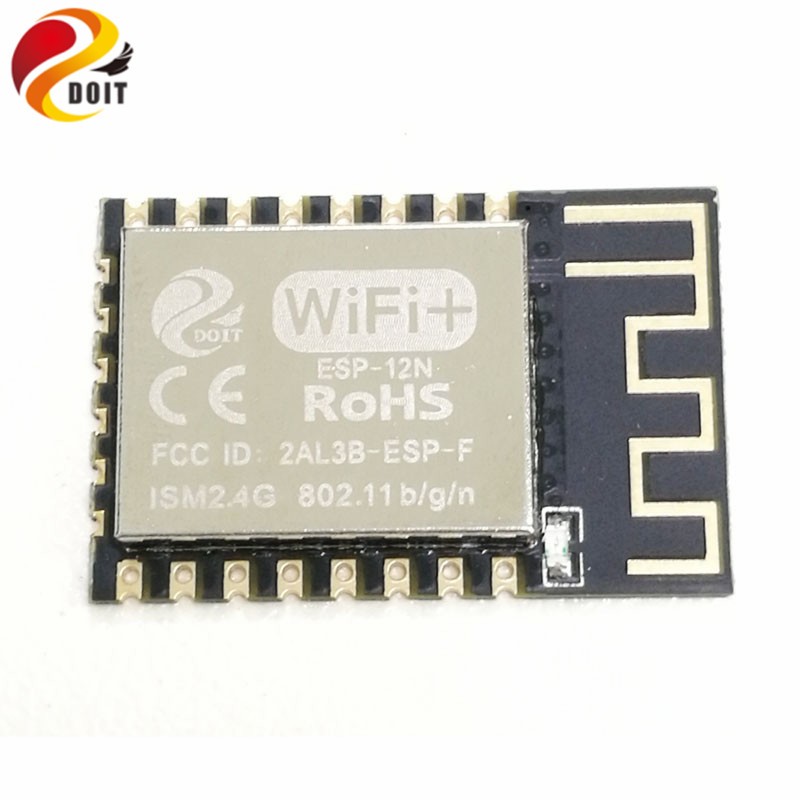

ESP-12N WiFi modulis su ESP8266 ir integruota antena

d0739

Nauja prekė

Dažnas Internet of Things projektas neapsieina be WiFi ryšio. Šis kompaktiškas ESP8266 pagrindu sukurtas modulis yra 1Mb SPI Flash atmintimi papildyta ESP-12F versija.

Smulkiau

Prekių kiekis mūsų sandėlyje: 40

6,05€ su PVM


5,00€ be PVM

Charakteristikos

Suderinama su Arduino™ ir *duinoTaip
Būsenos indikacijaTaip. LED
Nominali darbinė įtampa3,3V
Jungties žingsnis2mm
Pagrindinės funkcijos grandynasESP-12N

Apie prekę

ESP-12N is encapsulated  by the high performance chip ESP8266EX. The chip is encapsulated a advanced Tensilica’s L106 32-bit MCU, with 16-bit short mode, basic frequency support 80 MHz, 160 MHz, supports RTOS. ESP8266EX has the full and complete WiFi fuction, which can used independently and alsoused as a slaver with other Hoster MCU, which can start directly from the out-built Flash. In addition, the built-in high-speed buffer is benefit for the system performance. Especially, ESP8266EX can be used as a WiFi adapter by SPI/SDIO and/or I2C/UART interface, when it is applied to the other MCU design.

SOC characteristics:

Built-in Tensilica L106 ultra-low power 32-bit CPU, main frequency supports 80MHz and160MHz, and RTOS;

Built-in TCP/IP protocol;

Built-in one-channel 10-bit high precision ADC;

Outboard interface: HSPI, UART, I2C, I2S, IR Remote Controk, PWM, GPIO;

Deep sleep current is 10uA, the cut-off current is smaller than 5uA;

Wake,connect and transmission data package within 2ms;

The consume power is smaller 1.0Mw (DTIM3) when at stand by status;

Built in 1M byte for SPI Flash.

WiFi characteristics:

Support 802.11 b/g/n/e/I;

Support Station, Soft AP, Soft AP+STA mode;

Support WiFi Direct (P2P);

Support CCMP (CBC-MAC, computation mode), TKIP (MIC, RC4), WAPI (SMS4), WEP (RC4), CRC etc., for hardware acceleration.

P2P finding, P2P GO mode/ GC mode and P2P power manage

WPA/PA2PSK and WPS;

802.11 security certification: pre-certification and TSN

Support 802.11n (2.4GHz);

802.1h/RFC1042 frame encapsulation;

Support seam less roaming;

Support AT remote update and cloud update (OTA);

Support Smart Config function (including Android and Ios device).

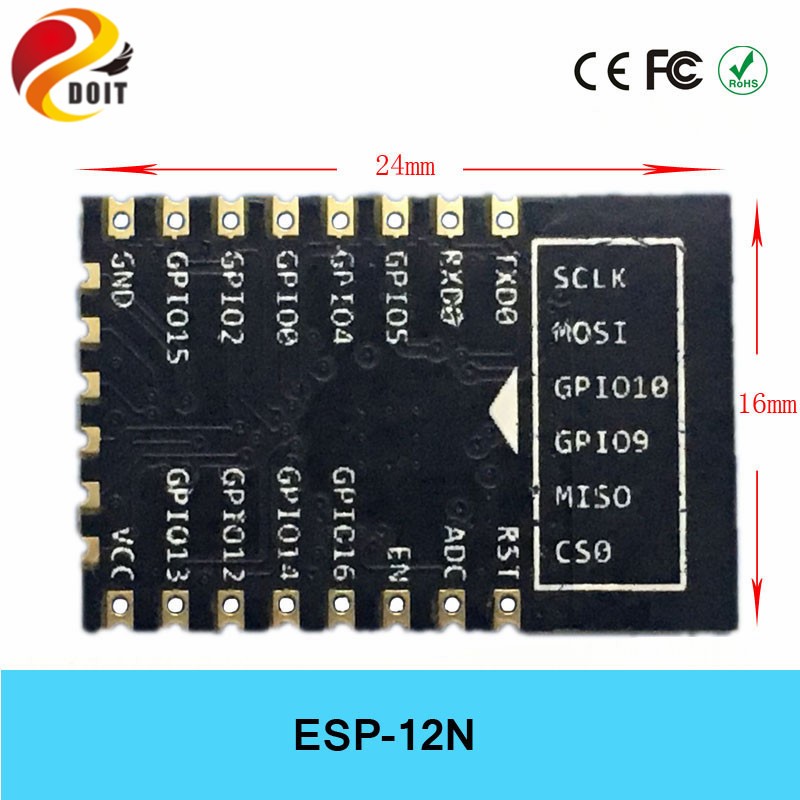

Module interfaces:

2* UART;

1*ADC;

1*En;

1*wakeup pin;

1*HSPI;

1*I2C;

1*I2S

More than 10*GPIOs

Working temperature:
-40℃-+125℃;

Module size:
16mm×24mm

Applications

Electronical appliance;

Smart power plug, smart light;

Infant monitor;

Sensor networks;

Security ID label;

Wireless location beacon;

Home automation;

Mesh networks;

IP video camera;

Wearable electronics;

Wireless location recognition;

Industrial wireless control;
