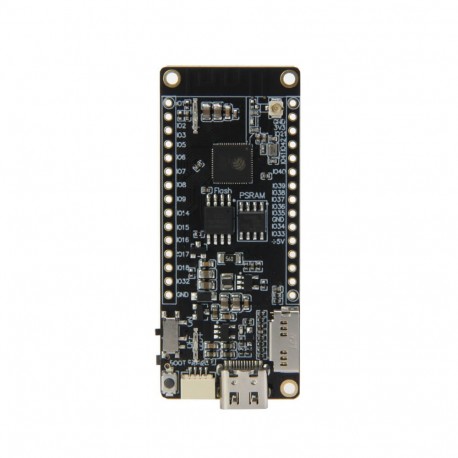

TTGO T8 ESP32-S3 pagrindinė plokštė H669

Prekės kodas: d3752

Būklė: Nauja prekė

ESP32-S3 modulio plokštė su microSD bei ličio baterijos grandynu. Gali būti programuojama naudojant Arduino IDE. Pažangiausia H669 versija.

Smulkiau

Prekių kiekis mūsų sandėlyje: 19

Spausdinti

Charakteristikos

Suderinama su Arduino™ ir *duino	Taip
Mikrovaldiklis	ESP32-S3
Nominali darbinė įtampa	3,3V
Maitinimo įtampa	2,7 - 3,6 V
Maksimali maitinimo įtampa	Lipo/USB
Flash atminties kiekis	16Mb
SRAM atminties kiekis	8Mb (PSRAM)
Dažnis	240MHz Xtensa® single-core 32-bit LX7 microprocessor
Jungties žingsnis	2,54mm

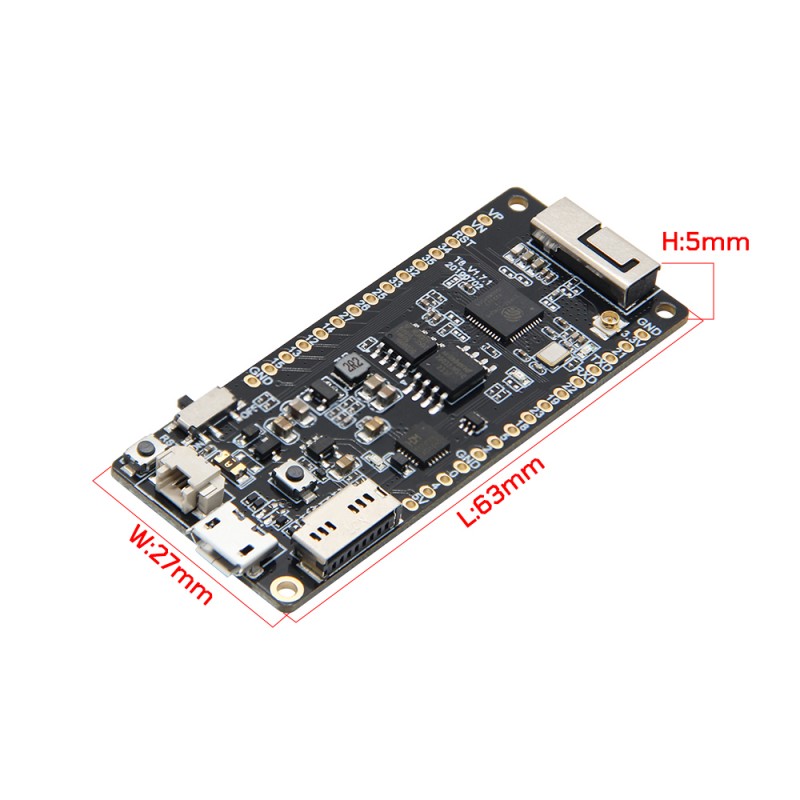

Matmenys	63 x 27 x 5 mm
USB	Pilnai parengta (gali būti maitinama per USB)
Komunikacijų sąsajos	I2C, UART, SPI, SDIO, SD, PWM, I2S, IR, WiFi, Bluetooth, Touch, DAC

Apie prekę

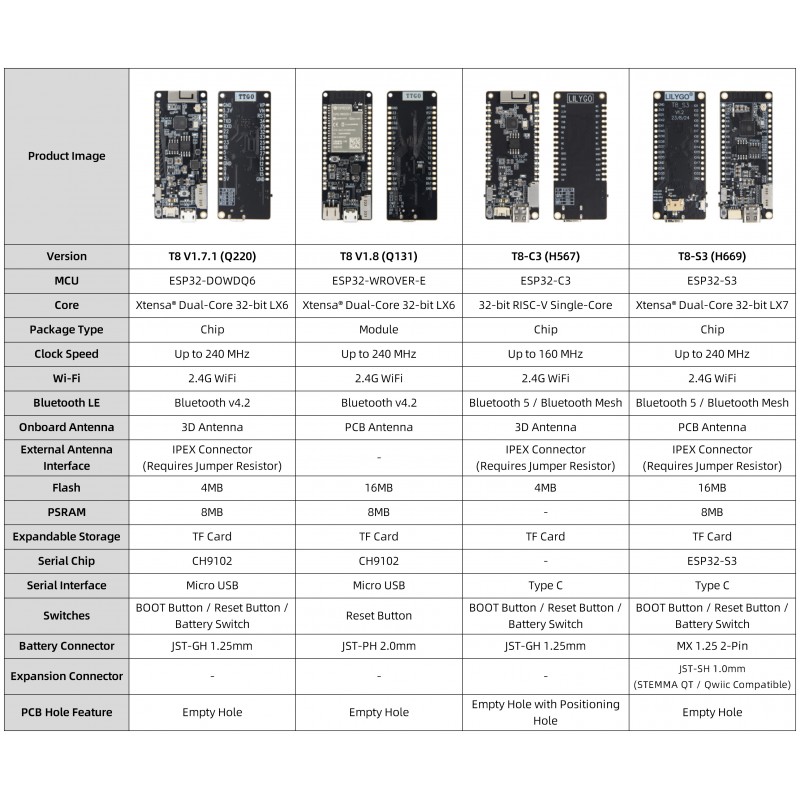

The LILYGO® T8 series is a versatile family of ESP32-based development boards designed for IoT, prototyping, and embedded applications. Each version is tailored to different needs:

T8 V1.7.1 (Q220): Powered by ESP32-DOWDQ6 with dual-core LX6, 4MB Flash, and 8MB PSRAM. Features Micro USB, CH9102 serial chip, 3D antenna, and IPEX external antenna option.
T8 V1.8 (Q131): Built on ESP32-WROVER-E module with 16MB Flash and 8MB PSRAM for higher storage and stability. Includes PCB antenna, Micro USB, and reset button.
T8-C3 (H567): Compact RISC-V single-core ESP32-C3 board with Bluetooth 5 & Mesh, USB Type-C, and 3D antenna. Ideal for low-power wireless applications.
T8-S3 (H669): Equipped with the powerful ESP32-S3 dual-core LX7, 16MB Flash, 8MB PSRAM, and AI/ML acceleration support. Includes USB Type-C, onboard serial, STEMMA QT / Qwiic expansion port, and IPEX antenna option.

All versions support 2.4GHz Wi-Fi, TF card expansion, and battery connectors, making them suitable for a wide range of IoT and embedded projects.

This is H669 version.

Specifications

MCU	ESP32 S3/ ESP32-C3 32-bit, RISC-V-based MCU
Flash	4MB

Support Wi-Fi, Bluetooth V5.0+BLE

Programming language	C/C++, MicroPython
Programming platform	Arduino, ESP-IDF
Onboard functions	Reset Button, Battery Power Detection, TF card
Antenna	3D WiFi Antenna [Use by default] (Support WiFi IPEX external antenna, but you need to adjust the resistance)
Power supply	Support USB Type-C / Li-Po Battery JST Connect type : JST 2pin 1.25mm
