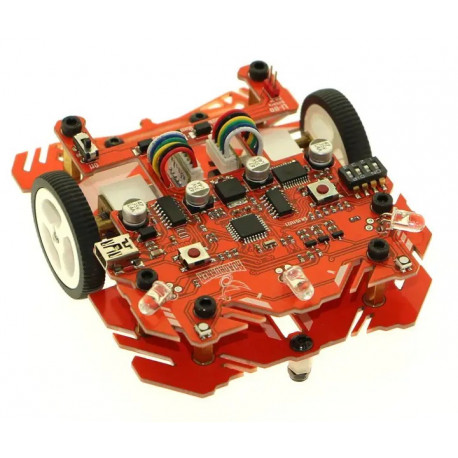

Sumozade RoadRunner Maze Solver MicroMouse Robotas

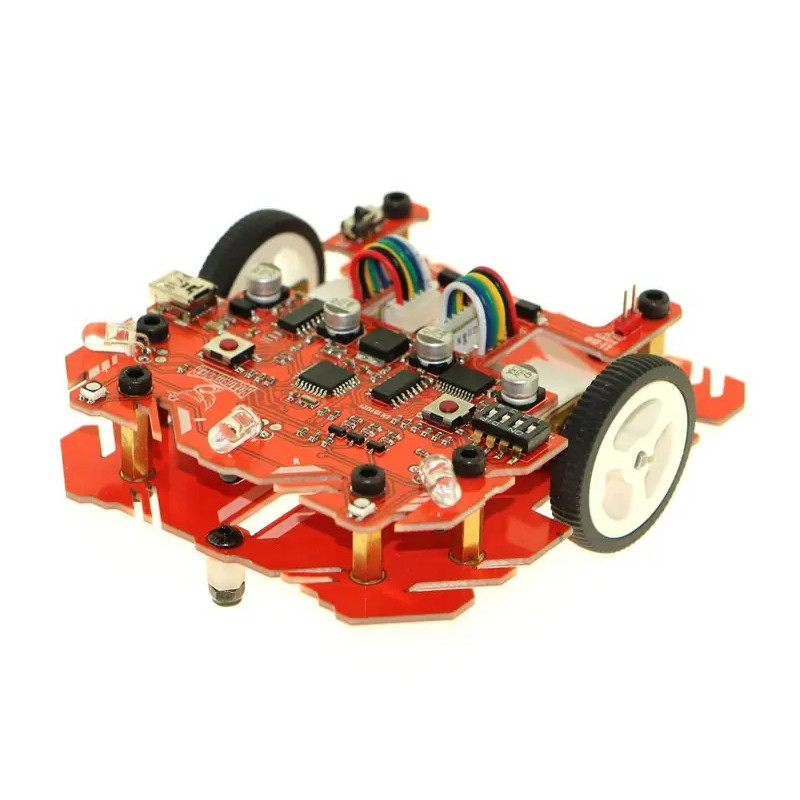

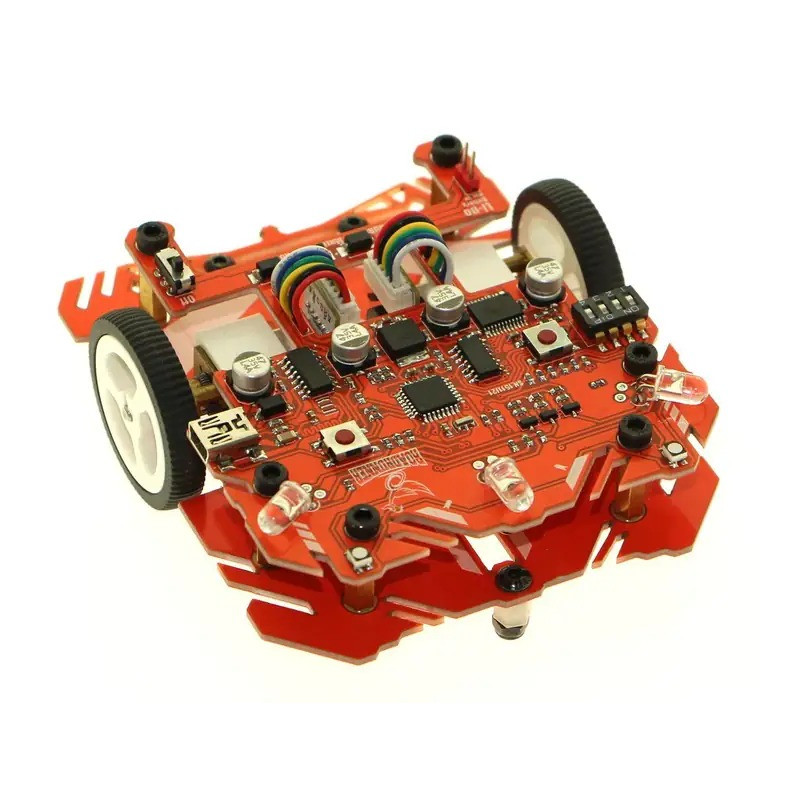

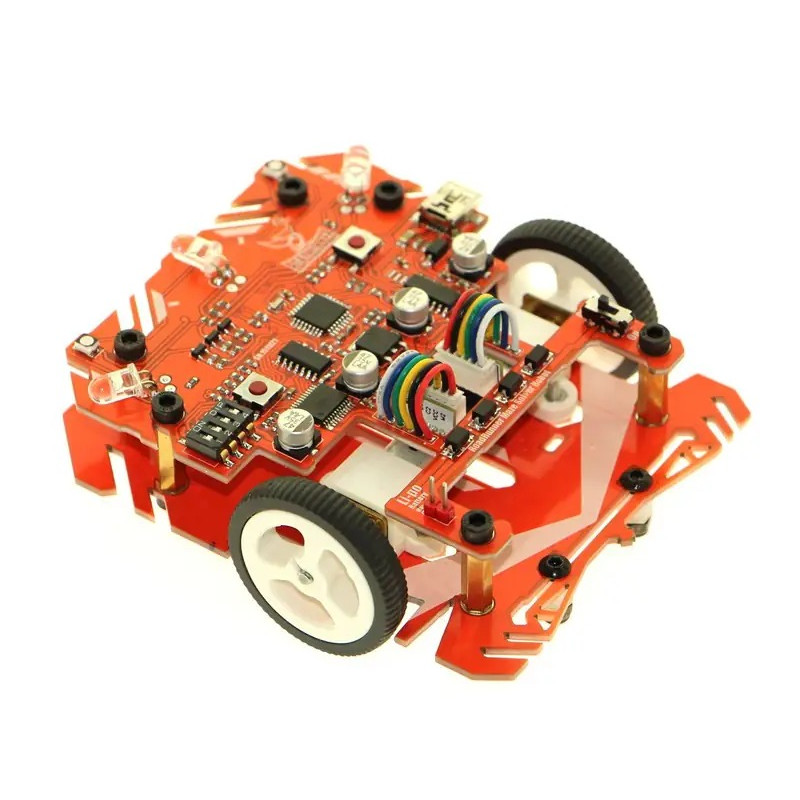

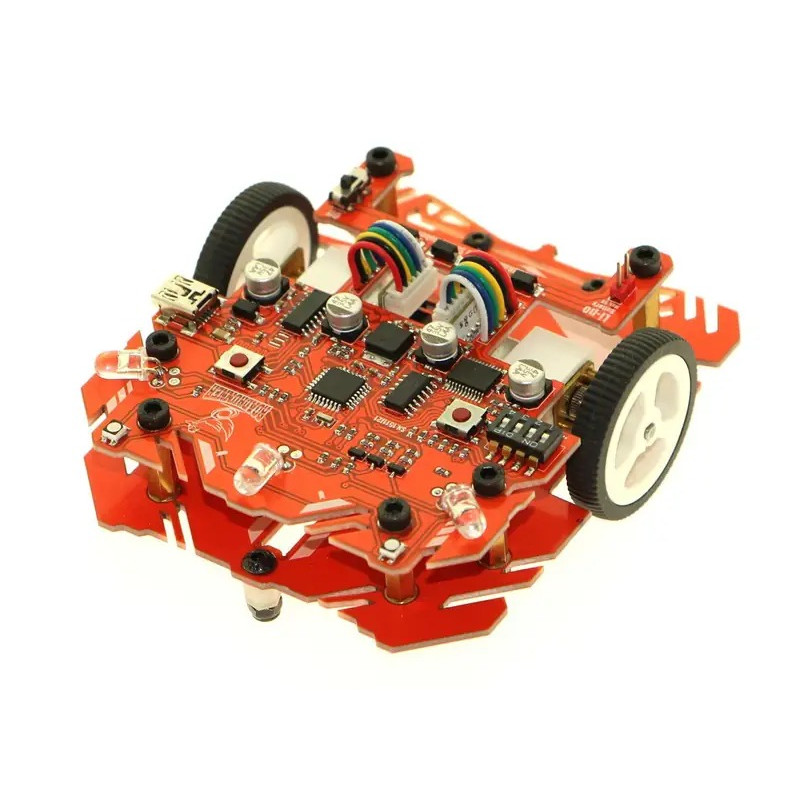

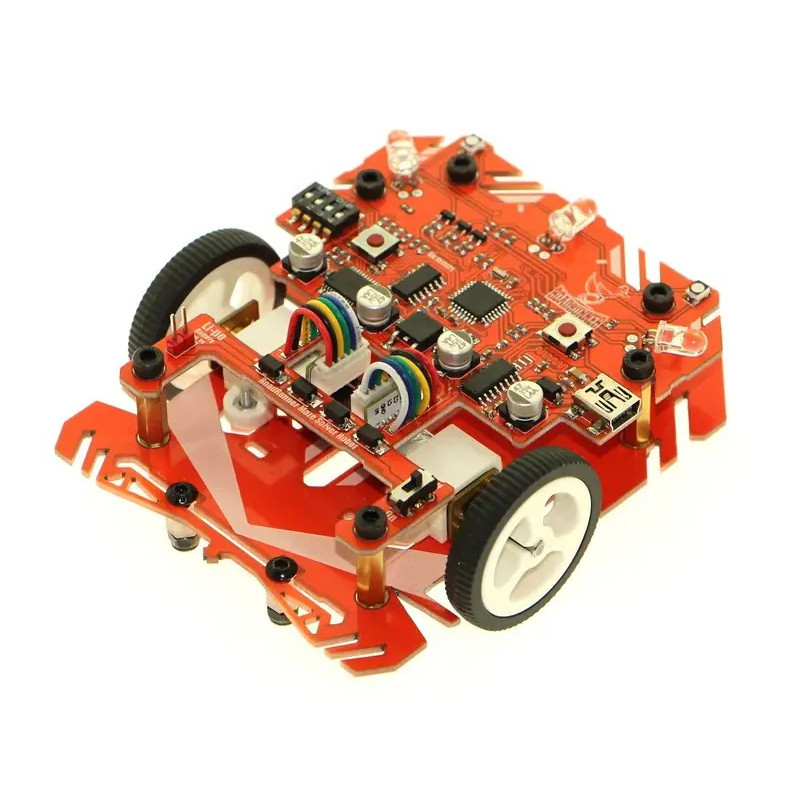

RoadRunner Maze Solver Robot Kit

This robot kit is designed to complete the maze in the shortest time, starting from the starting point to the finish point on the track consisting of white walls on a black ground.

Meet Our New and Professionally Designed RoadRunner Maze Solver Robot Kit!

It designed in accordance with the Maze Solving Robot Category for National and International Robot competitions.

The open source software written by our professional team, is available by request for those who purchase this robot kit.

RoadRunner Maze Solver Robot Kit is sent assembled. It is sent afterproduction and tests.
We highly recommend this robot kit, which combines NovaMax 12mm 6V 750 RPM Encoder Motor with speed and stabilization.

Thanks to developed software, it resolve the dead-ends in the maze and do not enter the dead-ends again. It goes to the end of the maze by following the wall completely.

With the 3 Infrared object sensors on the robot, it can measure the distance between the walls analog and center the robot to the measured values. The proximity to the wall can be easily calculated with the analog values taken between 0-20 cm.

With the two NovaMax 6V750RPM Encoder Motors on the robot kit, the distance traveled can be measured and it can balance the 90-degree turns to be constant each time.

Suitable for 12mm motors, the motors properties an be changed without any drilling and cutting on the kit.

Toshiba TB6612FNG IC is preferred as the motor driver model. The drive model has hard braking situations and sensitive PWM values. The motor driver provides a for each motor 1Amps and supports it with a power of 3 amps as instantaneous current in case of difficulties and sudden changes in direction.

It has the ability to continuously read the voltage value and perform speed increase and speed reduction operations when necessary. Since the components and motors on the robot draw very little current, it will not need a lithium polymer battery for its operation, and it can be used for 5-6 hours with 9V disposable batteries.

The battery model that can be used on the robot is left to the user. The robot works in the range of 7.4 Volts - 12.6 Volts. Li-po battery can be preferred when the user wishes.

The 9V battery that you can test and operate on the product will be supplied with the product.

With the bridge diode design at the power input, it will eliminate the reverse voltage situation in your battery connection. Regardless of the polarity of your battery, it will continue to work instead of burn.

With user leds on it, you can see the sensor data live, transfer additional speed data to the robot with dipswitches or make a track selection.

You can start the robot with start button and reset the robot without turn off and on with the reset button.

The robot design has been created totally with PCB and has a very light body. with light body design, it is very perfect in turns and straight road going.

With screw and nut on the front and back of the body, the balance of the robot can be adjusted.

The Pololu 32x7mm wheel model is used and with excellent adhesion performance on the ground.

With Atmega328Pprocessor used, you can easily program with Arduino or you can easily read data from the Serial monitor in Arduino. You can do your programming with the CH340Gserial converter via the USB port.

In order to program the robot when you connect t to your computer, you need to install the CH340Driver.

It is aimed that the user will not do any soldering in the product design and all design assembly is done by manufacturer. There are no components on the product that will deteriorate or require replacement.

Robot features:

7.4V-12.6V Operating Voltage

2 Pieces Novamax 6V750RPM Encoder Motor

Its weight is only 98grams

Its dimensions are98x82mm, height 38mm

Atmega 328P processor

CH340G USB/serial converter

3 Analog IR sensors

TB6612FNG Motor driver IC

4 dipswitches

User button and program reset button

Non-polar power input

Programming USB port

Sensor on and off feature

2 Pololu 32x7mm wheels

2 pcs 12mm micro motor holder

On-Off Switch

Programming with Arduino Interface

Why Should I Choose the RoadRunner Maze Solver Robot Kit?

Guarantee of the experienced Sumozade team

Open source Maze Solver codes

Quality control process of the materials used

NovaMax 12mm 6V 750RPMEncoder Motor choice

low power consumption

High current motor drivers

User buttons and switches

RoadRunner Kit content:

RoadRunner Maze Solver Robot

9V Battery

9V Battery Holder

USB Programming Cable

Spare Consumables

All spare parts of this robot kit are always in stock by manufacturer.

Manufacturer Sumozade guarantees that they will always support you with their expert technical team before and after sales.
