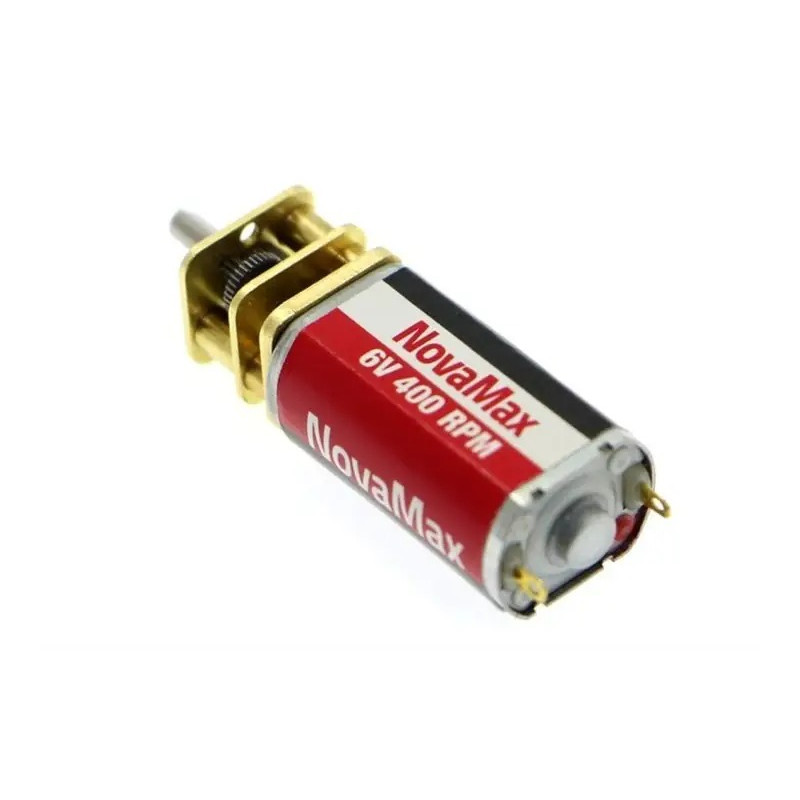

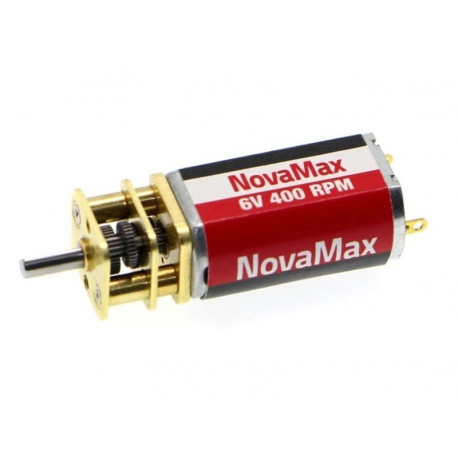

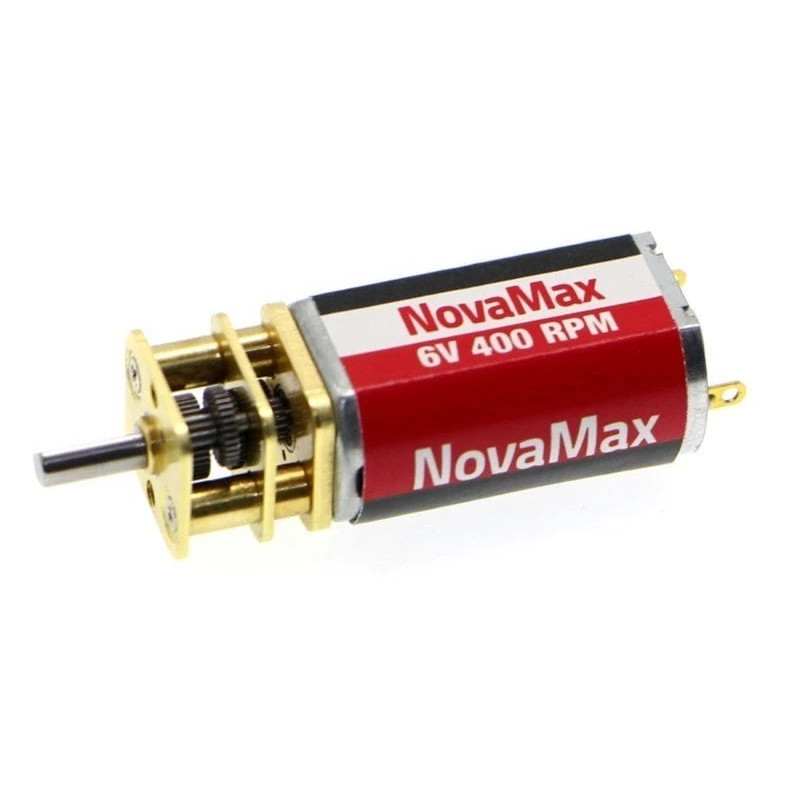

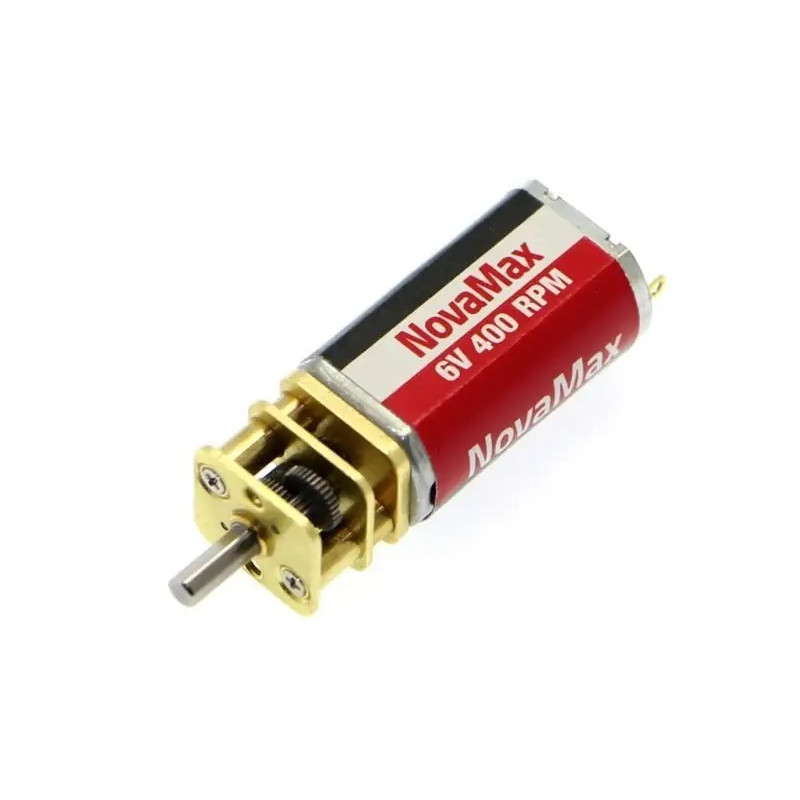

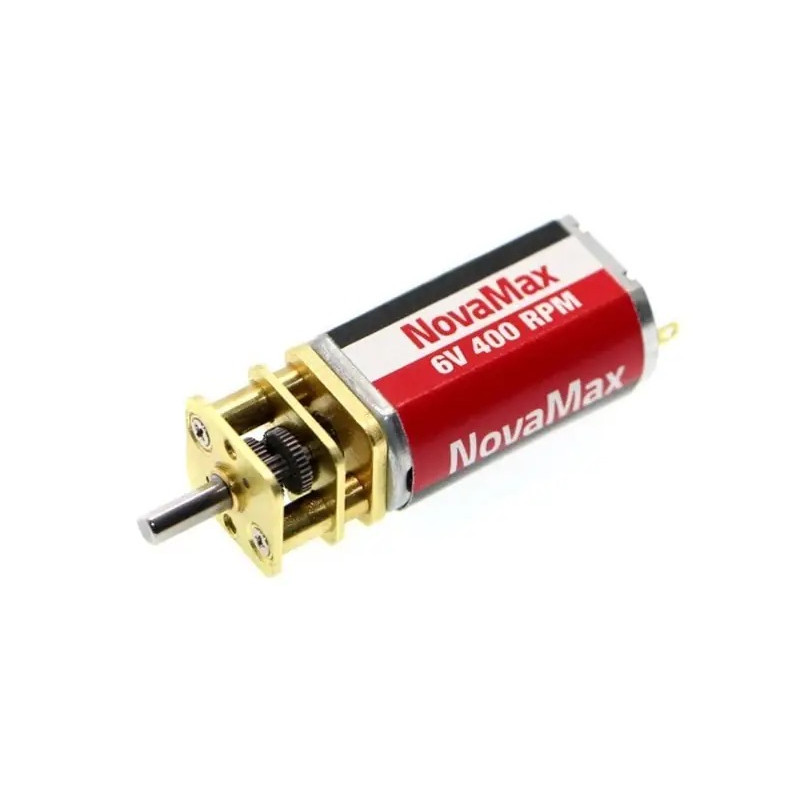

NovaMax 6V 400rpm DC Motor

NovaMax Desingned motor for Professional High Power Mini Sumo Robot Projects

NovaMax Dc Motors are the most popular Sumozade Motors for Mini Sumo Robot Competitions

Also You can use NovaMax Motor for projects need torque and Speed. These micro gearmotors are used successfully in many industries due to their light weight and small size. You can give 12 volts and get higher torque and speed. The stopping torque of the motor is 6.5 kg / cm. We strongly recommend that, you can give high Voltage to reach High Torque and Power. Nominal voltage is 6v, but you can give 12v


The NovaMax series has a larger Motor and is an unrivaled Motor model that can be used in mini sumo robots.

Why NovaMax Dc Motor?
NovaMax Dc Motors are more powerful than the standard dc motors. İt has the high production quality, high torque and high acceleration. NovaMax is special series dc motors produced especially for Mini Sumo Robot competitions.

Technical specifications;
Operating Voltage: 6 to 16 Volts
Normal Operating Voltage: 6V
Maximum. Operating Voltage: 16V.
Speed: 400Rpm (RPM)
No- Stall Current: 120mA
Operating Current: 190mA
Stopping Current: 3.65A
Rated Load Torque: 4.4kg / cm
Stop Torque: 6.5kg / cm
Motor Diameter: 16mm
Shaft: 3mm D Shaft Center Outlet
Shaft Length: 8mm
Length: 48mm (Suitable for Mini Sumo Robot Competition Rules)
Weight: 24 gr.
