Šis LED šviestuvų ryškumo reguliatorius yra ypatingas tuo, kad naudoja ne įprastą leading-edge valdymo būdą, o sudėtingesnį trailing-edge būdą. Tai leidžia sėkmingiau valdyti dalį "nedimeriuojamų" LED panelių. Valdomas apšvietimo technikoje populiariu DMX signalu. Žinoma gali valdyti nebūtinai LED įtaisus
Prekių kiekis mūsų sandėlyje: 3
Dėmesio: Paskutinės prekės!
Pasiekiama:
Kanalų skaičius | 3 |
Maksimali valdoma srovė | 3A |
Maitinimo įtampa | 90 - 240 V(AC) |

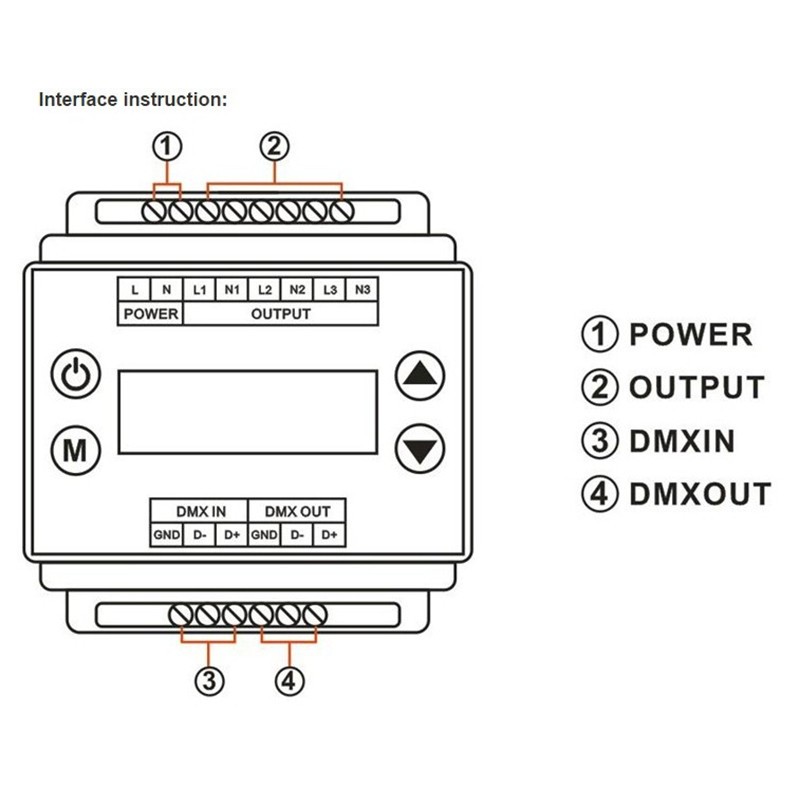

Kontaktų kiekis | 16 |

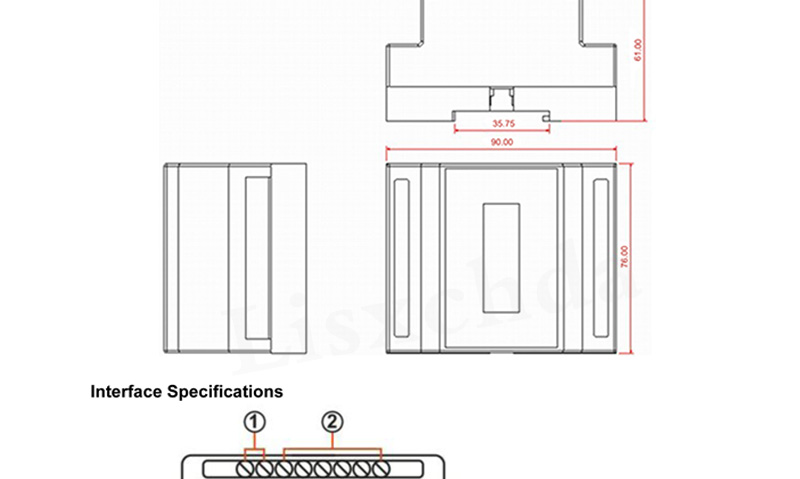

Matmenys | 90 x 76 x 61 mm |
Maksimali srovė | 3A |
Impulso trukmė | 0 - 100 % |
Galia | 220W (prie 220-240V) |

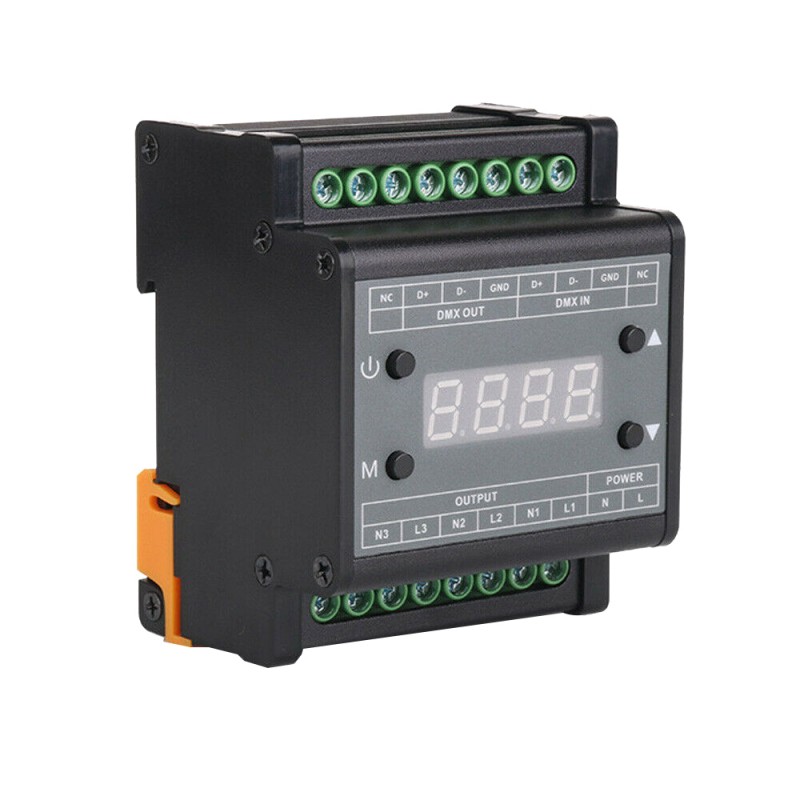

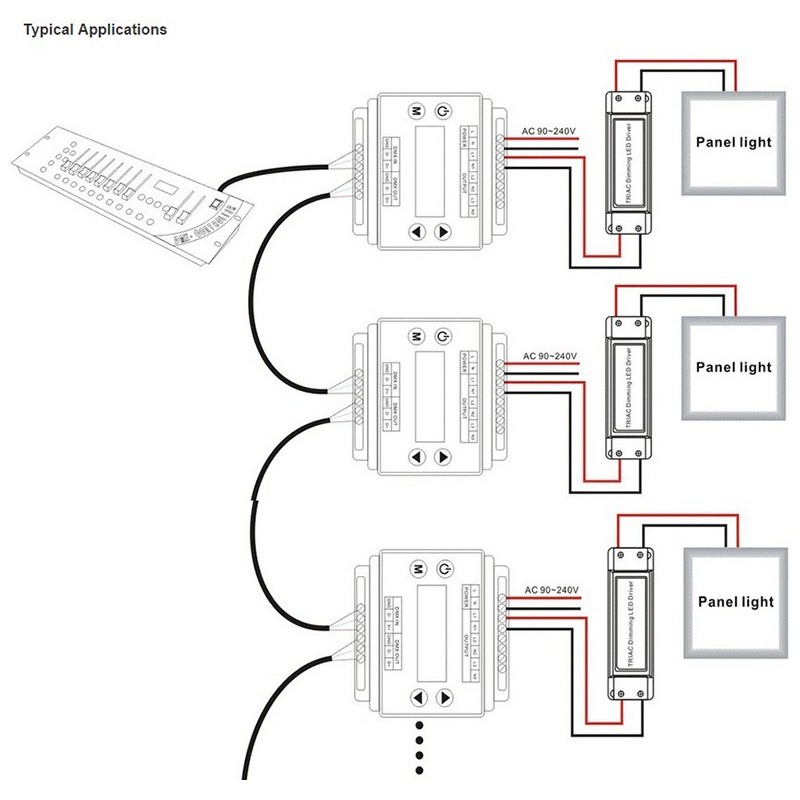

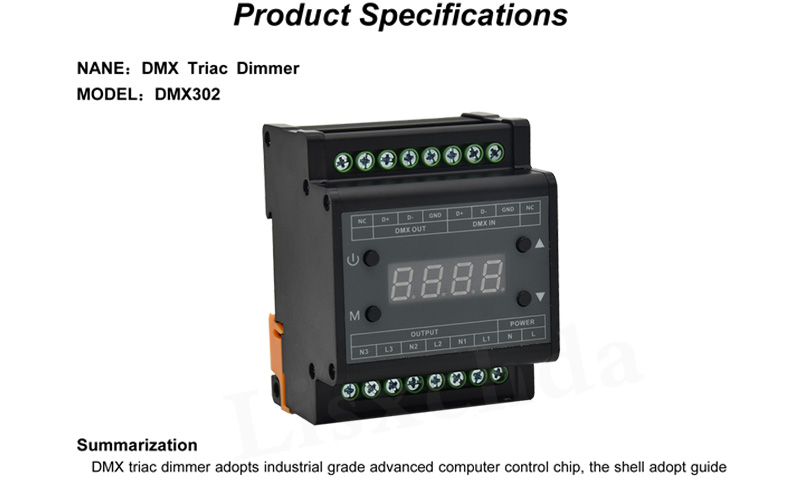

DMX triac dimmer adopts industrial grade advanced computer control chip, the shell adopt guide rail type, suitable for industrial environment; Increase 3 channels relay power supply output, adopts high-voltage MOS transistor as the control circuit to achieve trailing edge dimming. It is used for controlling a variety of lamps which connects with triac power supply, and also can be connected with high-voltage LED load light; it has many advantages such as convenient to connect, easy to use and others. According to customer's actual demand can realize the dimming function.
Technical Parameters
MODEL:DMX302
Working temperature: -20-60 degree
Power Supply voltage: AC90-240V (50HZ/60HZ)
Controller dimension: L87xW72xH53.7mm
Packing size: L100xW80xH65mm
Net weight: 330g
Gross weight: 350g
Output:3 channels
Output signal:1 chanel phase control outpu
Static power consumption: <1 W
Output power:110V,<3*110w,220V,3*220V
Diming method: trailing edge dimming
