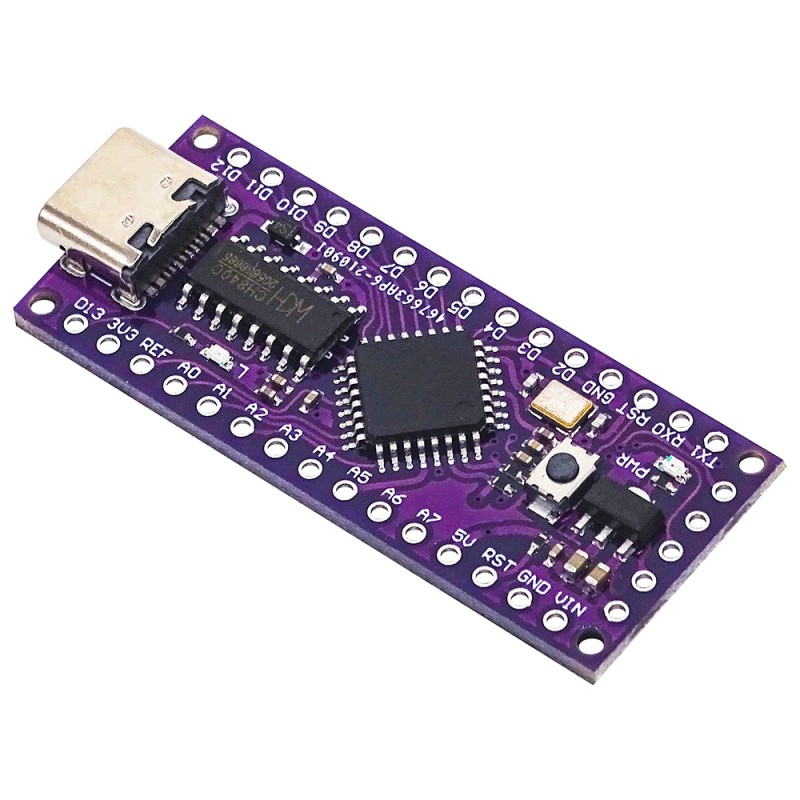

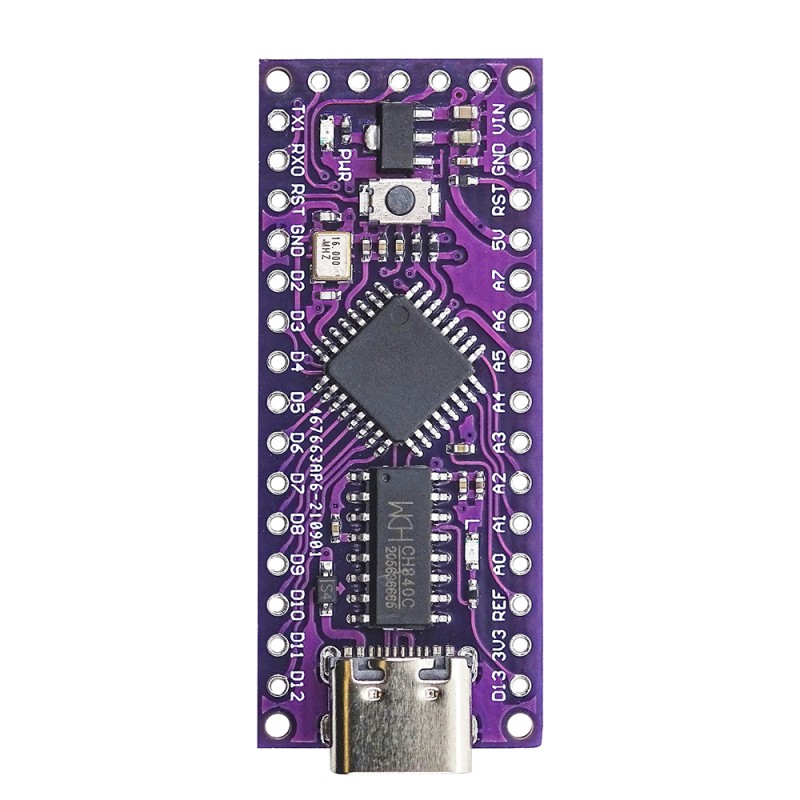

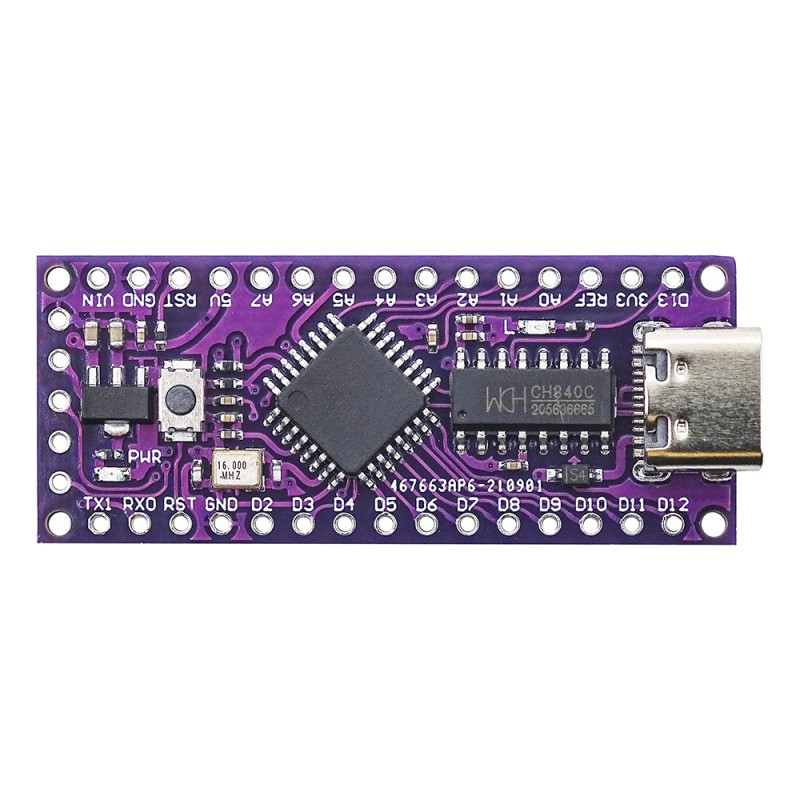

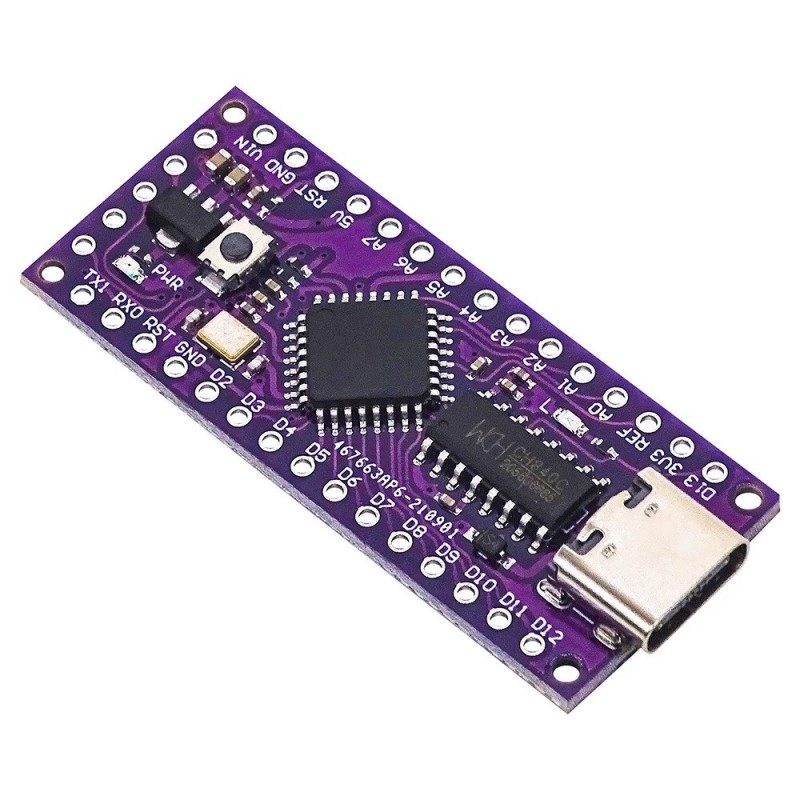

Nano 3.0 TypeC pagrindinės plokštės analogas su LGT8F328P-LQFP32

Šioje Nano versijoje yra naudojama CH340 USB sąsajos mikroschema.

Standartiniai Arduino IDE plokštės aprašai (prisegama žemiau) yra sukurti taip, kad pagal nutylėjimą valdiklis veiktų 16MHz dažniu, kas yra aktualu siekiant kuo didesnio programų veikimo suderinamumo su Arduino Nano V3.0, kuriose naudojami ATMEGA328P mikrovaldikliai.

• 8F328P-U MCU used by the LGT8F328P, is a Atmel MEGA328P compatible chip.
• 8F328D architecture design is relatively new, peripheral functions far stronger than Atmel MEGA328. Especially the program encryption ability is far more than MEGA328.
• 8F328D can use 3V3 and 5V power supply running at 16M frequency, excellent level compatibility.
• Built-in high-precision RC, no external crystal can be stable operation.
• Less And decreases in peripheral instrument parts, Circuit Design Is Simple.
• 12-bit ADC (analog-to-digital conversion)
• On Board DAC
• Owned Inventory the GUID (Unique own ID) Can Be For on used chip solutions Encryption Program.
• A Built-In .internal 1.024V / 2.048V / 4.096V ± 1% Calibratable Source Reference voltage software.
• The PWM pin adapter Number: the D3, the D5, the D6, the D9, the D10, D11.
• MCU LGT8F328P
• FLASH 32Kbytes
• SRAM 2Kbytes
• EEPROM 0K / 1K / 2K / 4K / 8K (FLASH Share)
• PWM 8
• Frequency 16MHz (Maximum 32MHz)
• ADC 6 channels 12 bit
• DAC 1 channel 8 bit
• UART 1
• SPI YES
• TWI (I2C) YES
• GUID YES
• Internal benchmark 1.024V / 2.048V / 4.096V ± 0.5%
• System logic level Factory 3V3 (switch from pad to 5V)
