WeMos D1 mini 2x H-bridge variklių valdymo plokštė I2C su TB6612FNG

Features:
I2C interface
Power supply voltage: VM=15V max
Output current: Iout=1.2A(average) / 3.2A (peak)
Standby control to save power
CW/CCW/short brake/stop motor control modes

Compatibility:
This shield does not work out of the box with an Raspberry Pi even-tough it uses I2C. (2-12-2017) git issue

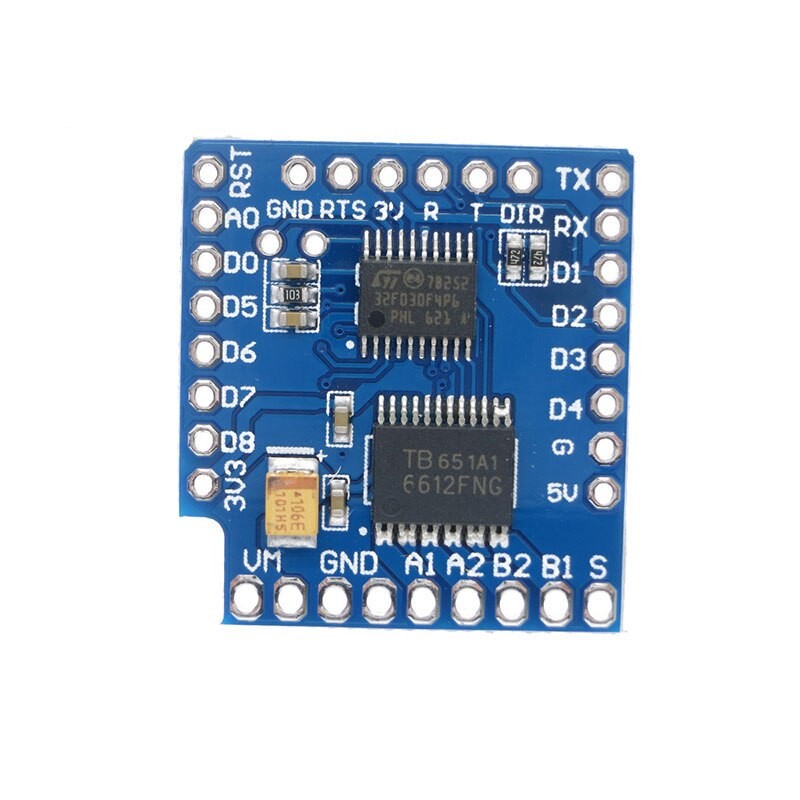

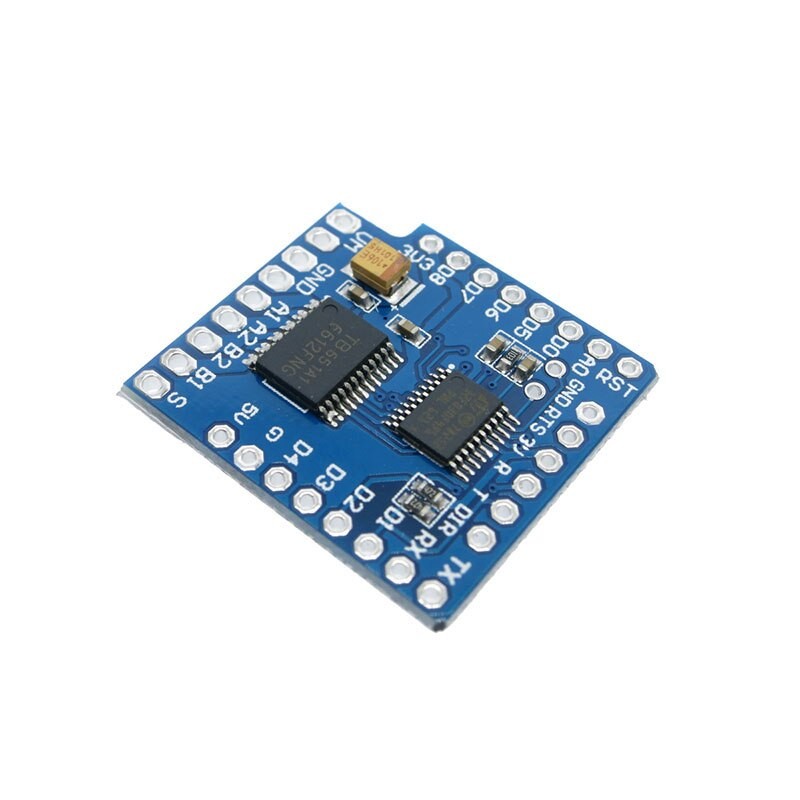

Pins:
D1 SCL
D2 SDA
RST RST
VM: Motor power supply + (Max 15Vdc)
GND: Motor power supply -
A1 A2: Motor A
B1 B2: Motor B
S: Standby control port (in IO mode)

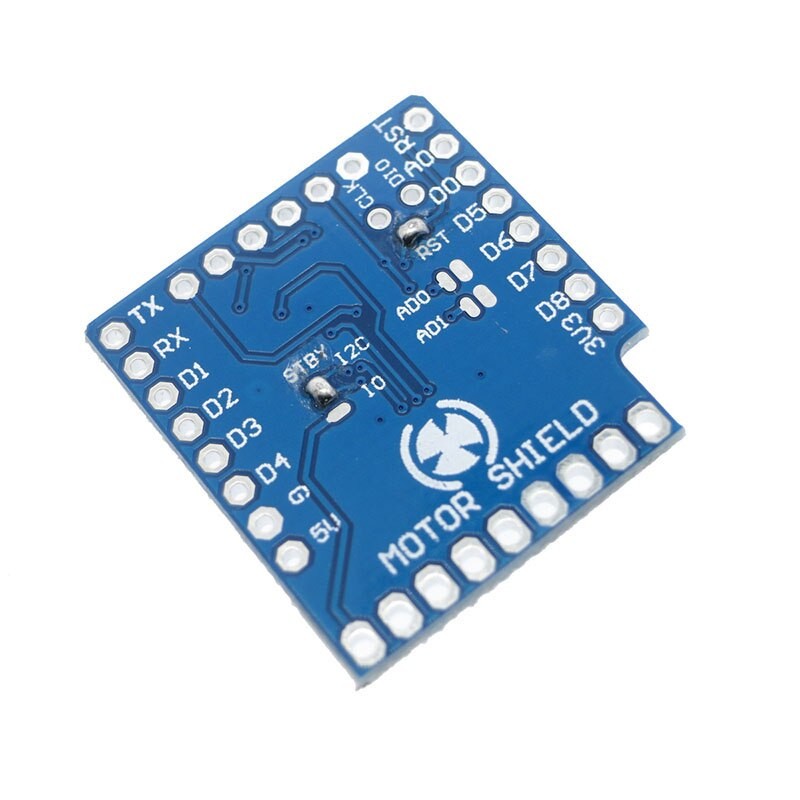

Stanby control mode:
I2C mode: Control TB6612’s STBY with I2C protocol
IO mode: Control TB6612’s STBY with “S” pin

Shield reset mode:
short: reset with d1 mini (reset at power on or press d1 mini’s reset button)
open: reset by “DTR” pin.

I2C address:
AD1 AD0 Address
- - 0x2D
- x 0x2E
x - 0X2F
x x 0x30(default)
(“-” Short, “x” Open)
