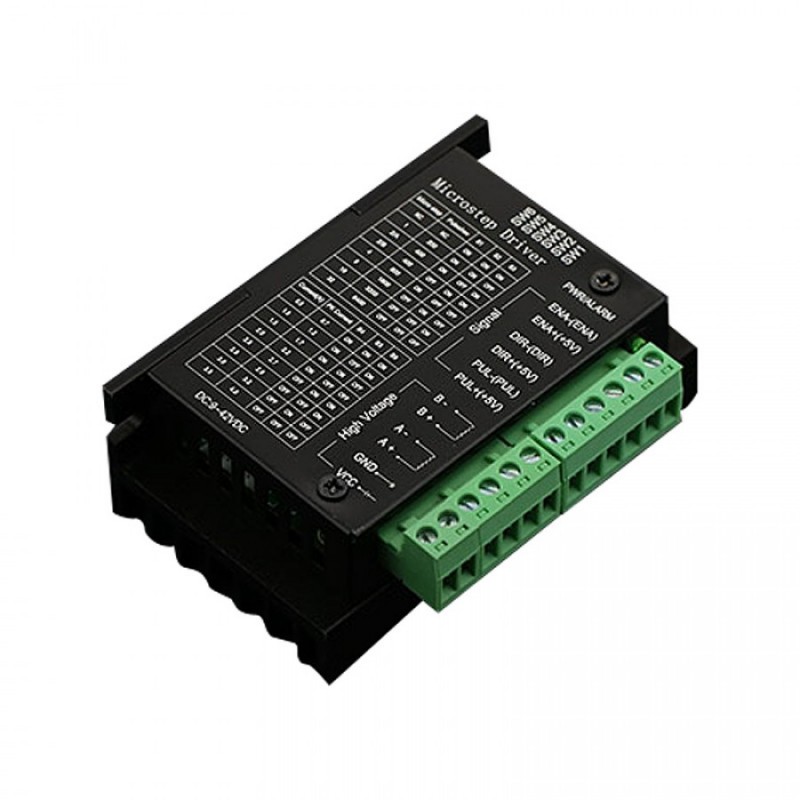

Žingsninių variklių valdiklis TB6600 4,5A

Description:

Operating voltage: DC 10V-45V.

It is recommended to use DC32V switching power supply.

The use of high-speed opto coupling 6N137 ensures high speed without losing step.

Uses high current high voltage TB6600HG chip: low-voltage shut-off, overheating and over-current protection circuit, short-circuit protection

Rated maximum output: ± 4.0-4.5A.

4.2A of 42,57,86 fit within the two-phase / four-phase / four-wire / six-wire stepper motor.

Automatic half current function.

Segmentation: full step, half step, 1/4-step, step 1/8, 1/16-step, up to 16 segments.

Product Features:

Output current stepless adjustable to meet your various application requirements.

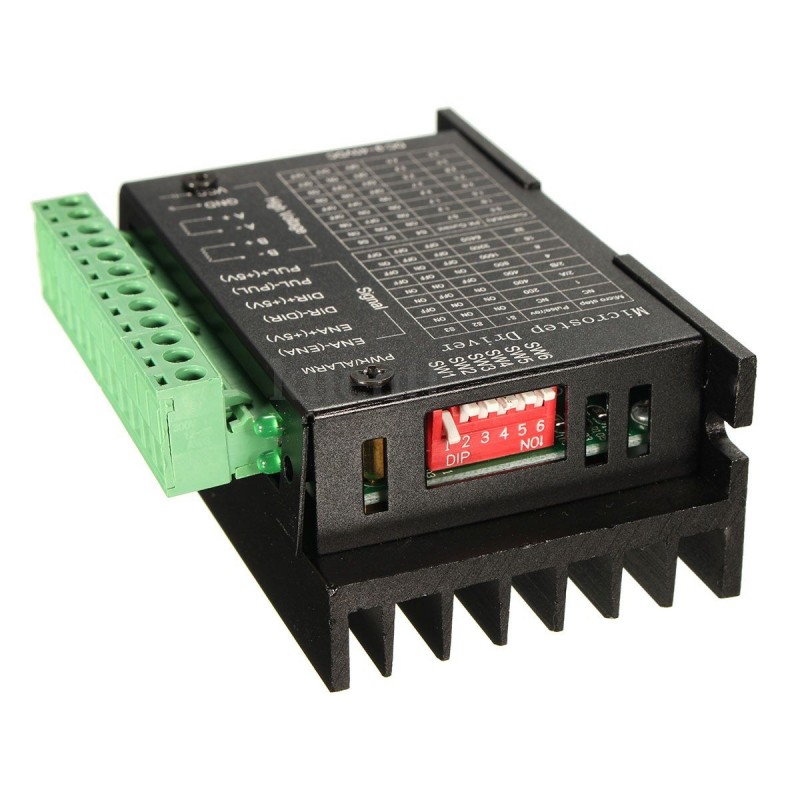

Jumper value table (printed on the panel)

Two input terminals: wiring more convenient.
