CNC valdiklis MACH3 centrams

Prekės kodas: d0769

Būklė: Nauja prekė

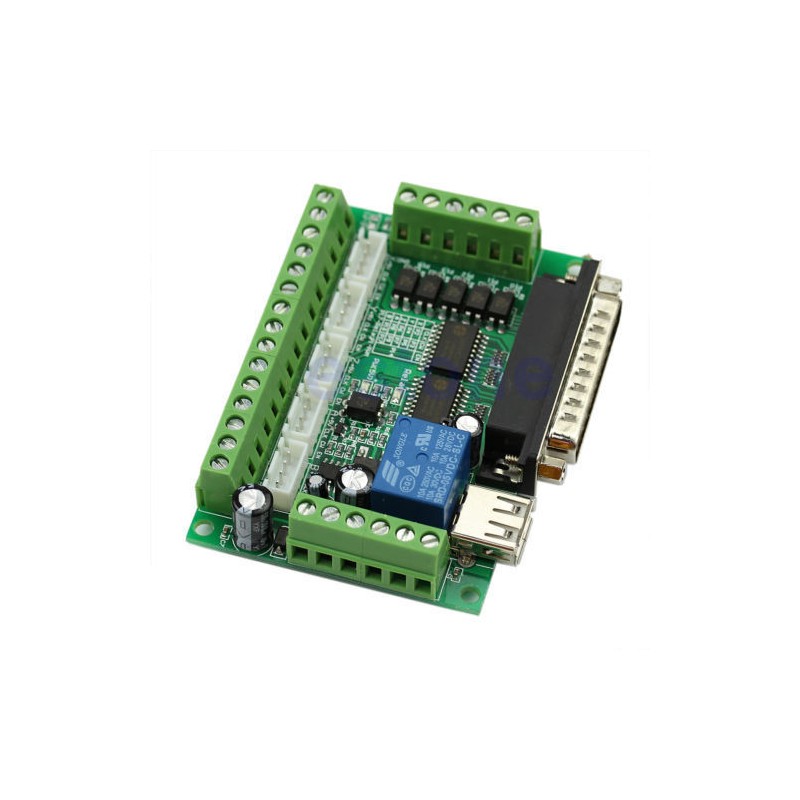

Pagrindinė CNC staklių plokštė, prie kurios jungiasi žingsninių variklių valdikliai ir jutikliai. Ši plokštė jungiama prie kompiuterio ir komunikuoja su MACH3, Linux CNC (EMC2) ar panašia programine įranga.

Smulkiau

Prekių kiekis mūsų sandėlyje: 12

Spausdinti

Charakteristikos

Suderinama su Arduino™ ir *duino	Taip
Kanalų skaičius	5 ašys, įrankis ir 5 DI
Nominali darbinė įtampa	5V
Maitinimo įtampa	5V ir 12-24 VDC
Matmenys	90 x 60(68) x 19 mm

Apie prekę

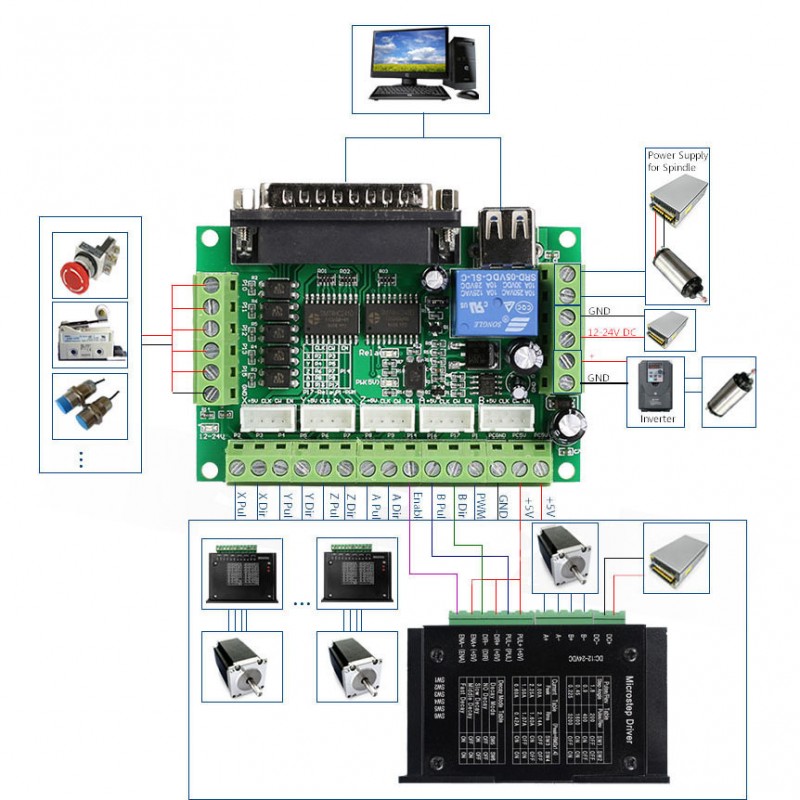

The latest upgraded 5 axis breakout board is specially designed for the CNC single axis 2-phase
stepper driver controller, such as M542, M542H, MA860H, 2M542, 2M982, DM542(A),
DM860(A) etc. single axis stepper driver controller series. With this 5 axis breakout board, any
1-5 single axis stepper driver controllers can be directly controlled by the PC via the MACH3,
EMC2, KCAM4, etc.

Features
Maximum support 5-axis stepper motor driver controllers
Compatible with MACH3, Linux CNC (EMC2) etc. parallel-control CNC software.
USB power supply and peripherals powered phase are separated to protect computer security.
All the signals are opto-isolated which can protect your computer security.

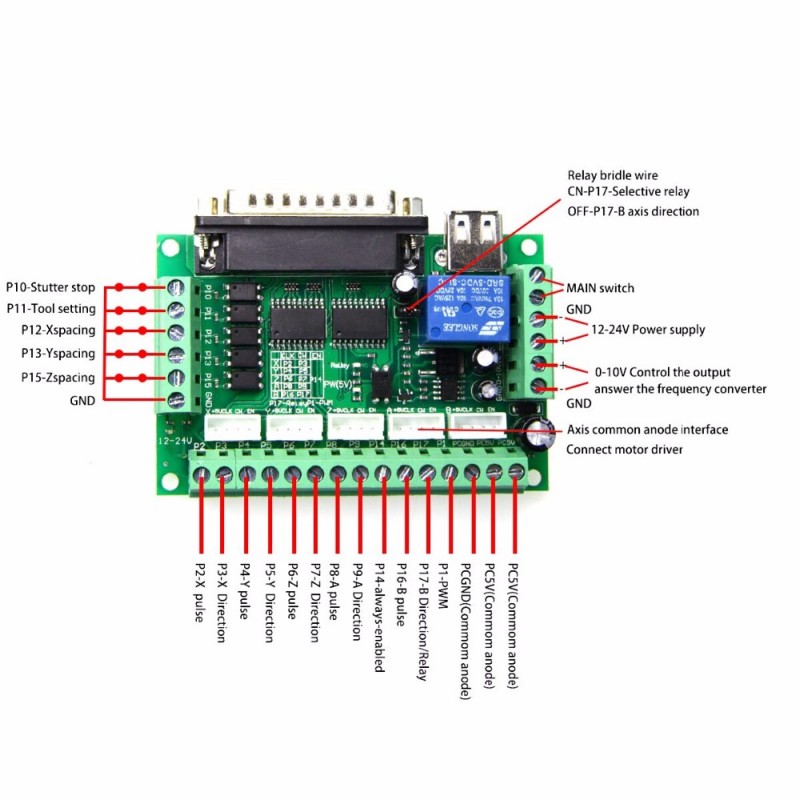

5-input interface to define the Limit, Emergence-Stop, Cutter alignment, etc.
Wide input voltage range: 12-24V, and with anti-reverse function.
One relay output control interface, accessed by the spindle motor or the air pump, water pump, etc.
Output 0-10V analog voltage for inverter to control the spindle speed.
