Nauja prekė
Universalus bešepetėlių DC variklių valdiklis. Puikiai tinka trifazių BLDC variklių valdymui iš Arduino ar panašių valdiklių. Turi PWM įėjimą, greičio signalo išėjimą, gali būti valdomas papildomu arba plokštėje integruotu potenciometrais.
Prekių kiekis mūsų sandėlyje: 15
Dėmesio: Paskutinės prekės!
Pasiekiama:
Suderinama su Arduino™ ir *duino | Taip |
Kanalų skaičius | 1 |
Maksimali valdoma srovė | 15A |
Maksimali valdoma įtampa | 60V DC |
Būsenos indikacija | Taip. LED |
Maitinimo įtampa | 6-60V DC |
Jungties tipas | Priveržiami k., PH2.0, litavimo taškai |
Kontaktų kiekis | 5+6+5+5 |
Matmenys | 64 x 46 x 32 mm |
Komunikacijų sąsajos | 0-5V (pot); PWM |
Galia | 400W |

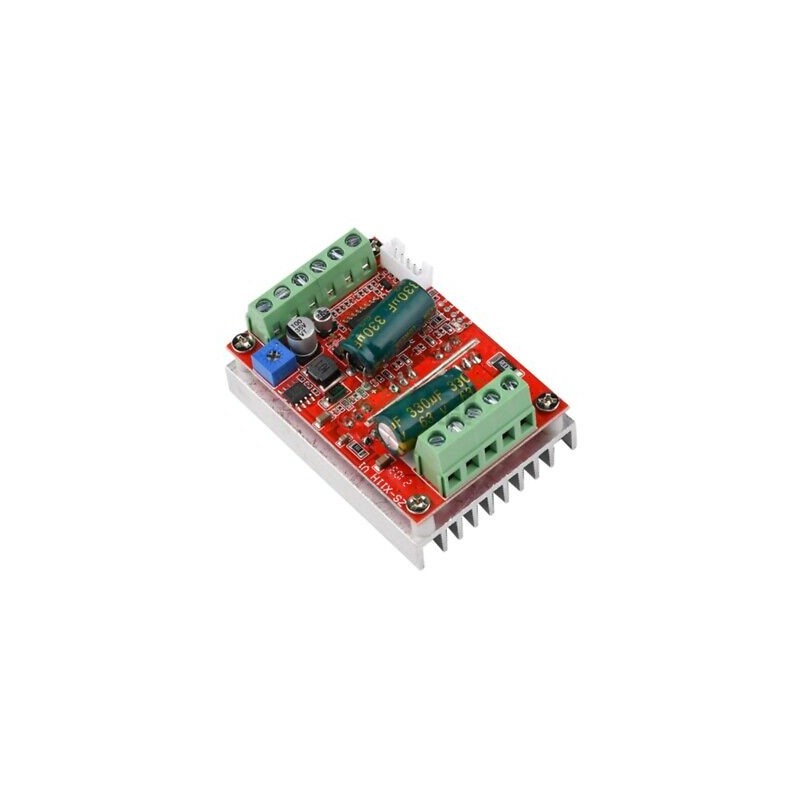

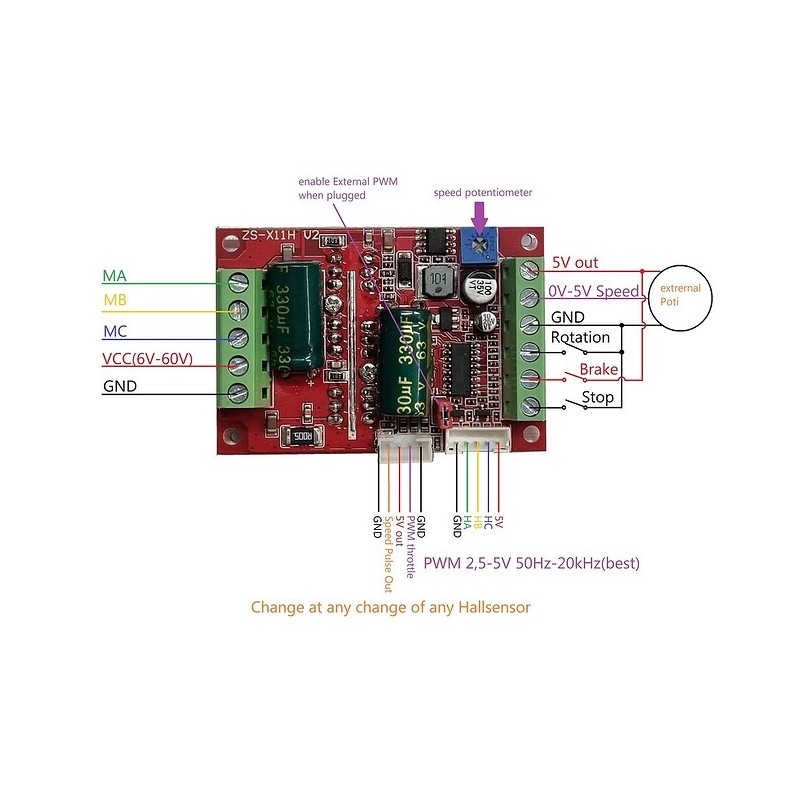

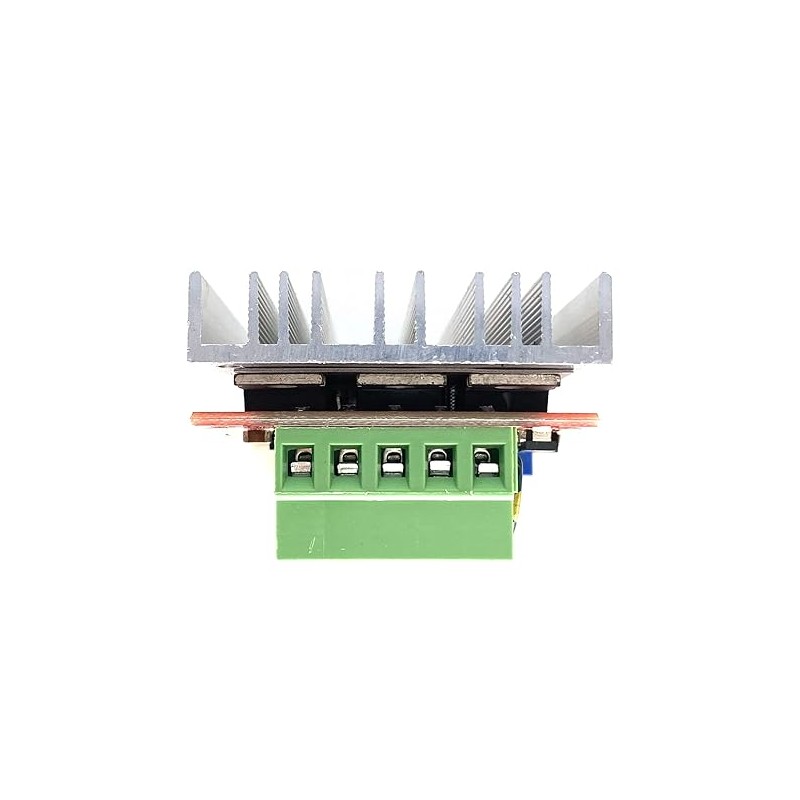

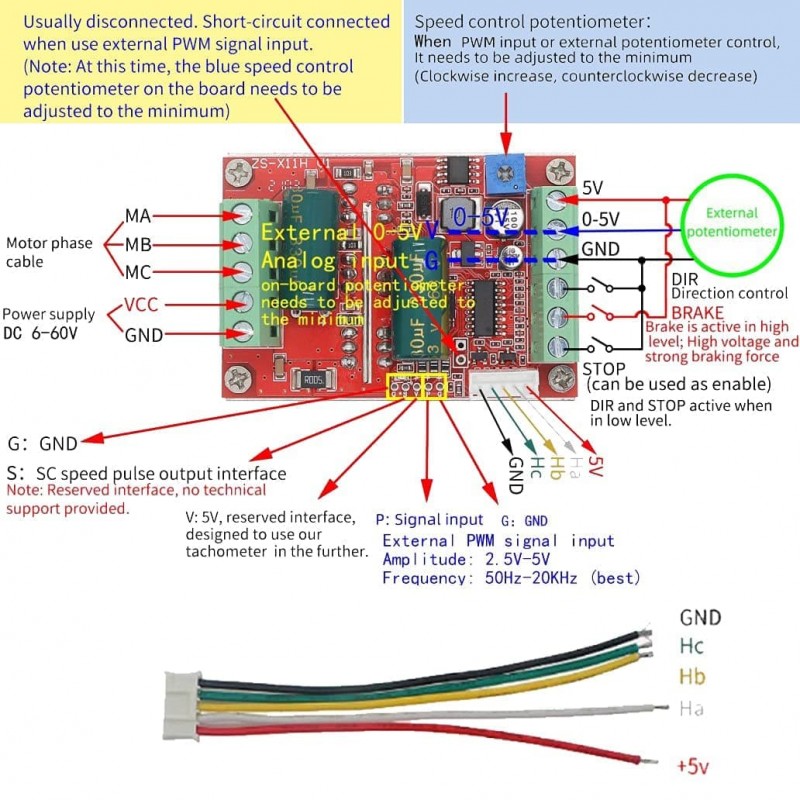

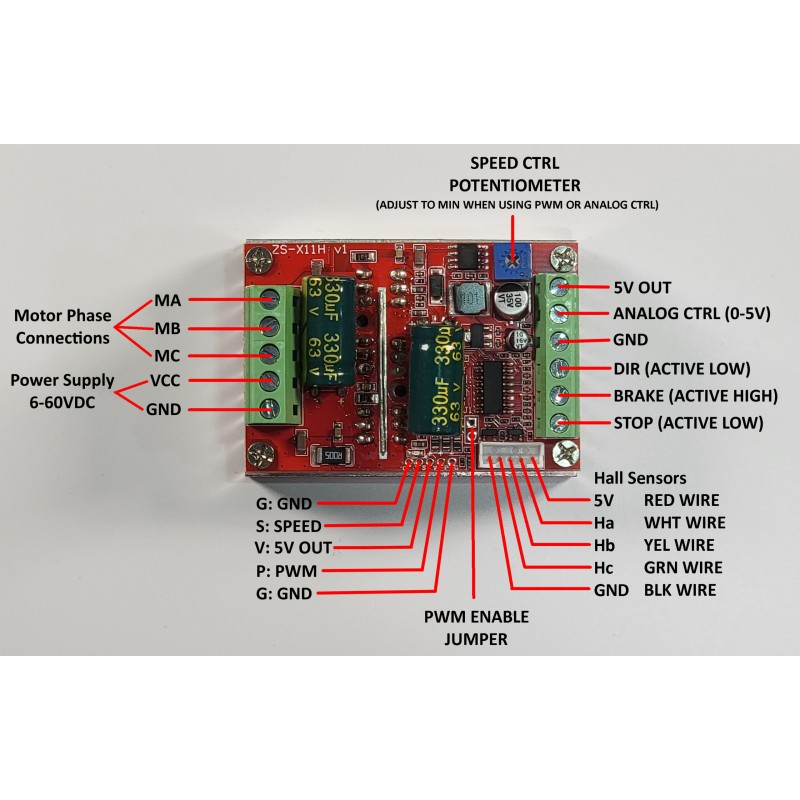

This is a brushless driver board that supports wide voltage DC6-60V, supports braking function, and 0-5V analog speed regulation. With forward and reverse control function, PWM duty cycle control speed regulation (can be controlled using Arduino UNO or ESP32 boards). Has input and connector for hall sensors integrated into BLDC motor.
Product parameters:
Model: ZS-X11H
Working voltage: 6V-60V
Load capacity: 15A
Overcurrent protection: Yes
Maximum power: 400w
Working environment temperature: -40~85 degrees Celsius
Working method: open loop
Precautions:
1. There is no fuse in the power supply circuit on the motherboard. Jianyi added it himself. Reverse connection of the positive and negative poles of the power supply will cause permanent damage to some chips on the board (even if it takes 2 seconds).
2. The motor output end has over-current protection during normal operation. Since the power and current of the module are very large, please do not artificially short-circuit the module when it is not working normally. Once the short-circuit occurs, there is a possibility of burning the line and exploding the pipe. Please do a wiring test for the first time. Use small current and low voltage to test. After it is ok, then apply high current and high voltage. Since it is a bare board module, please pay attention to the insulation of the wiring ends when selling it. It is strictly forbidden to touch the components on the board with strong voltage.
3. Do not connect a motor that obviously does not match or is far different from the voltage, current and power of the drive module to avoid damage.

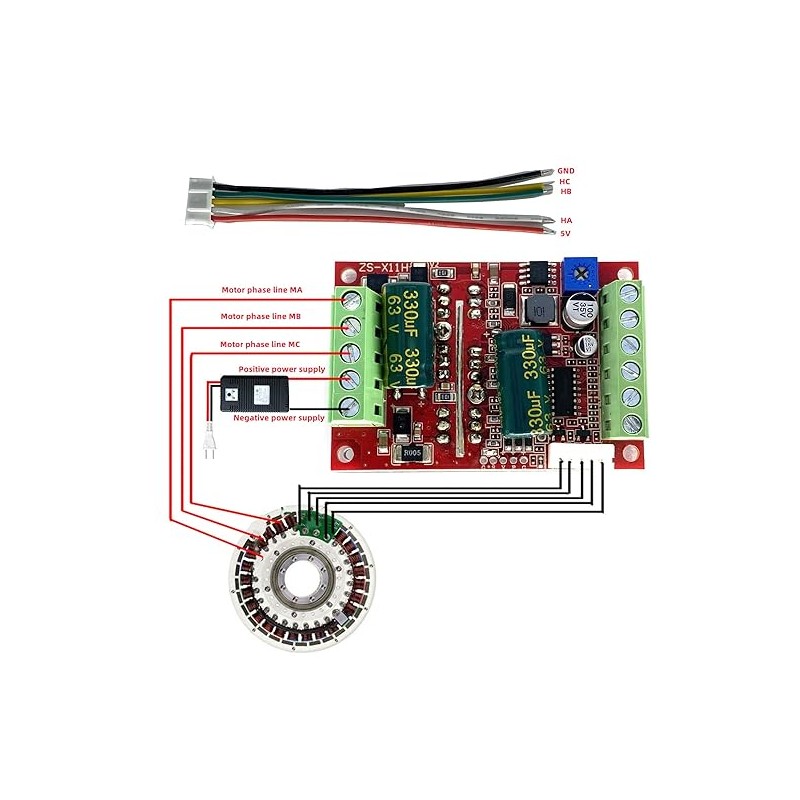

4. Check the wiring carefully before turning on the power. If the connection is reversed or the Hall wire is wrongly connected, a large instantaneous current may burn out the driver board.
5. The motor cannot start normally or is difficult to start (sometimes it requires manually turning the motor to start), or the wiring phase may be wrong. Please cut off the power immediately, otherwise, it is easy to damage the drive instantly.

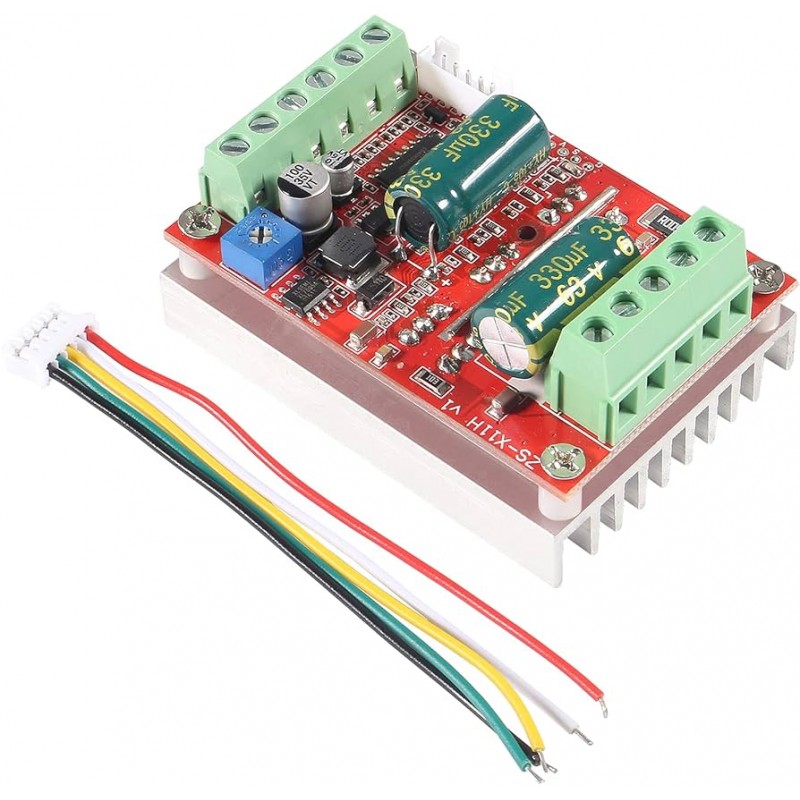

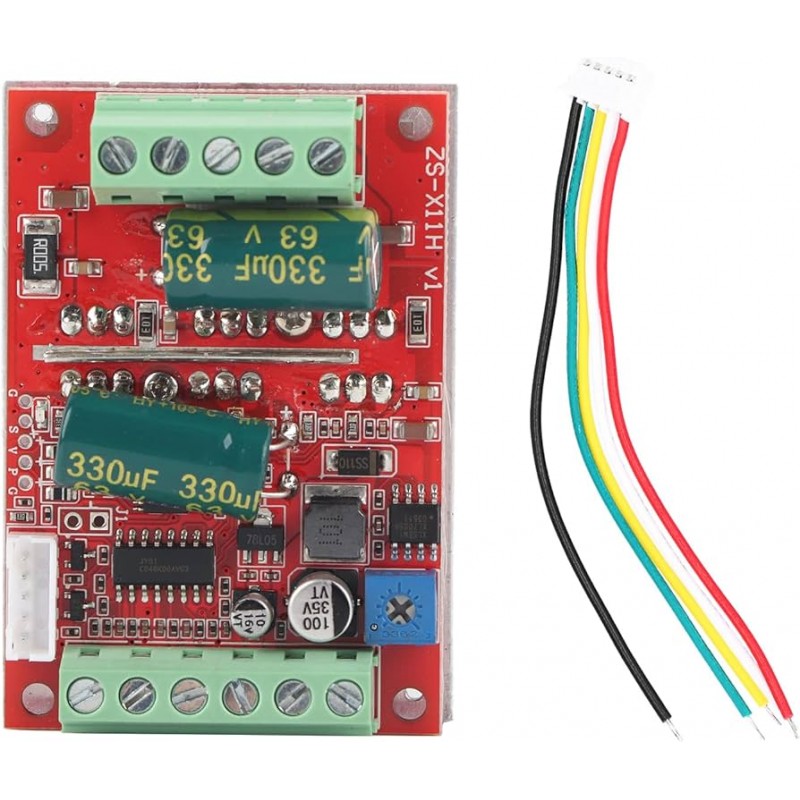

Package list:
Motor controller X1
5PIN Cable X1
