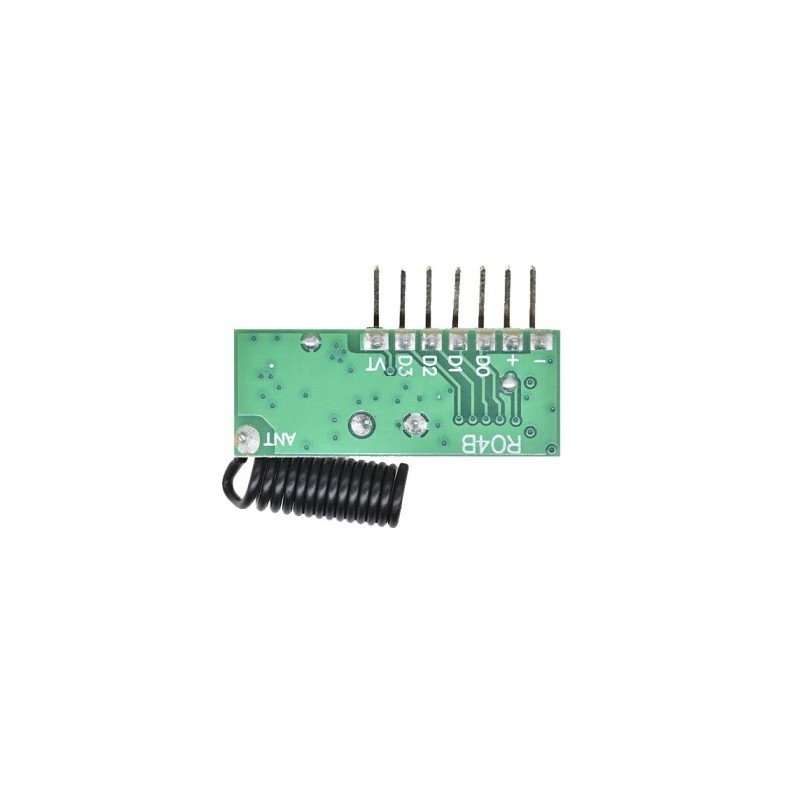

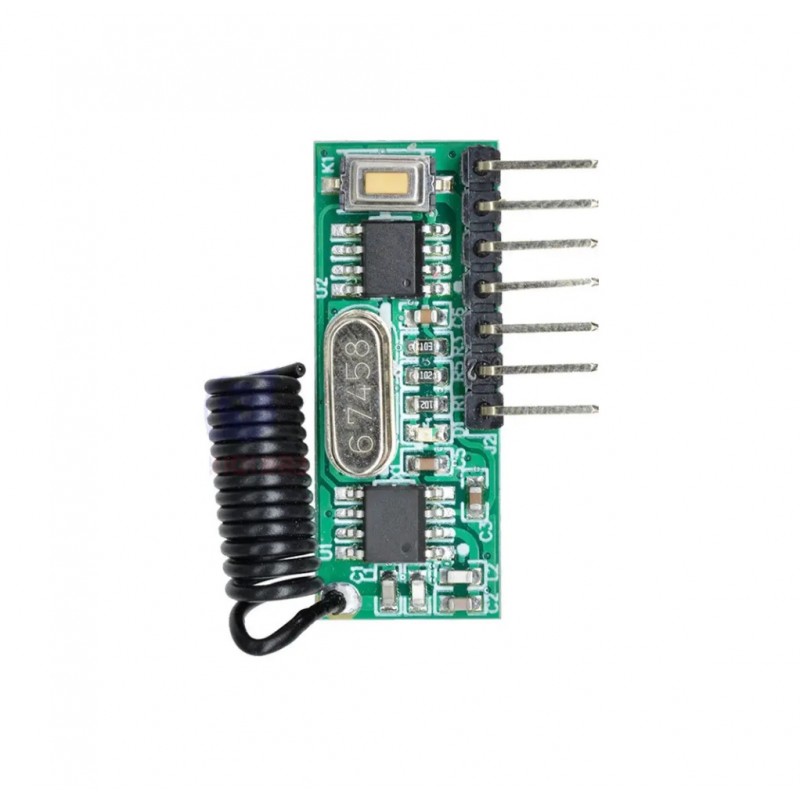

4 kanalų 433MHz imtuvas RX480E-4

Prekės kodas: d6659

Būklė: Nauja prekė

433Mhz su EV1527 standartu suderinamas siųstuvas. Patogus kai reikia sukonstruoti įtaisus, kuriuos norite valdyti įprastais 433Mhz pulteliais (kaip d0912) arba sujungti kelias Arduino sistemos dalis bevieliu paprastu valdymo ryšiu. Tinkamas siųstuvas - d6658.

Smulkiau

Prekių kiekis mūsų sandėlyje: 25

Spausdinti

Charakteristikos

Suderinama su Arduino™ ir *duino	Taip
Kanalų skaičius	4
Nominali darbinė įtampa	2,5-5V
Dažnis	433MHz
Jungties žingsnis	2,54mm
Jungties tipas	Male (vyr.)
Kontaktų kiekis	7
Matmenys	31 x 12 x 7 mm (be jungties ir antenos)
Naudojami mikrovaldiklio prievadai	iki 4 skaitmeninių I/O
Darbinis atstumas	20-50 m (priklausomai nuo siųstuvo)
Naudojama srovė	3 mA

Apie prekę

Receiver module
Model: RX480E-4
Working voltage: DC2.5V-5V
Working current: 3MA
Sensitivity: -108DBM
Rate: MAX 10KB / S.
Working mode: point movement, self-locking, interlocking
Output: The 4-channel CMOS level signal corresponds to the remote control ABCD 4 button.

How to match the transmitter and receiver
1. Delete existing data: press the Learn button (on the receiver) 8 times. Response: The LED flashes 7 times.
2. Learn remote code: Press the Learn button (on the receiver) once, twice or three times (see below).
The LED lights up: the learning mode is active. Press any button on the remote control.
The LED flashes three times: the study is successfully completed.
3. Test: After the above operation, the receiving board can be controlled by the remote controller.
Starting with step 2, more transmitters with different IDs can be additionally learned and stored.
Different modes can be mixed.

Button usage (set mode and start the pairing process):
Press once: jog mode (instantaneous mode)
Press twice: self-lock mode (4-channel switching mode)
Press three times: Interlock mode (the selected channel is activated and cleared if another channel is activated)
