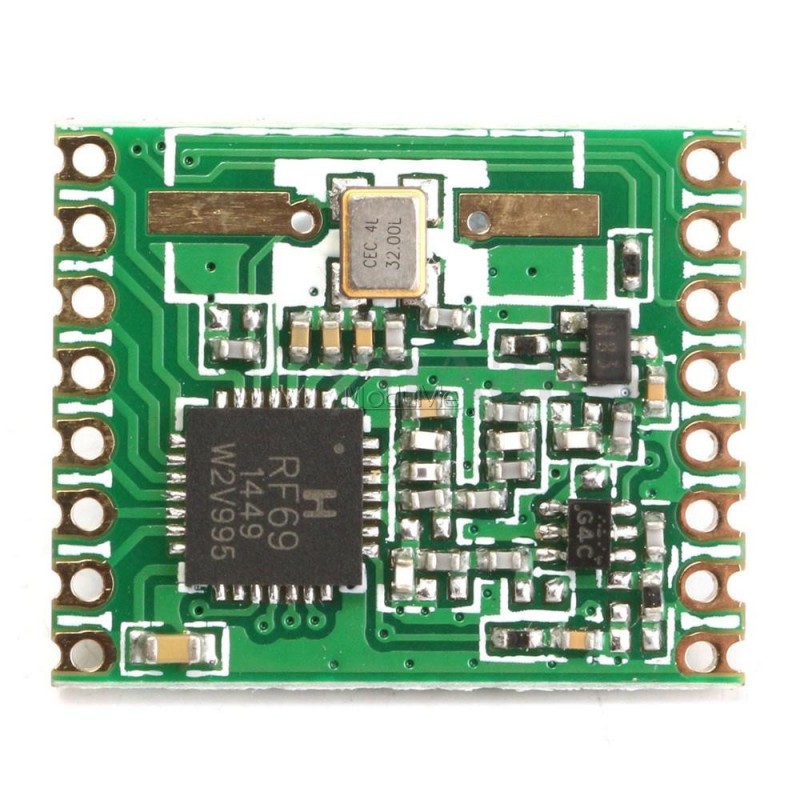

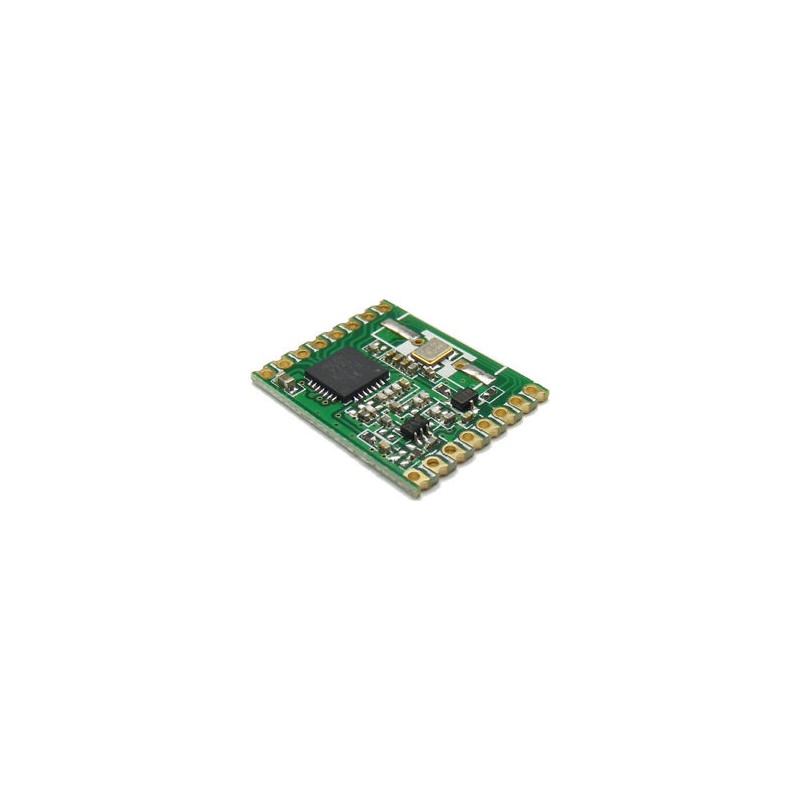

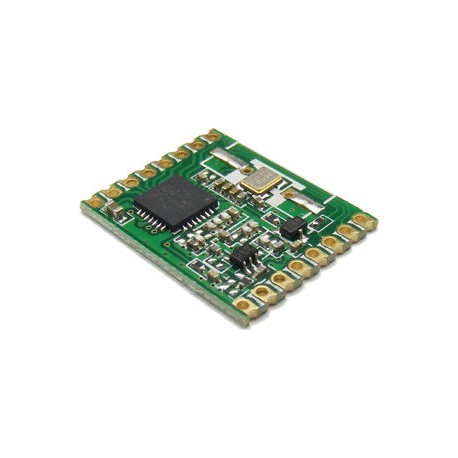

RFM69HW siųstuvo/imtuvo modulis 433MHz

The RFM69HW is a transceiver module capable of operation over a wide frequency range, including the 315,433,868 and 915MHz license-free ISM (Industry Scientific and Medical) frequency bands. All major RF communication parameters are programmable and most of them can be dynamically set. The RFM69HW offers the unique advantage of programmable narrow-band and wide- band communication modes. The RFM69HW is optimized for low power consumption while offering high RF output power and channelized operation. Compliance ETSI and FCC regulations. In order to better use RFM69HW modules, this specification also involves a large number of the parameters and functions of its core chip RF69H's,including those IC pins which are not leaded out. All of these can help customers gain a better understanding of the performance of RFM69HW modules, and enhance the application skills

KEY PRODUCT FEATURES:

+20 dBm - 100 mW Power Output Capability

High Sensitivity: down to -120 dBm at 1.2 kbps

High Selectivity: 16-tap FIR Channel Filter

Bullet-proof front end: IIP3 = -18 dBm, IIP2 = +35 dBm,80 dB Blocking Immunity, no Image Frequency response

Low current: Rx = 16 mA, 100nA register retention

Programmable Pout: -18 to +20 dBm in 1dB steps

Constant RF performance over voltage range of module

FSK Bit rates up to 300 kb/s

Fully integrated synthesizer with a resolution of 61 Hz

FSK, GFSK, MSK, GMSK and OOK modulations

Built-in Bit Synchronizer performing Clock Recovery

Incoming Sync Word Recognition

115 dB+ Dynamic Range RSSI A

utomatic RF Sense with ultra-fast AFC

Packet engine with CRC-16, AES-128, 66-byte FIFO

Built-in temperature sensor

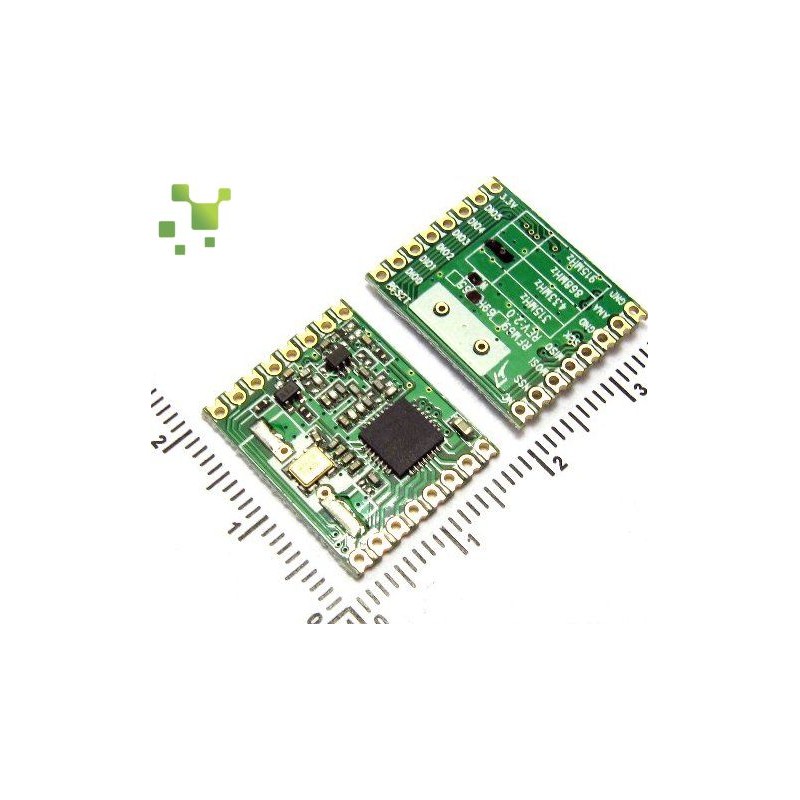

Module Size:19.7X16mm
