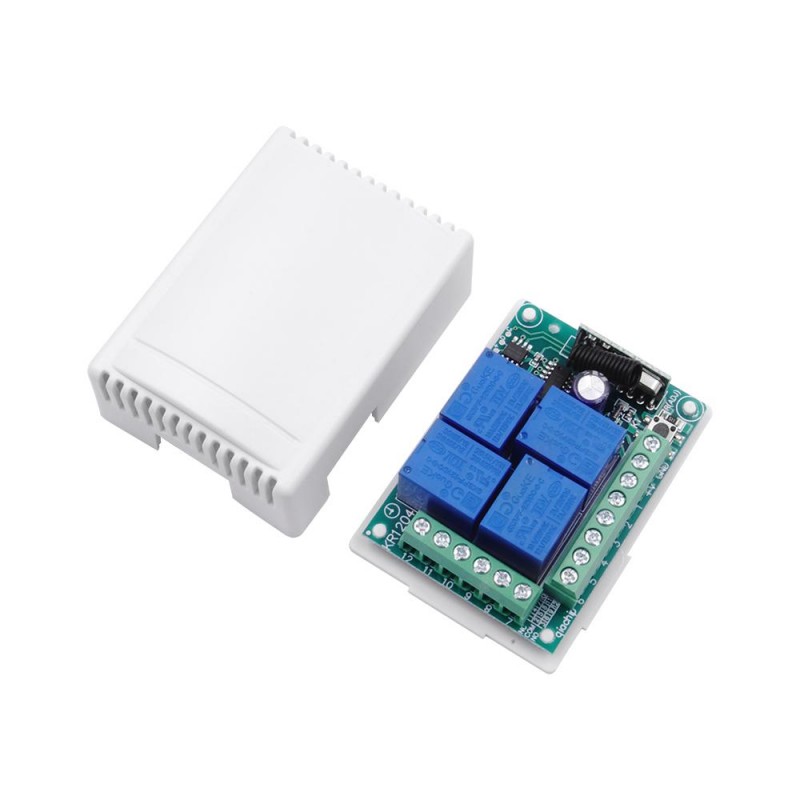

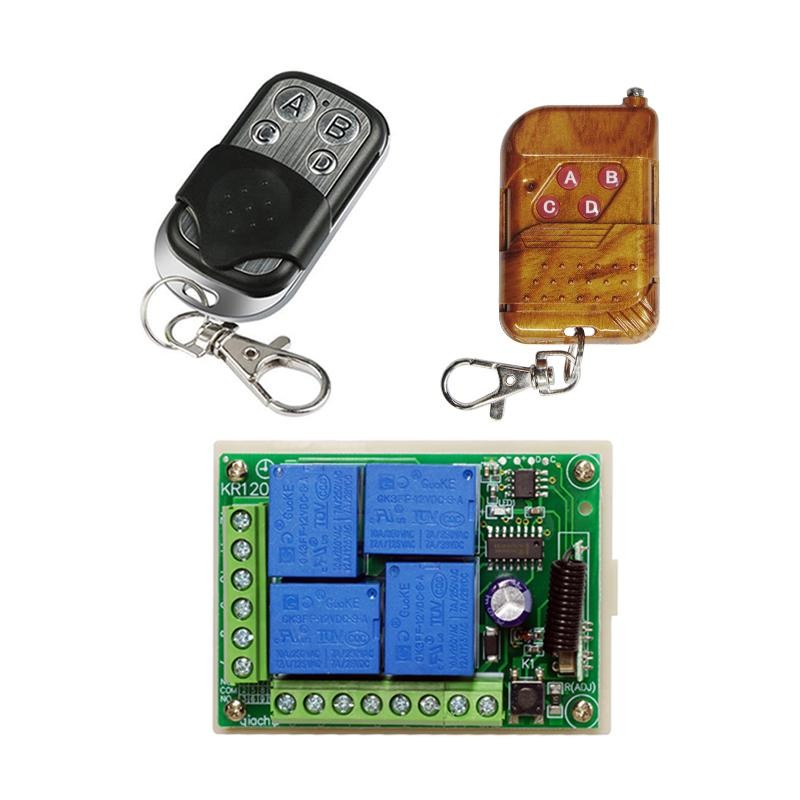

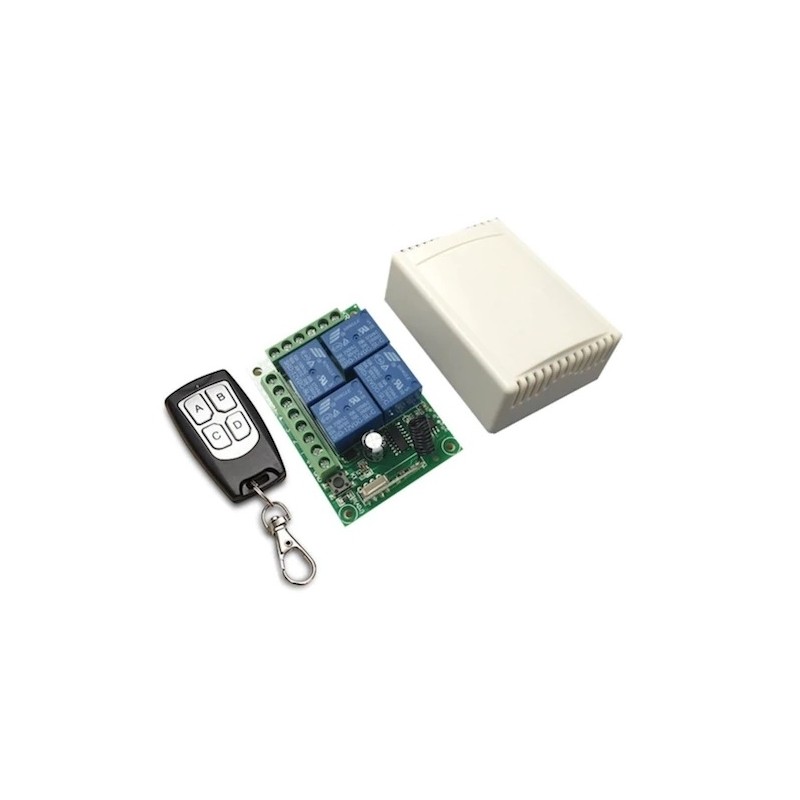

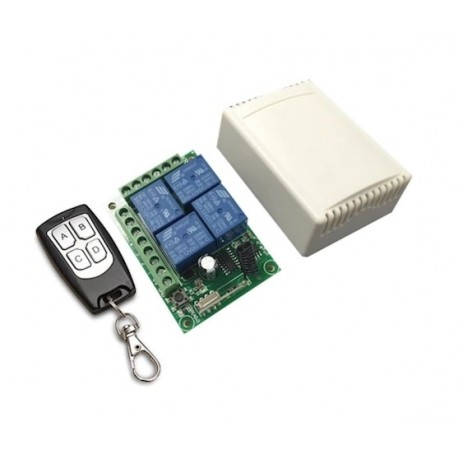

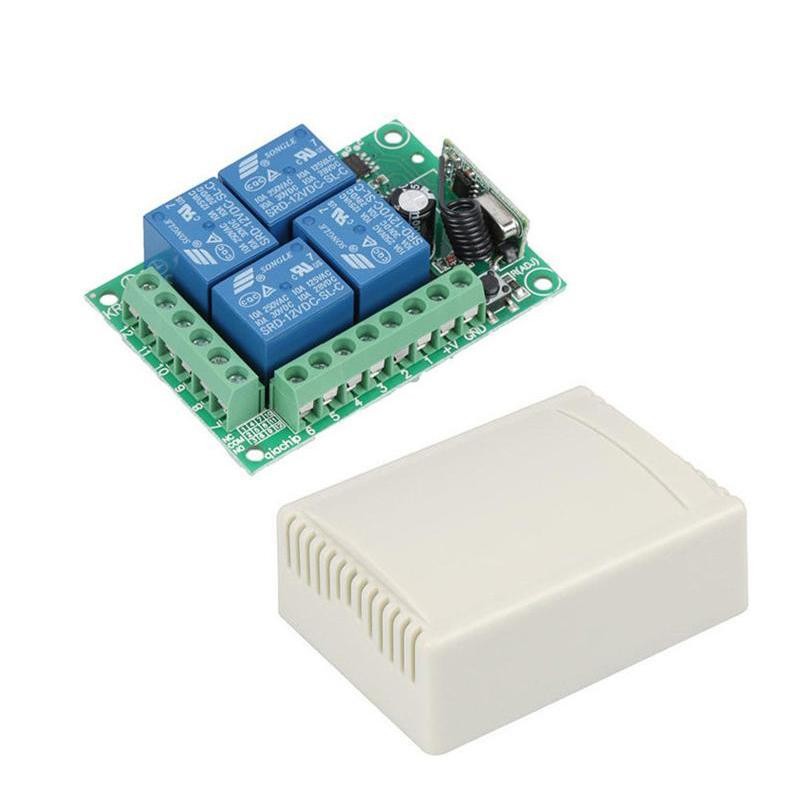

4 kanalų bevielė relė su 433MHz nuotolinio valdymo pulteliu (su bat.)

DĖMESIO! Komplekte esančio pultelio veikimas yra keletas metrų. Norint pasiekti didesnius darbinius atstumus, naudokite atskirai parduodamus pultelius, Pvz. d0913, d1113, d1311, d1507.

7 veikimo režimai:

1) Momentary: relės būsena pakeičiama tik kol laikomas mygtukas (kai kurie papildomai perkami pulteliai max iki ~9s).

2) Toggle: paspaudus pakeičiama relės būsena;

3) Latched: mygtukas įjungia atitinkamą relę ir išjungia visas likusias reles;

4-7) 1-3 režimų kombinacijos, žr. žemiau.

• Didelės valdomos srovės relė: AC240V 7A; DC24V 10A
• NO ir NC kontaktai

Pagal nutylėjimą, komplekte esantis pultelis nėra susietas.

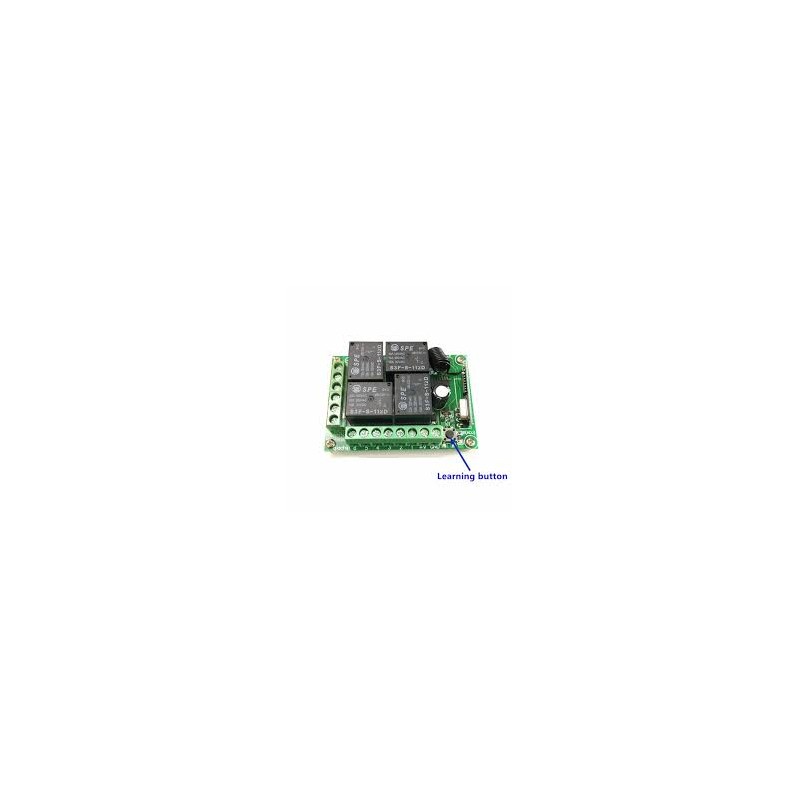

Imtuvo viduje esančiu mygtuku galima "pririšti" vieną ar kelis pultelius. Galima naudoti d0913 ar kitus 433MHz pultelius su įvairiu mygtukų kiekiu (mažiau mygtukų gali valdyti ne visas reles).

Paspauskite imtuvo viduje esantį mygtuką tiek kartų, kokį veikimo režimą (1-7) norite paskirti siejamam pulteliui. LED mirktels ir pradės šviesti. Paspauskite pirmą pultelio mygtuką. LED mirktels 3 kartus. Galite naudoti arba susieti dar kitą pultelį.

Šį mygtuką nuspaudus 8 kartus, imtuvas "pamiršta" išmoktus pultelių kodus (LED mirkteli 8 kartus). Prieš keisdami režimo numerį, turite išvalyti pultelių atmintį.

SPECIFICATION
1. Working Voltage:DC12V
2. Quiescent Current:5mA
3. Working Frequency:433Mhz/315Mhz
4. Receiving Sensitivity:-104dBm
5. Function option:Momentary/Toggle/Latching
6. Modulation Mode:ASK
7. Matching Mode: Intelligent Learning code
8. Output Mode:Dry contact /Voltage output
9. Shell:Yes
10. Working temperature : -30~+80

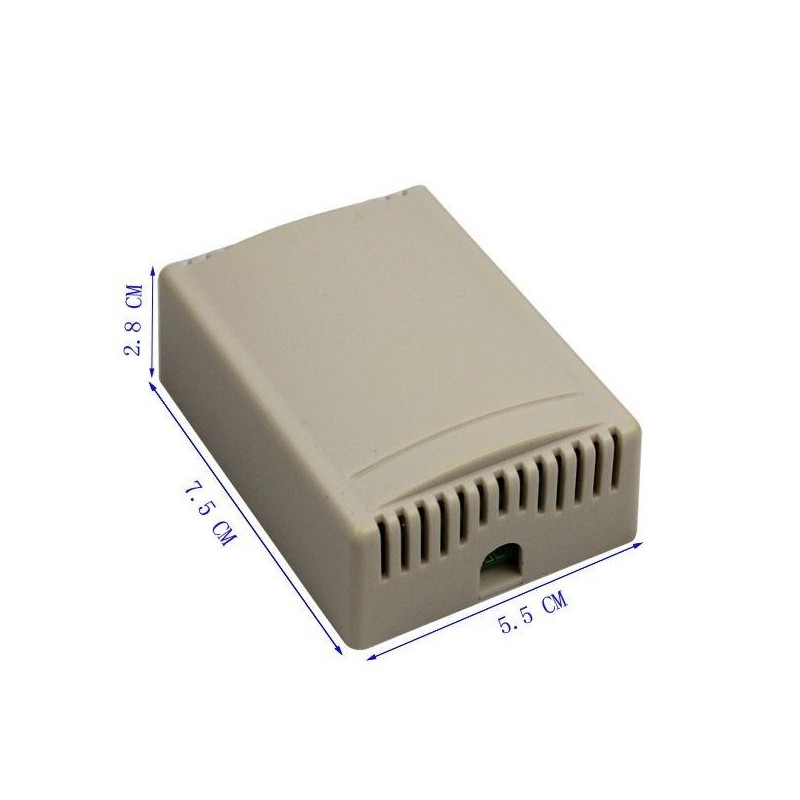

11. PCB dimension:68.2x48.2(mm)

OPERATION

1. Momentary Mode: press the learning key button on the receiver board once ( Led indicator on receiver board will flash simultaneously ), then press any of the remote button, LED indicator flashes 3 times on the receiver indicates momentary mode successfully paired.
2. Toggle Mode: press the learning key button on the receiver board twice (Led indicator on receiver board will flash simultaneously), then press any of the remote button , LED indicator flashes 3 times on the receiver indicates toggle mode successfully paired.
3. Latching Mode: press the learning key button on the receiver board for 3 times ( Led indicator on receiver board will flash simultaneously ), then press the first remote button ,follow on second remote button , LED indicator flashes 3 times on the receiver indicates latching mode successfully paired (switch on with the first button , switch off with the second button).
4. 2CH momentary + 2CH Toggle: press the learning key button on the receiver board for 4 times (Led indicator on receiver board will flash simultaneously), then press any of the remote button, LED indicator flashes 3 times on the receiver indicates pair successfully .
5. 2CH Momentary + 2CH Latching: press the learning key button on the receiver board for 5 times ( Led indicator on receiver board will flash simultaneously), then press any of the remote button, LED indicator flashes 3 times on the receiver indicates pair successfully.
6. 2CH Toggle + 2CH Latching: press the learning key button on the receiver board for 6 times (Led indicator on receiver board will flash simultaneously), then press any of the remote button , LED indicator flashes 3 times on the receiver indicates pair successfully.
7. 2CH Latching + 2CH Latching: press the learning key button on the receiver board for 7 times (Led indicator on receiver board will flash simultaneously), then press any of the remote button , LED indicator flashes 3 times on the receiver indicates pair successfully.
8. Deleting existing data on the remote control: press the learning key button on the receiver board for 8 times, the LED indicator on receiver board will flash for eight times , the existing data on remote controls are successfully deleted.

TERMINAL INSTRUCTIONS

+V — Positive pole input
GND — Negative pole input
1 —KC1 Normal Closed of relay
2 —KC1 Common of relay
3 —KC1 Normal Open of relay
4 —KC3 Normal Closed of relay
5 —KC3 Common of relay
6 —KC3 Normal Open of relay
7 —KC2 Normal Closed of relay
8 —KC2 Common of relay
9 —KC2 Normal Open of relay
10 —KC4 Normal Closed of relay
11 —KC4 Common of relay
12 —KC4 Normal Open of relay
