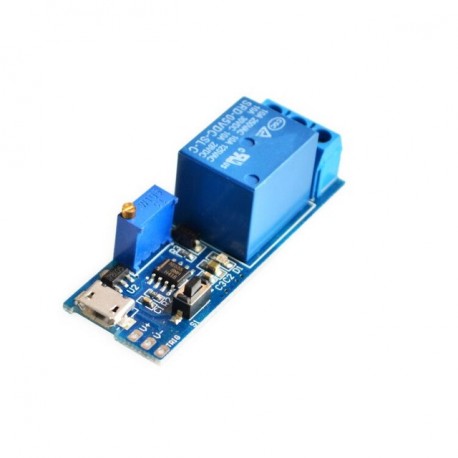

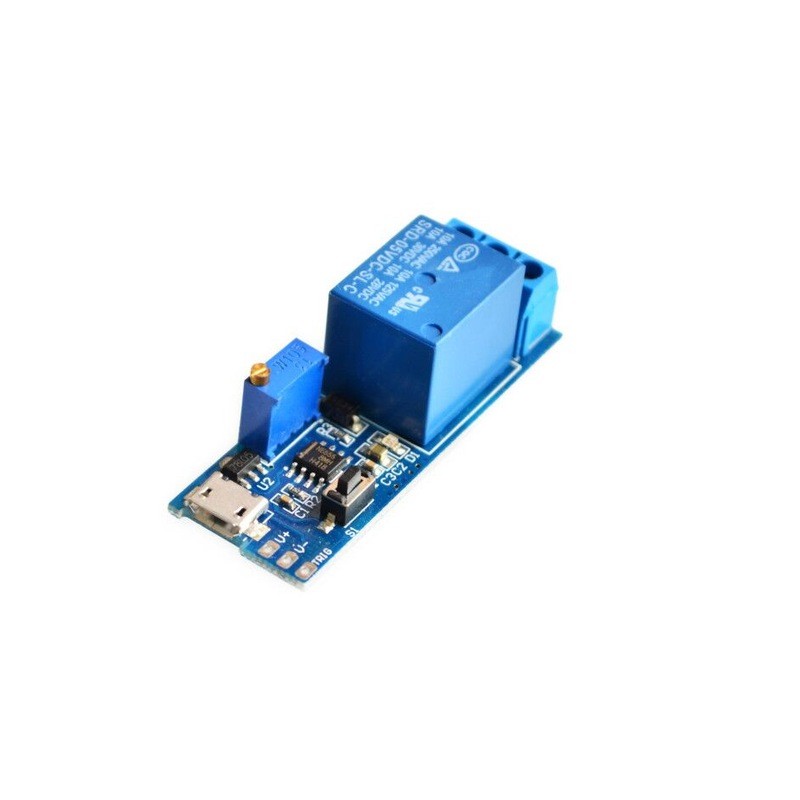

5-30V laiko relės modulis

Modulis gali būti jungiamas tiesiai prie *duino plokštės ar mikrovaldiklio išėjimo.

• Didelės valdomos srovės relė: AC250V 10A; DC30V 10A
• Reguliuojama relės įjungimo trukmė po trigerio impulso signalo: nuo 0 iki 24 s
• Esant pastoviam trigerio signalo, relės išjungimas atidedamas iki trigerio signalo dingimo.

1. Wide range working voltage: 5-30V

2. Two-pin power supply terminal or the MicroUSB connector
3. Relay is off on power-on
3. The time can be adjusted by potentiometer: 0-24 seconds. If you need more time, C2 may be replaced by the larger capacitor or the potentiometer can be replaced. Delay time formula: T = 1.1*R*C. For example: Capacitor 22uf resistance 1M T = 1.1 * 0.000022 * 1000000 = 24.2 seconds.
4. With relay LED indicator.
5. Control: 10A 250VAC (AC), 10A 30VDC (DC) or less load.
6. Has freewheeling protection diode.
7. Size: 5.4 * 1.9 * 1.8cm (L * W * H)
