4 funkcijų laiko relė (12V)

P-1: Relė sujungiama nustatytam laikui po trigerio signalo atsiradimo.

P-2: Po trigerio signalo atsiradimo, skaičiuojamas laikas T1. Suveikia relė. Skaičiuojamas laikas T2. Relė išsijungia.

P-3: Relė susijungia laikui T1. Atsijungia laikui T2. Kartojasi kol modulis maitinamas ar pakeičiamas režimas.

P-4: Kaip P-1, tik relė suveikia ir skaičiuoti pradedam po to kai trigerio signalas dingsta.

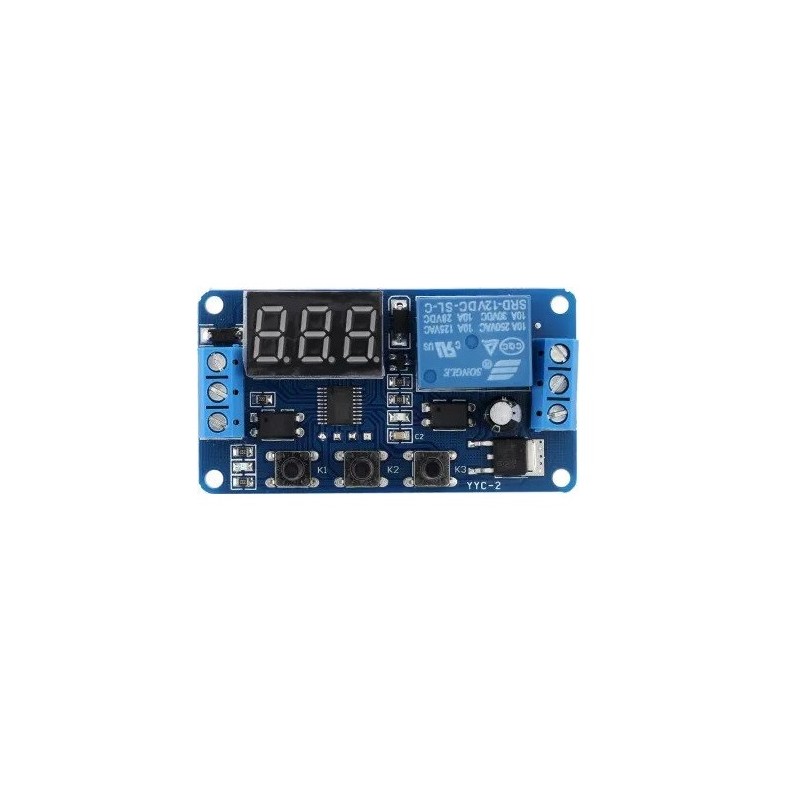

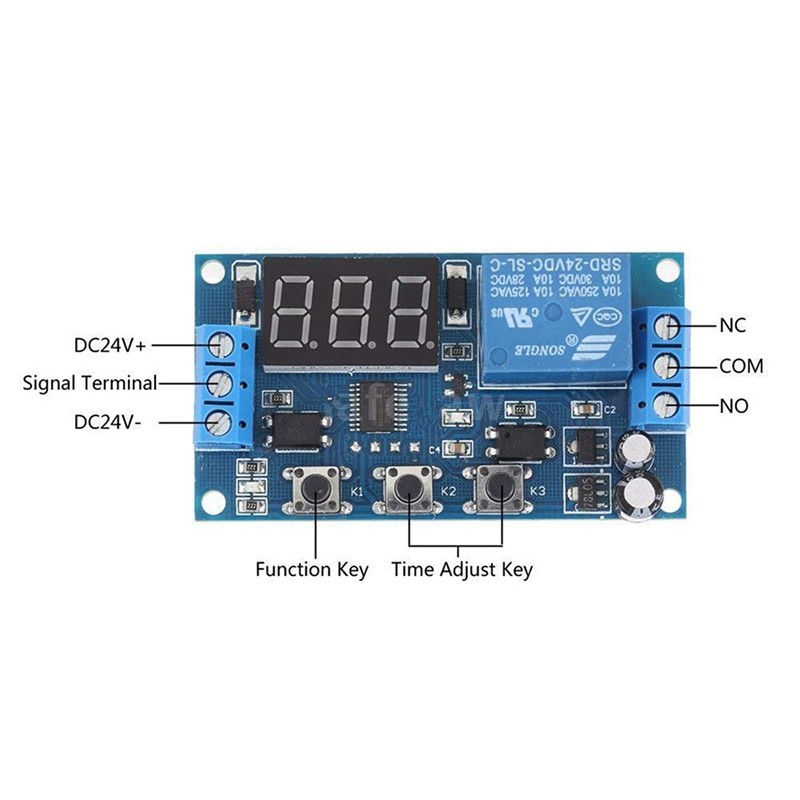

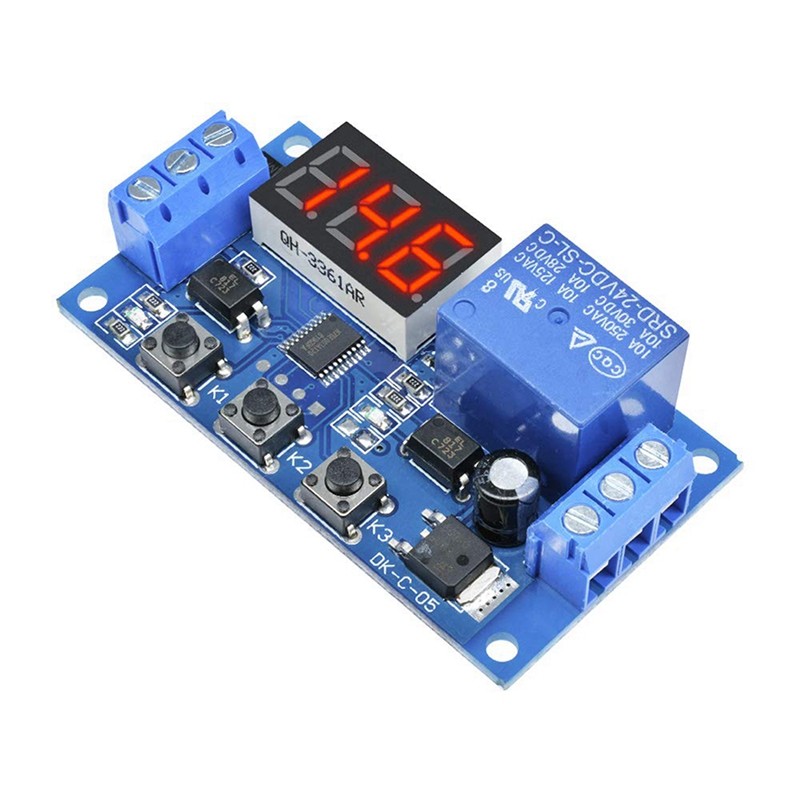

Mygtukai:

K1 - palaikius galima pakeisti funkciją (P 1-4);

K2 - išsaugomas funkcijos pasirinkimas arba nustatytas skaitmuo.

K3 - keičiama mirksinčio skaitmens reikšmė arba keičiama laiko konstanta (00.0 s / 000 s / 000. min)

Features:
New upgrades to simplify, meeting the users' needs.
Increase the power supply anti-reverse function.
The use of opto isolated input and output, enhanced anti-jamming capability and consumption.
The last setting parameters can be memorized after power off.
Signal terminal voltage signal can be maintained for a long time.
To ensure stability, industrial grade PCB board.

Notice:

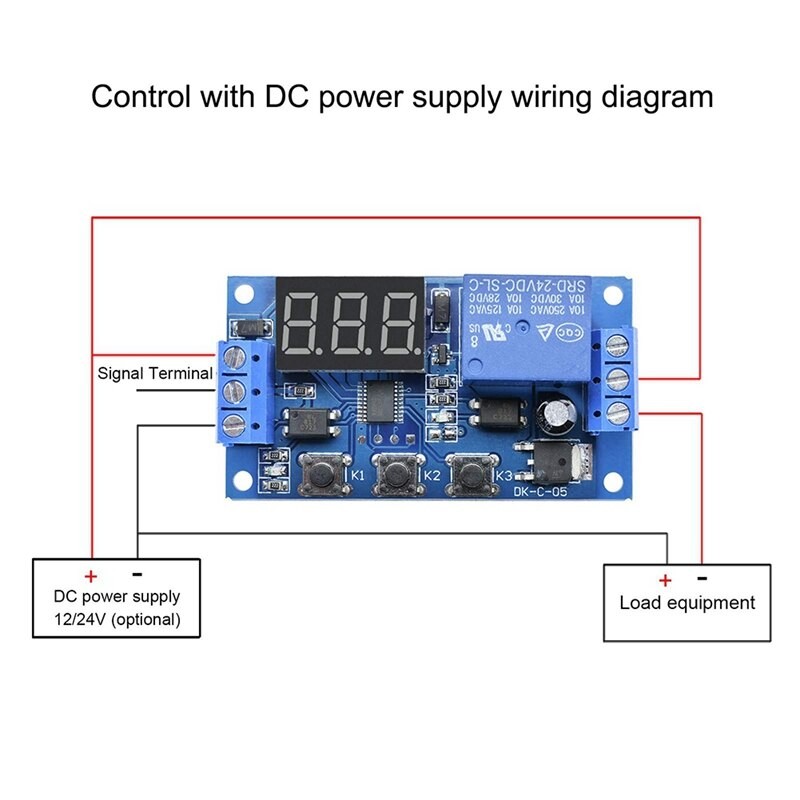

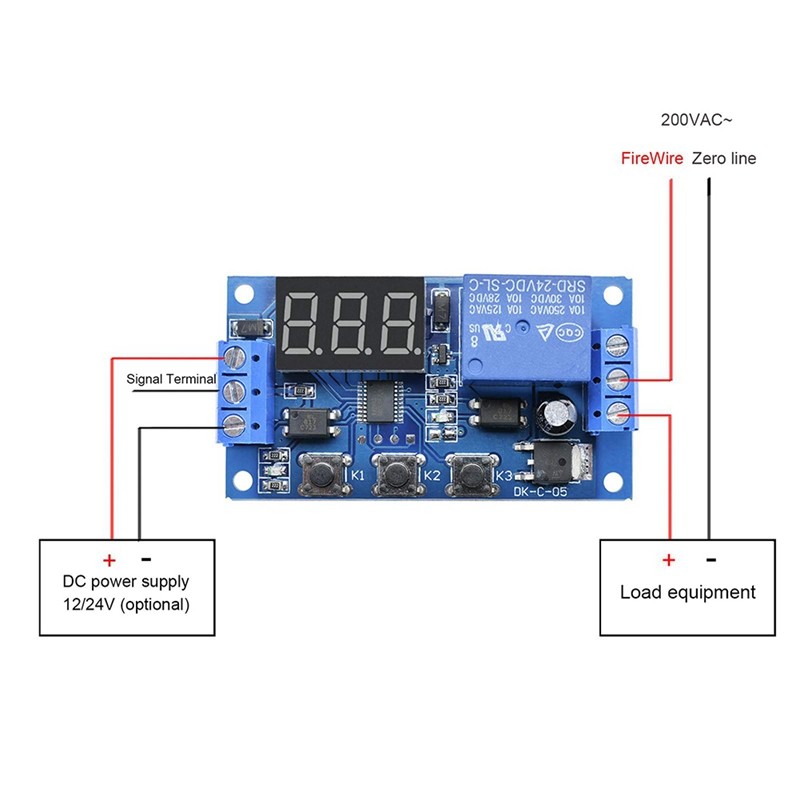

Relay output is passive contact without charge output, and it control the on and off of the line.

Working modes selection: after power on, long press K1 for 2s, later into the selection of modes: P1~4; K2 to enter the mode.
P-1: Monostable trigger delay, a signal to trigger relay, time is up, the relay disconnect;
P-2: A signal trigger and countdown begins, T1 seconds after, the relay open T2 seconds, then close;
P-3: Open T1 seconds, disconnect T2 seconds, infinite loop. Users can set the relay time T1 and T2;
P-4: The relay opens when a signal triggers, when the trigger signal disappears, digital countdown begins, and the relay closes when the time is up.

Specifications:
Timing Range(Settable): 0.1~99.9 seconds; 1~999 seconds; 1~999 minutes
Working Voltage: DC 12V
Signal Voltage: DC 4~20V
Output Capacity: Can Control the Load within DC 28V 10A or AC 250V 10A (non-inductive load)
Static Current: 20mA
Working Current: 50mA
Working Temperature: -40-85°C
PCB Size: 64 * 35 * 18mm / 2.52 * 1.4 * 0.7in (L * W * H)
PCB Weight: 25g / 0.89oz
Case Size: 68 * 40 * 2 2mm / 2.67 * 1.57 * 0.86in (L * W * H)
Product Weight(With Case): 42g / 1.49oz
Package Size: 11.5 * 7 * 2.2cm / 4.53 * 2.75 * 0.86in (L * W * H)

Package List:

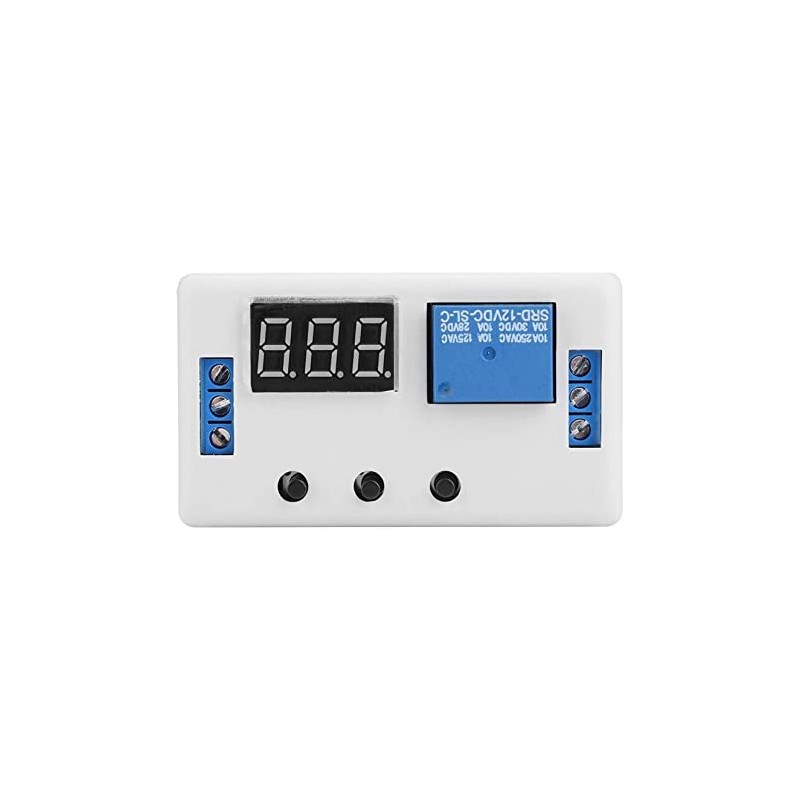

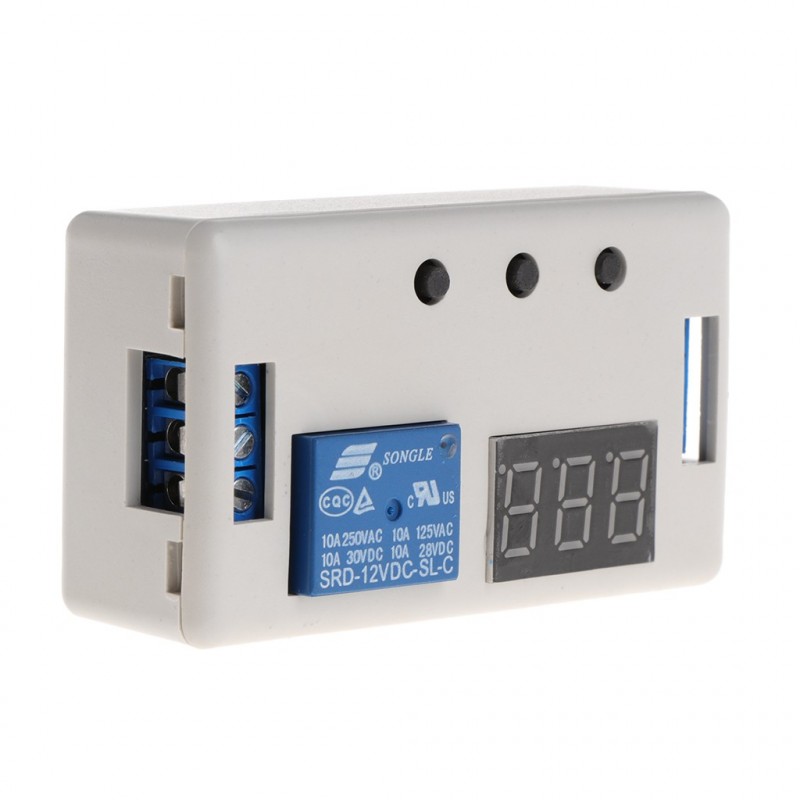

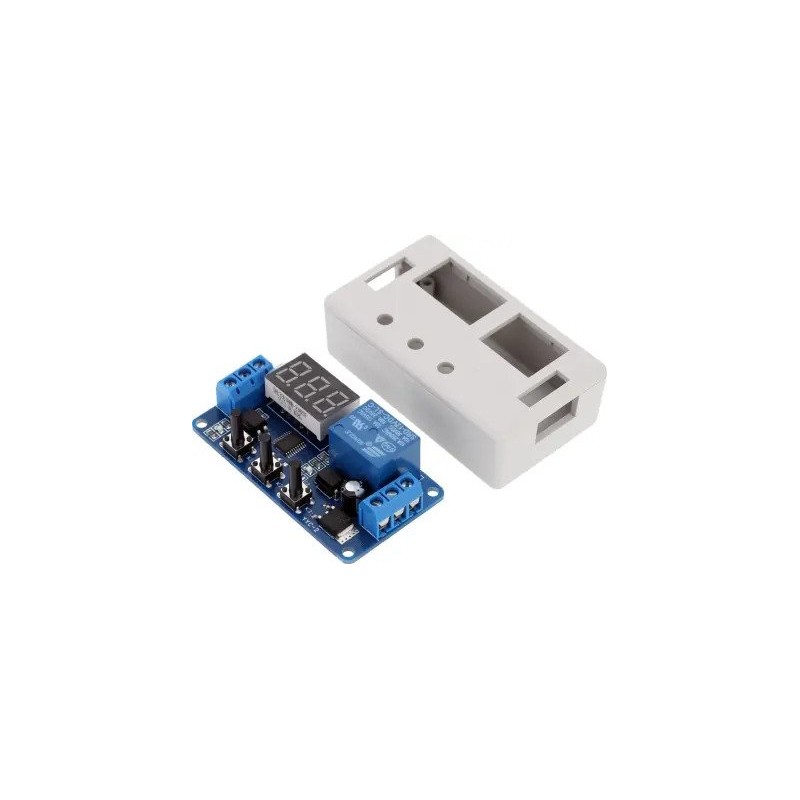

1 * Delay Timer Module with Case
