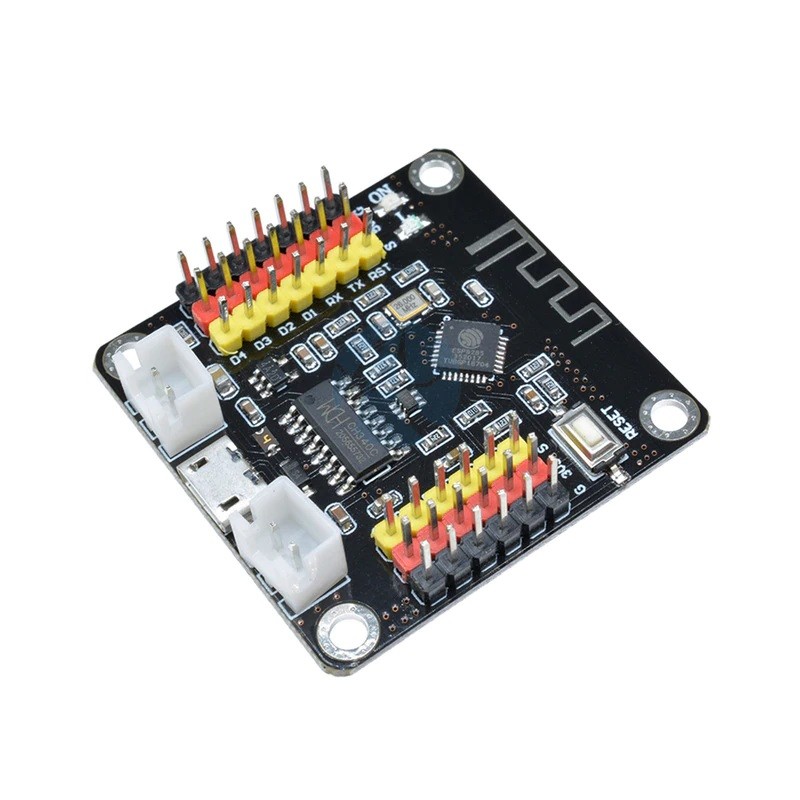

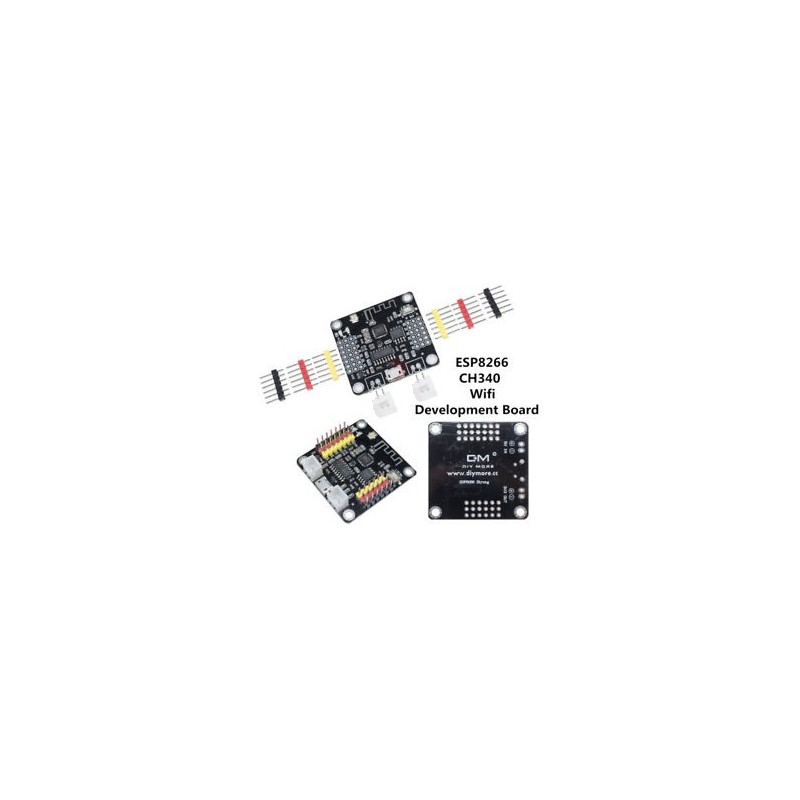

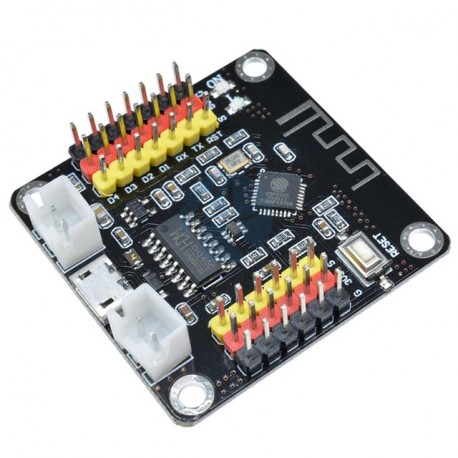

STRONG pagrindinė plokštė ESP8266

Šioje Nano versijoje yra naudojama CH340 USB sąsajos mikroschema.

Features:
ESP8266 strong, this is a brand-new design, connects to the computer through Micro USB, For arduino IDE downloads the program, compatible Nodemcu, very convenient! We have exported all I/Os and power supplies. It can be easily connected to your application via the DuPont cable.
The ESP8266 is a highly integrated chip specifically developed for the needs of wireless connectivity. It is a complete and self-contained Wi-Fi network solution. It can carry software applications and can also offload all Wi-Fi network functions through another application processor. ESP8266EX has powerful on-chip processing and storage capabilities, which allows it to integrate sensors and other application-specific devices through the GPIO port, which shortens upfront development time and minimizes the use of running system resources.

Specifications:
802.11 b/g/n
Integrated low power 32-bit MCU
Integrated TCP/IP protocol stack
Wi-Fi 2.4 GHz, support WPA/WPA2
Support STA/AP/STA+AP operation modes
Support Smart Link Function for both Android and iOS devices
SDIO 2.0, SPI, UART
STBC, 1x1 MIMO, 2x1 MIMO
A-MPDU & A-MSDU aggregation & 0.4ìs guard interval
Deep sleep power <10uA, Power down leakage current < 5uA
Wake up and transmit packets in < 2ms
Standby power consumption of < 1d.0mW (DTIM3)
+20dBm output power in 802.11b mode
Integrated 10-bit ADC
Integrated TR switch, balun, LNA, power amplifier and matching network
Integrated PLL, regulators, and power management units
Supports antenna diversity
