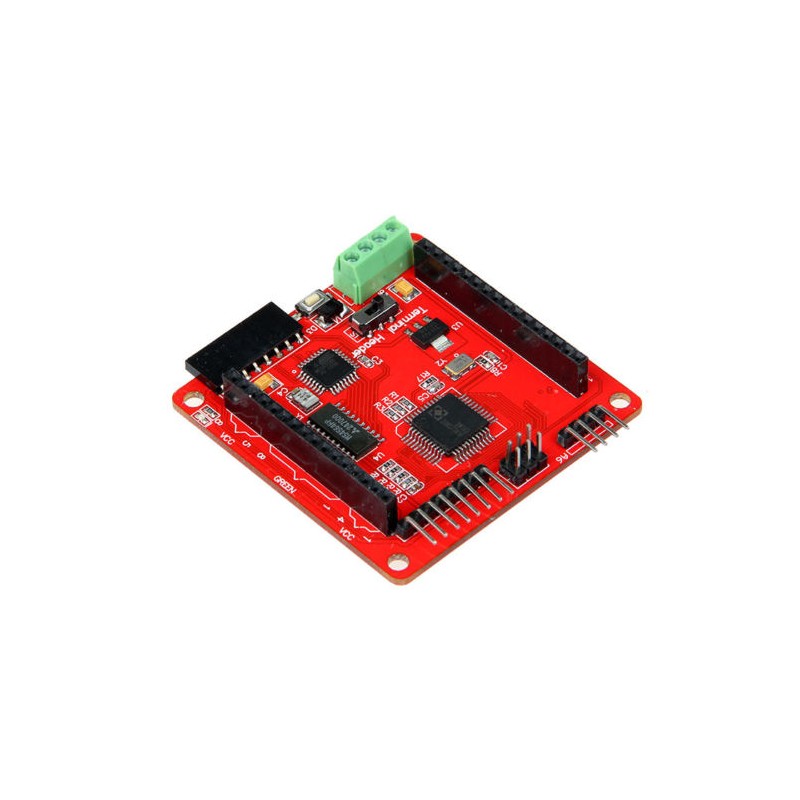

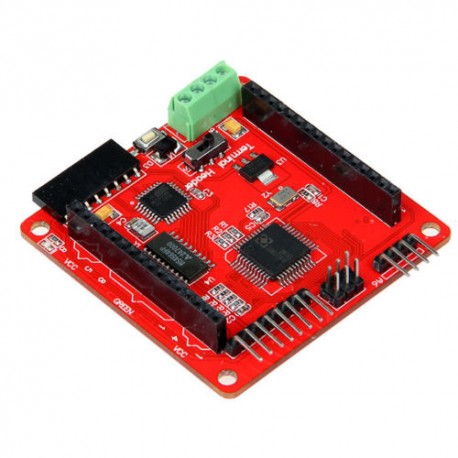

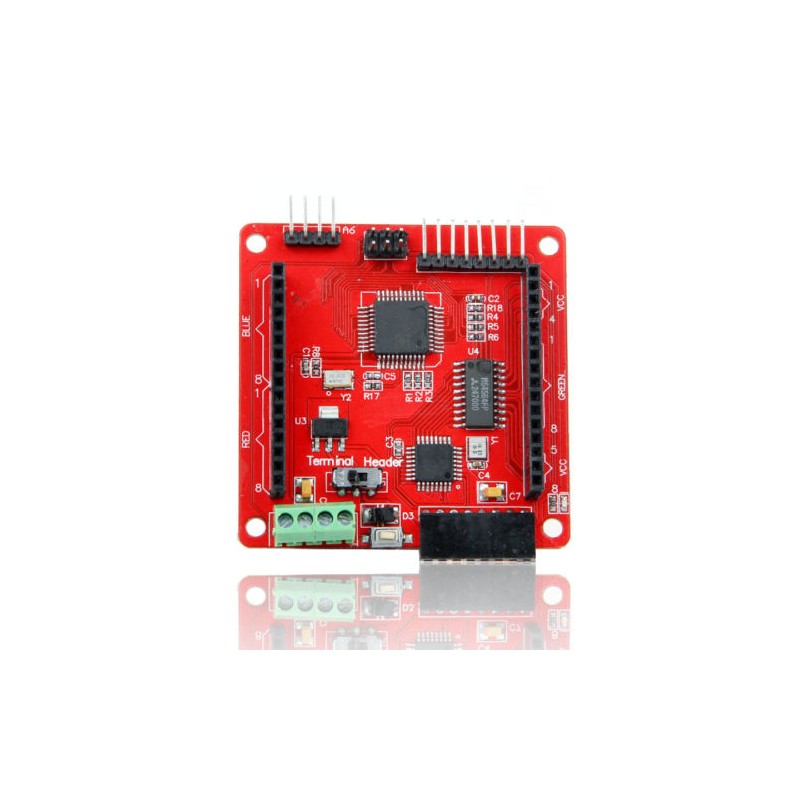

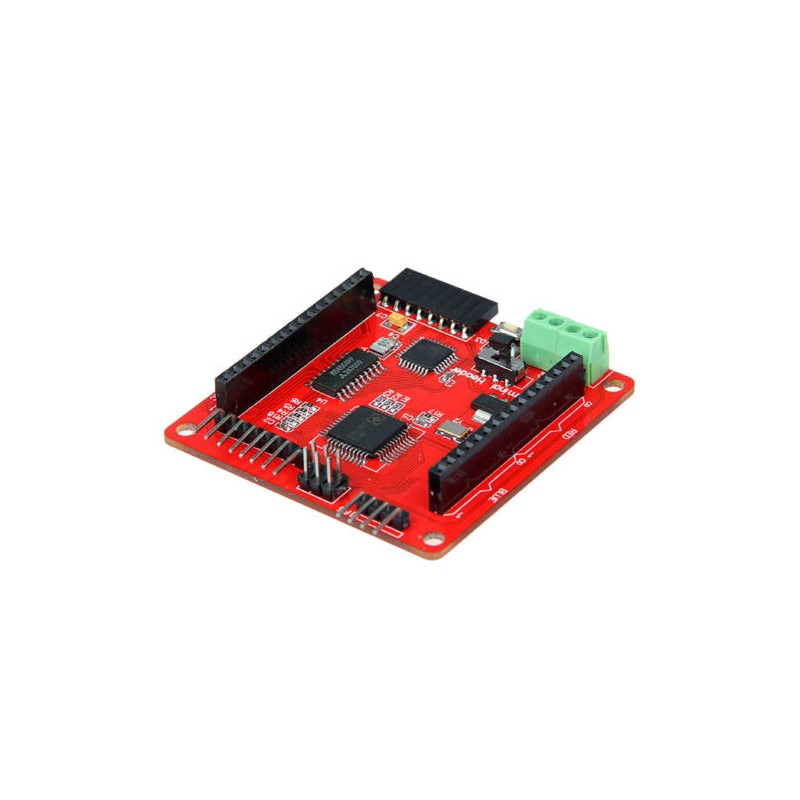

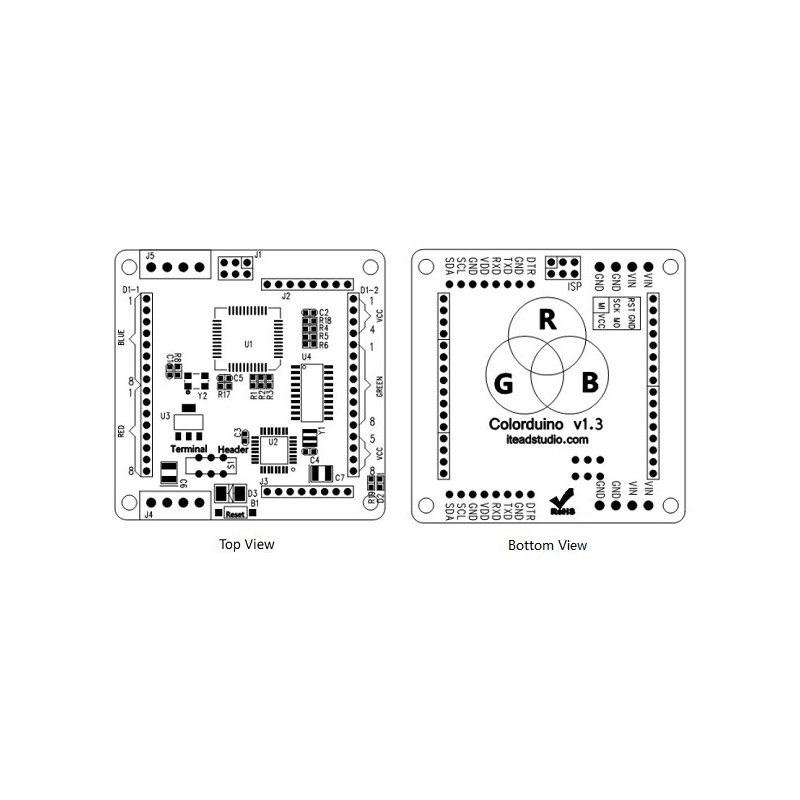

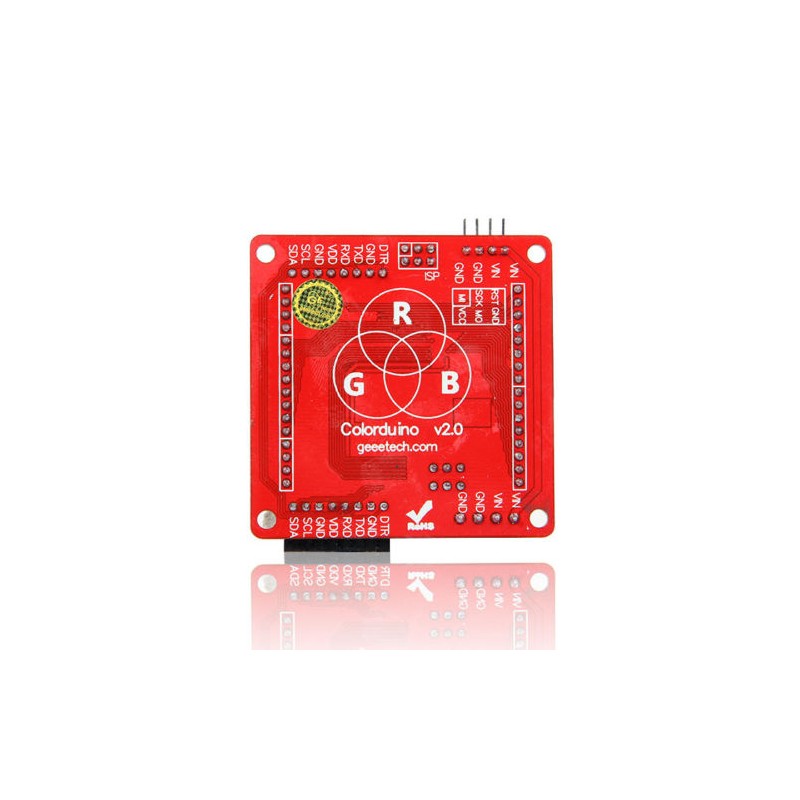

Tai yra *duino pagrindinė plokštė dedikuota 8x8 RGB LED matricų (60x60 mm)valdymui. Patogiai prijungiama viena RGB matrica, o tokie moduliai gali būti sujungiami į bendrą magistralę - taip valdote dar daugiau RGB LED šviestukų. Patogiam programavimui yra parengta colorduino biblioteka.
Prekių kiekis mūsų sandėlyje: 1
Dėmesio: Paskutinės prekės!
Pasiekiama:
Suderinama su Arduino™ ir *duino | Taip |
Mikrovaldiklis | ATmega328P-AU |
Nominali darbinė įtampa | 5V |
Maitinimo įtampa | 3,3-7,5V (DC) |
Maksimali nuolatinė pavienio išėjimo srovė | 58mA kiekvienam RGB LED'ui |
Jungties žingsnis | 2,54mm |
Matmenys | 60 x 60 |
USB | Ne |
Komunikacijų sąsajos | UART, IIC (programavimui: UART, ISP ) |
Spalvos | 16M spalvų |
Pagrindinės funkcijos grandynas | ATMEGA328P, M54564, DM163 |
The Colorduino is a RGB LED matrix driver platform basis on ATMega 328P. This design is to make user easily modify or write the firmware of Colorduino by Arduino IDE. Colorsduino pairs the M54564 with a single DM163 constant current driver. By using the DM163, the Colors shield gains three 8+6-bit channels of hardware PWM control of the LED’s freeing up the MCU from having to implement it in software. This gives the ATmega more CPU bandwidth for performing other tasks. Colorduino is easy to cascade by IIC and Power interface.
Features
8 bits colors support with 6 bits correction for each color in every dots Hardware 16MHz PWM support Without any external circuits, play and shine Dedicated GPIO and ADC interface Hardware UART and IIC communication with easy cascading 24 constant current channels of 100mA each 8 super source driver channels of 500mA each
Usage
Arduino Colorduino V2.1 | FT232RT-USB to TTL |
DTR | DTR |
GND | GND |
RXD | TXD |
TXD | RXD |
VDD | VDD |
Power to the board is either via pin headers or a set of mini screw terminals. A slide switch selects between the two. Various Pins are brought out the edge of the board including RX, TX and DTS, which can be connected to FT232 USB adapter to reprogram the onboard ATmega chip, and SCA and SCL for I2C communication. A green LED on the front of the board indicates power
