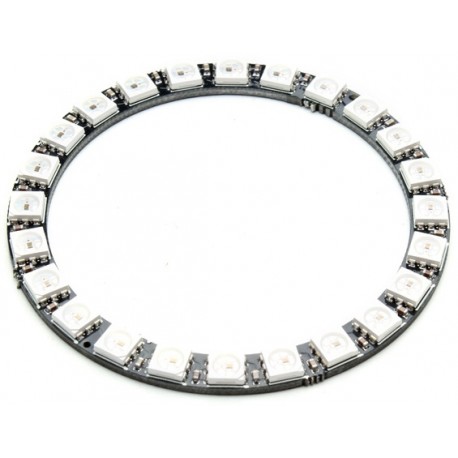

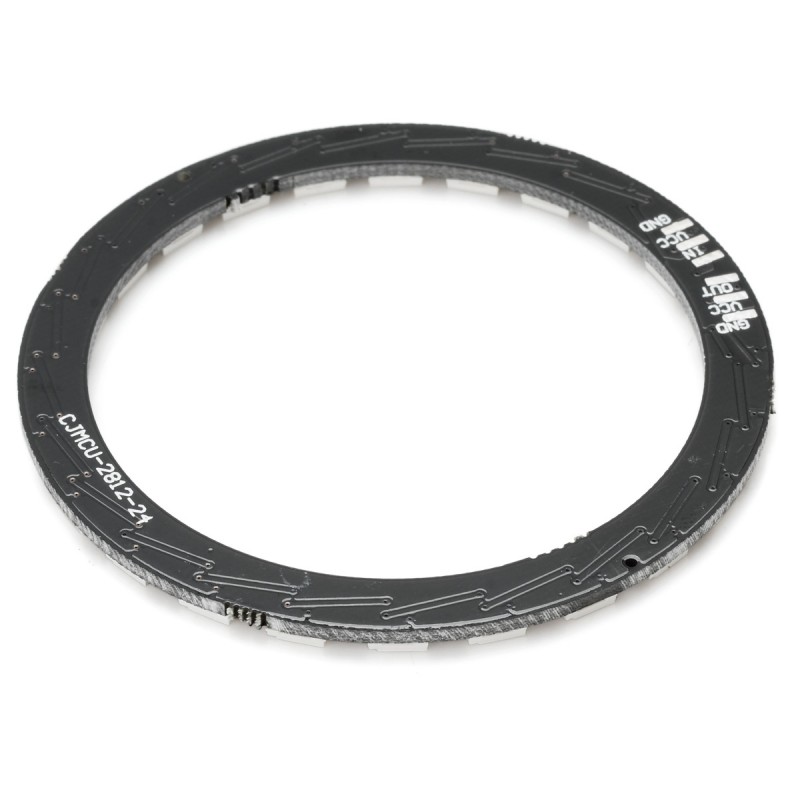

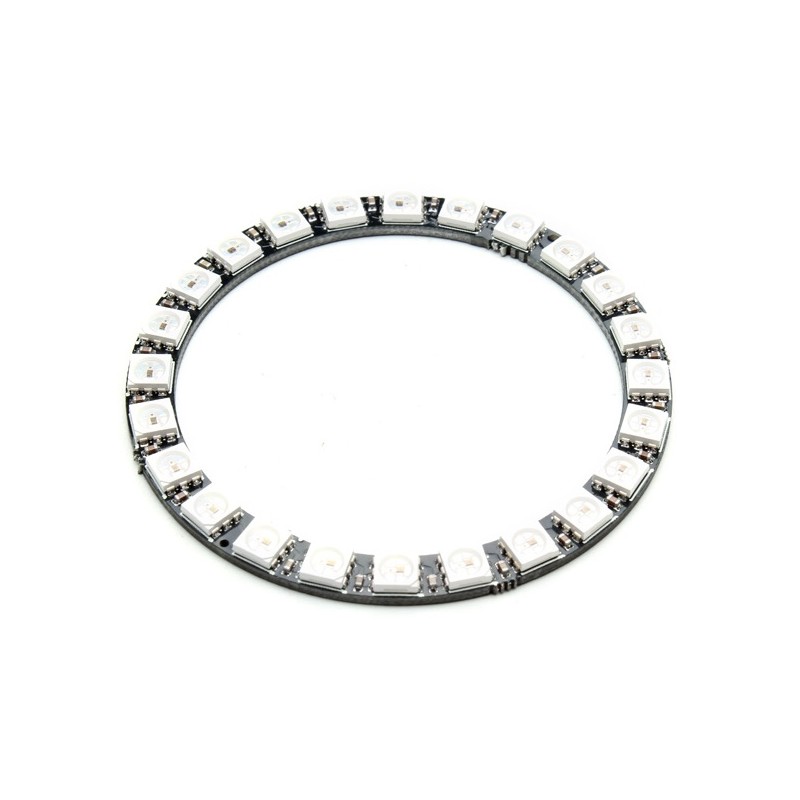

24 RGB LED matrica (d 66mm) su valdikliu WS2812

Features:
Intelligent reverse polarity protection, power supply reverse polarity will not damage the IC.
IC control circuit and a power LED spot light utility.
Control circuit chip with RGB components in a package in 5050, to form a complete external control pixels.
Built-in signal shaping circuit, any one pixel after receiving the signal through the waveform shaping and then output to ensure line waveform distortion will not accumulate.
Built-in power-on reset and brown-out reset circuit.
Trichromatic color of each pixel can realize 256 highlighted, complete 16777216 colors of all true color display, the scanning frequency is not less than 400Hz / s.
Serial cascade interface, through a signal line to complete the receiving and decoding of data.
Transfer transmission distance between any two points in less than 5 meters without any additional circuitry.
When the refresh rate of 30 frames / sec, cascading number of not less than 1024 points.
Data transmission speeds of up to 800Kbps.
The color of the light highly consistent, cost-effective.

Specifications:
Chip: WS2812
LED Color: RGB
LED Type: 5050
Board Color: Black
Outer Diameter: 66mm
Inner Diameter: 53mm
